Plan 86039BW
Master Down Modern House Plan with Outdoor Living Room - 3730 Sq Ft
Heated S.F.
3,730
Beds
3
Baths
3.5
Stories
2
Cars
3
Plan Details
  • This 3 bed modern house plan gives you the master on main and the remaining bedrooms upstairs maximizing your privacy. The window-filled exterior gives you great views and light inside.
  • Step inside the foyer and you'll marvel at the 2-story ceiling there and ahead in the great room. Ahead, the back wall of the great room slides open to get you access to the outdoor entertaining spaces in back, including the covered lanai with summer kitchen.
  • The main portion of the home has an open floor plan great for entertaining.
  • The master suite has access to the lanai and a large walk-in closet plus a walk-in shower and spa tub.
  • Upstairs, two beds each have their own baths. The loft area overlooks the great room below and the study located at the front of floor has a tray ceiling.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Master Down Modern House Plan with Outdoor Living Room - 3730 Sq Ft

  • 3,730

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

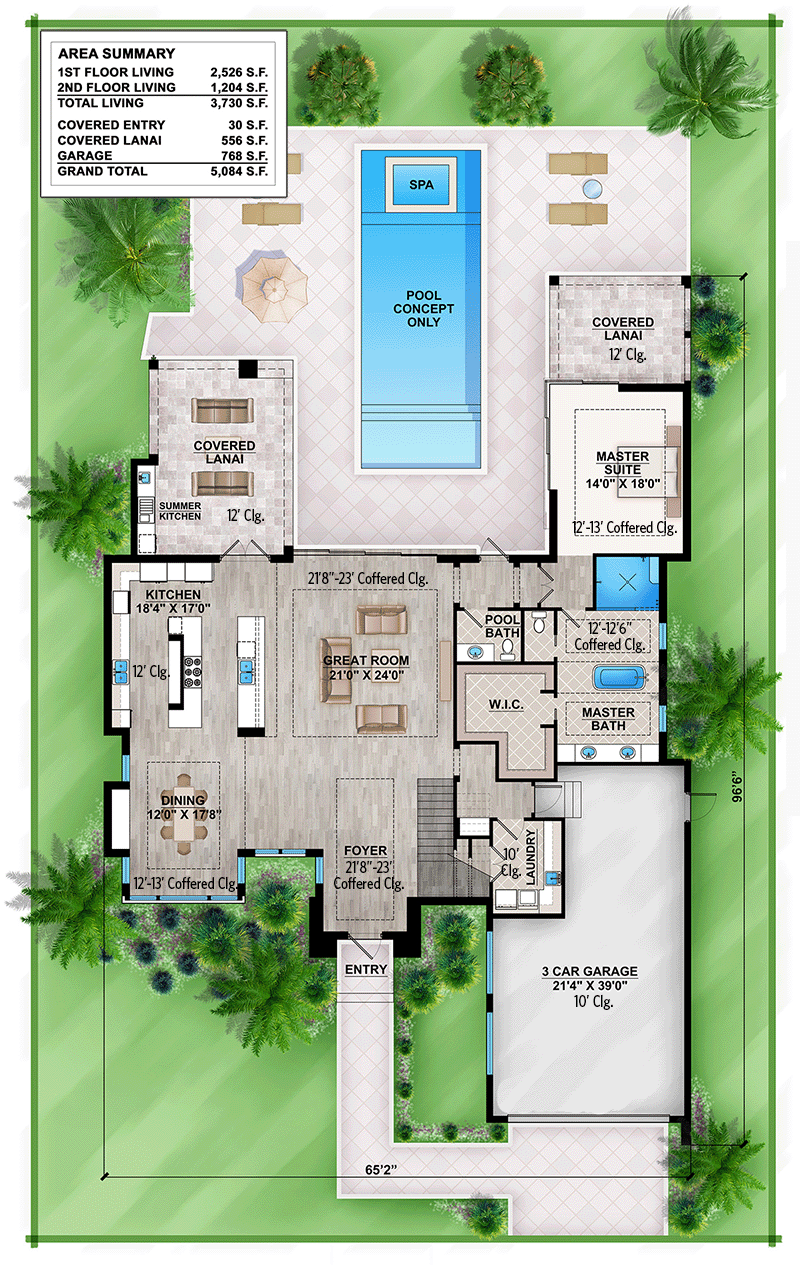

Floor Plan

  • Main Level

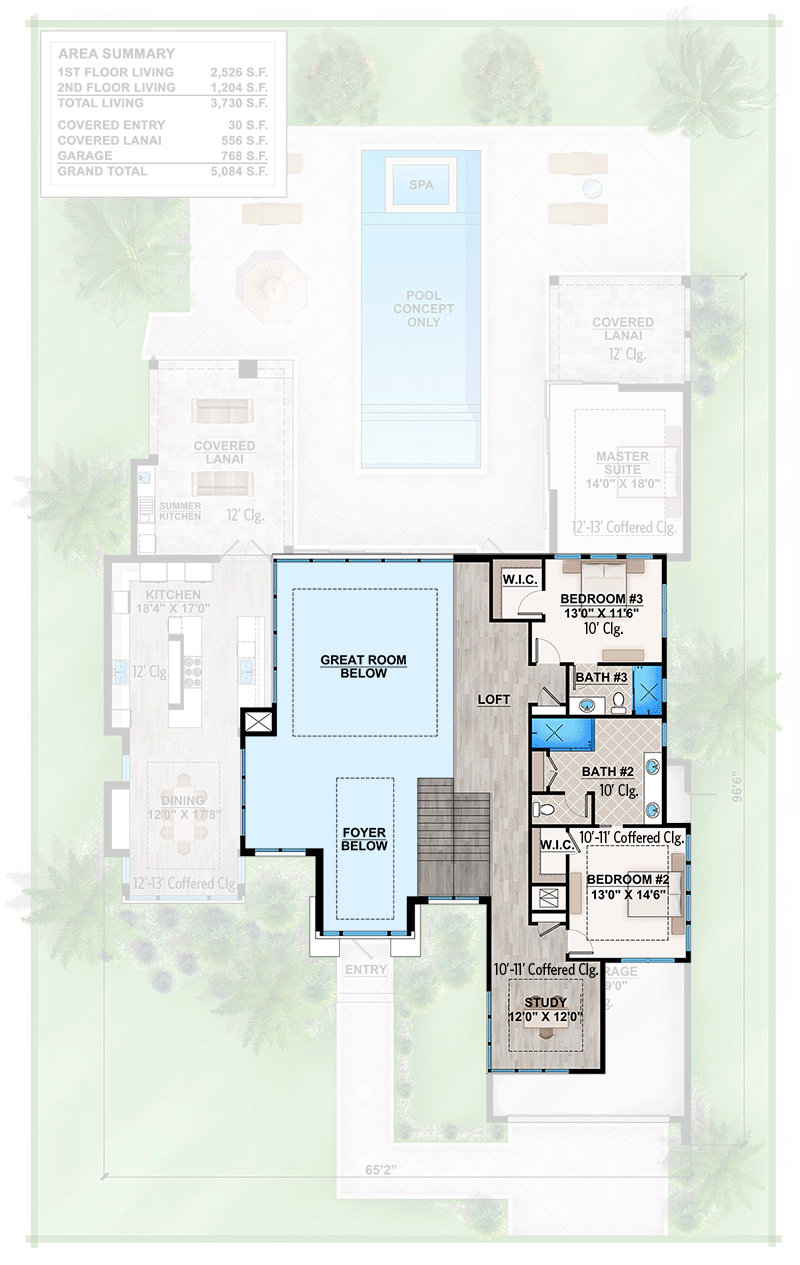

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,730 sq. ft.
  • 1st Floor: 2,526 sq. ft.
  • 2nd Floor: 1,204 sq. ft.

Dimensions

  • Width: 65' 2"
  • Depth: 96' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 768 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
