Master Up Cottage With Private Deck

Plan 20111GA

This plan plants 3 trees

1,592
Heated s.f.
3
Beds
2
Baths
1
Stories

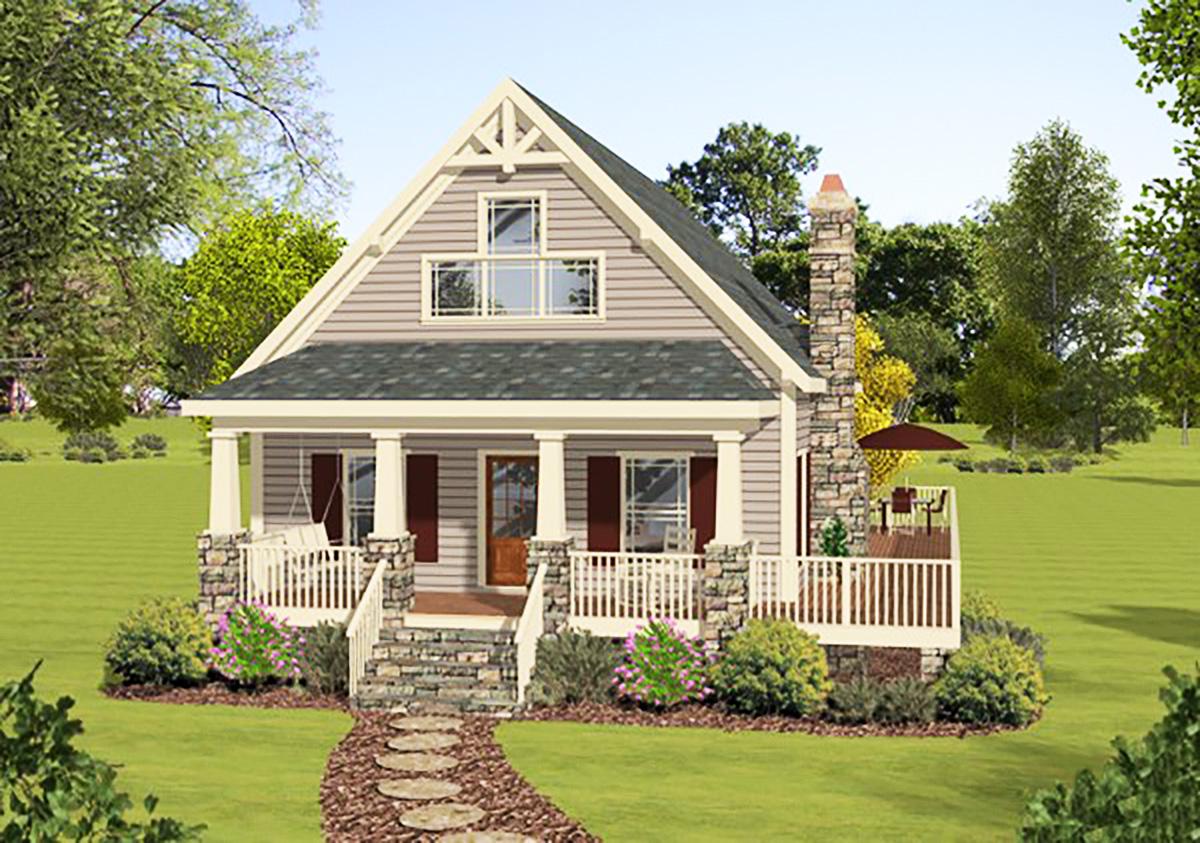

This adorable narrow lot cottage house plan has as charming exterior with shingle siding, a cozy front porch that turns into a deck that wraps the right side and back of the home giving you great outdoor spaces.
Inside, the great room ceiling soars above. The second floor balcony has views to this space.
The kitchen is open to the great room and has a large island with seating. Two beds share a bath and laundry completes the main floor.
The master bedroom is upstairs and has a prive deck overlooking the back.
Related Plans: Get a large upstairs loft/bedroom with cottage house plan 20115GA.
Get an attached garage with guest suite above with house plan 20079GA.

Each plan set includes the following:

Digital exterior rendering cover page
Exterior elevation page
Main floor plan page with electrical, 3-D floor plan, and window and door schedule
Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
Cross sections and interior elevation page
Roof framing plan with 3-D roof framing schematic
IRC code specifications and methodologies
General construction details

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

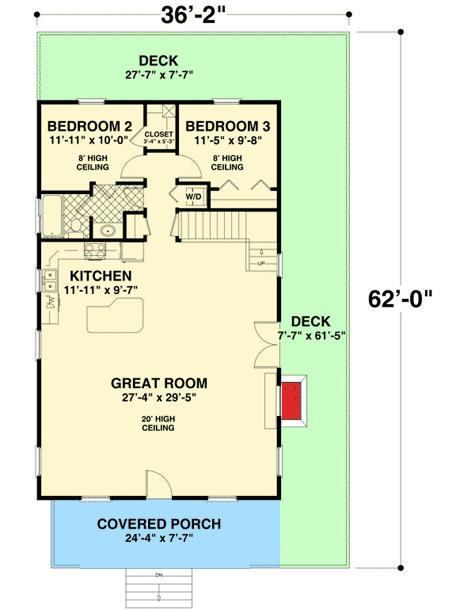

Master Up Cottage With Private Deck - 20111GA floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

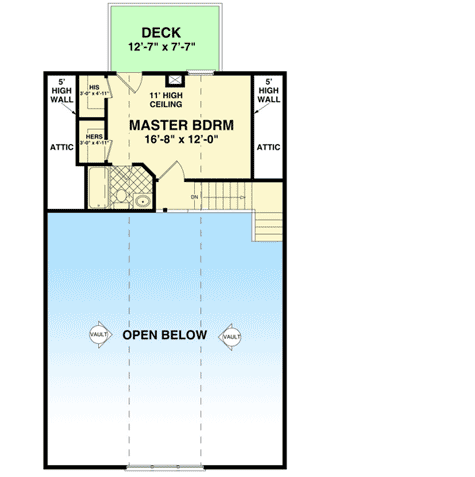

Master Up Cottage With Private Deck - 20111GA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,592 sq. ft.
1st Floor: 1,288 sq. ft.
2nd Floor: 304 sq. ft.

Deck: 96 sq. ft.
Optional Lower Level: 1,288 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 36' 2"
Depth: 62' 0"
Max ridge height: 25' 8"

Ceiling Heights

Floor / Height: First Floor / 8' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 4 on 12

Framing Type: Stick

Architectural Style

Special features
