Plan 23457JD

Media Room and A Rec Room

Heated S.F.
2,833
Beds
3
Baths
3
Stories
2
Cars
1

Floor Plan

Plan 23457JD

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 23457JD

M-F 9am-5pm EST |

1-203-761-8500

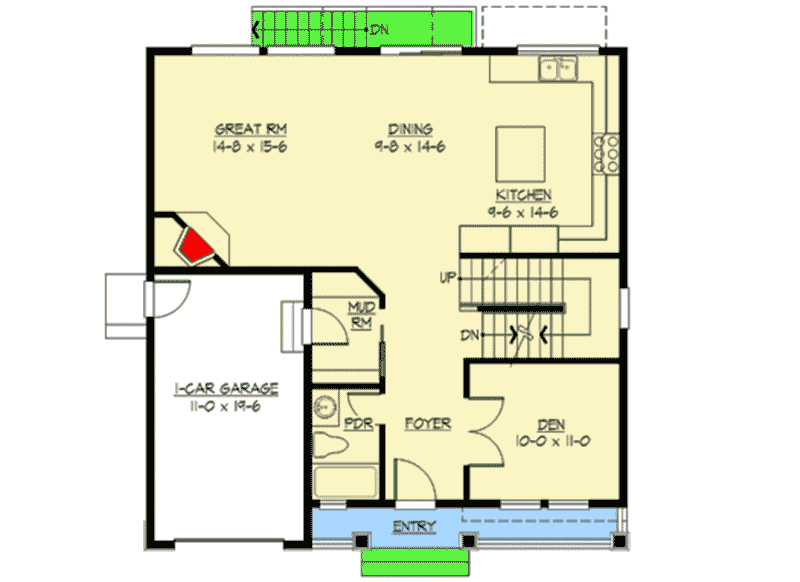

Main Level

Plan 23457JD: Media Room and A Rec Room - Floor Plan - Main Level - Craftsman, Northwest

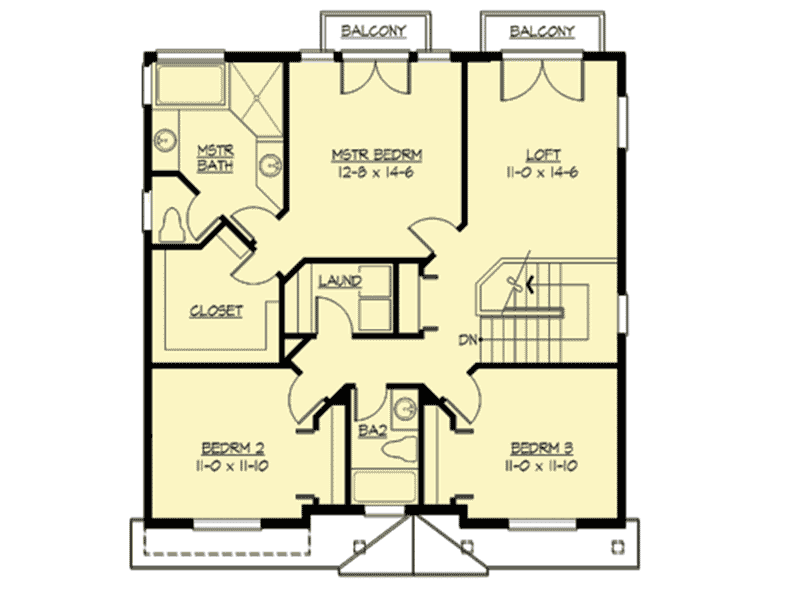

2nd Floor

Plan 23457JD: Media Room and A Rec Room - Floor Plan - 2nd Floor - Craftsman, Northwest

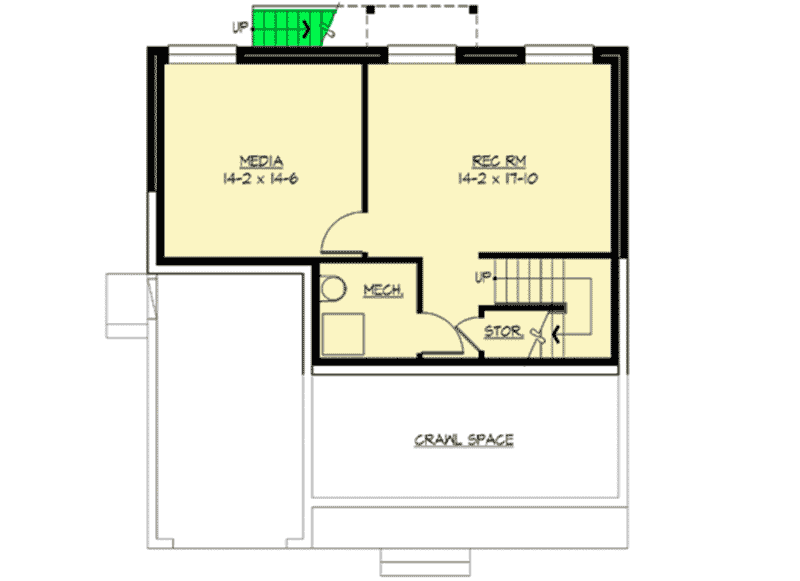

Basement

Plan 23457JD: Media Room and A Rec Room - Floor Plan - Basement - Craftsman, Northwest

Plan Details

  • A symmetrical facade with a pleasing mixture of materials lends great curb appeal to this house plan with foundation options.
  • You'll enjoy front-to-back views from the foyer and also having a quiet retreat - the den - behind beautiful french doors to your right.
  • The back of the home plan is open the full width of the home giving you a great open feel. A corner fireplace in the great room is a nice touch.
  • Bedrooms are upstairs, plus a loft which makes a great play or game room.
  • Note the balconies off the master suite and the loft.
  • The finished basement gives you great space for fun activities plus room for the mechanicals and storage.
  • Related Plan: Get a crawlspace foundation with house plan 23456JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

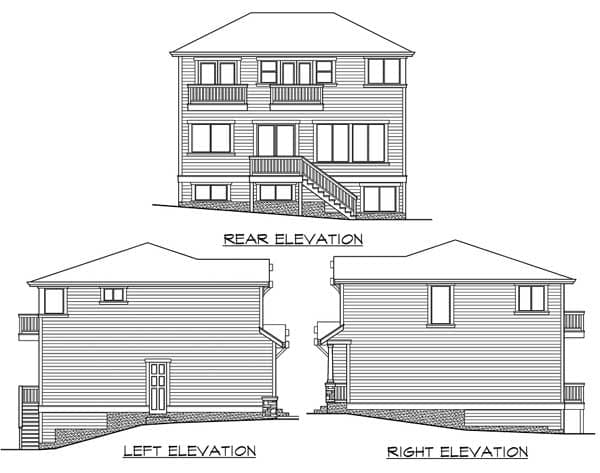

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,833 sq. ft.

Lower Level

735 sq. ft.

1st Floor

977 sq. ft.

2nd Floor

1,121 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

36' 6"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

232 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Den

Game/Rec Room

Laundry - Upstairs

Loft

Master Suite - Upstairs

Media Room

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,833 sq. ft.

Lower Level

735 sq. ft.

1st Floor

977 sq. ft.

2nd Floor

1,121 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

36' 6"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

232 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Den

Game/Rec Room

Laundry - Upstairs

Loft

Master Suite - Upstairs

Media Room

Plan Collections

Sloping Lot
