Mediterranean 4-Bedroom Ranch House Plan with 3-Car Garage

Heated S.F.
2,063
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 64317BT

Main Level
Main Level

Plan 64317BT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 64317BT: Mediterranean 4-Bedroom Ranch House Plan with 3-Car Garage - Floor Plan - Main Level - Florida-Style, Mediterranean, Ranch, Traditional

Plan Details

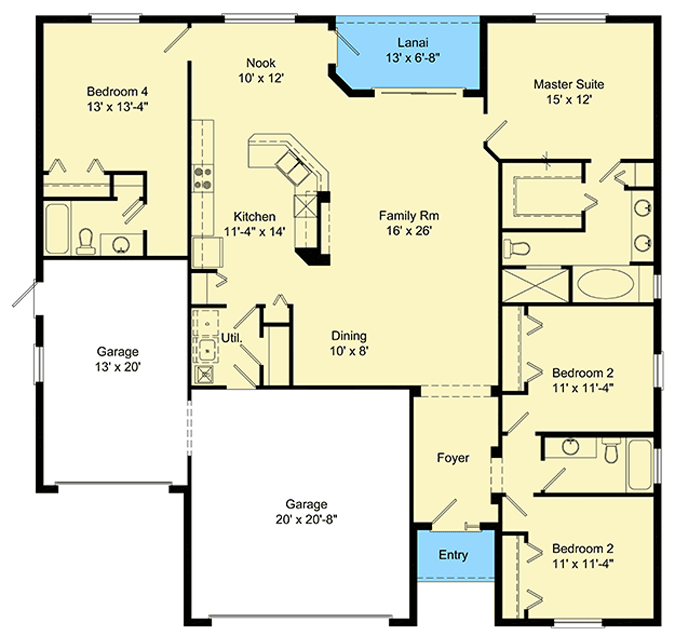

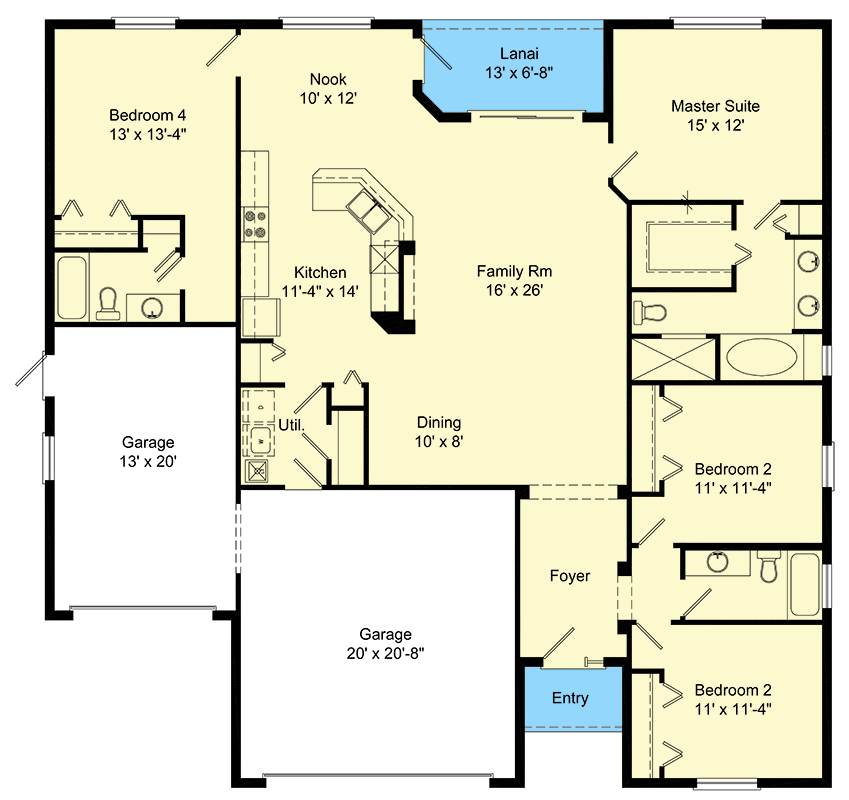

  • A hallway just off the foyer provides access to two, quiet bedrooms separated by a full bathroom.
  • The great room provides an open-concept, floor plan with sliding doors leading to a back lanai. Guests and family will naturally convene around the curved, kitchen counter, located next to the breakfast nook.
  • A master suite, located in one corner of the house, offers a 5-fixture, master bathroom with a walk-in closet.
  • A secluded, guest suite sits on the opposite side of the home and includes a full bathroom.
  • Entry from the 3-car, garage leads to a utility room with a coat closet.

What's Included

  • Cover Sheet
  • Sections and Plan Details
  • Foundation Plan and Details
  • Floor Plan
  • Exterior Elevations
  • Electrical Plan
  • Roof Plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,063 sq. ft.

1st Floor

2,063 sq. ft.

Porch, Combined

86 sq. ft.

Entry

33 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

56' 4"

Depth

55' 0"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

729 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,063 sq. ft.

1st Floor

2,063 sq. ft.

Porch, Combined

86 sq. ft.

Entry

33 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

56' 4"

Depth

55' 0"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

729 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
