Plan 65718BS Mediterranean Coastal Home Plan with Large Gathering Spaces and Covered Lanai

Mediterranean Coastal Home Plan with Large Gathering Spaces and Covered Lanai

Plan 65718BS

  • 4,139

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • This Mediterranean Coastal home plan delivers over 4,100 square feet of living space, including a porte-cochere in the center of two double garages.
  • Elegant coffered ceilings rest above the gathering spaces, which flow onto the generous covered lanai for an indoor outdoor living experience.
  • Delight in cooking with this gourmet kitchen, which features a large range, prep island surrounded by a secondary island, and a sizable walk-in pantry. Or, retreat to the optional summer kitchen for grilling season.
  • You will find the master suite occupying the right side of the design with its two walk-in closets and luxury ensuite. A quiet study sits next door.
  • Three family bedrooms line the left side, each with a full bath or neighboring one.
  • Related Plans: Eliminate the porte-cochere and get a 3-car courtyard-entry garage with house plan 65716BS or a 3-car side-entry garage with house plan 65737BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

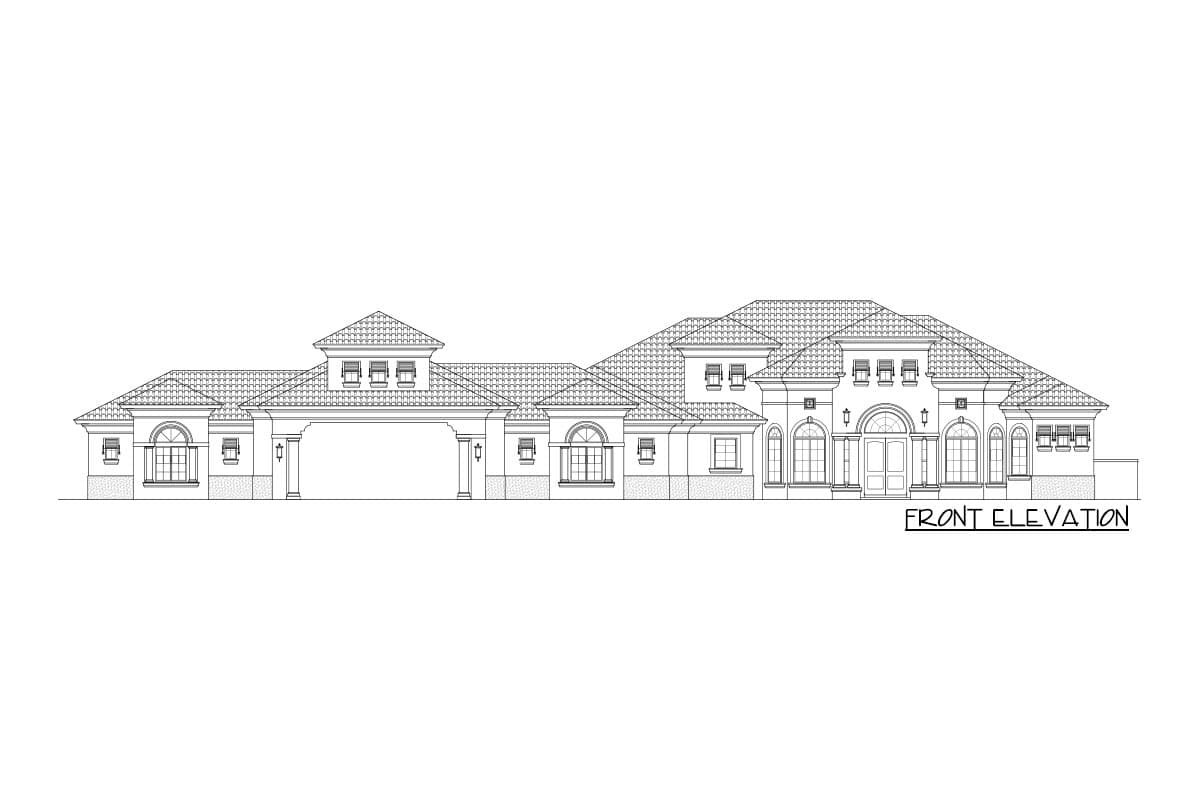

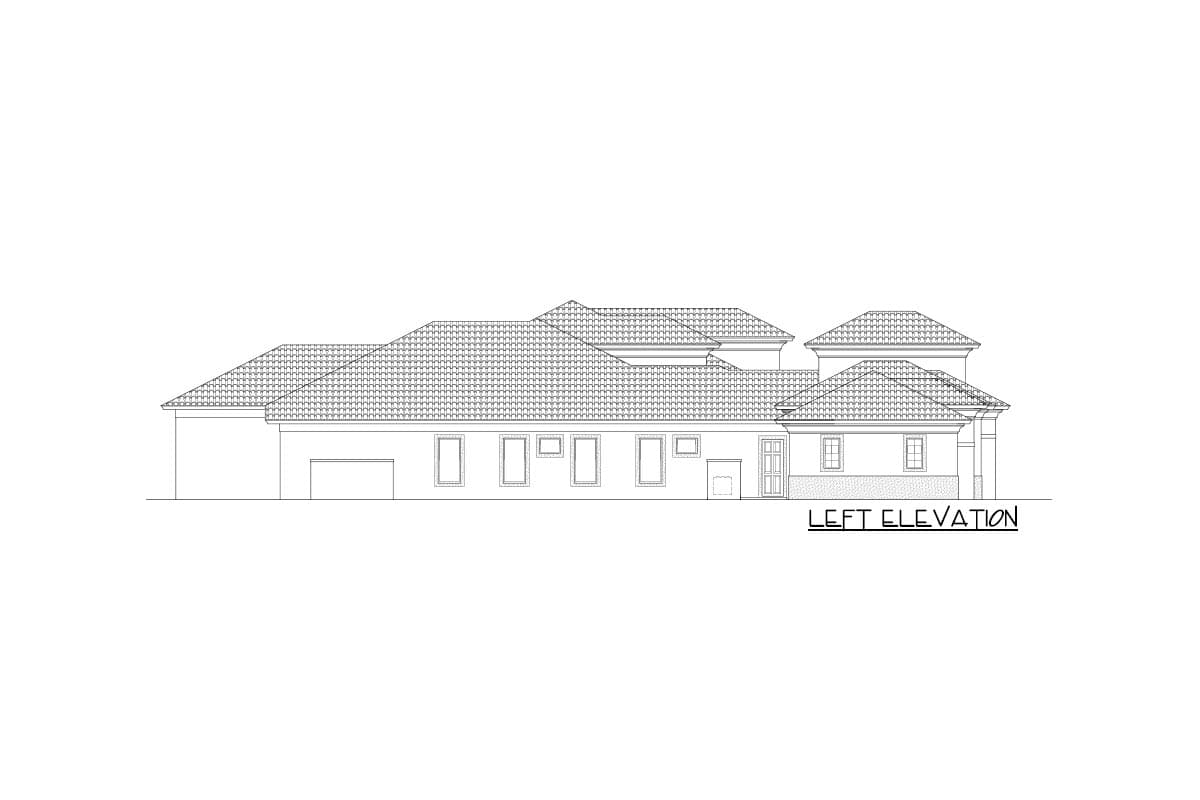

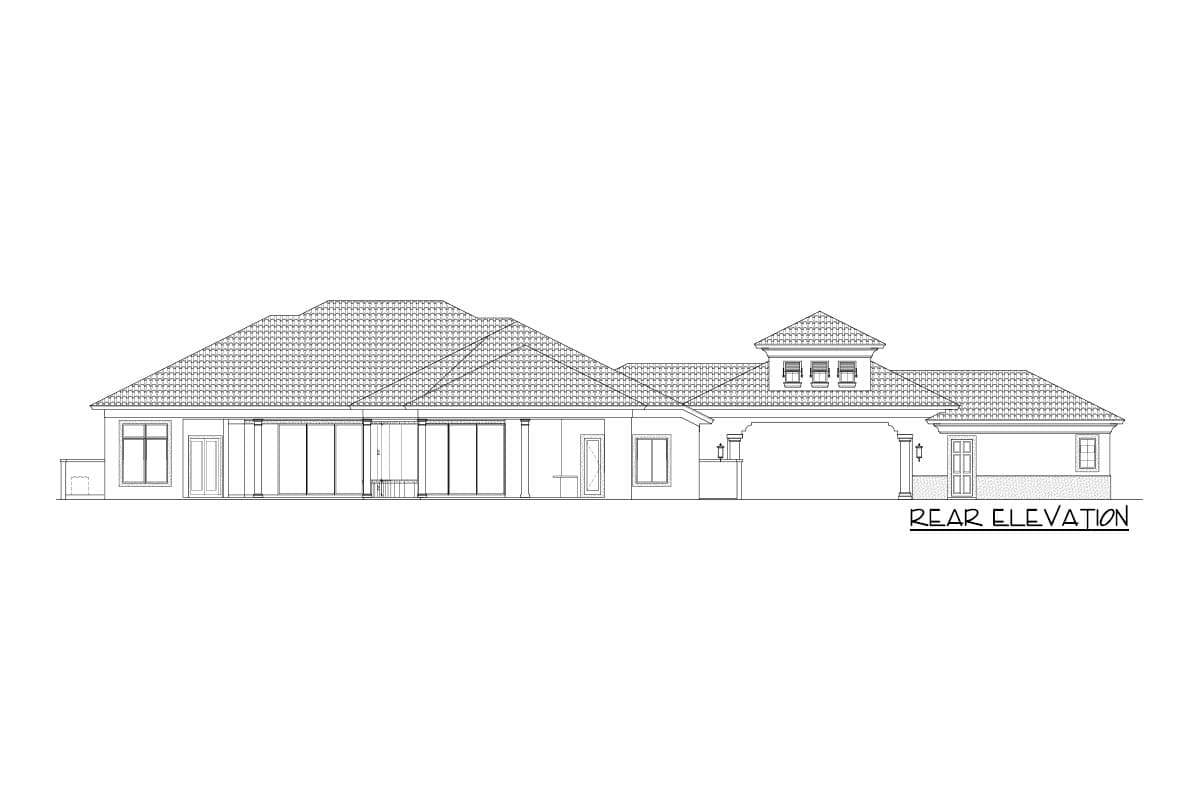

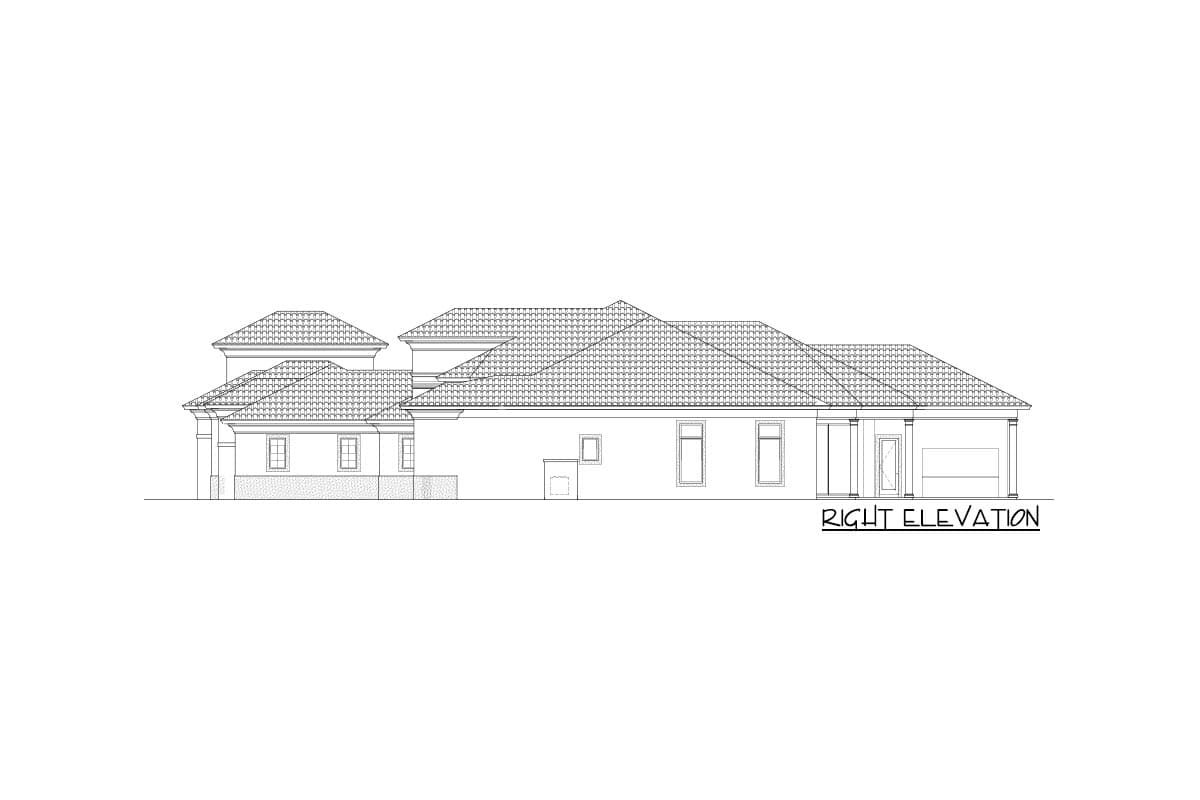

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

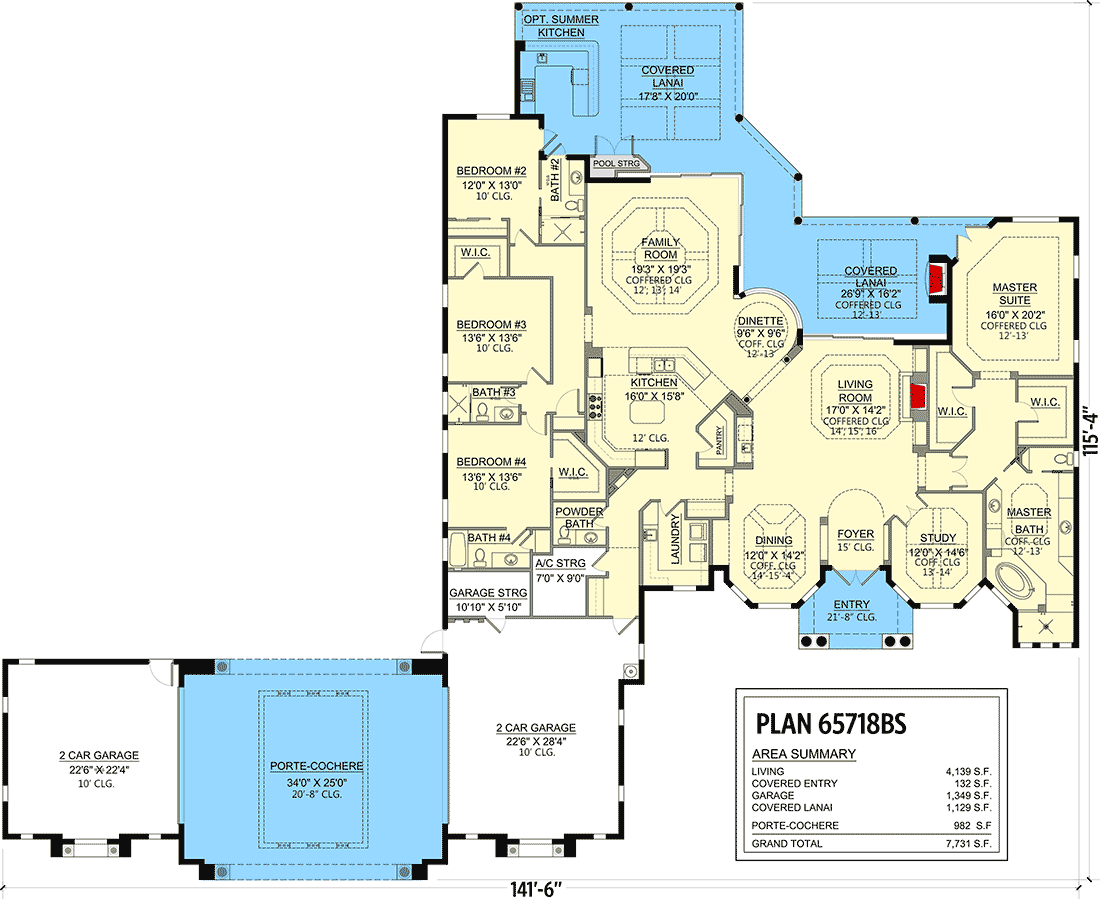

Mediterranean Coastal Home Plan with Large Gathering Spaces and Covered Lanai - 65718BS floor plan - Main Level

Plan details

Mediterranean Coastal Home Plan with Large Gathering Spaces and Covered Lanai

  • 4,139

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $3,725
  • PDF - Single-Build $3,725
  • View all purchase option online

About This Plan

  • This Mediterranean Coastal home plan delivers over 4,100 square feet of living space, including a porte-cochere in the center of two double garages.
  • Elegant coffered ceilings rest above the gathering spaces, which flow onto the generous covered lanai for an indoor outdoor living experience.
  • Delight in cooking with this gourmet kitchen, which features a large range, prep island surrounded by a secondary island, and a sizable walk-in pantry. Or, retreat to the optional summer kitchen for grilling season.
  • You will find the master suite occupying the right side of the design with its two walk-in closets and luxury ensuite. A quiet study sits next door.
  • Three family bedrooms line the left side, each with a full bath or neighboring one.
  • Related Plans: Eliminate the porte-cochere and get a 3-car courtyard-entry garage with house plan 65716BS or a 3-car side-entry garage with house plan 65737BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,139 sq. ft.
  • 1st Floor: 4,139 sq. ft.
  • Lanai: 1,129 sq. ft.
  • Porch, Front: 132 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 141' 6"
  • Depth: 115' 4"
  • Max ridge height: 27' 5"

Garage

  • Type: Attached
  • Area: 1349 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
