Plan 65716BS One-level Florida Home Plan with Spacious Covered Lanai

One-level Florida Home Plan with Spacious Covered Lanai

Plan 65716BS

  • 4,140

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Arched windows, clay roof tiles, and a grand front porch add to the immense curb appeal offered with this one-level, Florida home plan.
  • Coffered ceilings decorate the formal dining room and study that frame the foyer, while straight ahead, the formal living room hosts a fireplace and connects with the covered lanai.
  • The gourmet kitchen does not disappoint with its central prep island, loads of workspace, and walk-in pantry. The summer kitchen on the covered lanai provides a secondary option when entertaining on warm evenings.
  • Discover the master suite split apart from the secondary bedrooms for the utmost privacy and joined by a 5-fixture bathroom and two walk-in closets.
  • Three bedrooms line the left side of the design, and the 3-car garage provides a dedicated storage room as an added bonus.
  • Related Plans: Get a porte-cochere with house plan 65718BS and a 3-car side-entry garage with house plan 65737BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

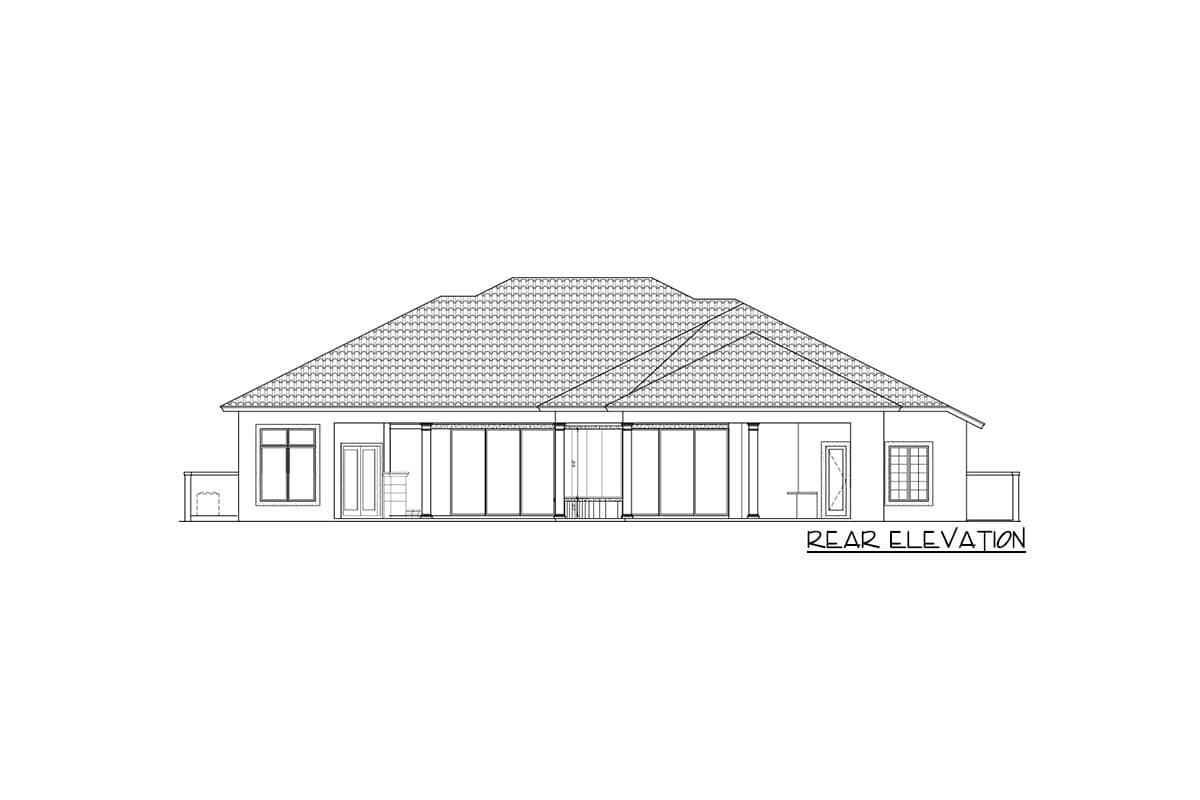

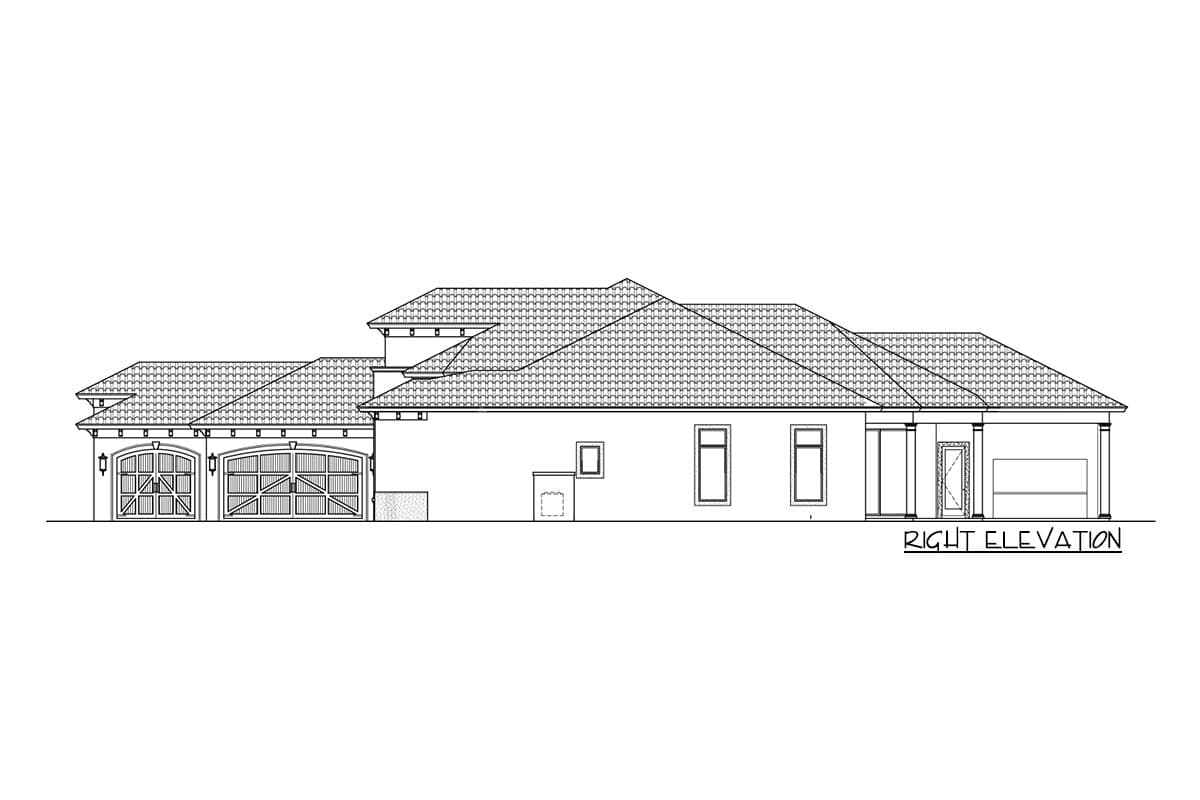

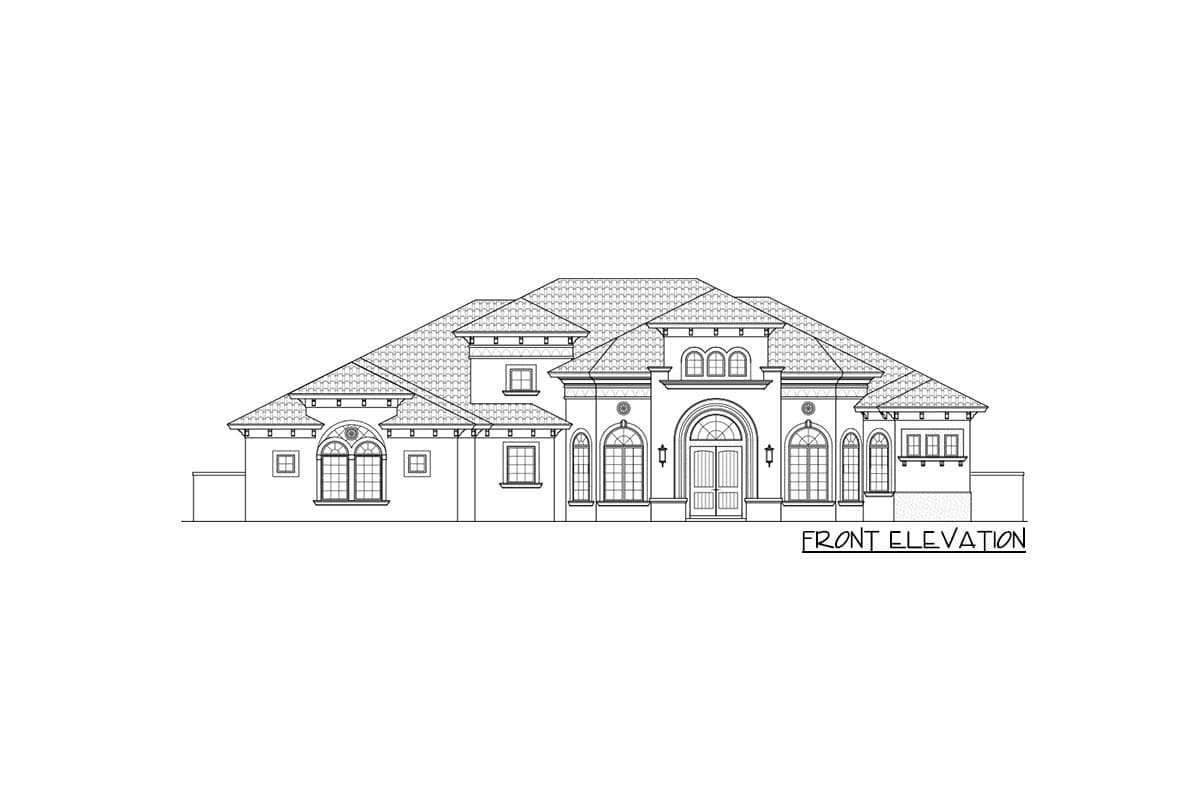

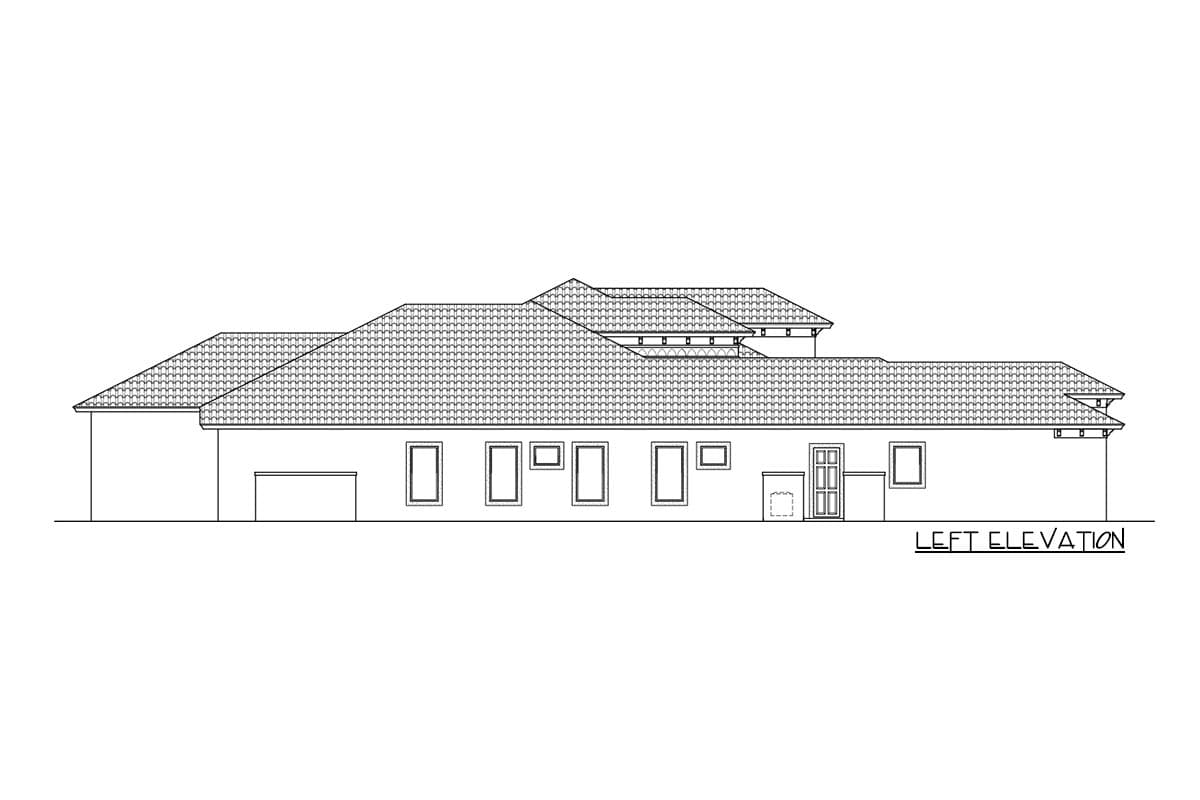

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

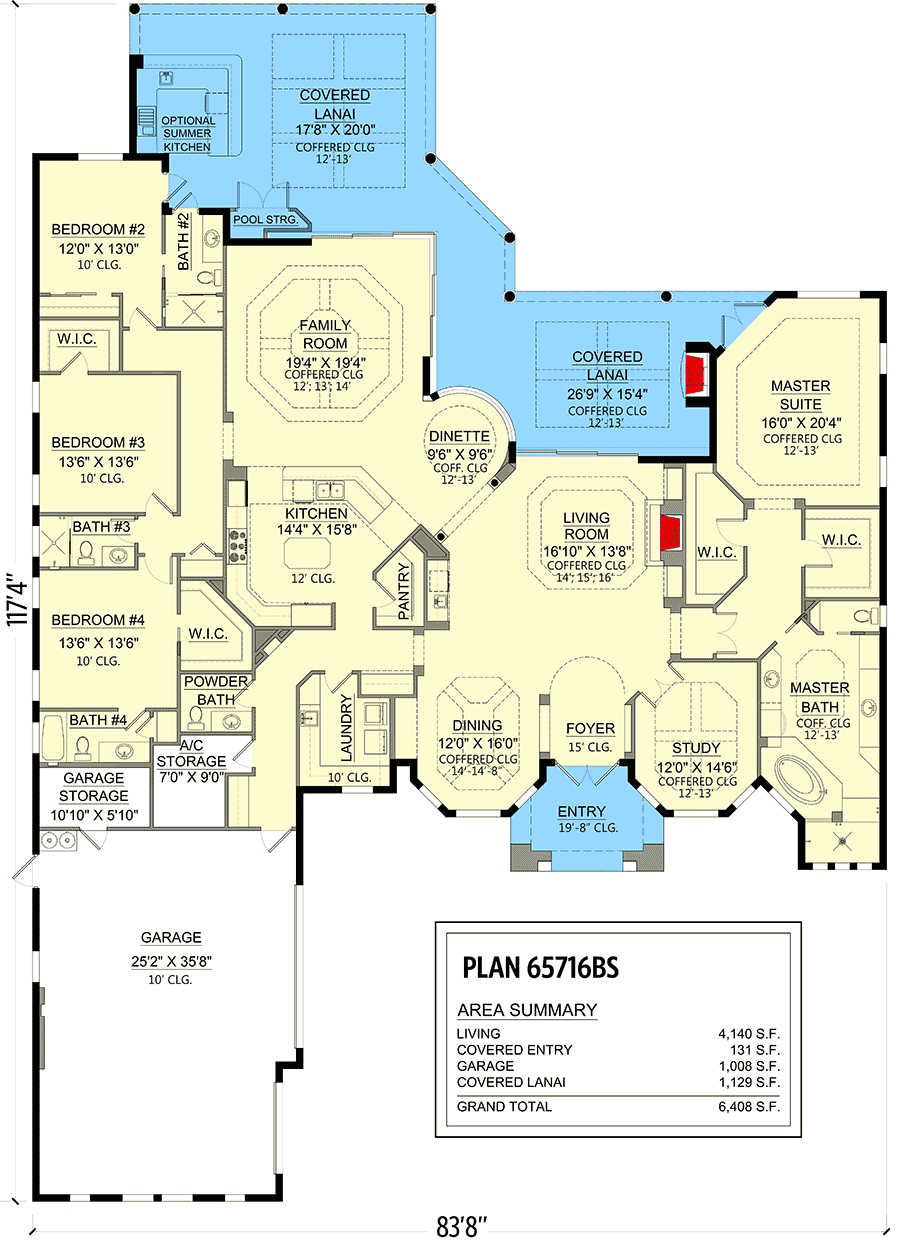

One-level Florida Home Plan with Spacious Covered Lanai - 65716BS floor plan - Main Level

Plan details

One-level Florida Home Plan with Spacious Covered Lanai

  • 4,140

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $3,730
  • PDF - Single-Build $3,730
  • View all purchase option online

About This Plan

  • Arched windows, clay roof tiles, and a grand front porch add to the immense curb appeal offered with this one-level, Florida home plan.
  • Coffered ceilings decorate the formal dining room and study that frame the foyer, while straight ahead, the formal living room hosts a fireplace and connects with the covered lanai.
  • The gourmet kitchen does not disappoint with its central prep island, loads of workspace, and walk-in pantry. The summer kitchen on the covered lanai provides a secondary option when entertaining on warm evenings.
  • Discover the master suite split apart from the secondary bedrooms for the utmost privacy and joined by a 5-fixture bathroom and two walk-in closets.
  • Three bedrooms line the left side of the design, and the 3-car garage provides a dedicated storage room as an added bonus.
  • Related Plans: Get a porte-cochere with house plan 65718BS and a 3-car side-entry garage with house plan 65737BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,140 sq. ft.
  • 1st Floor: 4,140 sq. ft.
  • Lanai: 1,129 sq. ft.
  • Porch, Front: 131 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 83' 8"
  • Depth: 117' 4"
  • Max ridge height: 27' 5"

Garage

  • Type: Attached
  • Area: 1008 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
