Plan 66124WE

Mediterranean Florida Style House Plan with 4 Bedrooms and Lanai

Name: Plan 66124WE: Mediterranean Florida Style House Plan with 4 Bedrooms and Lanai
Brand: Architectural Designs
SKU: 66124WE
Price: 1500.0 USD
Availability: InStock

Heated S.F.

4,378

Beds

3 - 4

Baths

Stories

Cars

Floor Plan

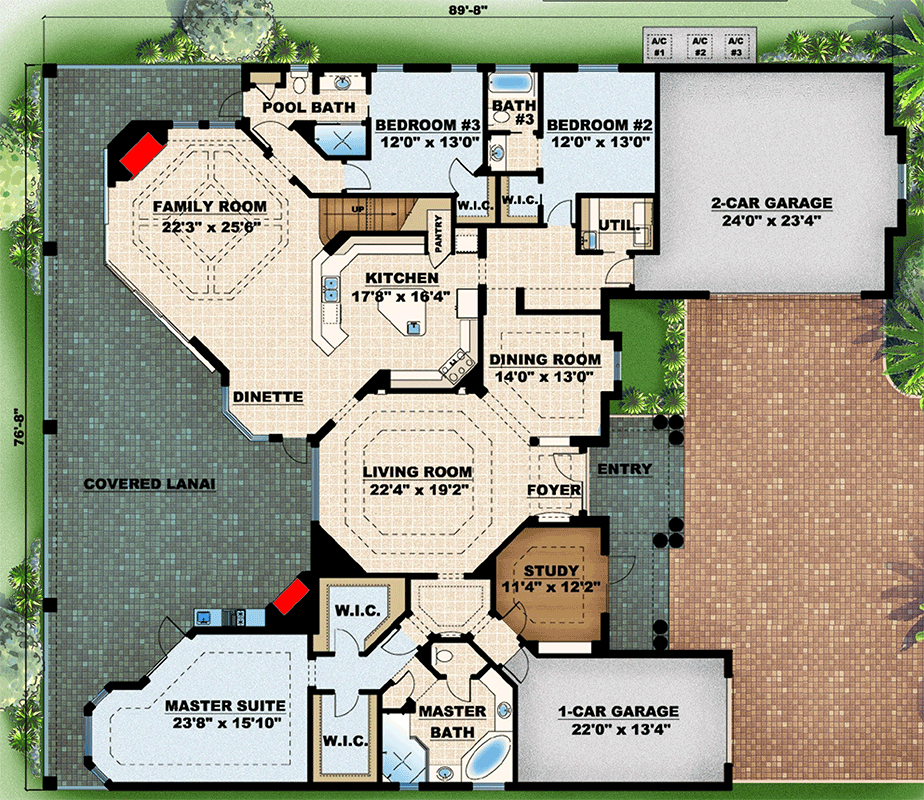

Main Level

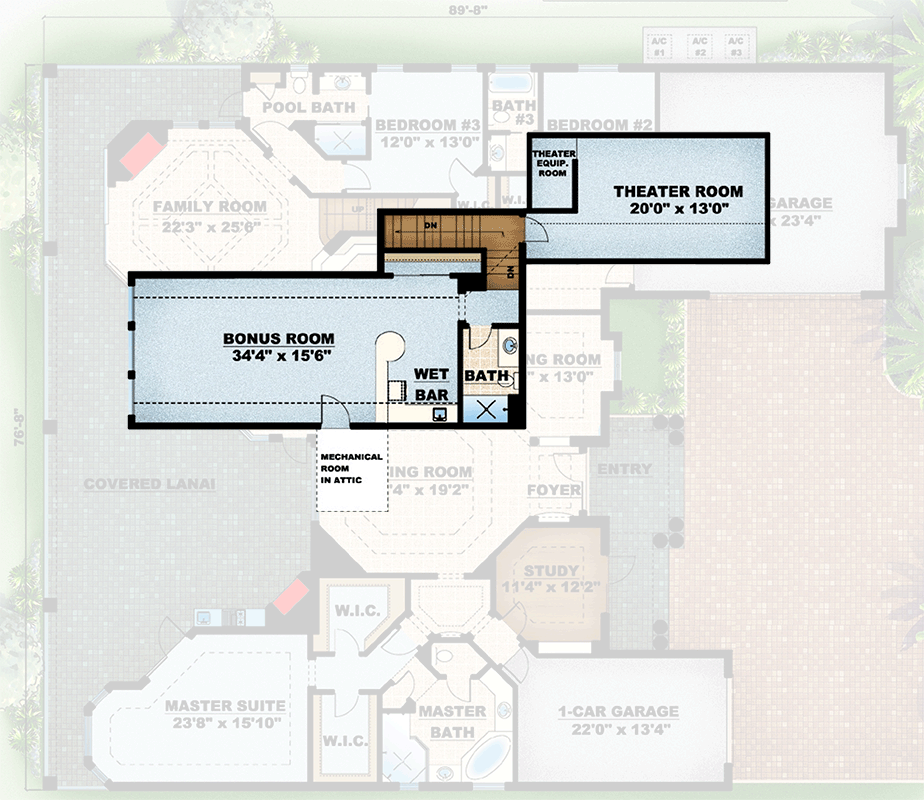

2nd Floor

Plan Details

This expansive 4,378 square foot Florida-style residence features 3 to 4 bedrooms, 4 full bathrooms, and a spacious 3-car garage.
The grand entry opens into a sophisticated layout defined by soaring coffered ceilings and a seamless flow between formal and informal gathering spaces.
The heart of the home is a bright, open-concept kitchen and family room that connects effortlessly to the outdoors through expansive pocketing glass doors.
A private first-floor master suite provides a luxurious retreat, while additional bedrooms are strategically placed to offer comfort and privacy for family and guests.
A dedicated study offers a quiet space for work, while the upstairs bonus room serves as a versatile home theater or recreation area.
The massive 1,197 square foot covered lanai serves as a true outdoor living room, complete with space for an outdoor kitchen and fireplace.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
