Plan 82146KA Mediterranean House Plan with Grand Sightlines

2,693 4 4 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mediterranean House Plan with Grand Sightlines

Plan 82146KA

  • 2,693

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

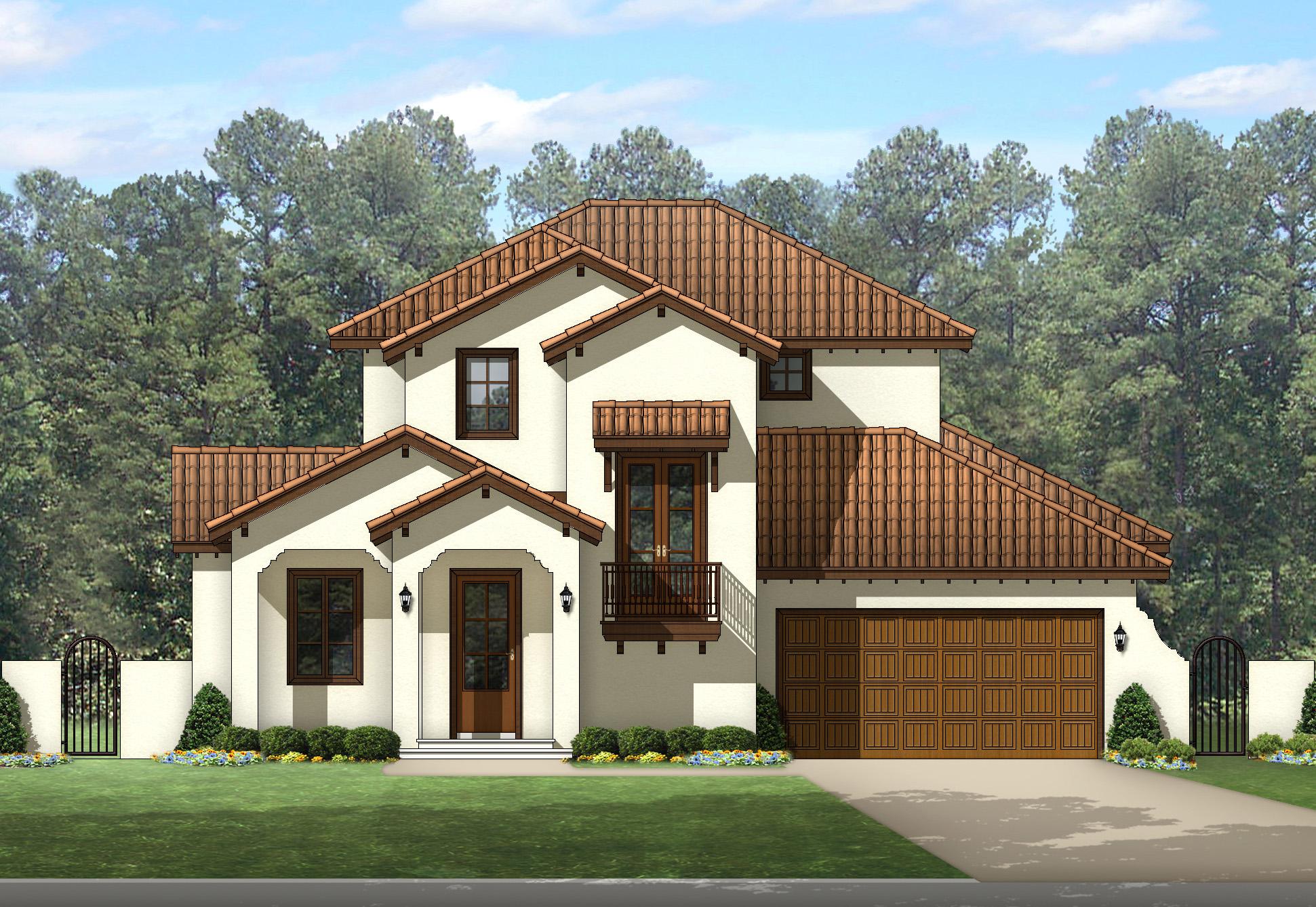

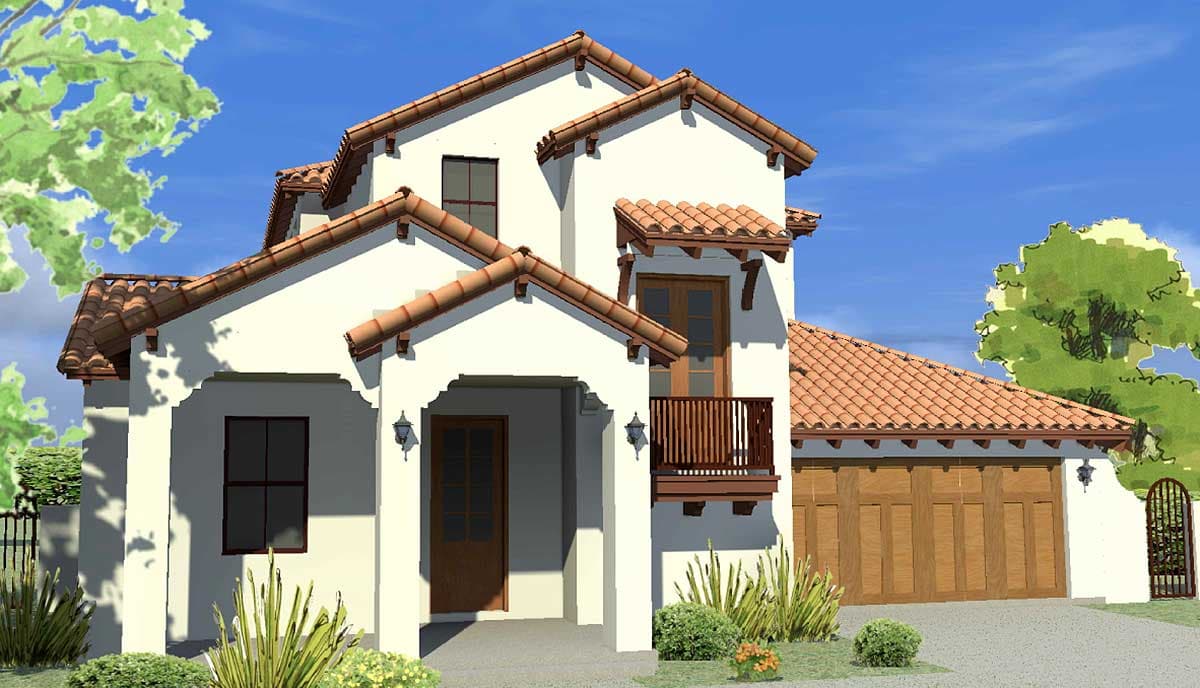

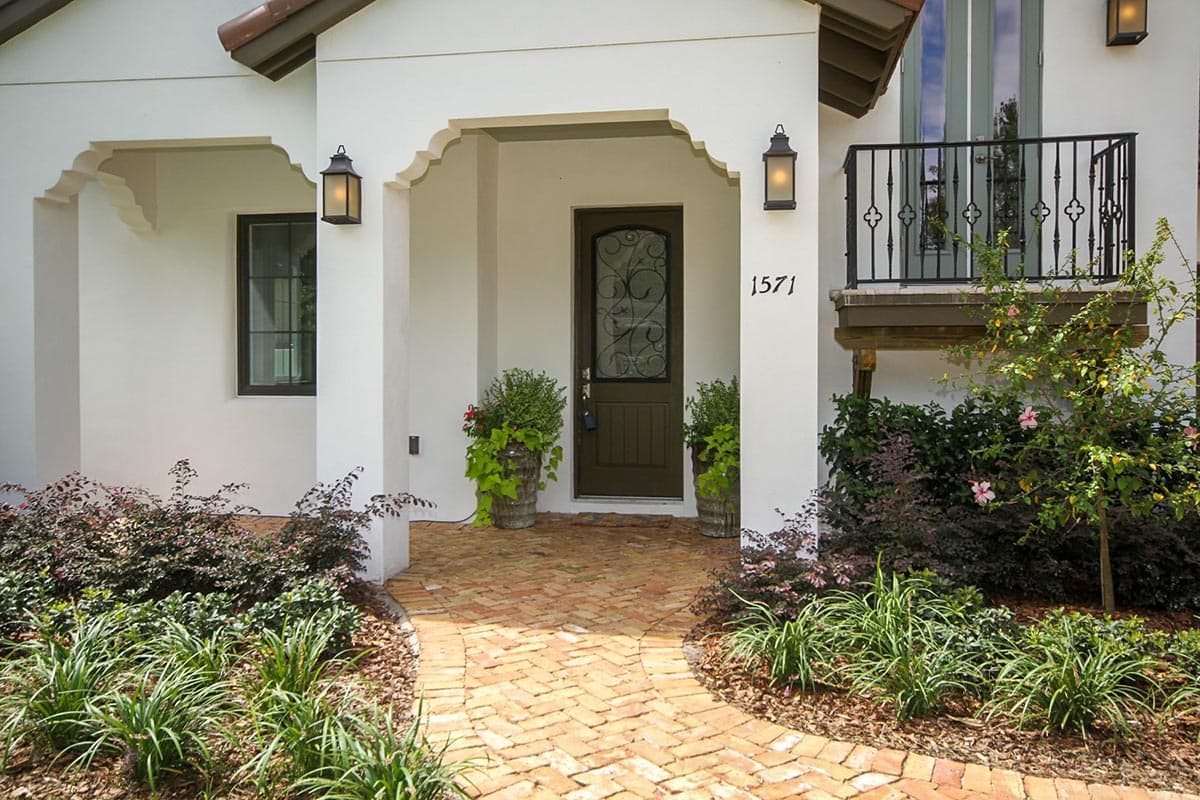

  • An intricate roof line boosts the curb appeal of this Mediterranean house plan.

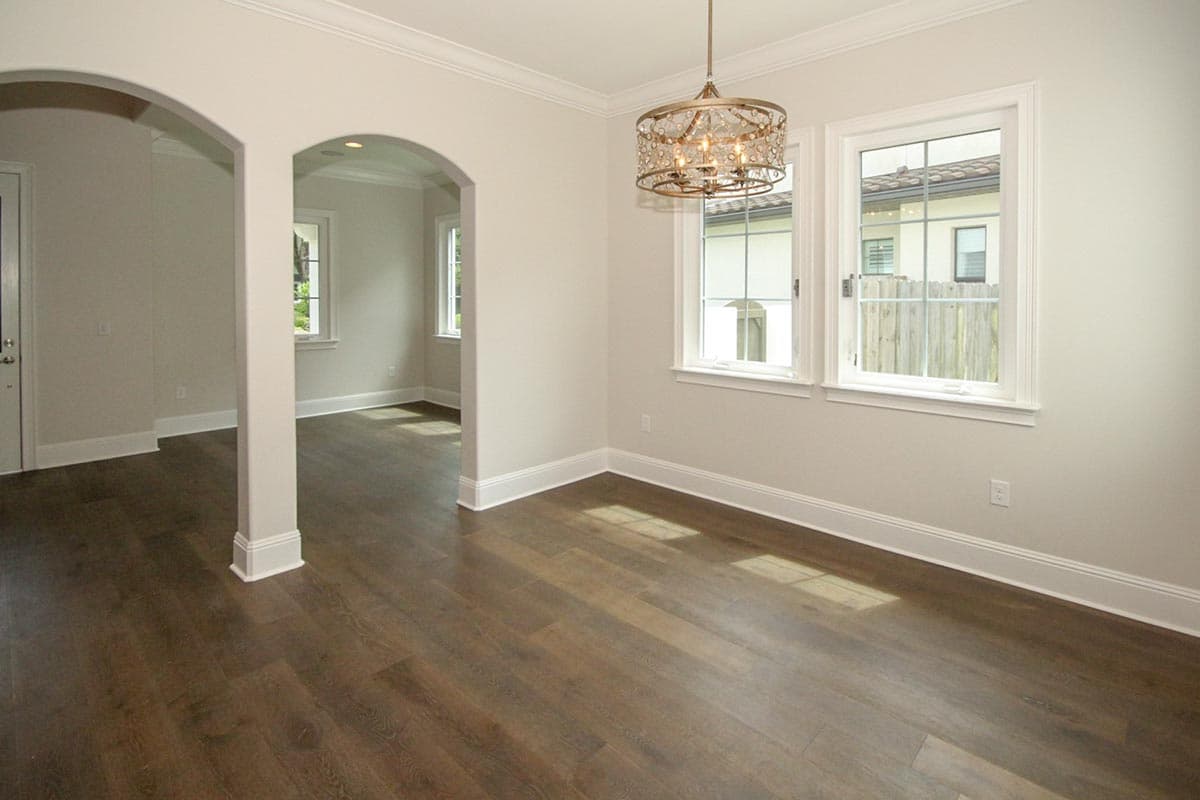

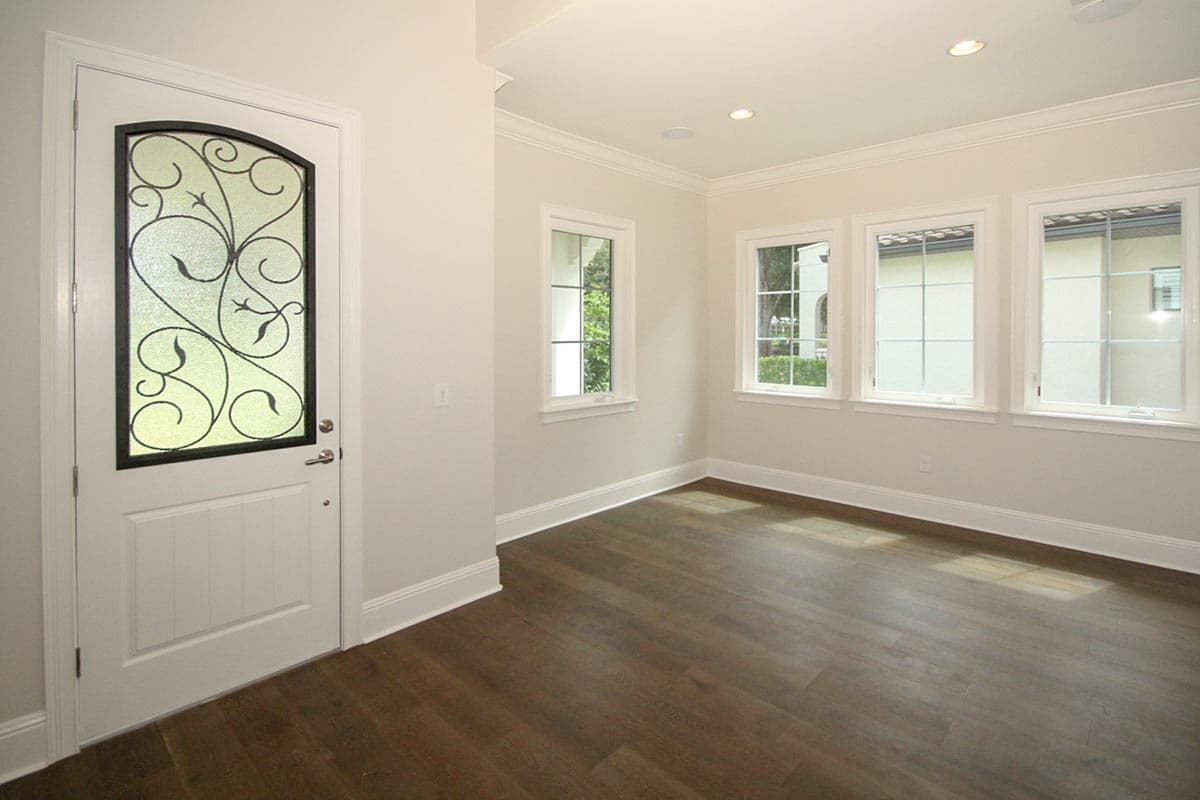

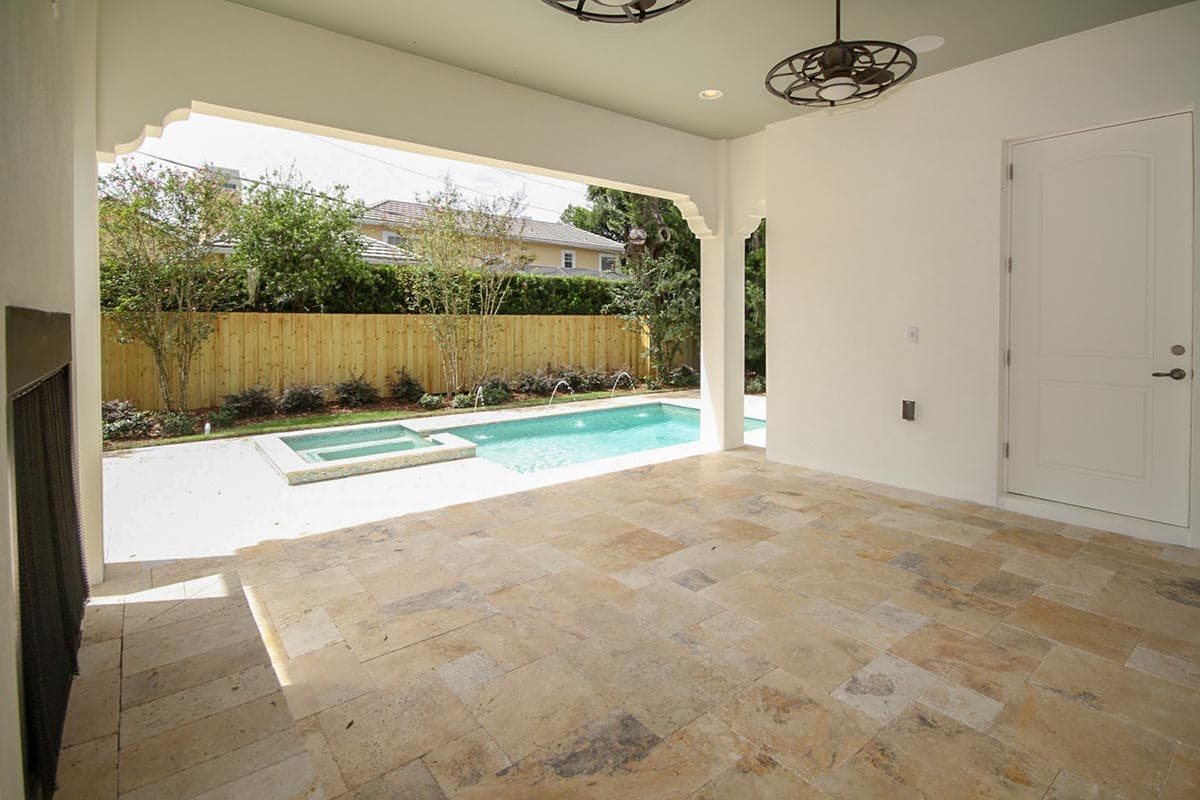

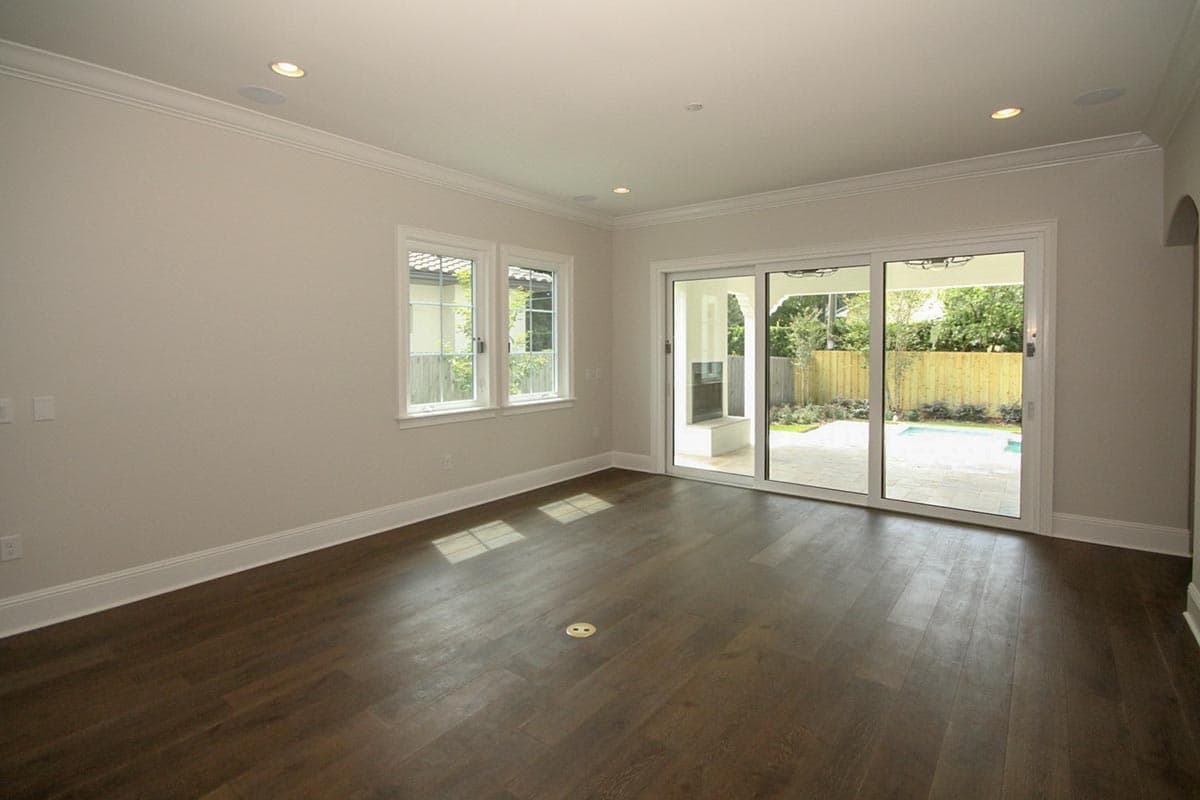

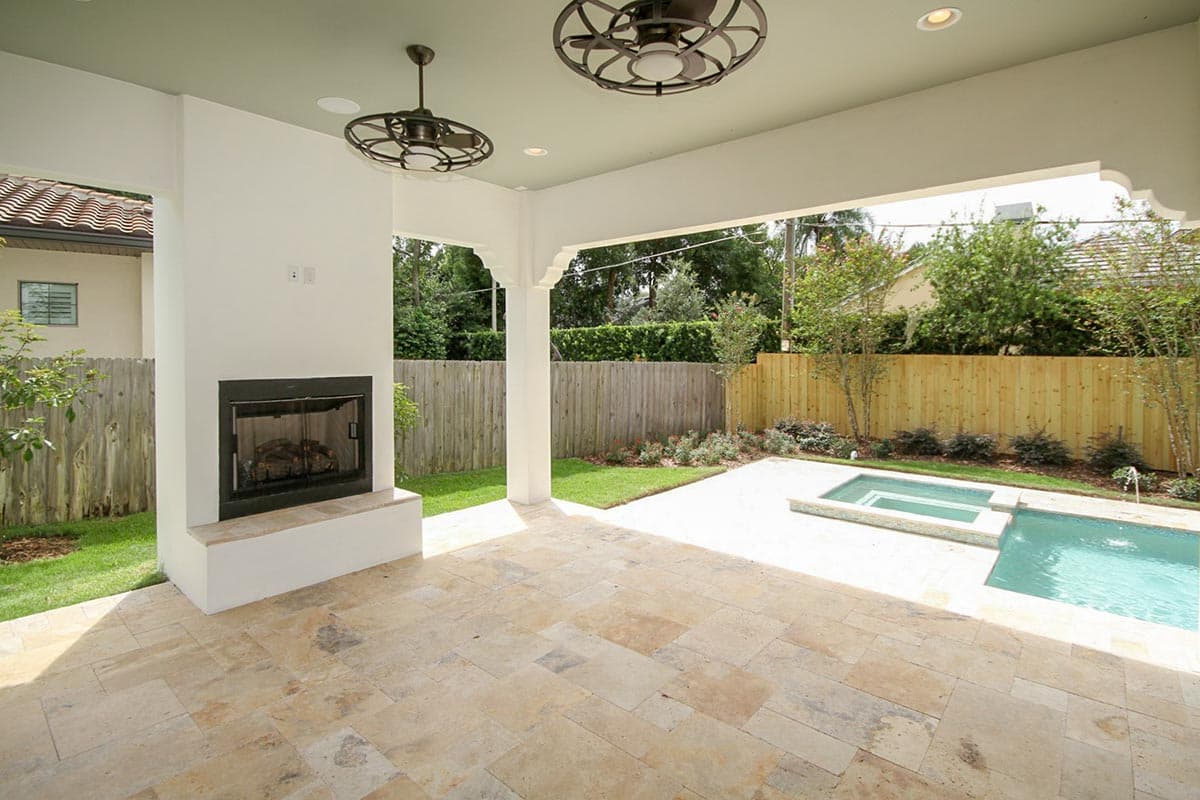

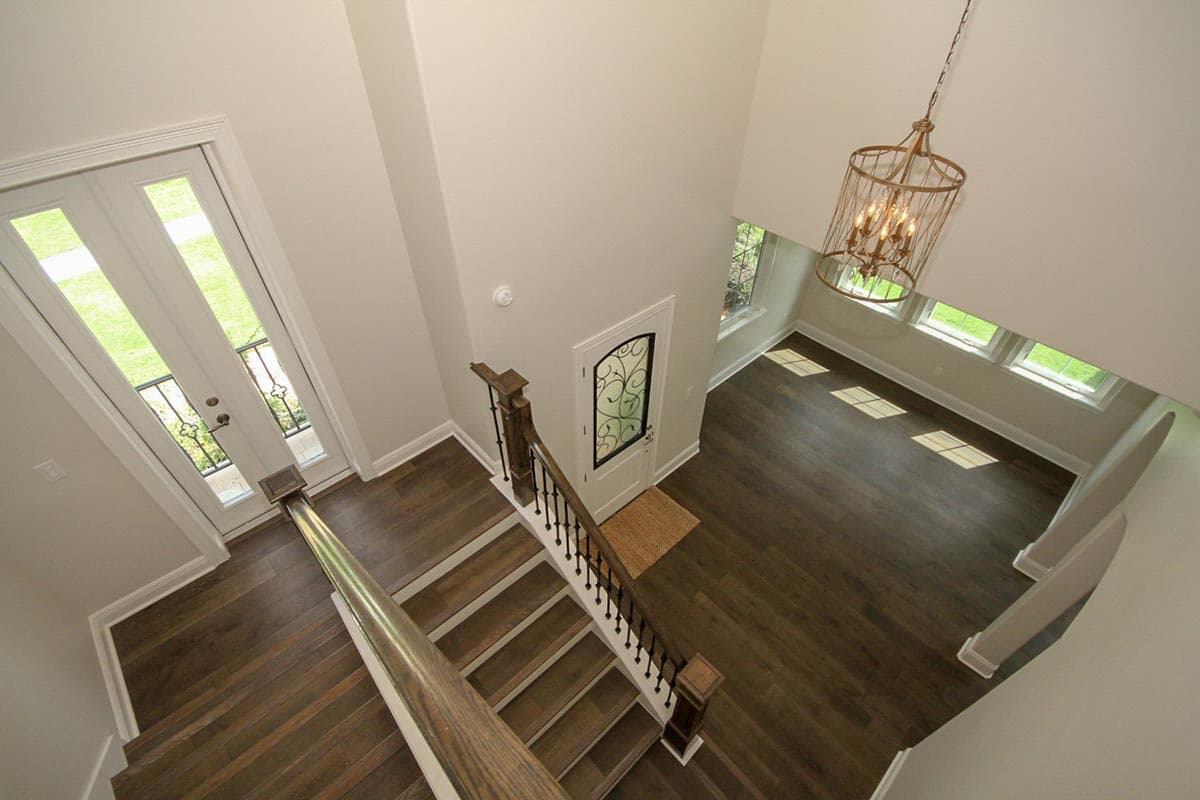

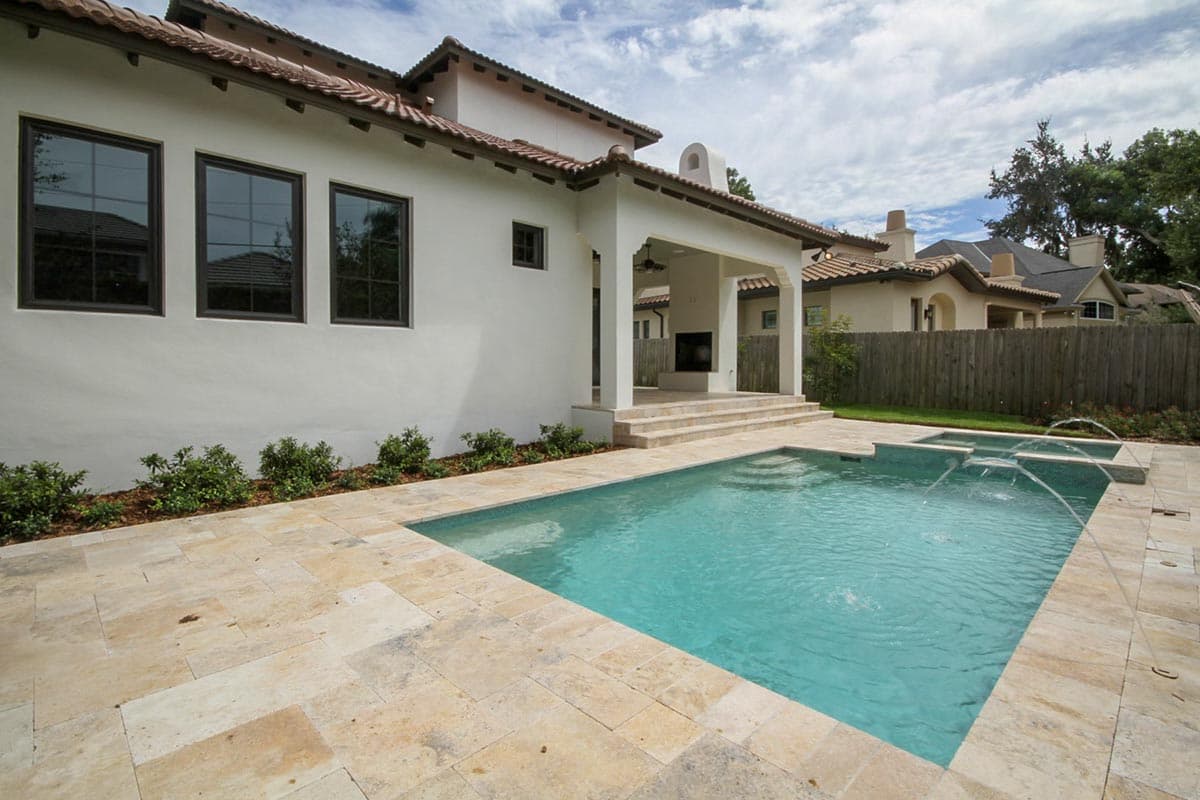

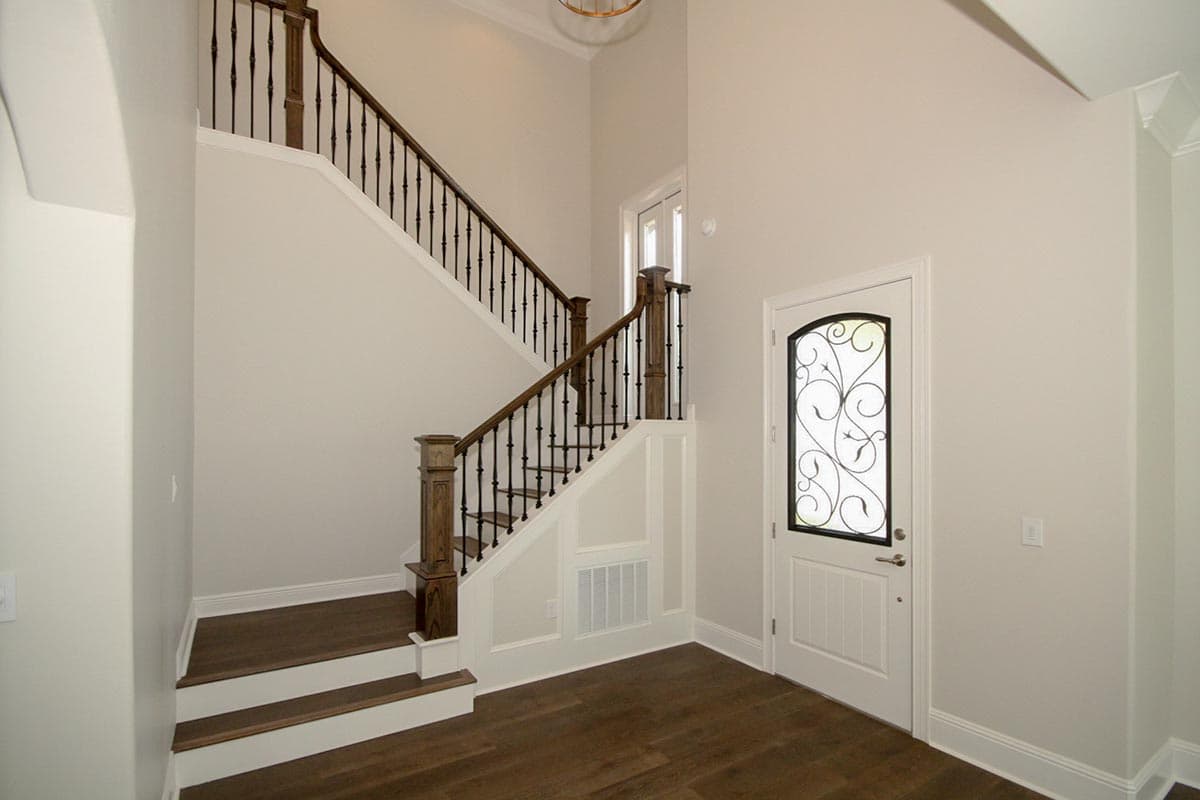

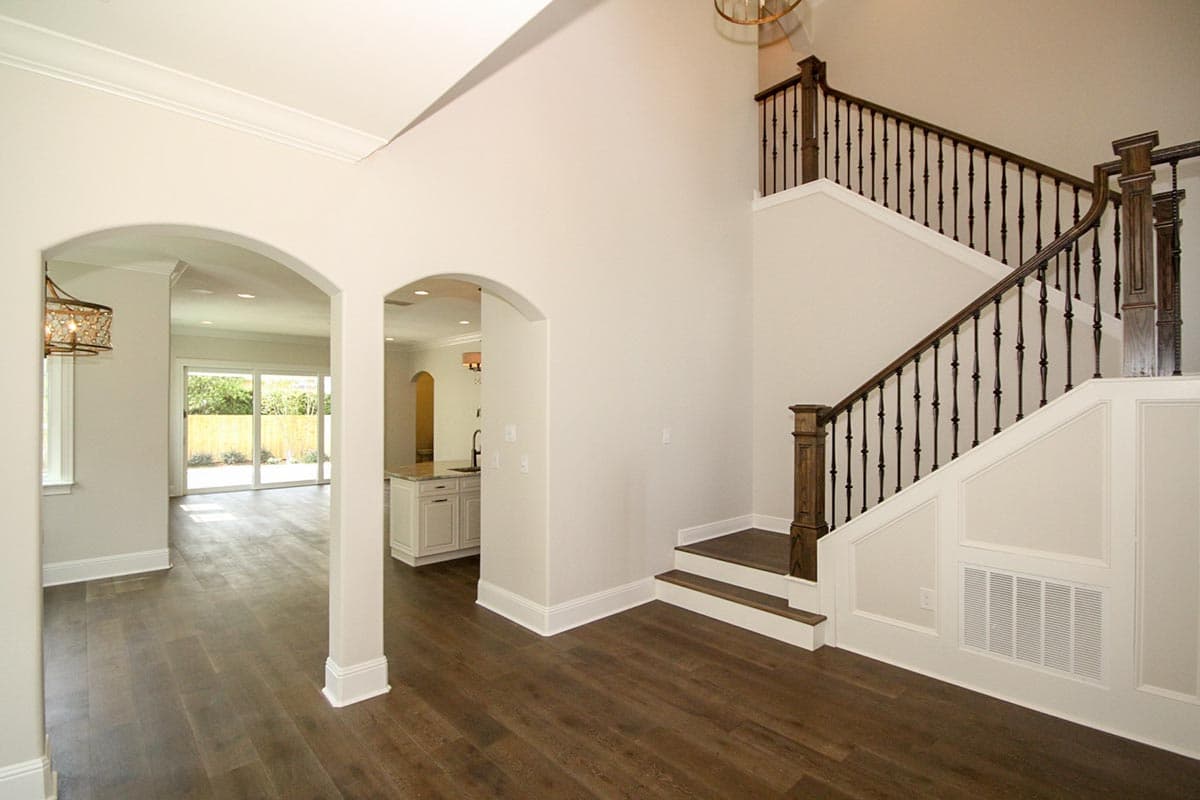

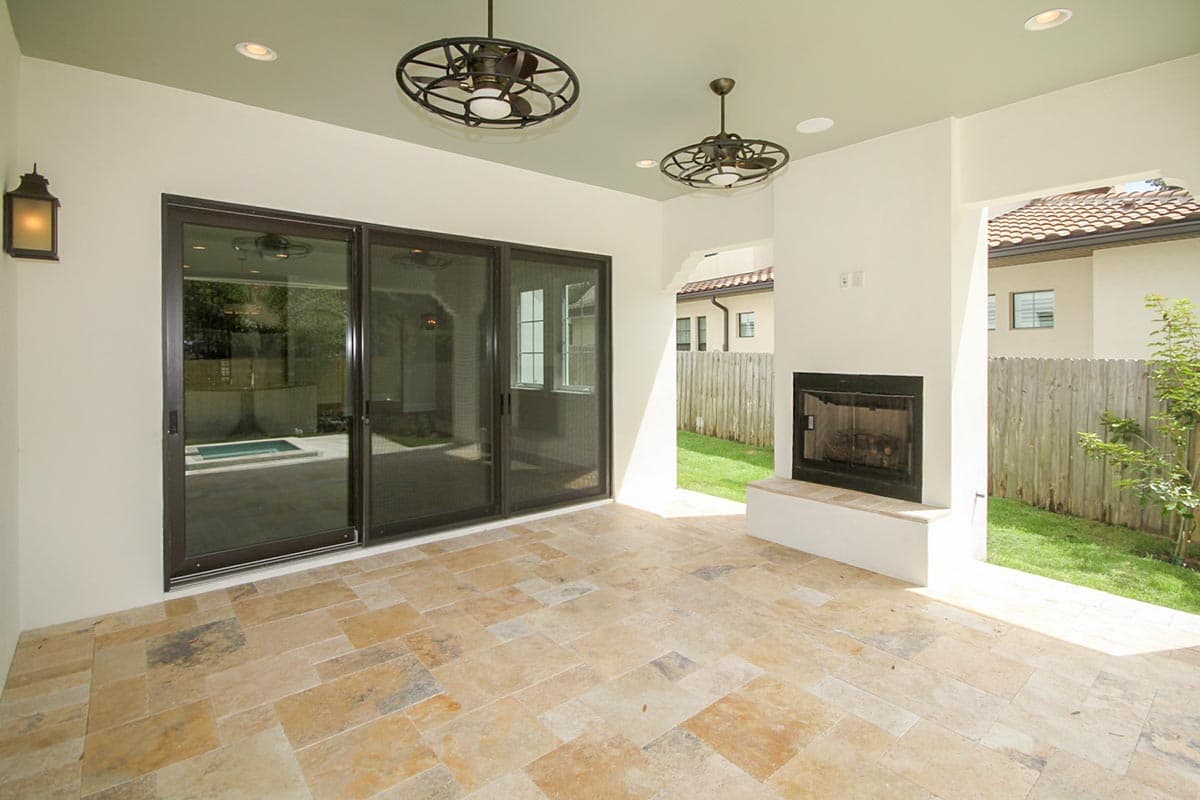

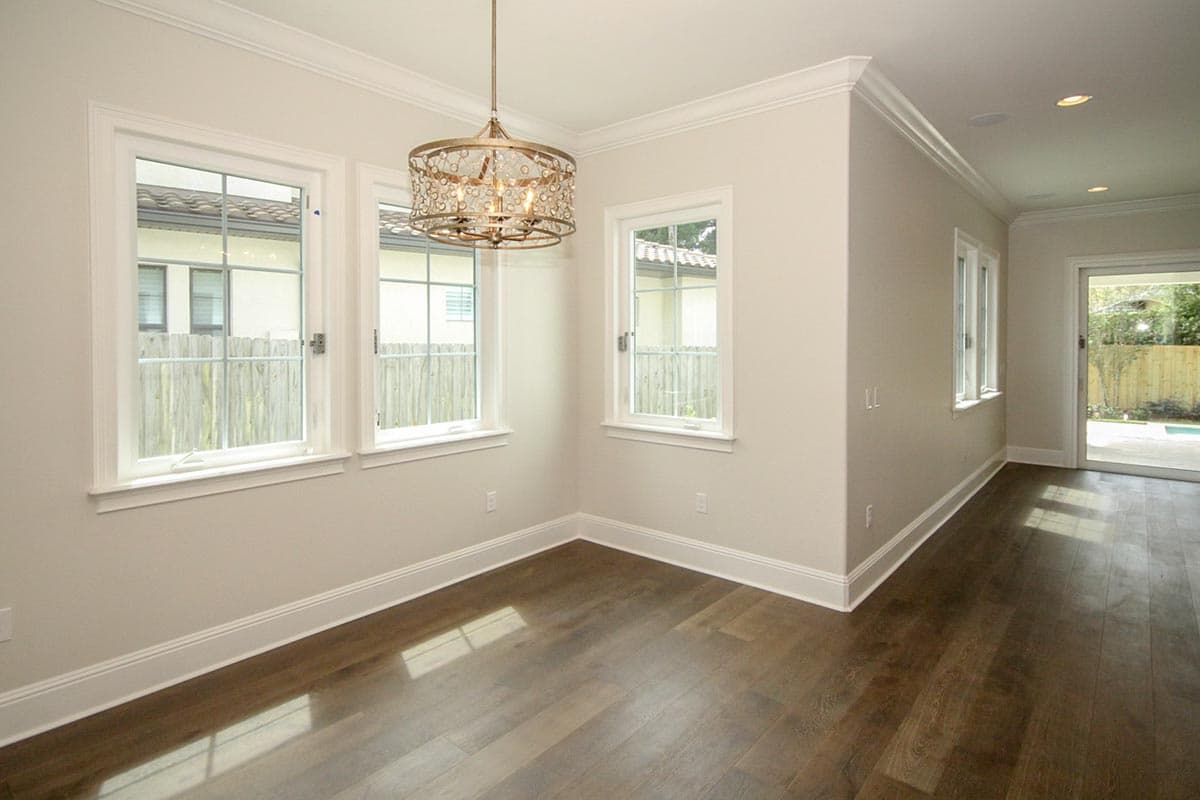

  • Sightlines start right at the foyer where you can see back through the dining room and great room to the covered lanai at the back of the home.
  • The open layout is ideal for having your family all in one huge living area.

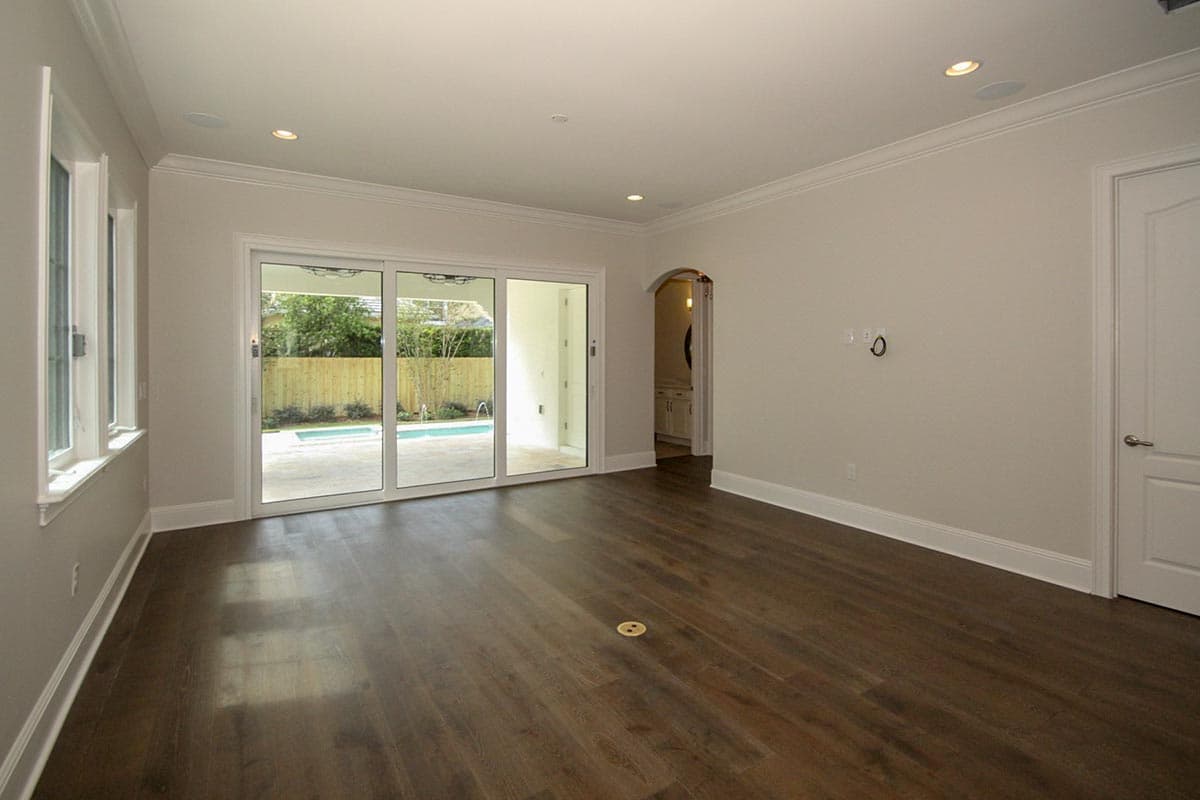

  • Homeowners get a large first floor master suite with no stairs to climb at night.

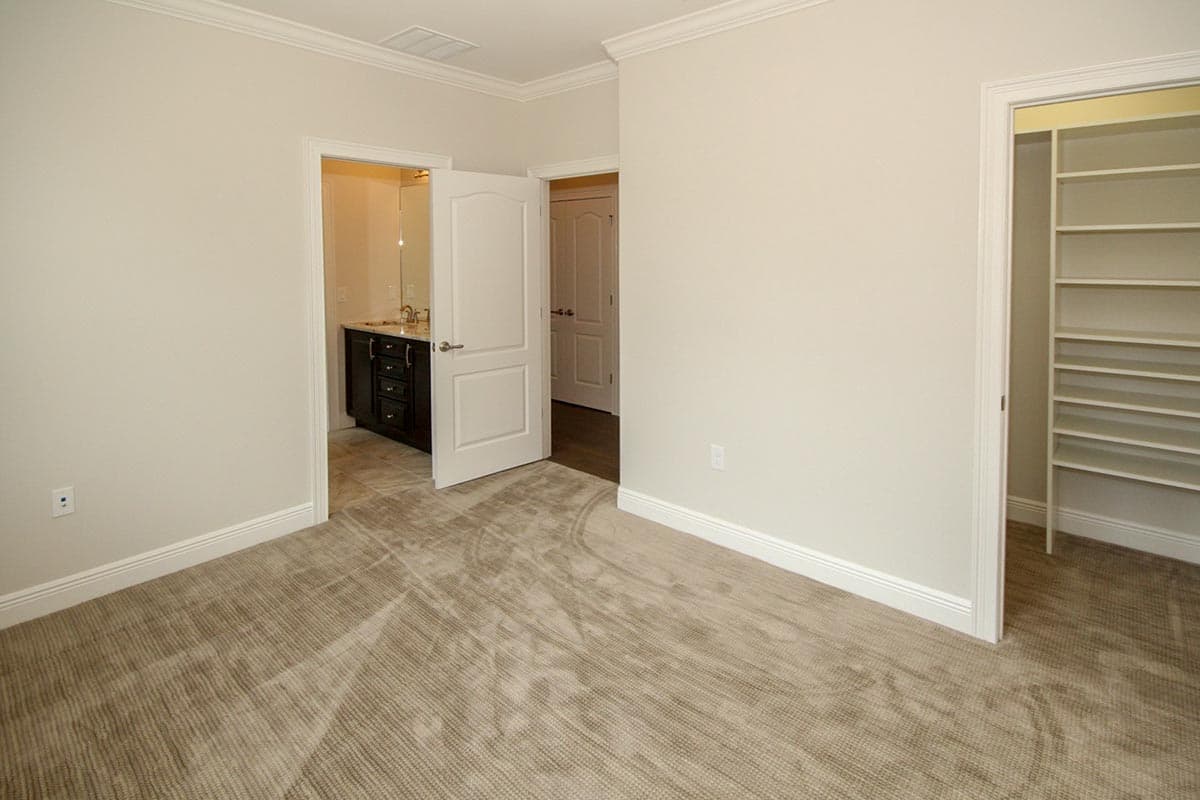

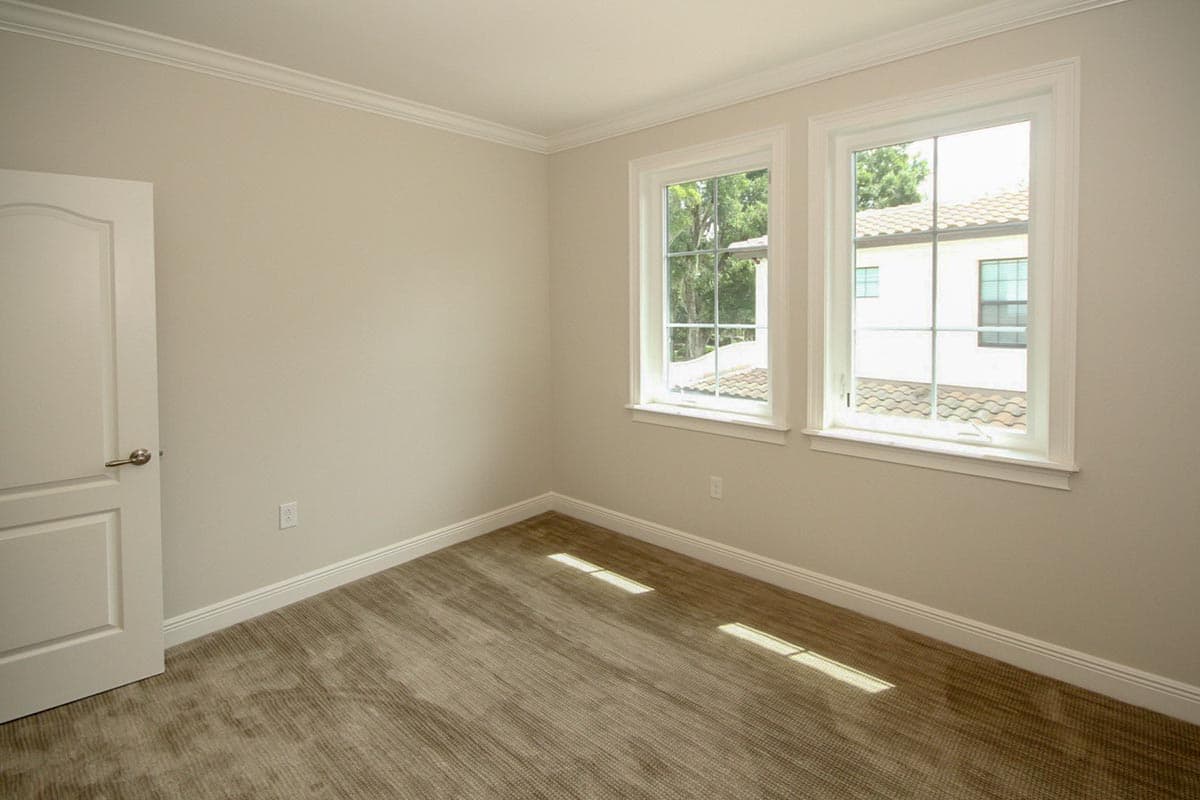

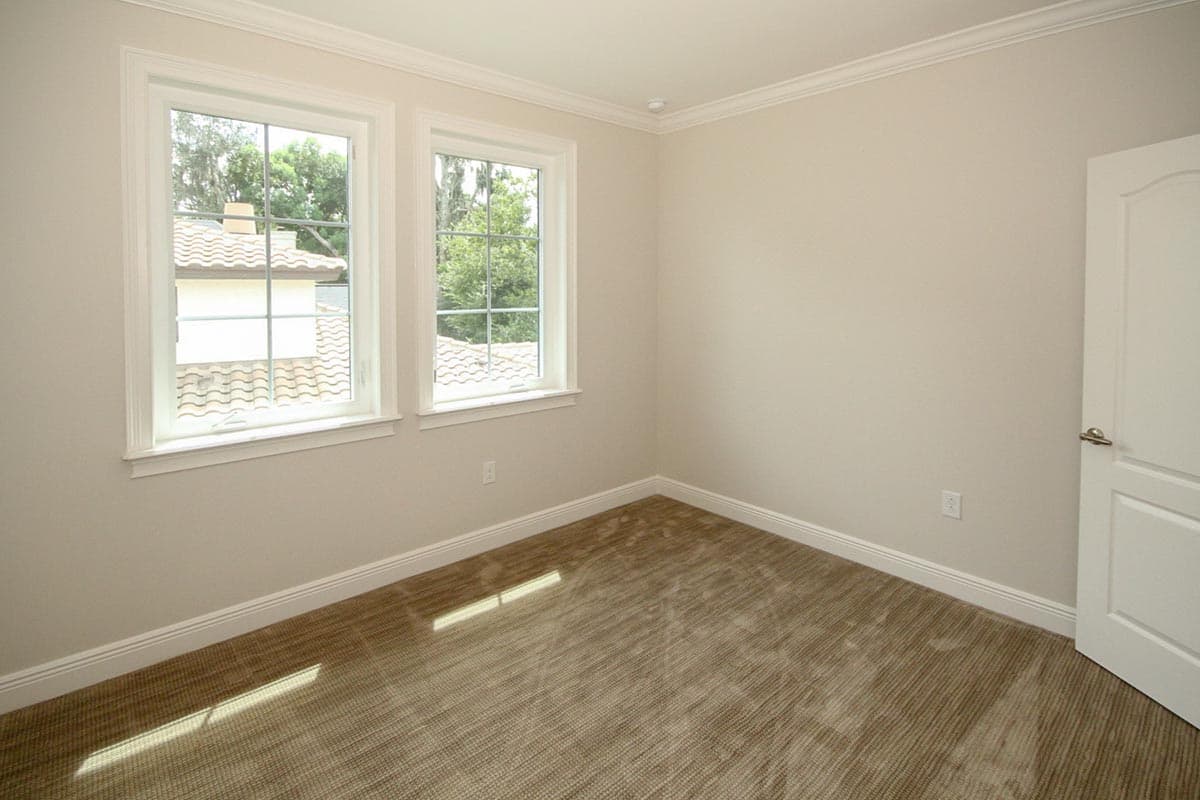

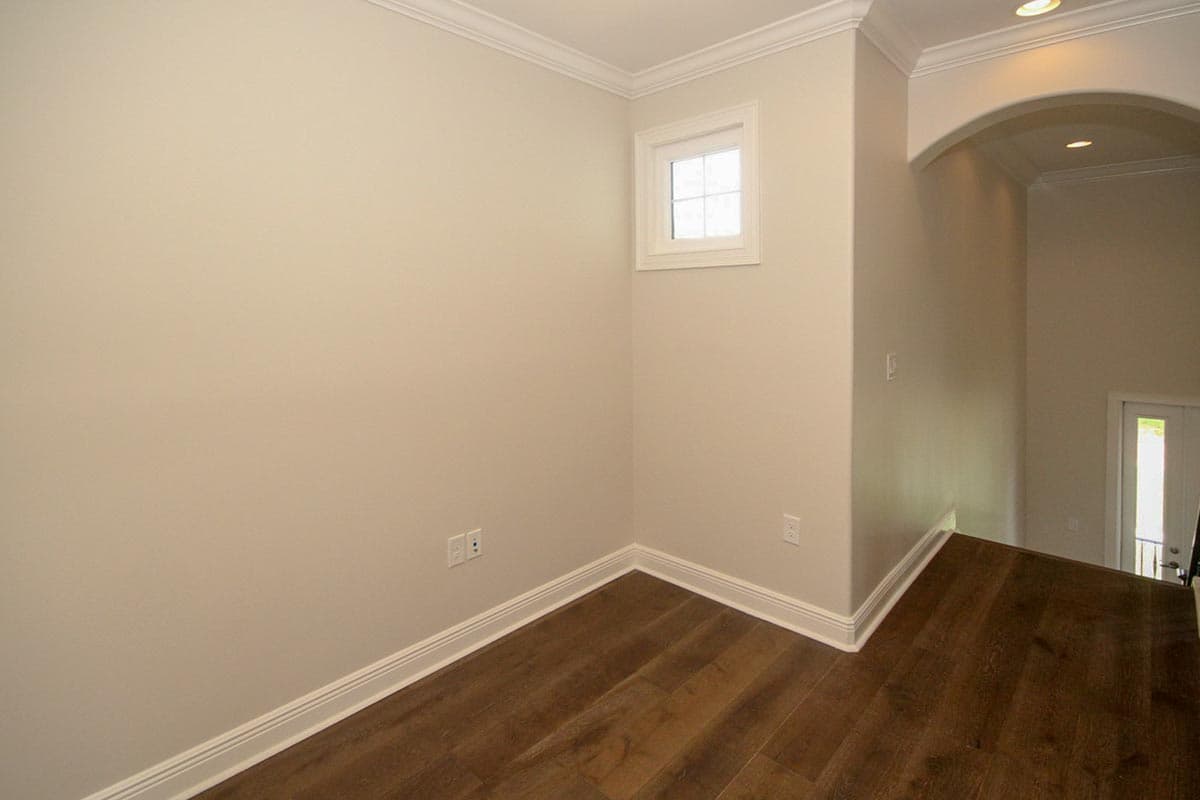

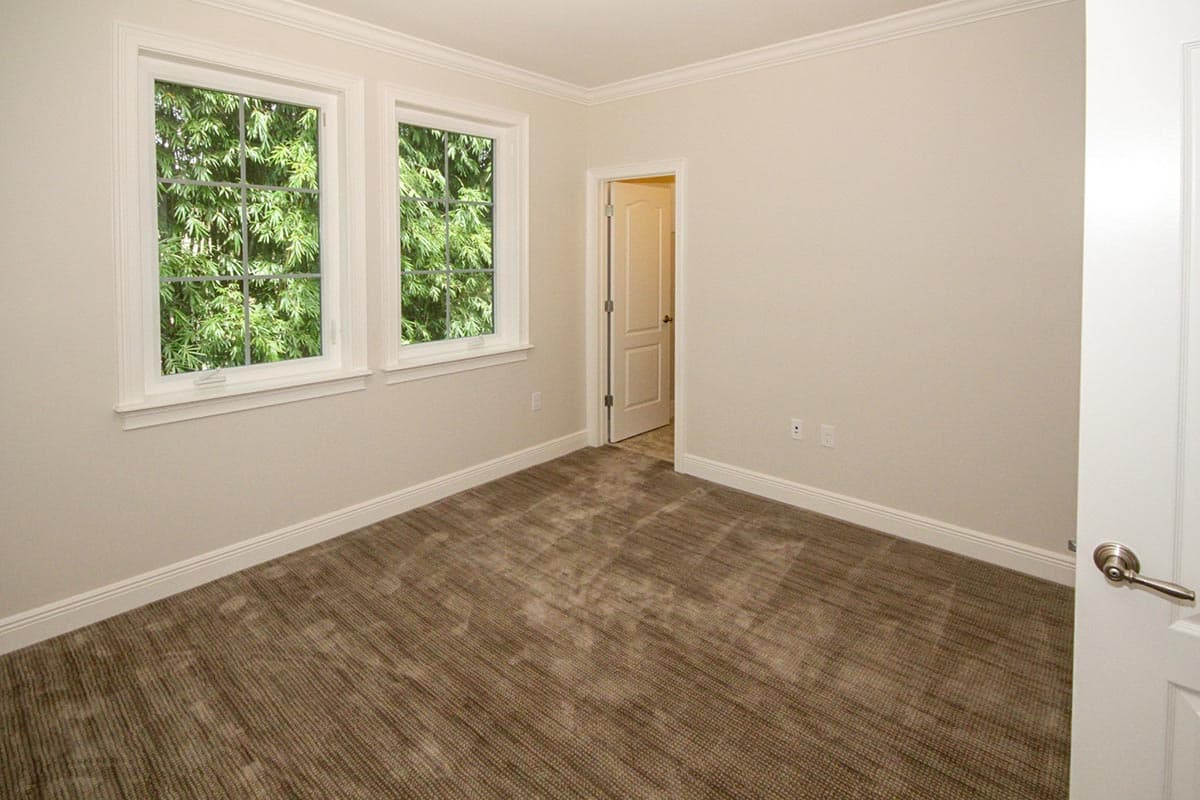

  • The three secondary bedrooms are all up on the second floor near the loft.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

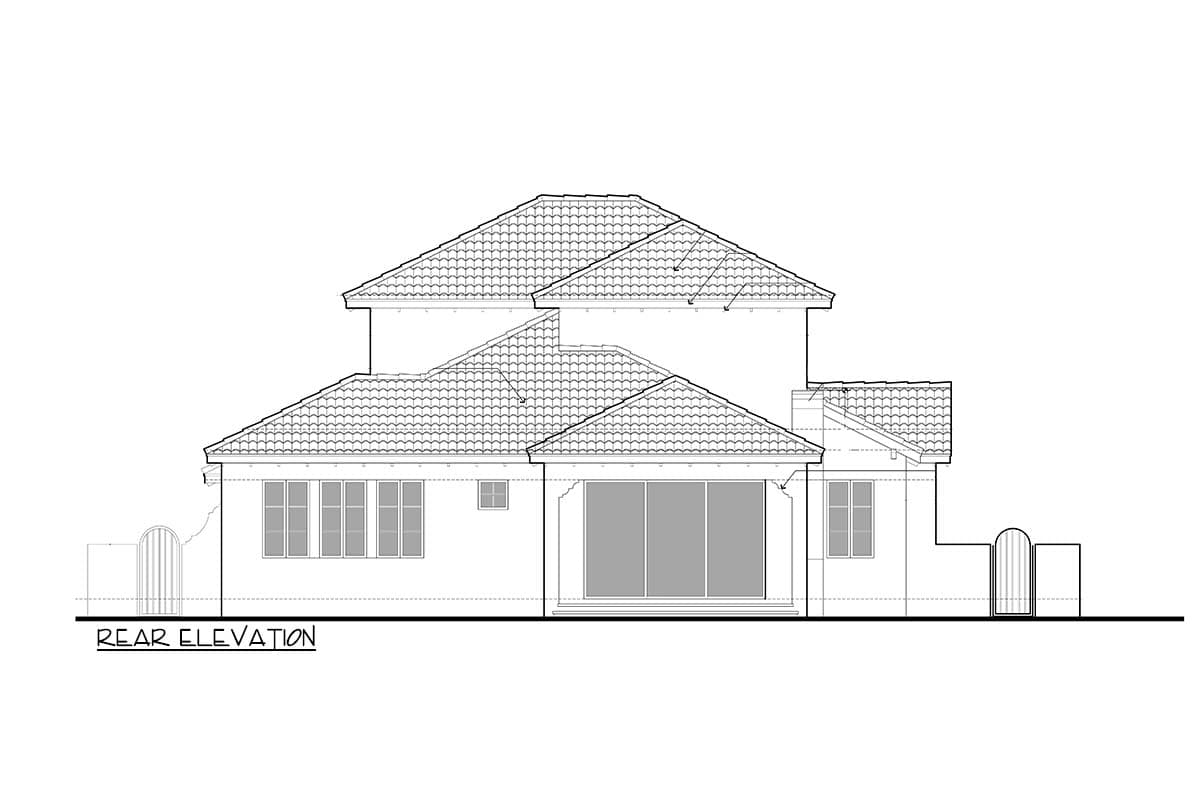

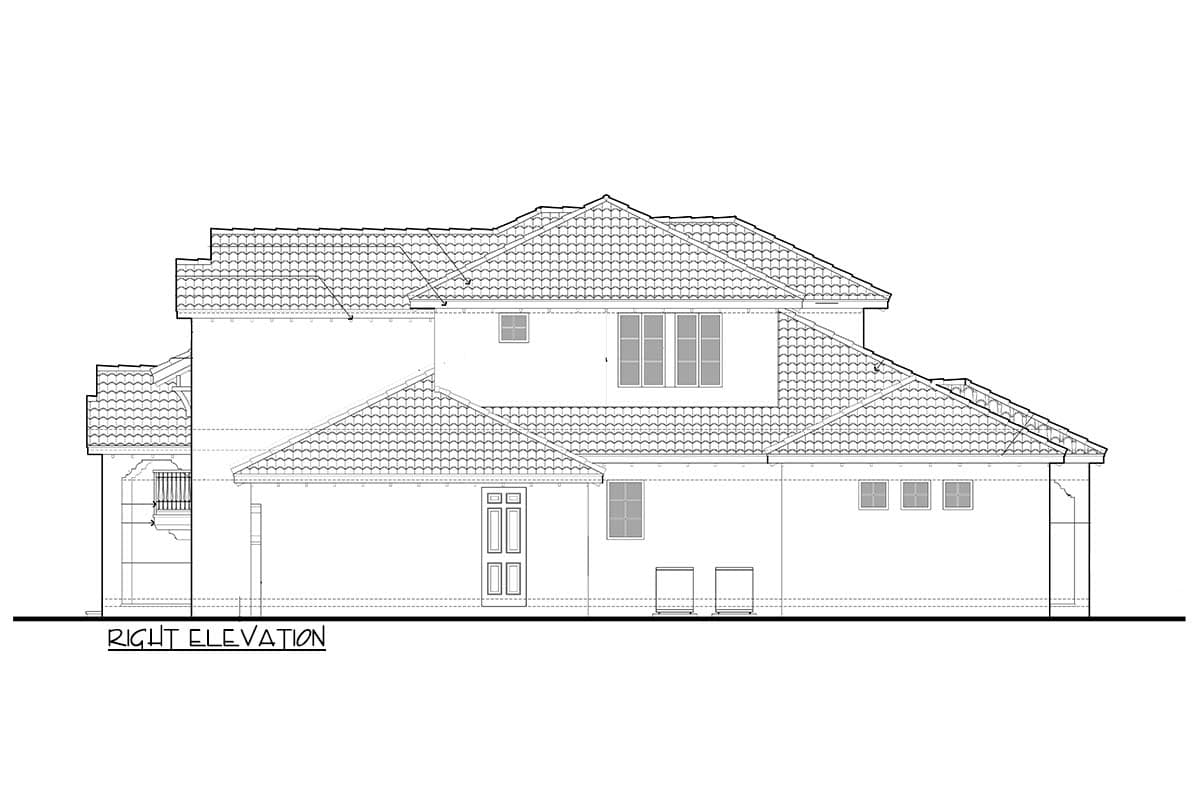

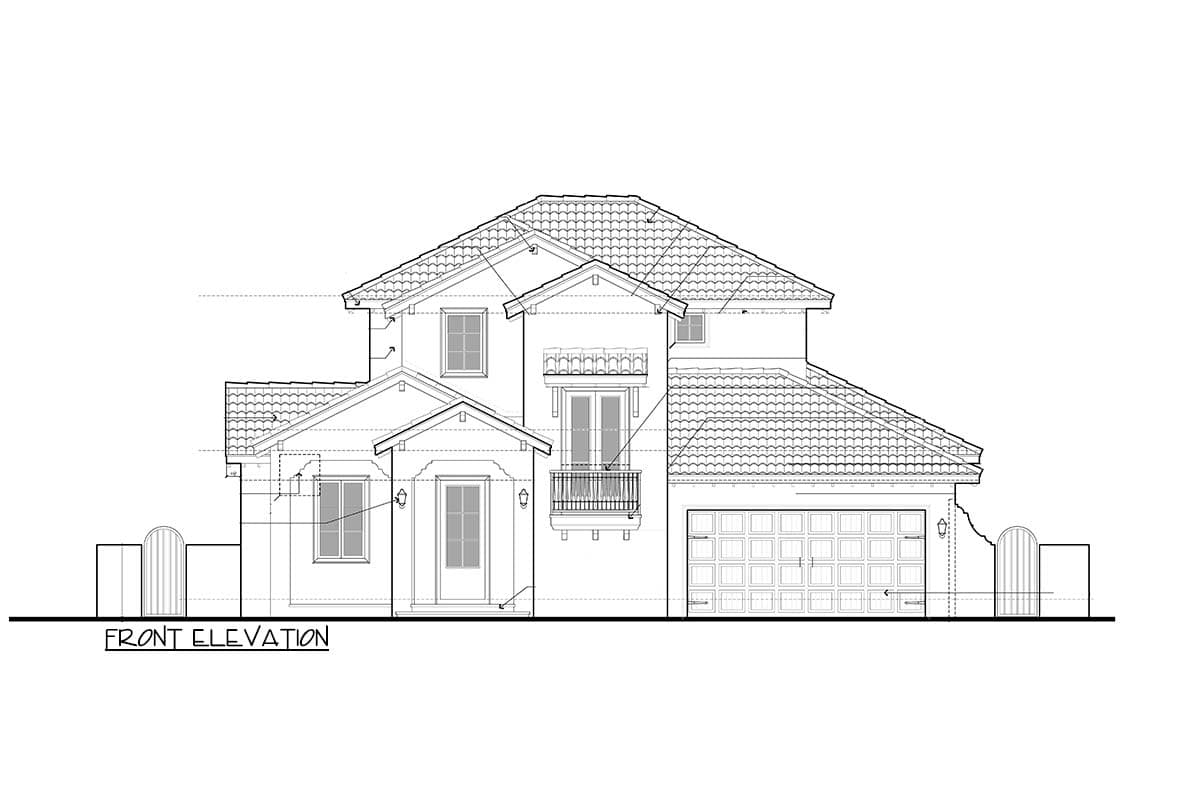

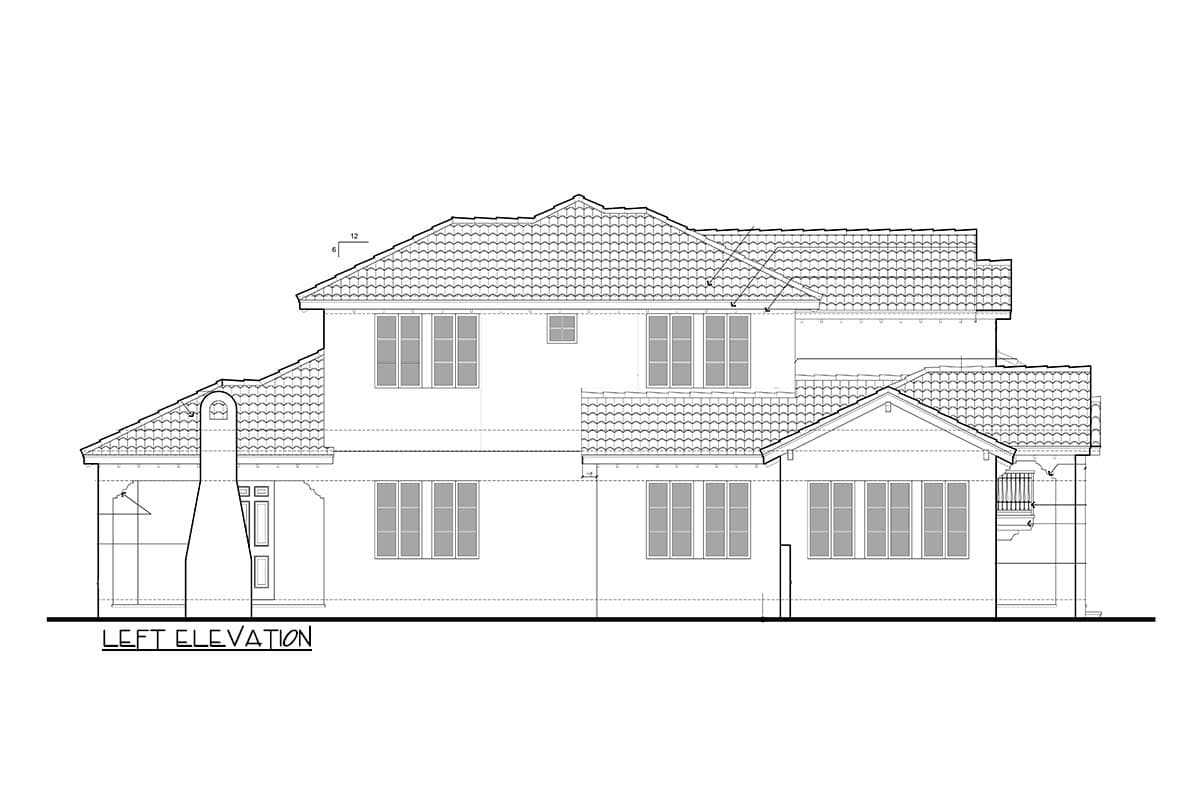

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

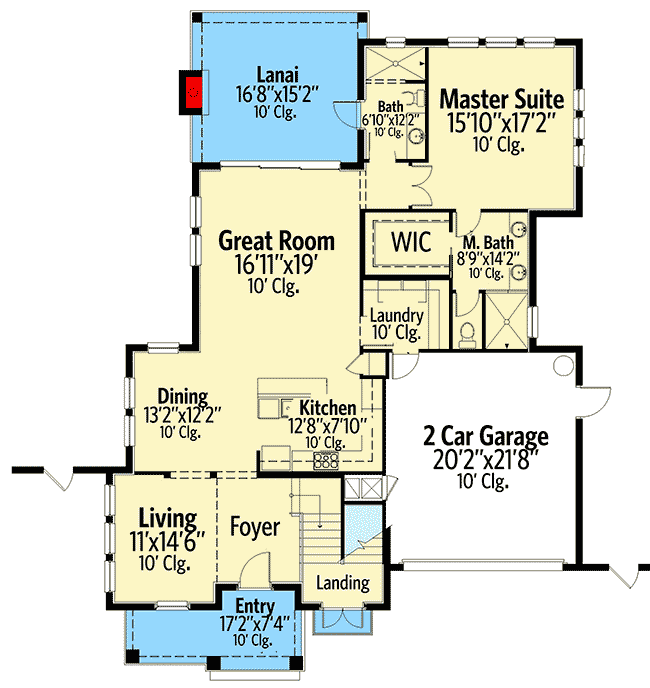

Mediterranean House Plan with Grand Sightlines - 82146KA floor plan - Main Level

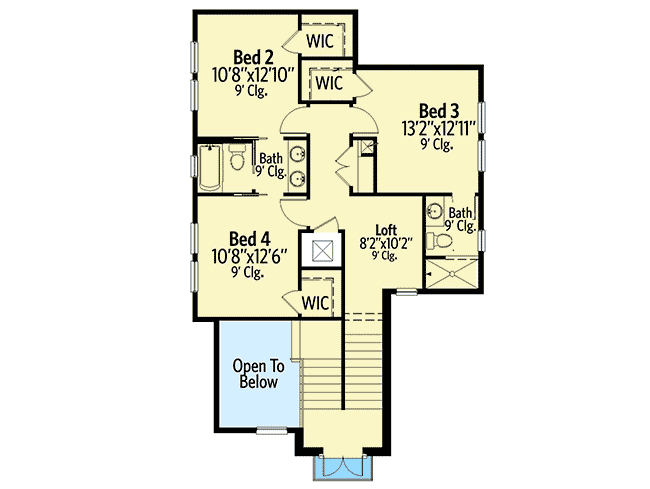

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mediterranean House Plan with Grand Sightlines - 82146KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,693 sq. ft.
  • 1st Floor: 1,647 sq. ft.
  • 2nd Floor: 1,046 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 48' 0"
  • Depth: 66' 8"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 464 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Mediterranean House Plan with Grand Sightlines

  • 2,693

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $2,260
  • PDF - Single-Build $2,580
  • CAD - Single-Build $2,580
  • View all purchase option online

About This Plan

  • An intricate roof line boosts the curb appeal of this Mediterranean house plan.
  • Sightlines start right at the foyer where you can see back through the dining room and great room to the covered lanai at the back of the home.
  • The open layout is ideal for having your family all in one huge living area.
  • Homeowners get a large first floor master suite with no stairs to climb at night.
  • The three secondary bedrooms are all up on the second floor near the loft.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,693 sq. ft.
  • 1st Floor: 1,647 sq. ft.
  • 2nd Floor: 1,046 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 48' 0"
  • Depth: 66' 8"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 464 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 82146KA
View this and more for this plan by visiting www.architechtecturaldesigns.com/82146KA
|
