Plan 62553DJ Mediterranean-influenced House Plan with Secluded Master Suite

2,676 3 2.5 1 4
1 Client
Album Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mediterranean-influenced House Plan with Secluded Master Suite

Plan 62553DJ

  • 2,676

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 4

    Cars

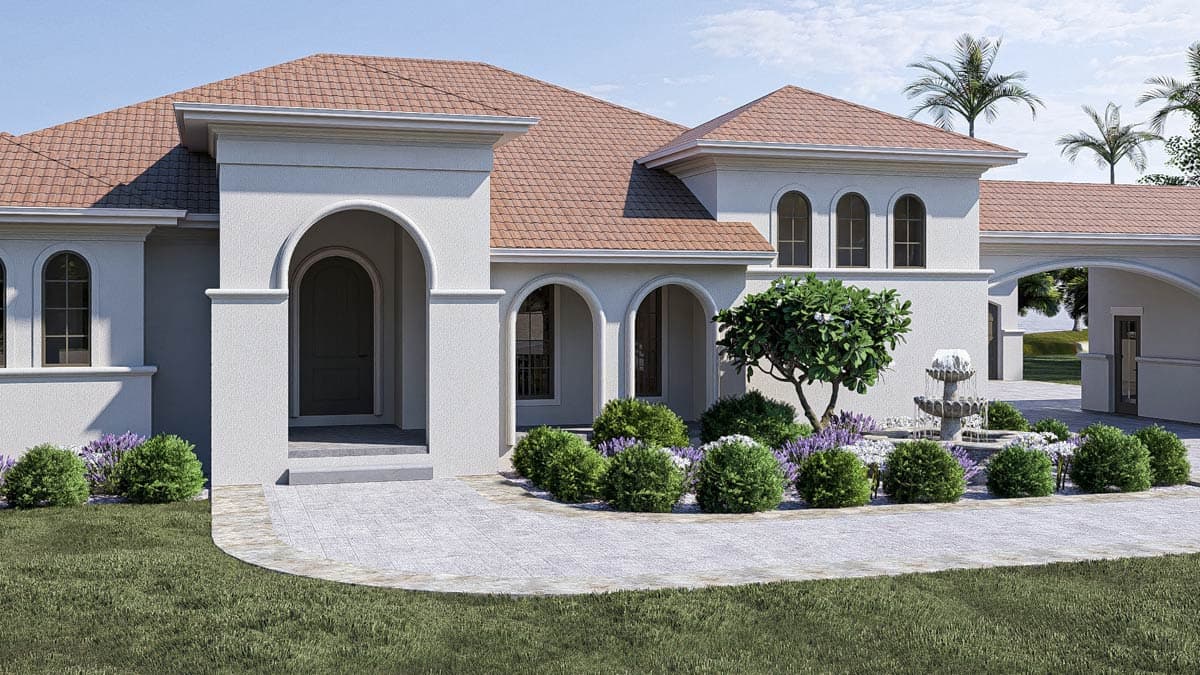

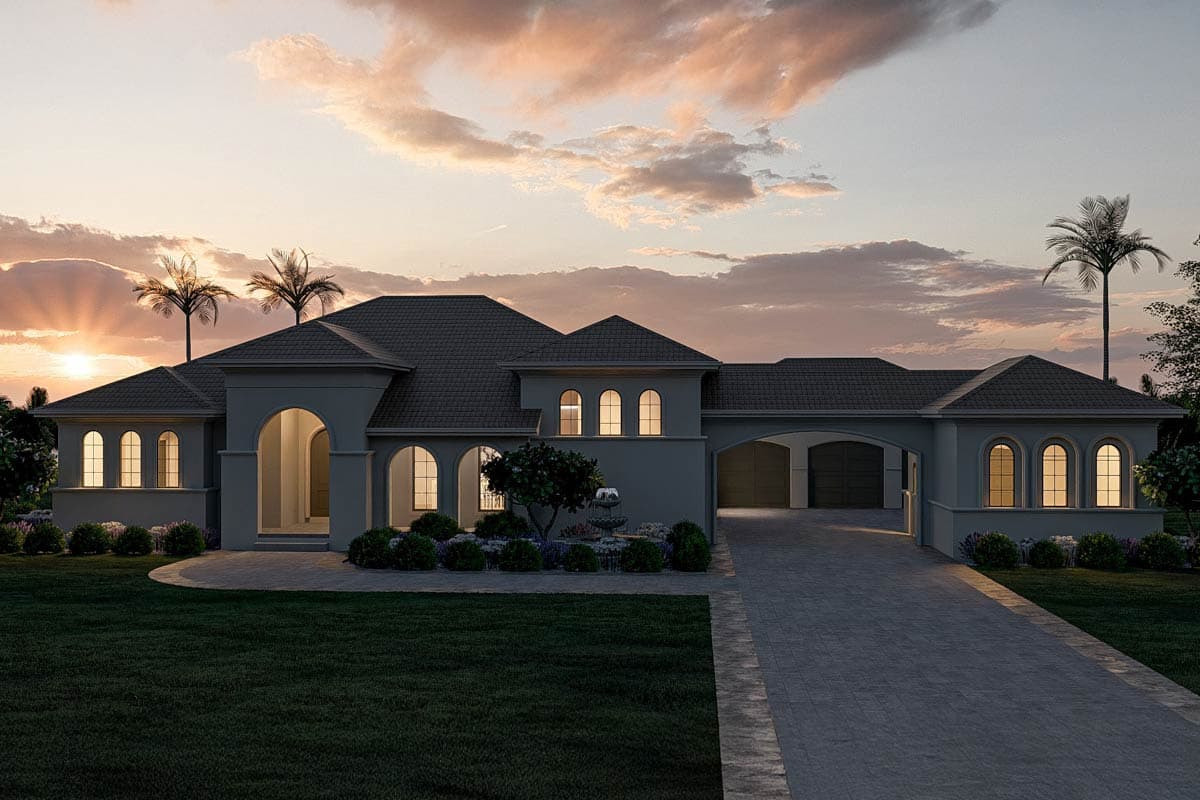

  • A series of lovely arched windows span the front of this Mediterranean house plan.
  • The covered entry porch and the porte cochere with side motor court make the home feel substantial.

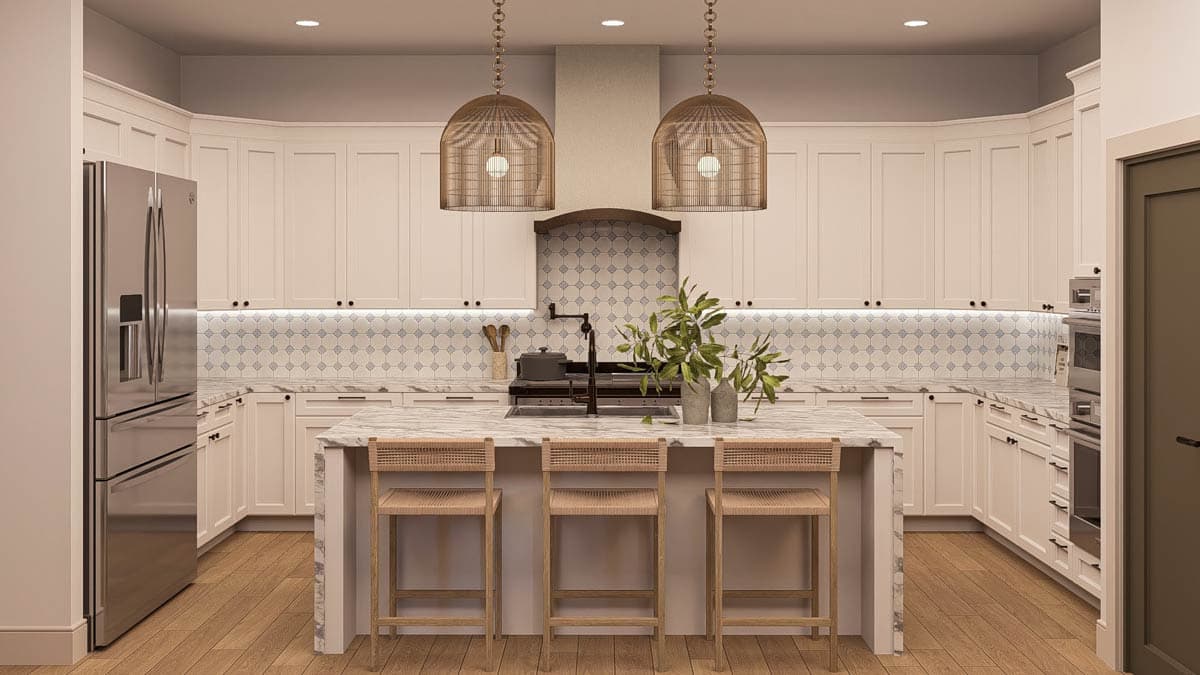

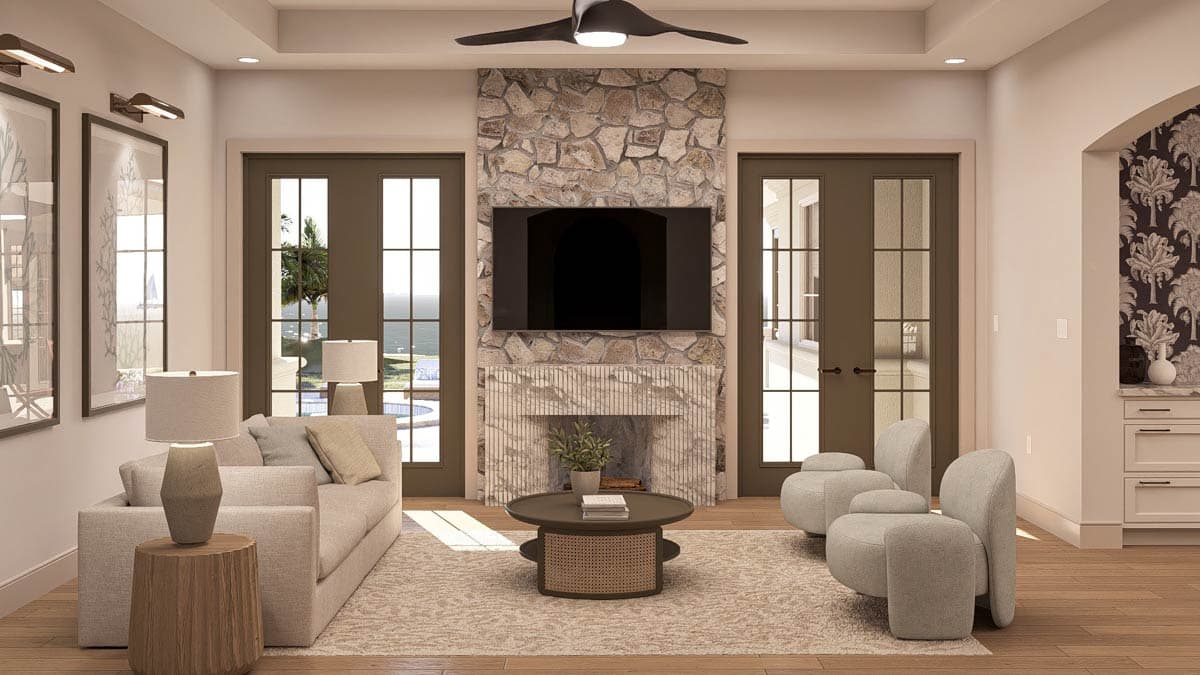

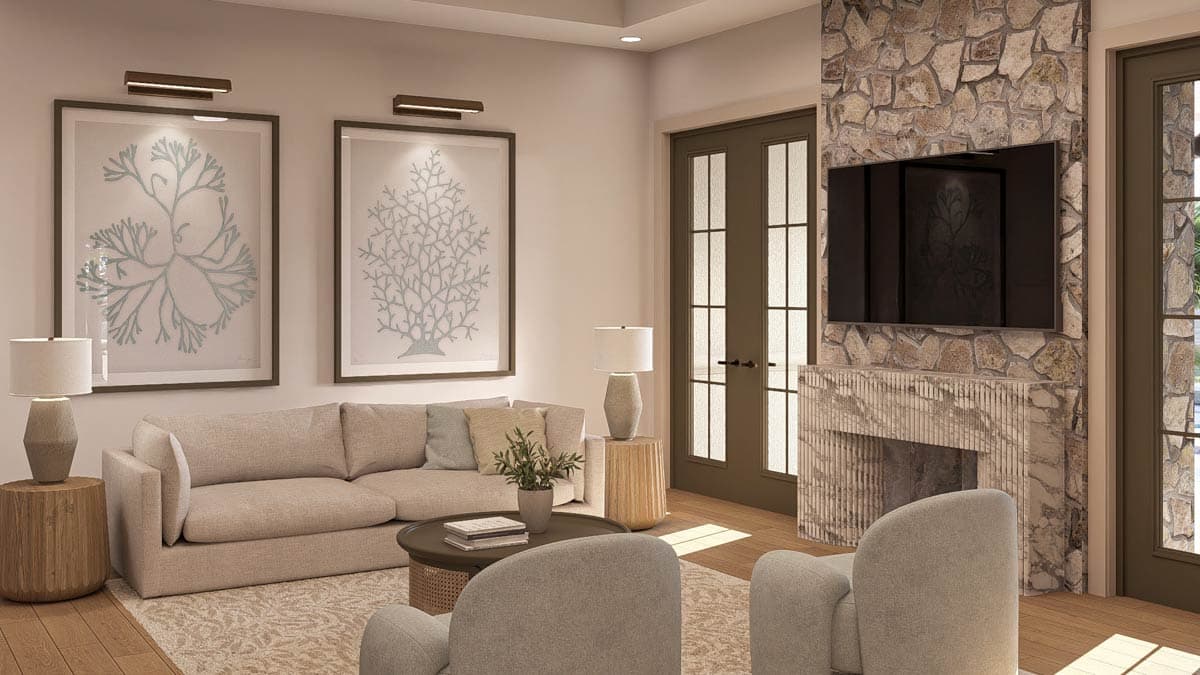

  • The spacious great room with tray ceiling is your main living area and offers views of the formal dining area and kitchen at the same time. A built-in buffet makes it easy to entertain.
  • Work from home in the quiet home office that has windows facing the side motor court.

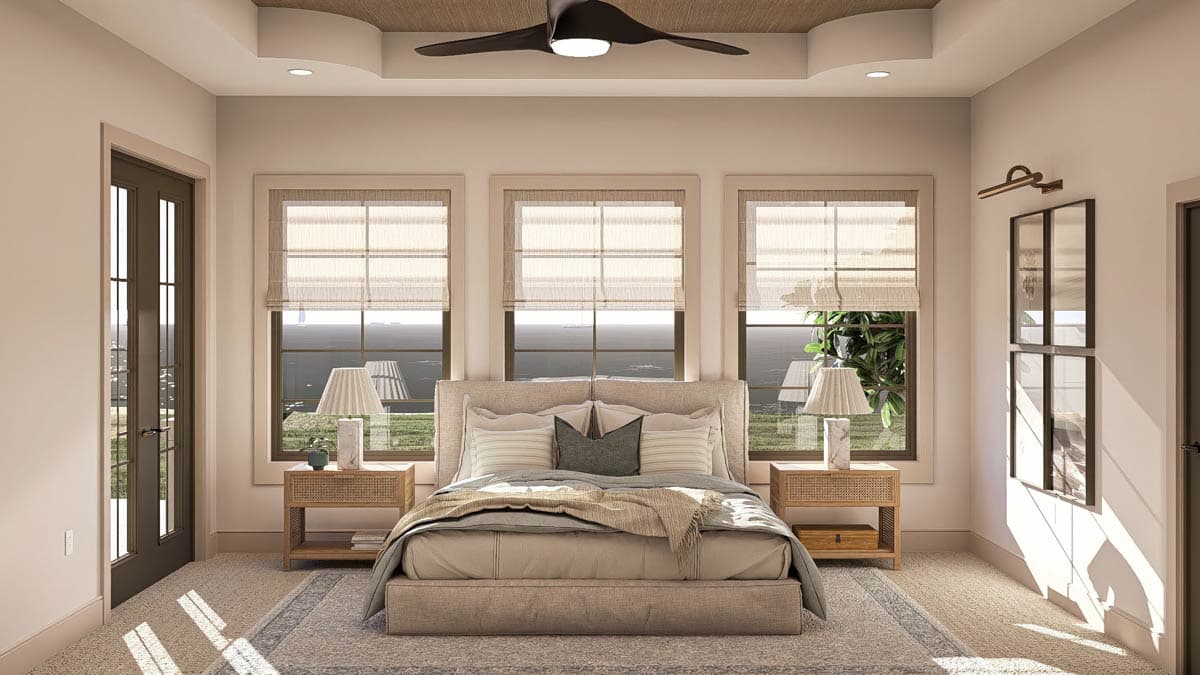

  • At bedtime, you are just steps away from the secluded master suite with its gorgeous tray ceiling and two double doors to take you to the rear porch.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.

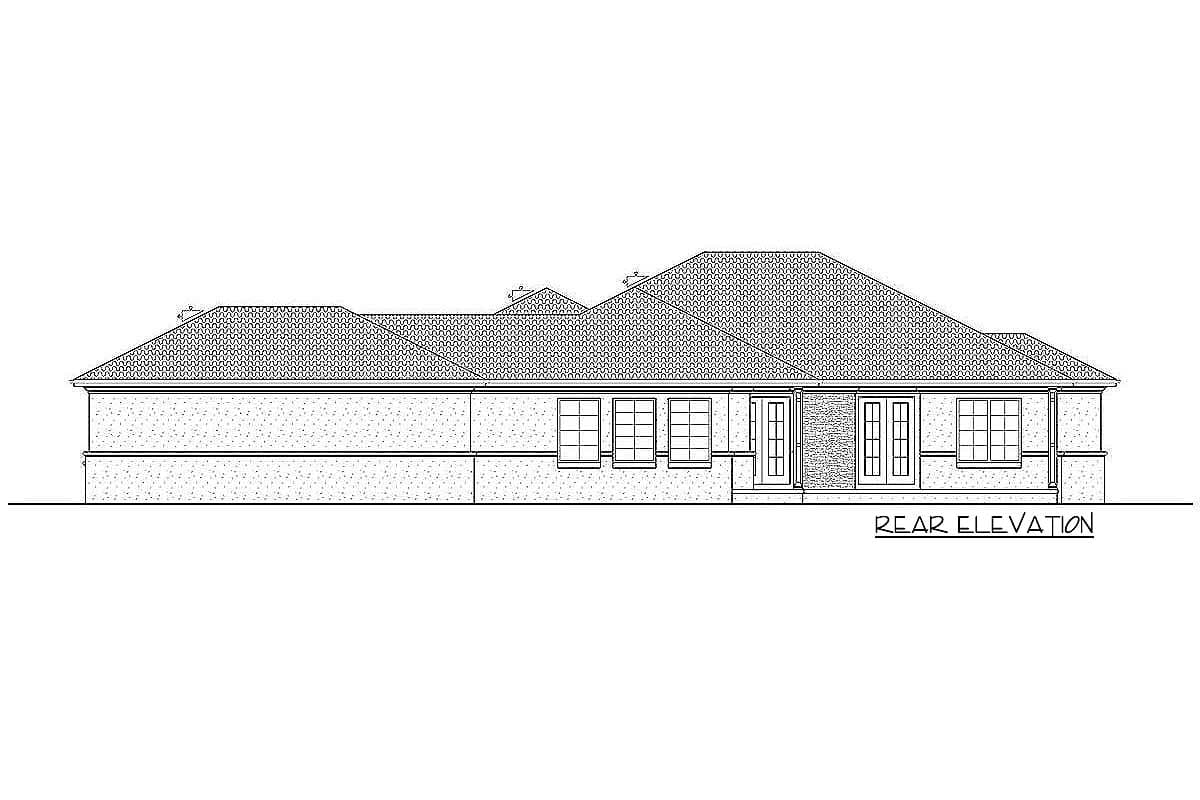

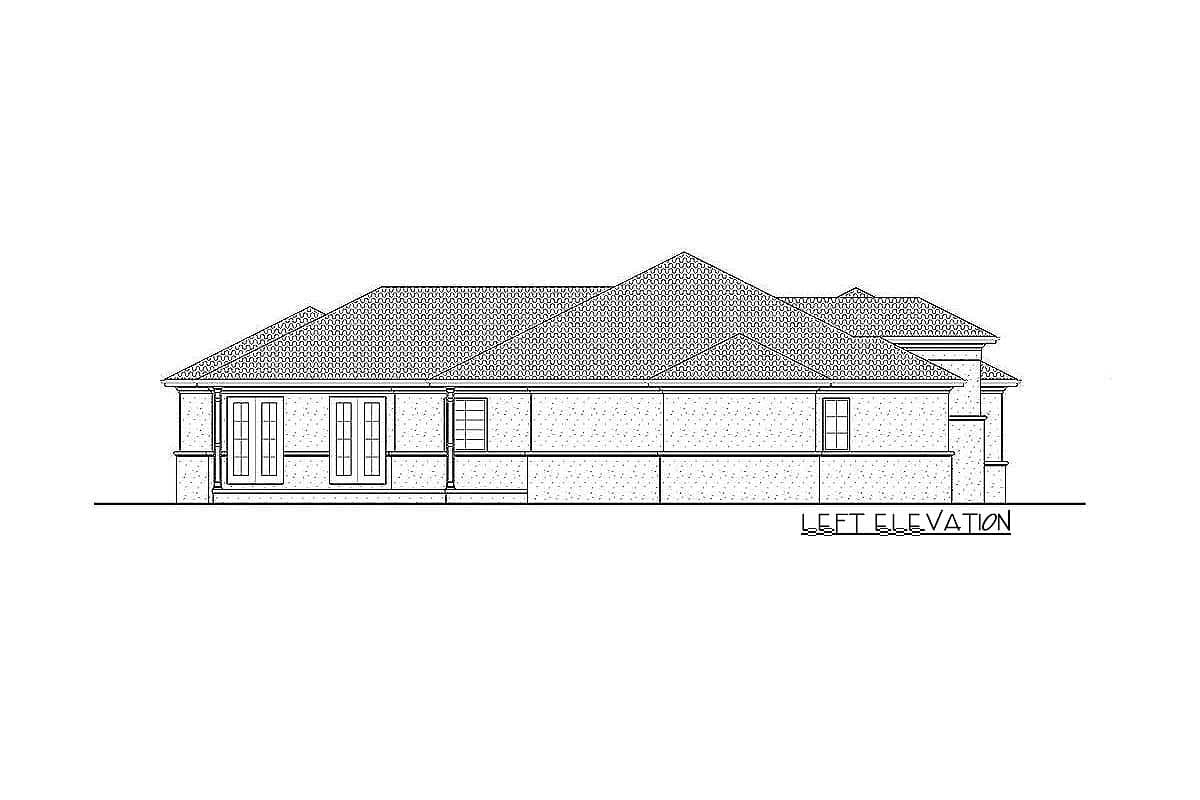

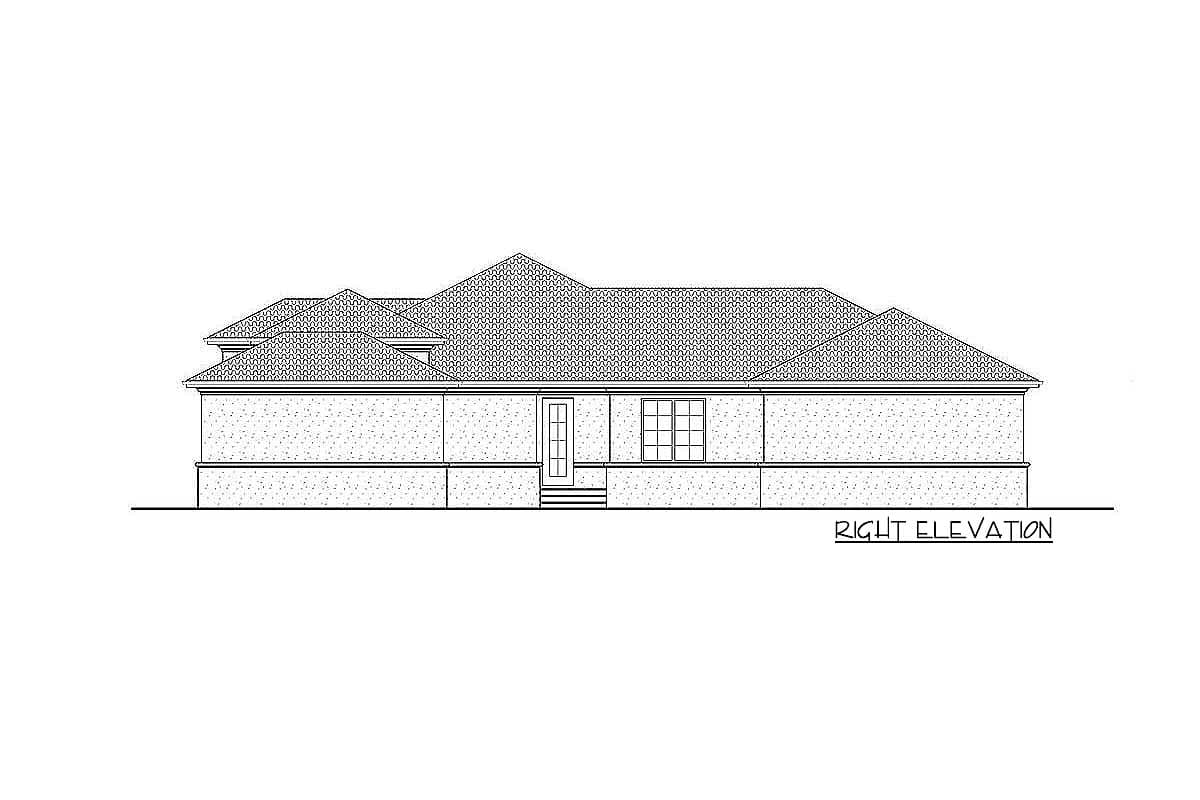

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

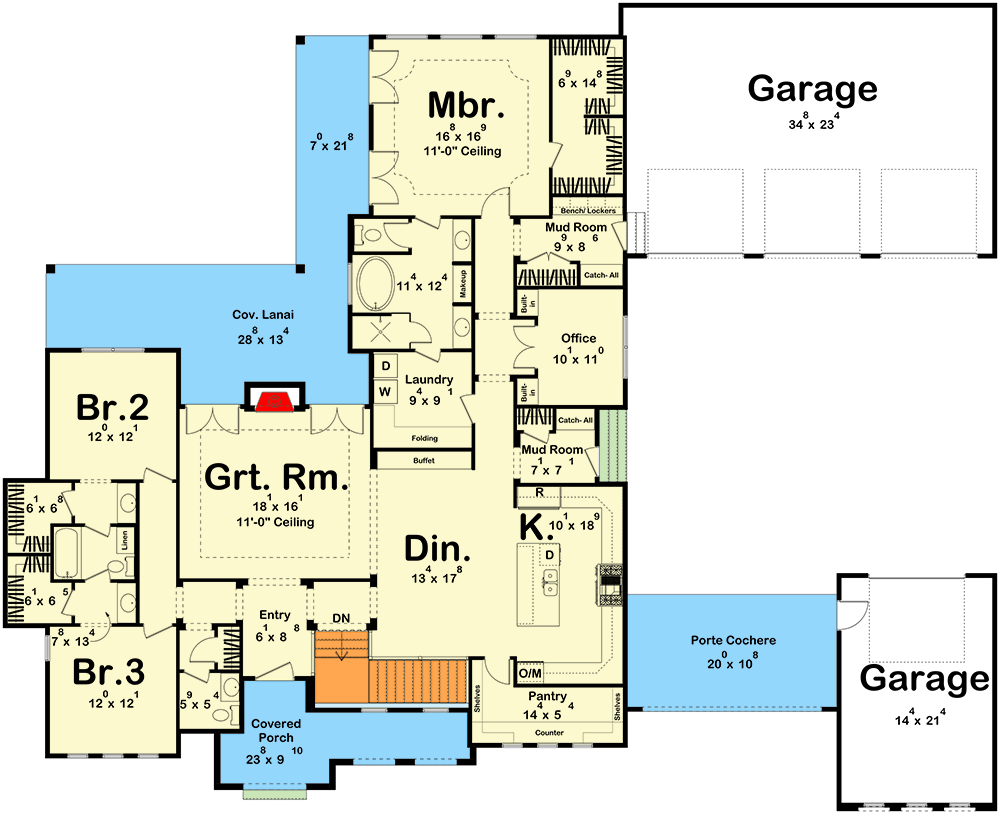

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mediterranean-influenced House Plan with Secluded Master Suite - 62553DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,676 sq. ft.
  • 1st Floor: 2,676 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 76' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 1171 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

Mediterranean-influenced House Plan with Secluded Master Suite

  • 2,676

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • 5 Sets + PDF $1,850
  • PDF - Unlimited Build $2,100
  • CAD + PDF - Single-Build $2,100
  • CAD Unlimited + PDF $2,600
  • View all purchase option online

About This Plan

  • A series of lovely arched windows span the front of this Mediterranean house plan.
  • The covered entry porch and the porte cochere with side motor court make the home feel substantial.
  • The spacious great room with tray ceiling is your main living area and offers views of the formal dining area and kitchen at the same time. A built-in buffet makes it easy to entertain.
  • Work from home in the quiet home office that has windows facing the side motor court.
  • At bedtime, you are just steps away from the secluded master suite with its gorgeous tray ceiling and two double doors to take you to the rear porch.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,676 sq. ft.
  • 1st Floor: 2,676 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 76' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 1171 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
