Plan 36539TX
Mediterranean Luxury House Plan
Heated S.F.
8,034
Beds
6
Baths
7.5+
Stories
2
Cars
5
Plan Details

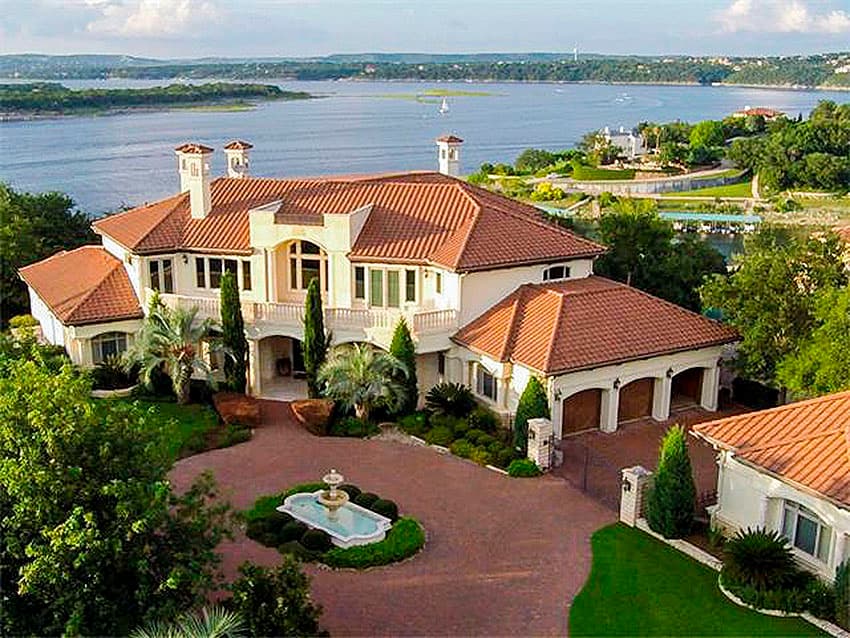

  • Huge outdoor living spaces complement the luxurious interior of this very special Mediterranean house plan.
  • A spectacular curved staircase is the first thing you see when you enter the two-story foyer of this home.
  • Interior columns are used instead of walls that block views so you have amazing sight lines all over.
  • The state-of-the-art kitchen boasts a six burner cooktop, multiple dishwashers and both an island and a peninsula eating bar.
  • A butler's pantry sits right across from the large walk-in food storage pantry.
  • The whole family will love the massive first floor media room with a large wet bar for entertaining.
  • There are two gorgeous bay windows in the master suite - one in the bedroom that forms a reading nook and one in the spa-like bathroom where the grand soaking tub sits.
  • Built-in islands keep you organized in the huge master walk-in closet.
  • There are three bedrooms on each floor and the kids can enjoy their own private game room on the upper floor - complete with a wet bar, half bath and private balcony.
  • Open railing in the wide hallway lets you see down into the rooms below.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

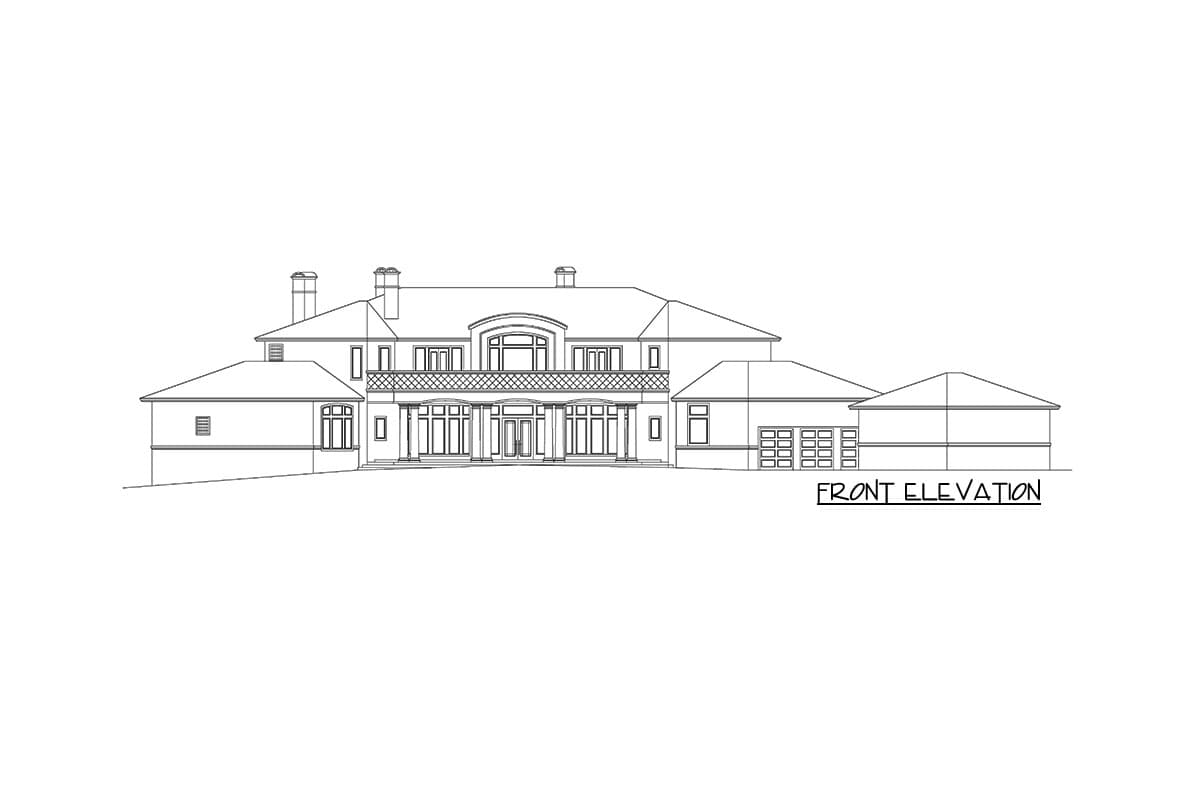

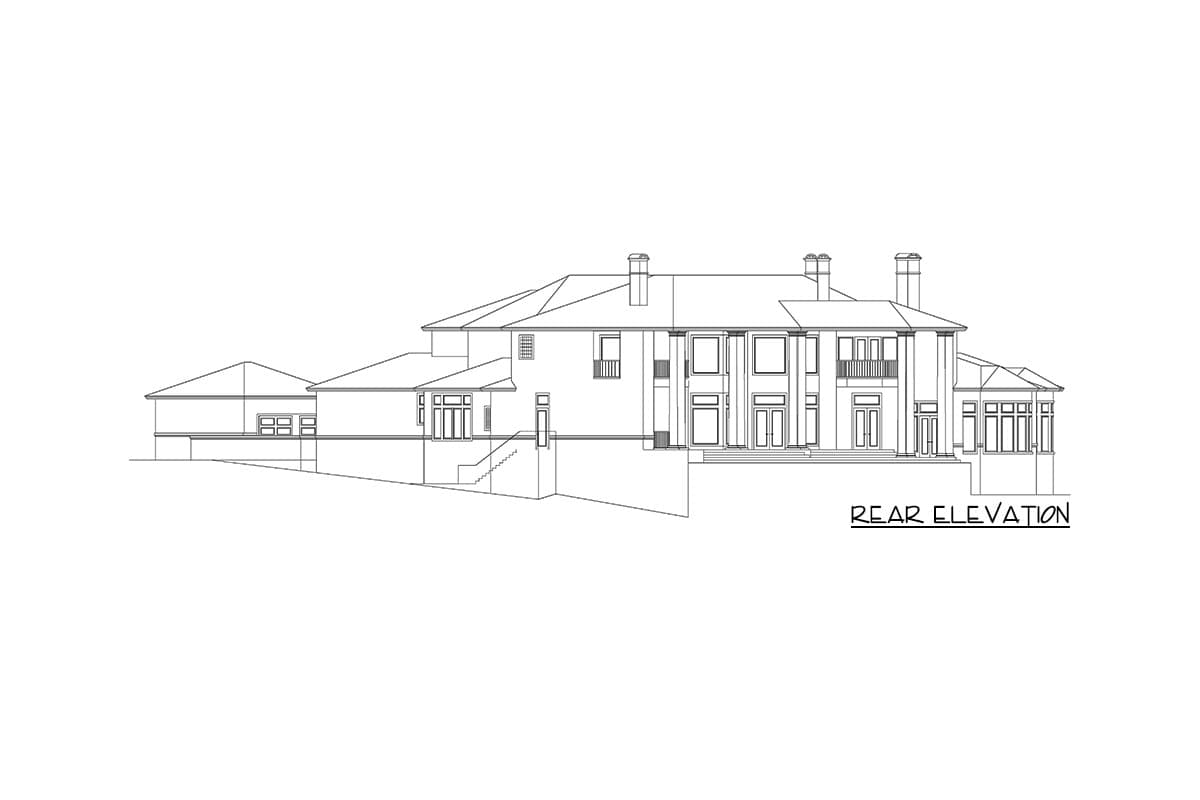

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

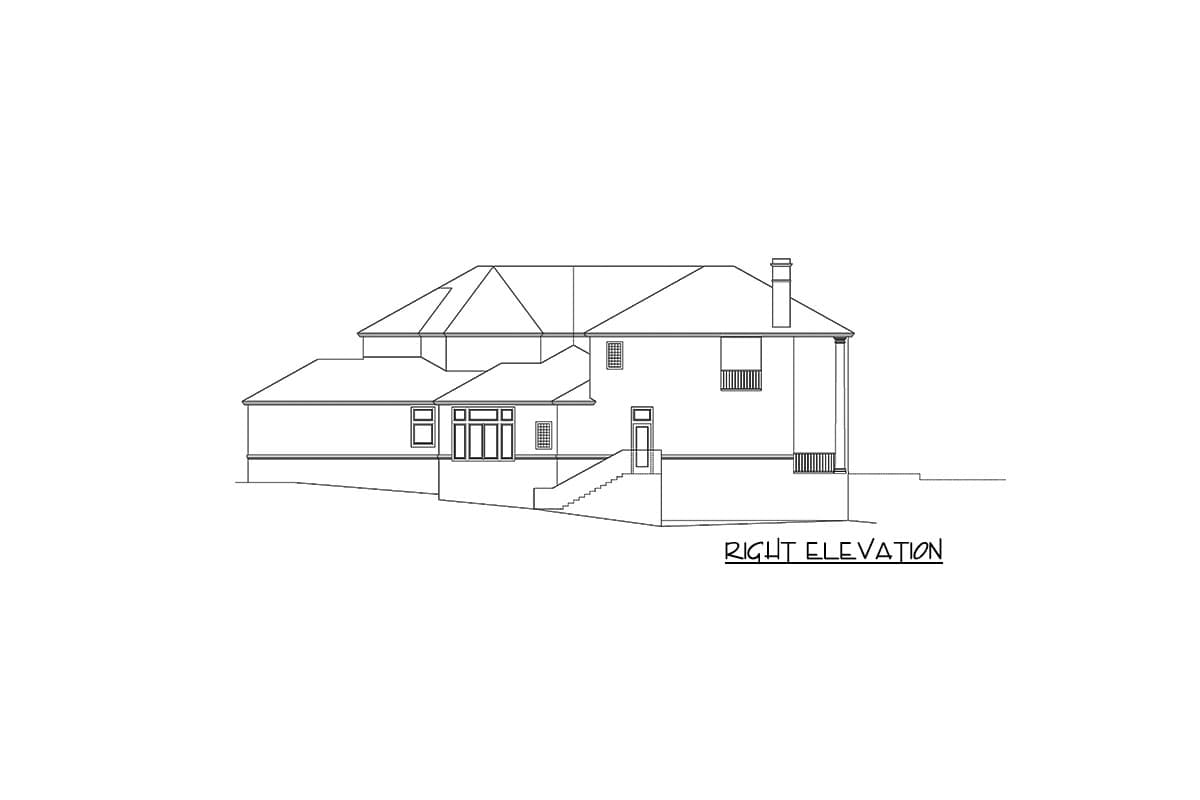

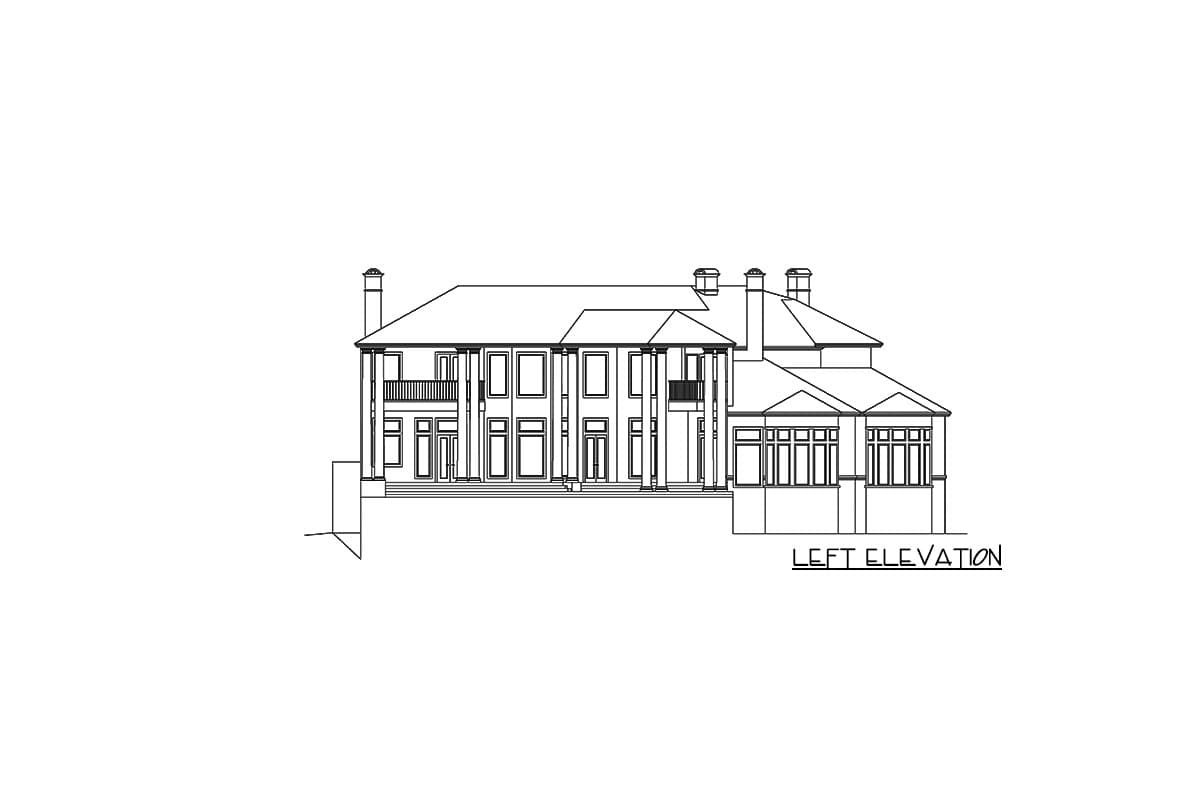

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mediterranean Luxury House Plan

  • 8,034

    Heated s.f.

  • 6

    Beds

  • 7.5+

    Baths

  • 2

    Floors

  • 5

    Car garage

Floor Plan

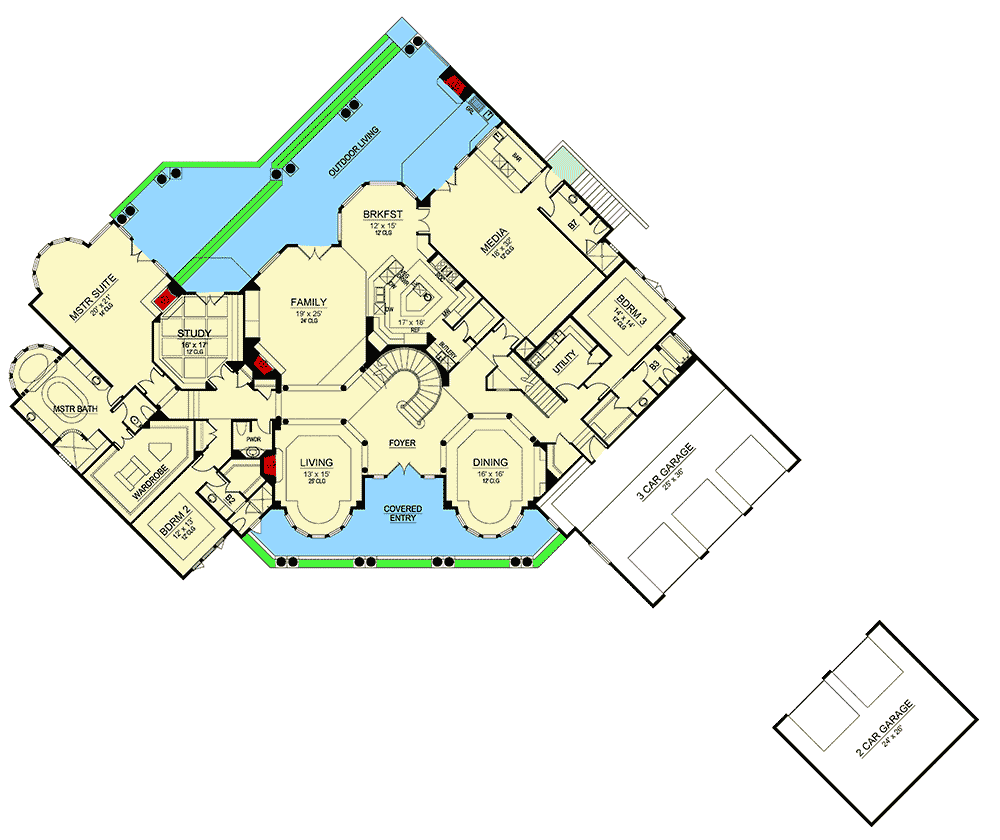

  • Main Level

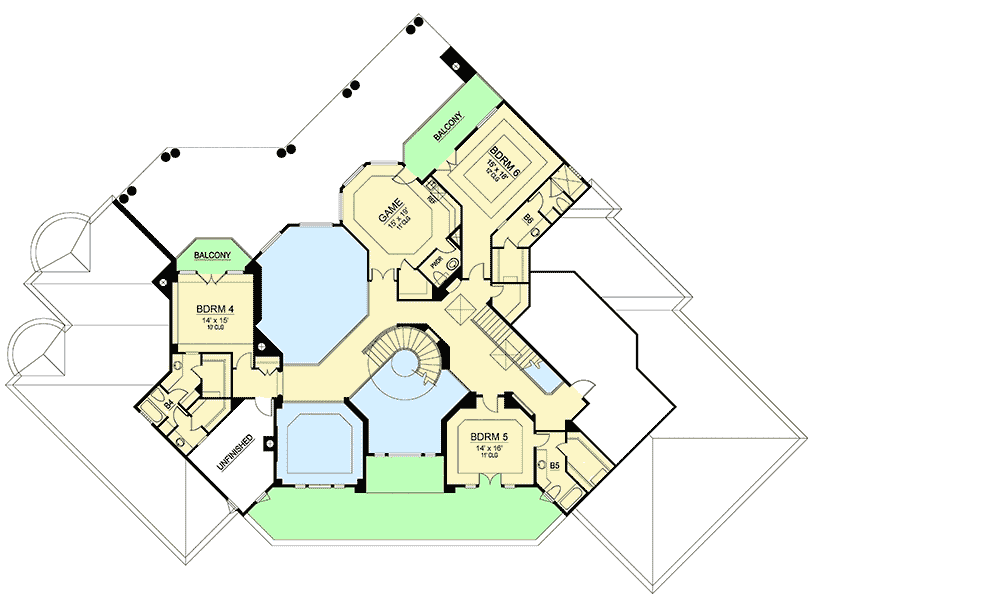

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 8,034 sq. ft.
  • 1st Floor: 5,645 sq. ft.
  • 2nd Floor: 2,389 sq. ft.

Dimensions

  • Width: 141' 0"
  • Depth: 97' 0"
  • Max ridge height: 42' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 7
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1690 sq. ft.
  • Count: 5 Cars
  • Entry Location: Courtyard, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"
