Plan 66216WE Mediterranean Master Down Beauty

4,798 4 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mediterranean Master Down Beauty

Plan 66216WE

  • 4,798

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This elegant house plan is great for a wide lot. The exterior has a Mediterranean influence and you'll notice an attractive rounded feature for the circular stair inside.
  • The foyer gives you expansive views of the living room and to the covered lanai beyond. A fireplace is on the left and the entire space is open to the second floor above.
  • The master is on the main floor and has two sets of French doors leading outside.
  • The kitchen has access to a large walk-in pantry and is open to teh family room and circular dinette.
  • Family bedrooms are upstairs as is your home theater and loft with views to the living room below. Note the balcony off of Bed 3.
  • The 3-car side load garage has extra storage.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

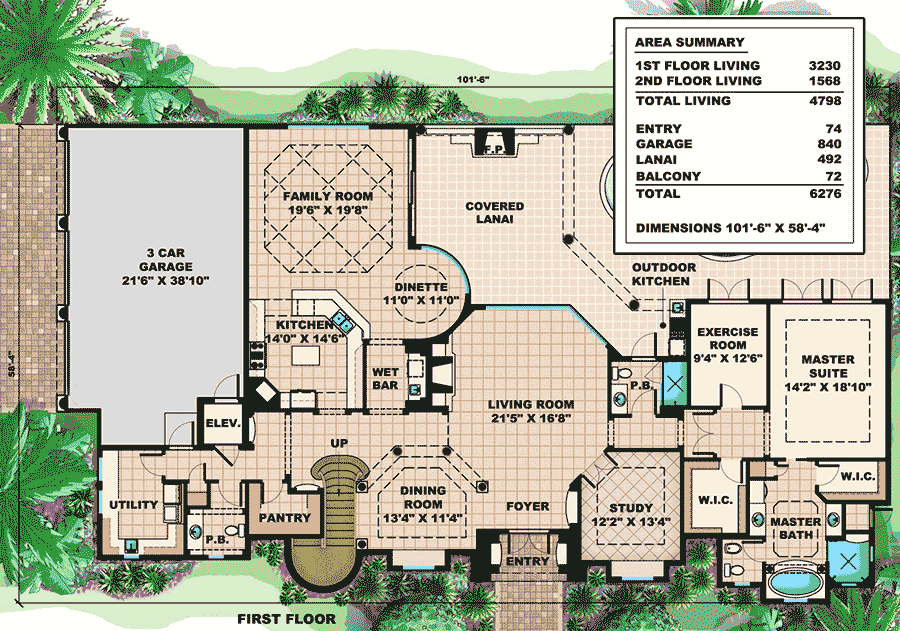

Mediterranean Master Down Beauty - 66216WE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

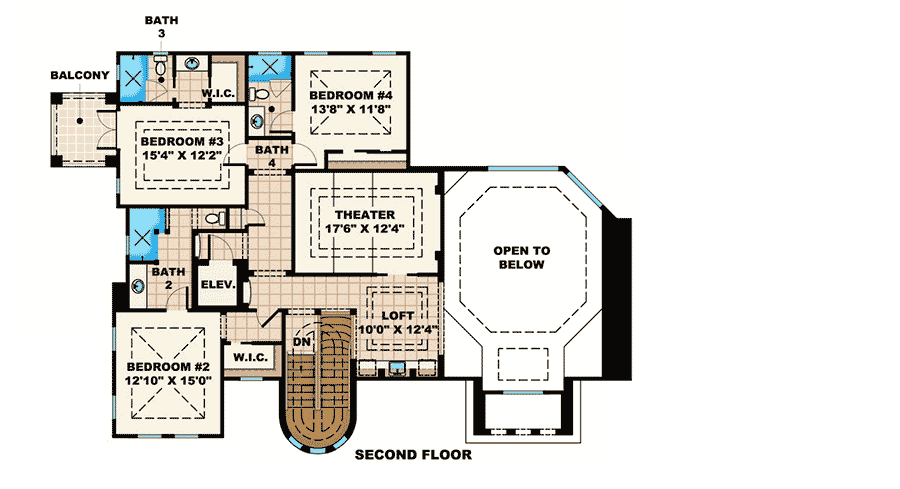

Mediterranean Master Down Beauty - 66216WE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,798 sq. ft.
  • 1st Floor: 3,230 sq. ft.
  • 2nd Floor: 1,568 sq. ft.
  • Lanai: 492 sq. ft.
  • Balcony / Veranda: 72 sq. ft.
  • Entry: 74 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 101' 6"
  • Depth: 58' 4"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 840 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mediterranean Master Down Beauty

  • 4,798

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,710
  • 8 Sets $1,805
  • PDF - Single-Build $1,900
  • CAD - Single-Build $1,900
  • View all purchase option online

About This Plan

  • This elegant house plan is great for a wide lot. The exterior has a Mediterranean influence and you'll notice an attractive rounded feature for the circular stair inside.
  • The foyer gives you expansive views of the living room and to the covered lanai beyond. A fireplace is on the left and the entire space is open to the second floor above.
  • The master is on the main floor and has two sets of French doors leading outside.
  • The kitchen has access to a large walk-in pantry and is open to teh family room and circular dinette.
  • Family bedrooms are upstairs as is your home theater and loft with views to the living room below. Note the balcony off of Bed 3.
  • The 3-car side load garage has extra storage.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,798 sq. ft.
  • 1st Floor: 3,230 sq. ft.
  • 2nd Floor: 1,568 sq. ft.
  • Lanai: 492 sq. ft.
  • Balcony / Veranda: 72 sq. ft.
  • Entry: 74 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 101' 6"
  • Depth: 58' 4"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 840 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
