Plan 720171DA

Mediterranean Ranch House Plan with Vaulted Ceilings and Screened Porch

Name: Plan 720171DA: Mediterranean Ranch House Plan with Vaulted Ceilings and Screened Porch
Brand: Architectural Designs
SKU: 720171DA
Price: 1150.0 USD
Availability: InStock

Heated S.F.

1,542

Beds

Baths

Stories

Cars

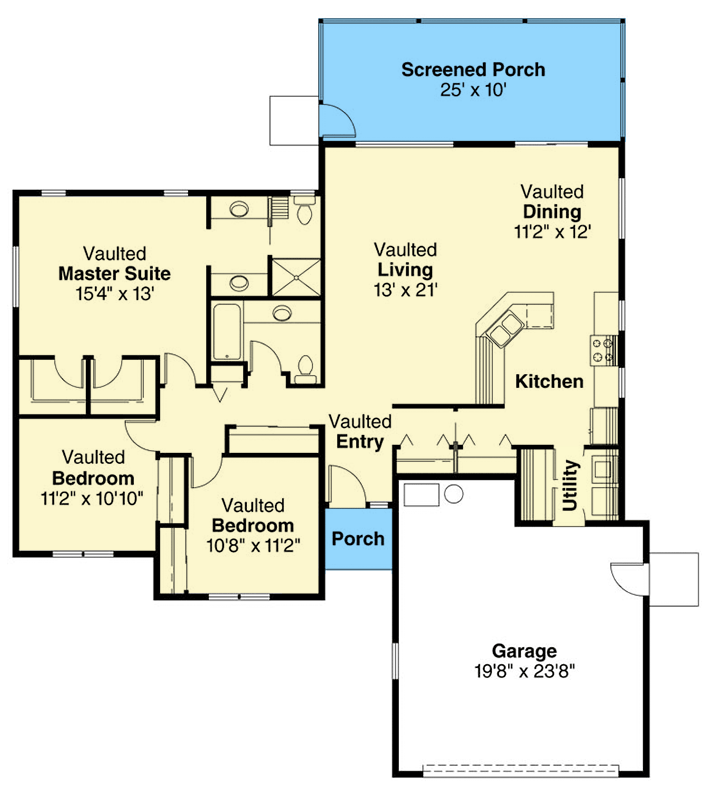

Floor Plan

Main Level

Plan Details

This inviting 1,542 sq. ft. Mediterranean Ranch house plan features 3 bedrooms, 2 full bathrooms, and a spacious 469 sq. ft. side-entry 2-car garage, all under a charming tile roof.
Step through the elegant front porch into a vaulted entry that immediately opens to a bright, open-concept living space, thoughtfully designed for seamless daily life and entertaining.
The vaulted living room flows effortlessly into the vaulted dining area and a well-appointed kitchen, creating a cohesive and expansive central hub. A convenient utility room is discreetly located off the kitchen, leading to the garage.
The luxurious vaulted master suite, situated on the main level for ultimate convenience, offers privacy and comfort. Two additional vaulted bedrooms are thoughtfully placed near by.
Extend your living outdoors to the generous 250 sq. ft. screened porch, perfect for enjoying morning coffee or evening relaxation while protected from the elements. A charming front porch adds to the home's welcoming curb appeal.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
