Plan 66326WE Mediterranean-style Home Plan with Circular Stair and an Elevator

6,193 5 5.5+ 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mediterranean-style Home Plan with Circular Stair and an Elevator

Plan 66326WE

  • 6,193

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Beautiful arched windows and an arched entry porch add elegance to this luxurious Mediterranean home.
  • Every possible amenity has been designed into the home from a residential elevator to a wine bar to an outdoor summer kitchen and more.
  • Views stretch from the foyer all the way back to the huge living room with its coffered ceiling.
  • Admire the curved staircase as you walk past the wet bar to get to the formal dining room.
  • An enormous kitchen with tons of counter space will help you when entertaining or just giving your family room to spread out.
  • The built-in banquette seating in the circular dinette saves space and is brightened by windows all across the back.
  • Five sets of double doors give you easy access to the marvelous covered lanai area with its outdoor kitchen.
  • The pool bath works well to keep wet feet out of the main house.
  • A stunning master suite also opens up to the lanai through two double doors.
  • Pocket doors close off the spacious his and her walk-in closets.
  • Soak in the big tub in the master bathroom and enjoy the vaulted ceilings.
  • Four huge bedroom suites lie on the second floor, three of which have sun decks or balconies.
  • The loft area is also luxurious with its beamed ceiling and wet bar.

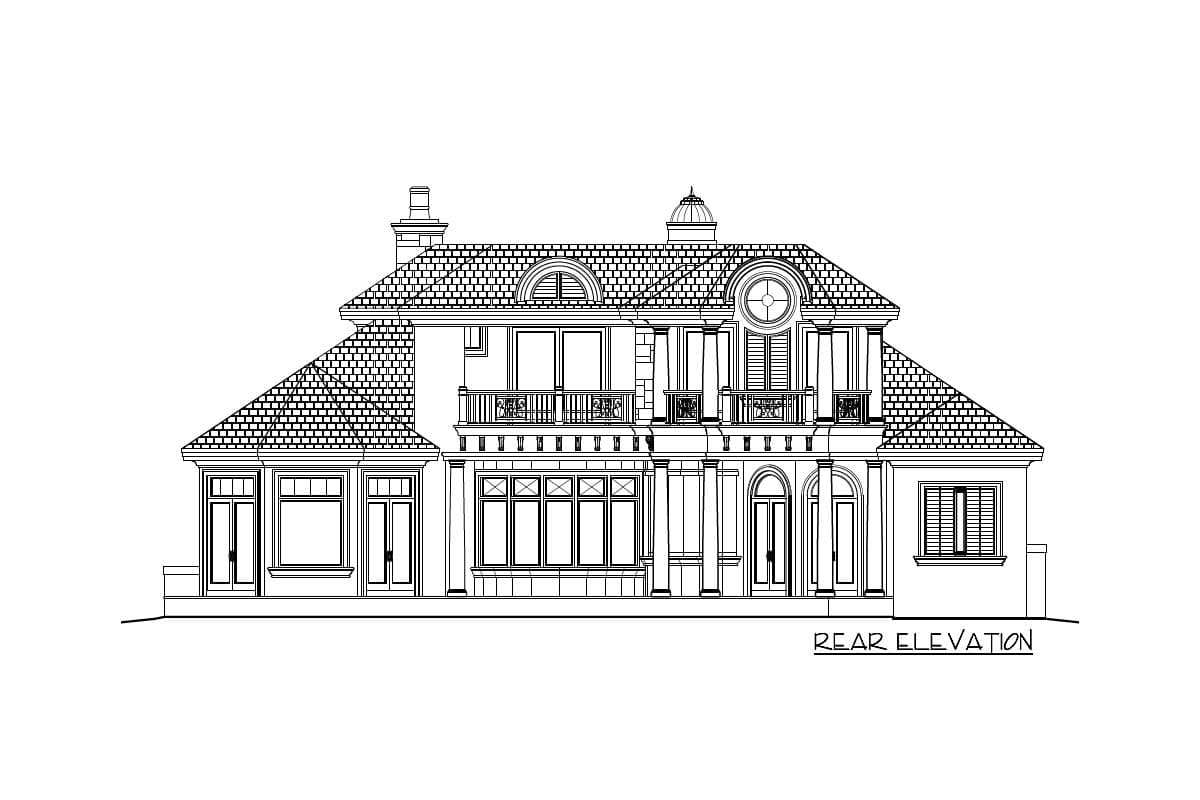

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

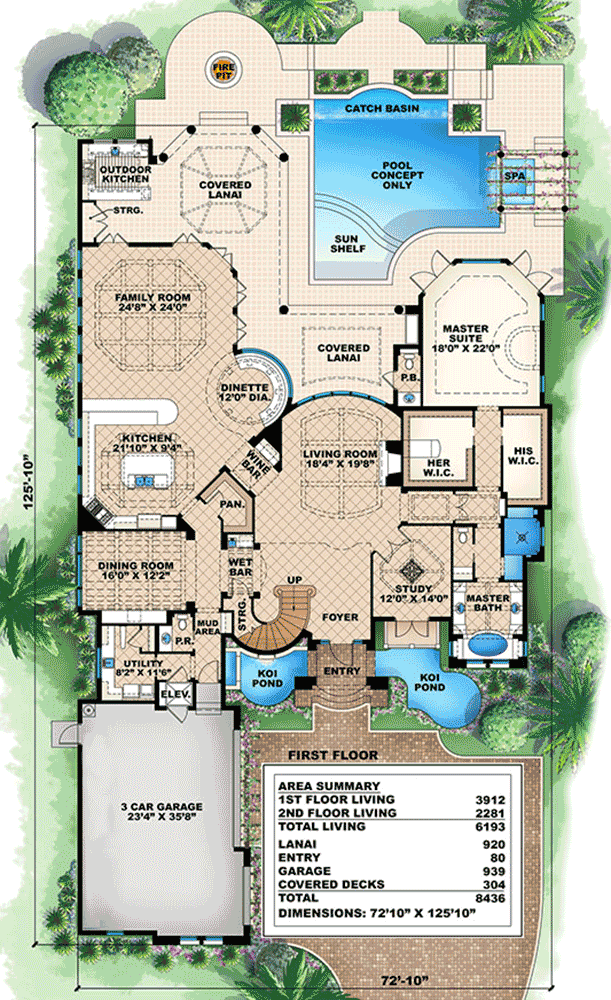

Mediterranean-style Home Plan with Circular Stair and an Elevator - 66326WE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

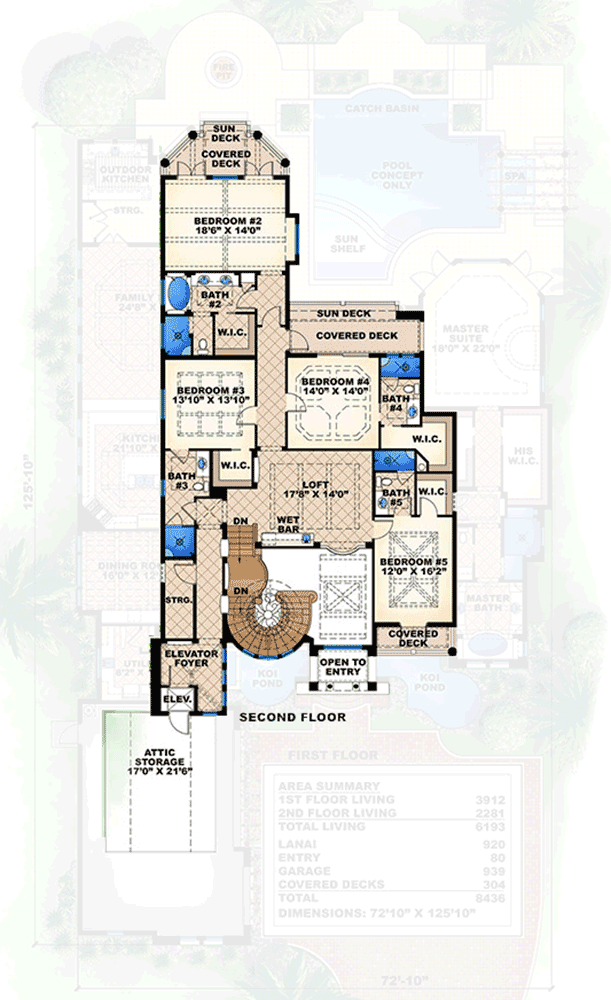

Mediterranean-style Home Plan with Circular Stair and an Elevator - 66326WE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,193 sq. ft.
  • 1st Floor: 3,912 sq. ft.
  • 2nd Floor: 2,281 sq. ft.
  • Lanai: 920 sq. ft.
  • Balcony / Veranda: 304 sq. ft.
  • Entry: 80 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 10"
  • Depth: 125' 10"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 939 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Foyer Coffered 24' 10" to 27' 6"
Entry Flat 23' 10"
Dinette Coffered 12' 0" to 14' 0"
Kitchen Coffered 12' 0" to 14' 0"
Family Room Coffered 12' 0" to 14' 0"
Living Room Coffered 12' 0" to 14' 0"
Master Bedroom Coffered 12' 0" to 12' 8"
Study Coffered 11' 8" to 14' 0"
Loft Coffered 10' 0" to 11' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mediterranean-style Home Plan with Circular Stair and an Elevator

  • 6,193

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $3,500
  • PDF - Single-Build $3,500
  • CAD - Single-Build $3,500
  • View all purchase option online

About This Plan

  • Beautiful arched windows and an arched entry porch add elegance to this luxurious Mediterranean home.
  • Every possible amenity has been designed into the home from a residential elevator to a wine bar to an outdoor summer kitchen and more.
  • Views stretch from the foyer all the way back to the huge living room with its coffered ceiling.
  • Admire the curved staircase as you walk past the wet bar to get to the formal dining room.
  • An enormous kitchen with tons of counter space will help you when entertaining or just giving your family room to spread out.
  • The built-in banquette seating in the circular dinette saves space and is brightened by windows all across the back.
  • Five sets of double doors give you easy access to the marvelous covered lanai area with its outdoor kitchen.
  • The pool bath works well to keep wet feet out of the main house.
  • A stunning master suite also opens up to the lanai through two double doors.
  • Pocket doors close off the spacious his and her walk-in closets.
  • Soak in the big tub in the master bathroom and enjoy the vaulted ceilings.
  • Four huge bedroom suites lie on the second floor, three of which have sun decks or balconies.
  • The loft area is also luxurious with its beamed ceiling and wet bar.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,193 sq. ft.
  • 1st Floor: 3,912 sq. ft.
  • 2nd Floor: 2,281 sq. ft.
  • Lanai: 920 sq. ft.
  • Balcony / Veranda: 304 sq. ft.
  • Entry: 80 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 10"
  • Depth: 125' 10"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 939 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 66326WE
