Plan 66252WE

Mediterranean Style House Plan Featuring 3 Bedrooms and Double Island Kitchen

Name: Plan 66252WE: Mediterranean Style House Plan Featuring 3 Bedrooms and Double Island Kitchen
Brand: Architectural Designs
SKU: 66252WE
Price: 1100.0 USD
Availability: InStock

Heated S.F.

2,369

Beds

Baths

Stories

Cars

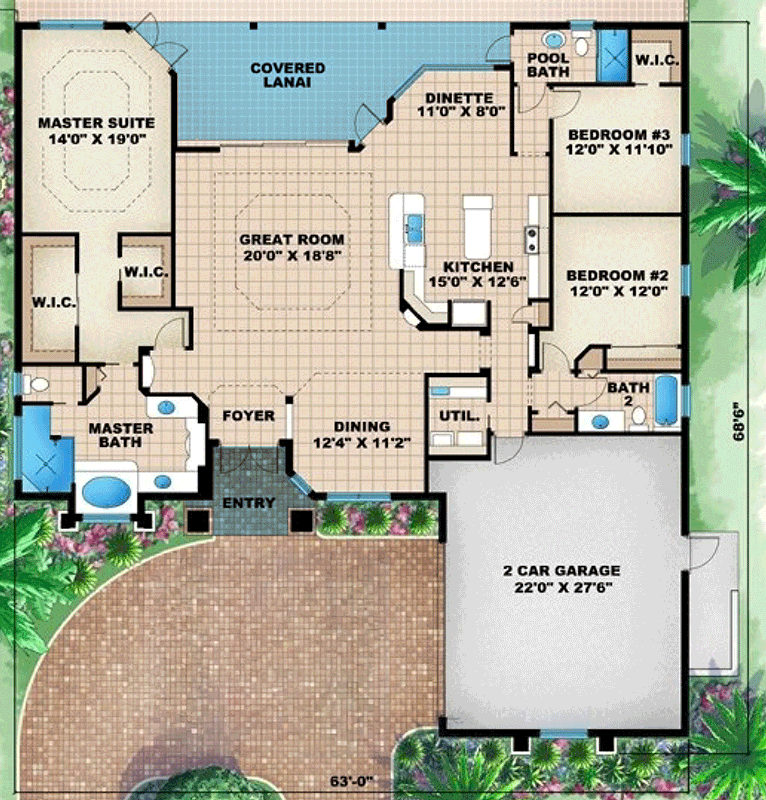

Floor Plan

Main Level

Plan Details

This elegant Mediterranean-style home offers 2,369 square feet of living space, featuring 3 bedrooms, 3 bathrooms, and a 2-car attached garage.
The entry experience begins in a welcoming foyer with a refined coffered ceiling that sets a sophisticated tone for the entire home.
The heart of the residence is an expansive open-concept great room that flows seamlessly into a professional-grade kitchen equipped with dual islands.
A split-bedroom layout ensures maximum privacy, with the luxurious primary suite tucked away on one side of the floor plan.
The primary retreat is enhanced by a double-coffered ceiling, providing a serene sanctuary complete with a spacious walk-in closet and private bath.
Beyond the interior, a large 286-square-foot covered lanai creates an inviting outdoor living space perfect for enjoying the fresh air and afternoon relaxation.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
