Plan 65678BS Mediterranean-style Southern Home Plan with Split Bedrooms and Study

4,231 4 4.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mediterranean-style Southern Home Plan with Split Bedrooms and Study

Plan 65678BS

  • 4,231

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This Southern home plan with Mediterranean influences presents a luxurious way of living, complete with spacious gathering areas, a large outdoor living space with a summer kitchen, and a split bedroom layout for the utmost privacy.
  • The heart of the home includes two islands, a large range, and a walk-in pantry, while the adjacent family room seamlessly flows onto the covered lanai through oversized glass doors.
  • The breakfast nook, formal dining room, and casual eating bar provide plenty of options for meals, while the study lends a quiet space to read, relax, or work from home.
  • Retreat to the elegant master suite and discover a tray ceiling, octagon-shaped sitting nook, two walk-in closets, and a deluxe ensuite with a freestanding tub in front of the oversized tile shower.
  • Three family bedroom suites line the left side of the design, behind the 3-car garage with dedicated storage.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

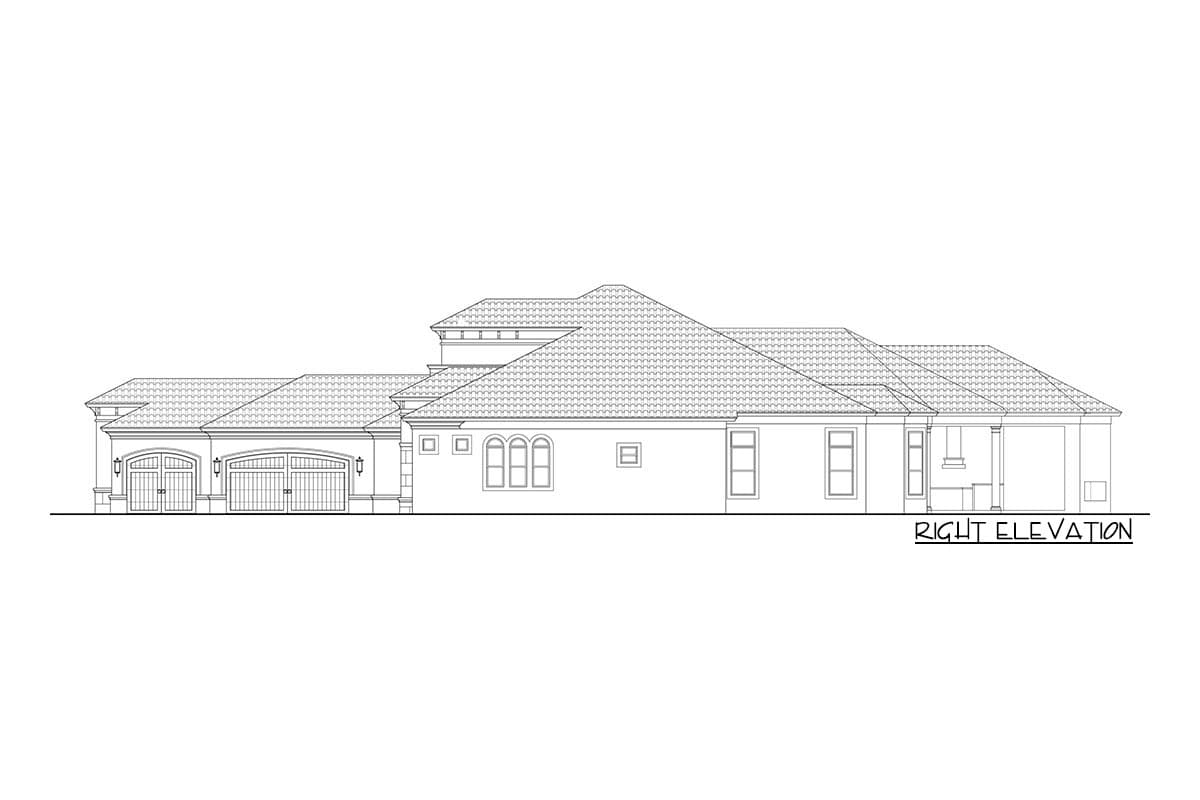

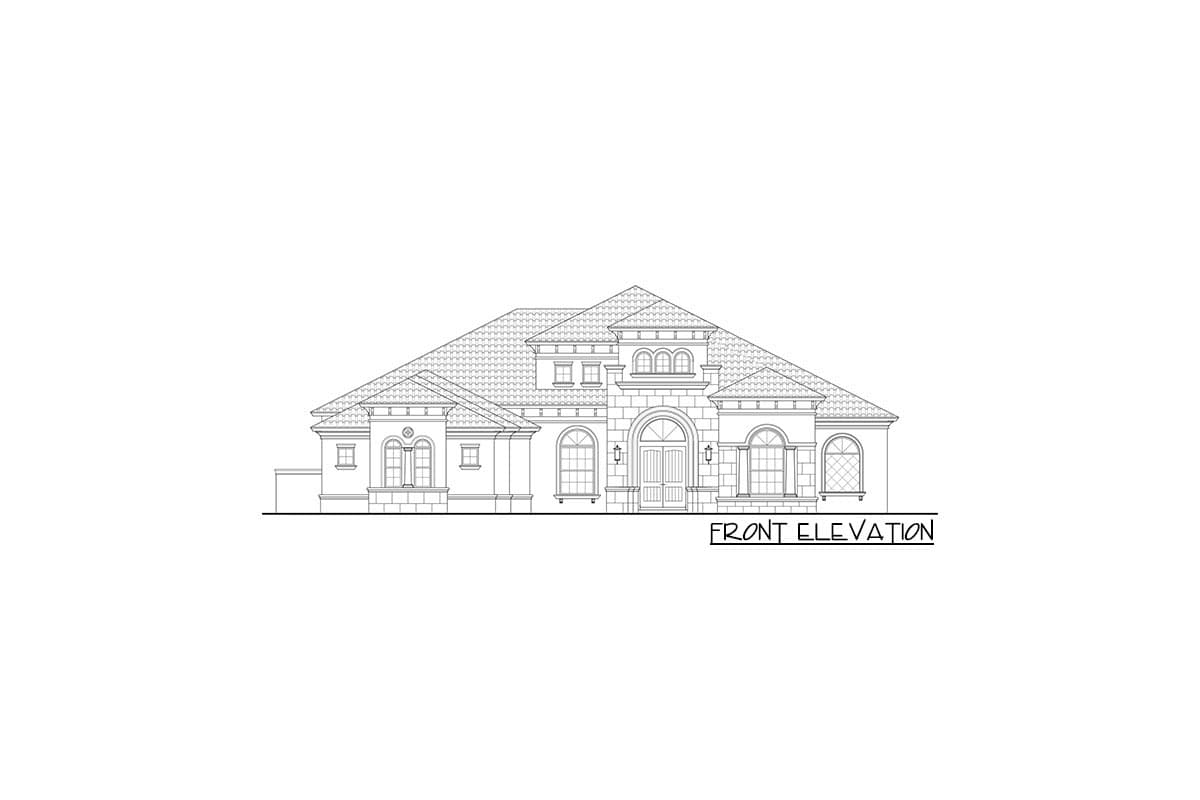

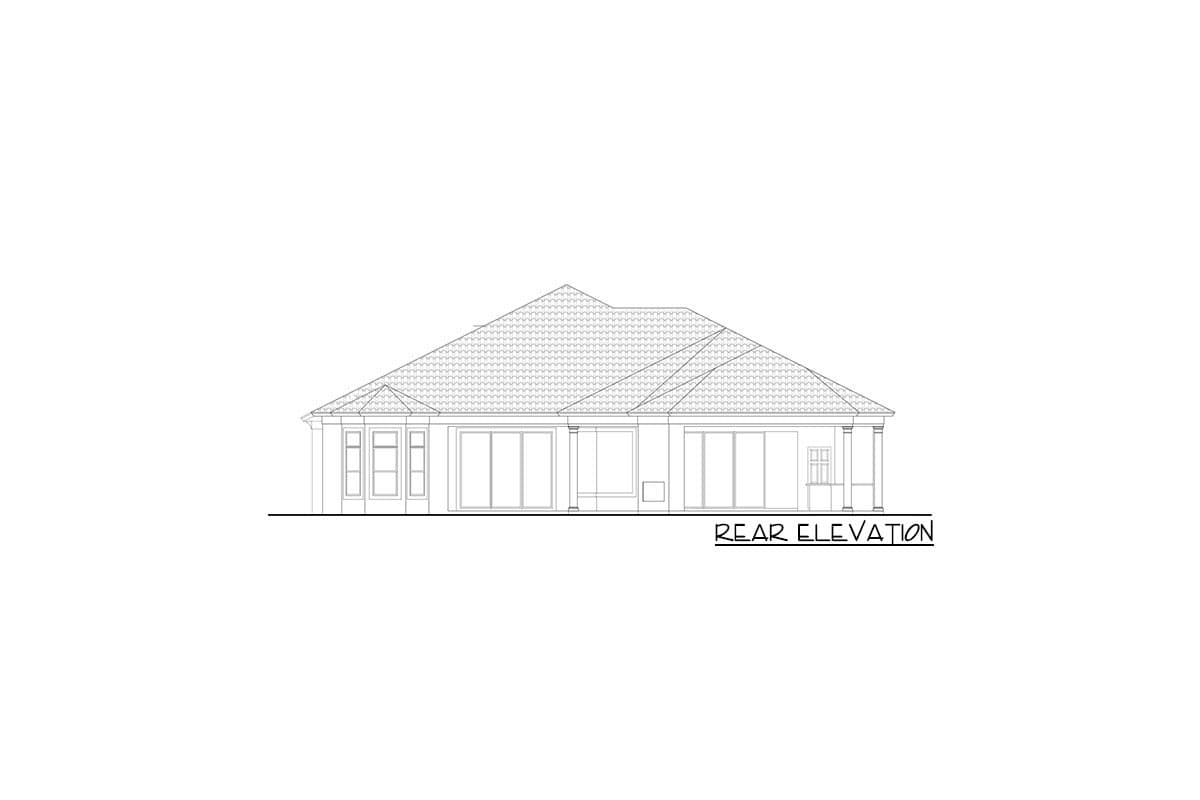

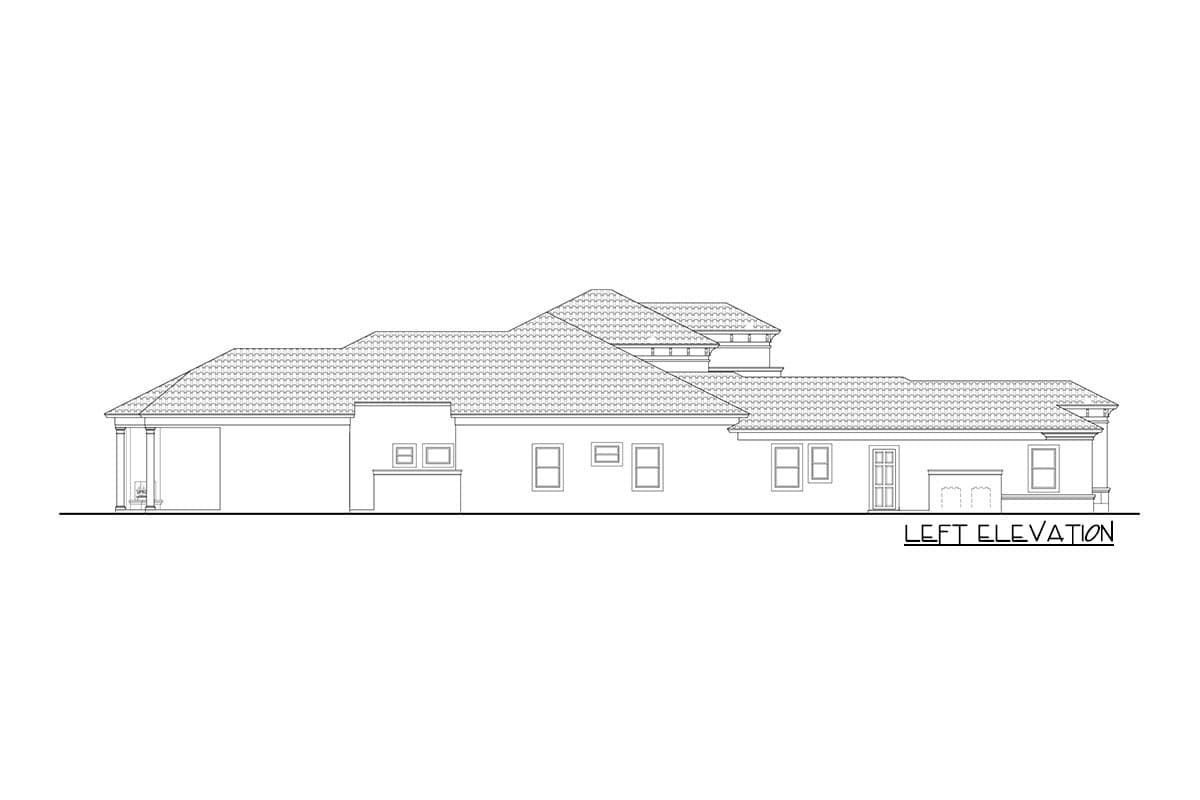

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

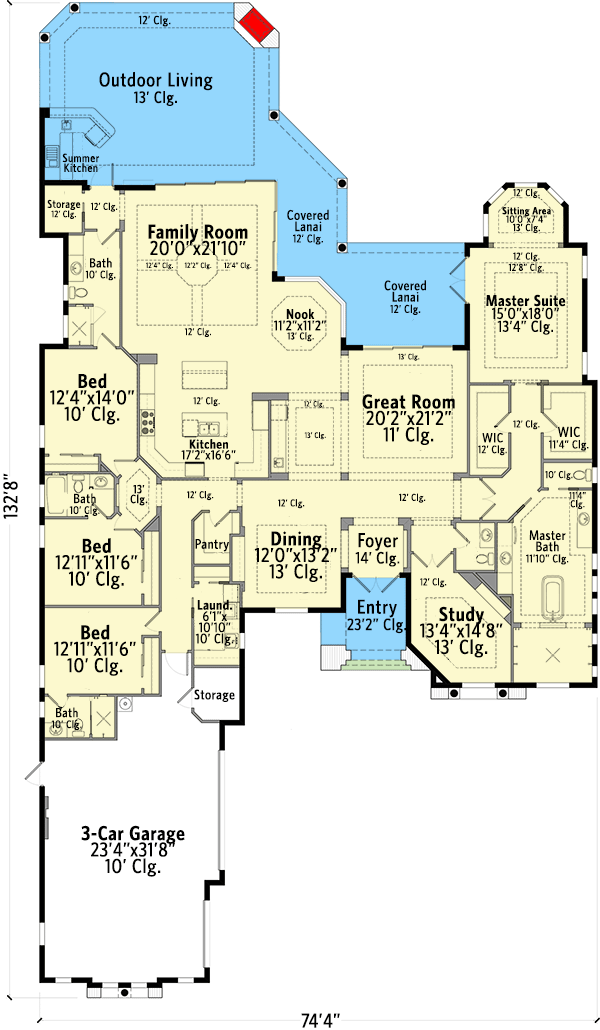

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mediterranean-style Southern Home Plan with Split Bedrooms and Study - 65678BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,231 sq. ft.
  • 1st Floor: 4,231 sq. ft.
  • Lanai: 1,141 sq. ft.
  • Entry: 152 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 4"
  • Depth: 132' 8"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 884 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mediterranean-style Southern Home Plan with Split Bedrooms and Study

  • 4,231

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,231
  • PDF - Single-Build $4,231
  • View all purchase option online

About This Plan

  • This Southern home plan with Mediterranean influences presents a luxurious way of living, complete with spacious gathering areas, a large outdoor living space with a summer kitchen, and a split bedroom layout for the utmost privacy.
  • The heart of the home includes two islands, a large range, and a walk-in pantry, while the adjacent family room seamlessly flows onto the covered lanai through oversized glass doors.
  • The breakfast nook, formal dining room, and casual eating bar provide plenty of options for meals, while the study lends a quiet space to read, relax, or work from home.
  • Retreat to the elegant master suite and discover a tray ceiling, octagon-shaped sitting nook, two walk-in closets, and a deluxe ensuite with a freestanding tub in front of the oversized tile shower.
  • Three family bedroom suites line the left side of the design, behind the 3-car garage with dedicated storage.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,231 sq. ft.
  • 1st Floor: 4,231 sq. ft.
  • Lanai: 1,141 sq. ft.
  • Entry: 152 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 4"
  • Depth: 132' 8"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 884 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
