Plan 666188RAF Mid Century Modern Home Plan with 2-Story Great Room and Workshop

5,201 3-4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mid Century Modern Home Plan with 2-Story Great Room and Workshop

Plan 666188RAF

  • 5,201

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

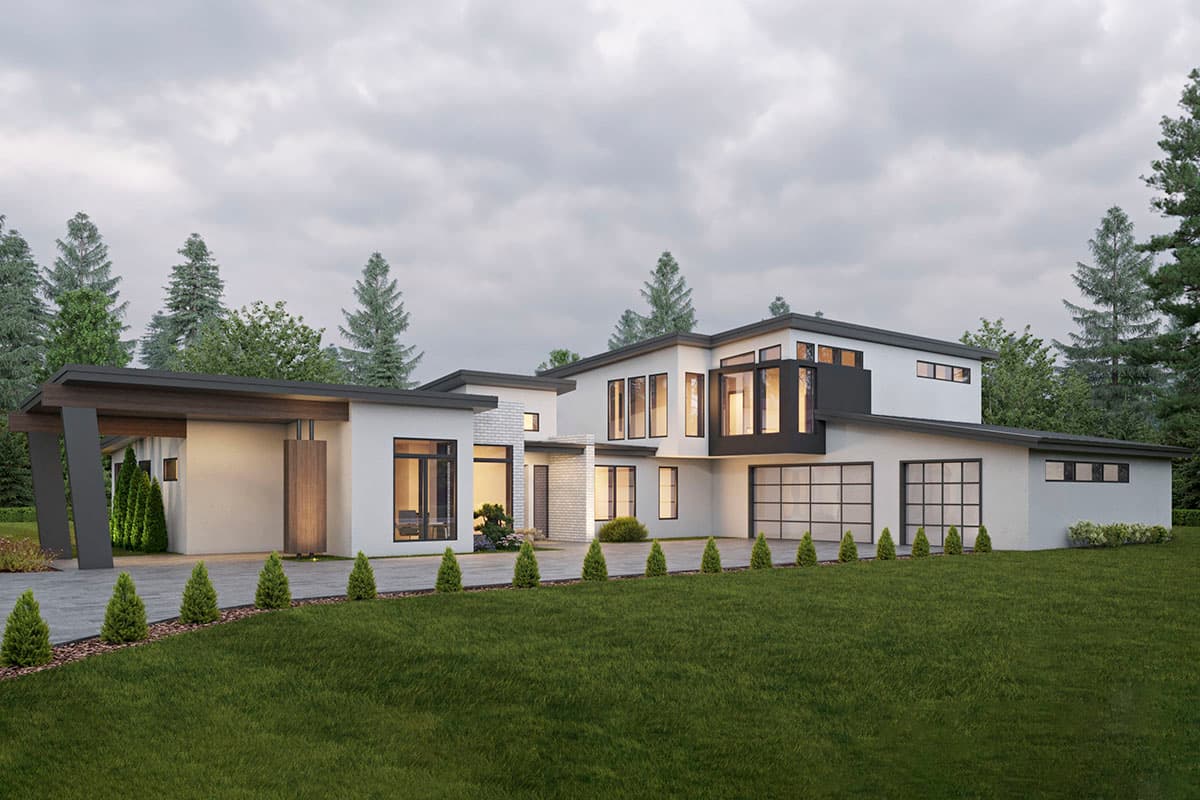

  • Transom windows along the tall, open living space create a light-filled interior in this Mid Century Modern home plan that gives you over 5,200 square feet of living space.

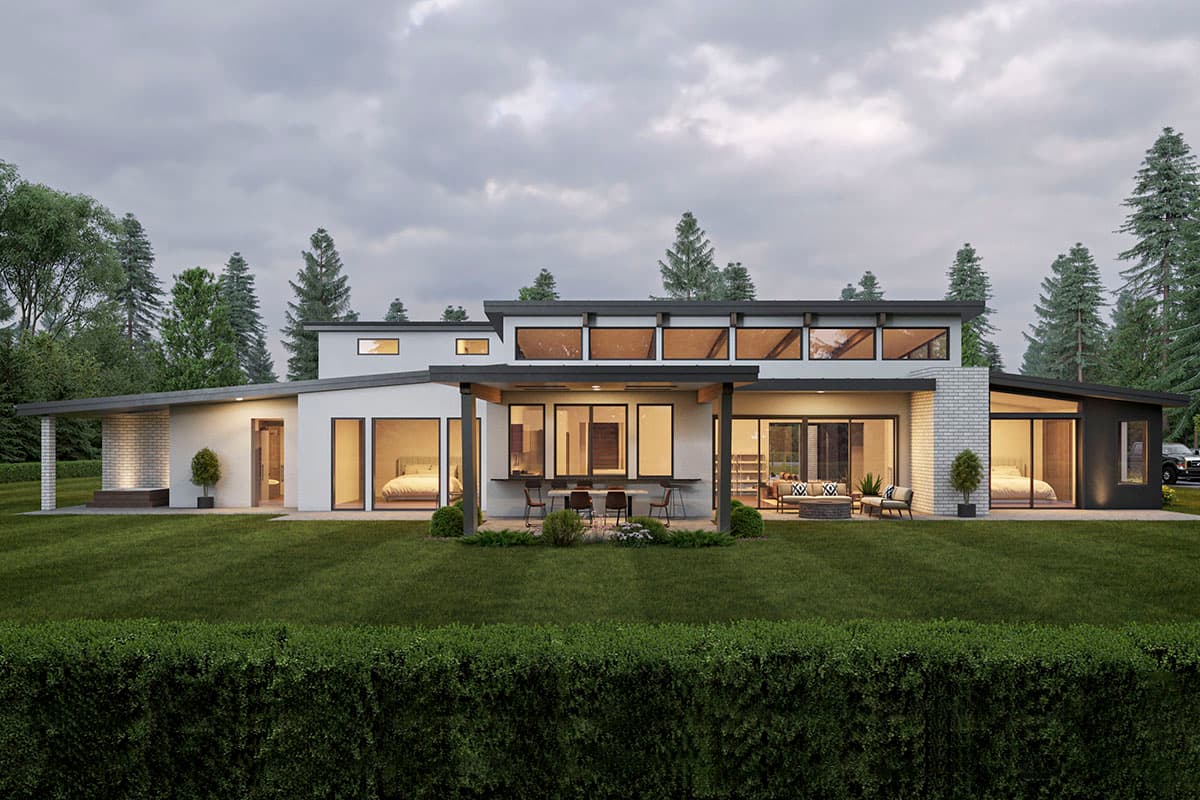

  • The kitchen's cooktop island includes a large eating bar and french doors near by open to the pantry. Retreat to the partially-covered patio to grill or dine outdoors.
  • The deluxe master suite is crowned by a vaulted ceiling and boasts a walk-in closet that connects to the sizable laundry room.
  • Two bedrooms, a rec room, and home office complete the main level, while an elevator guides you upstairs to find a loft, bedroom, and full bath.
  • The 3-car garage includes a large workshop with natural light and a mudroom is standing by to serve as a drop zone upon entering.

Plans include:

  • Cover Sheet
  • General notes
  • Foundation Plan
  • Fully dimensioned floor plans
  • Elevations
  • Building cross sections
  • Roof Plan

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

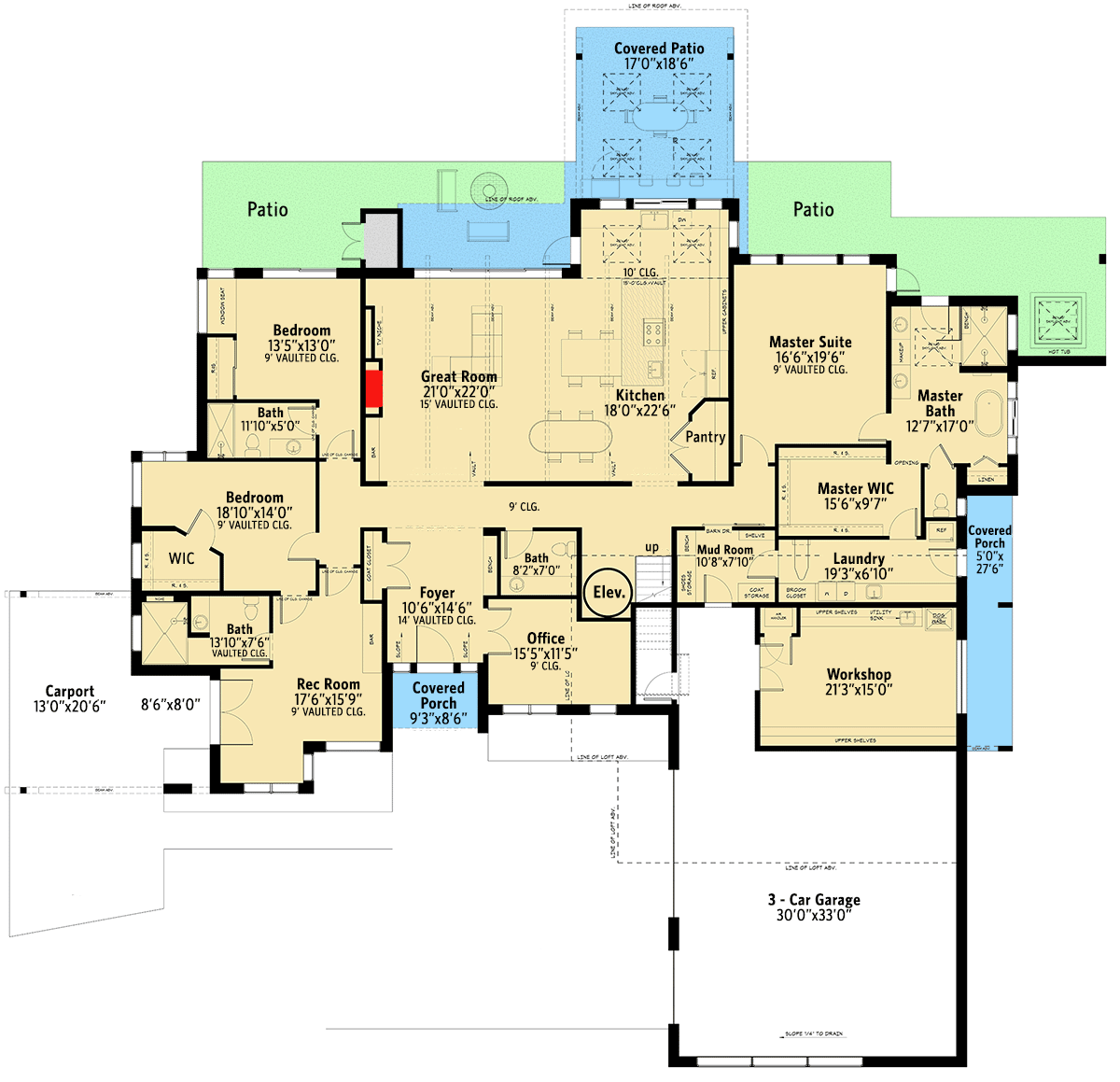

Mid Century Modern Home Plan with 2-Story Great Room and Workshop - 666188RAF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

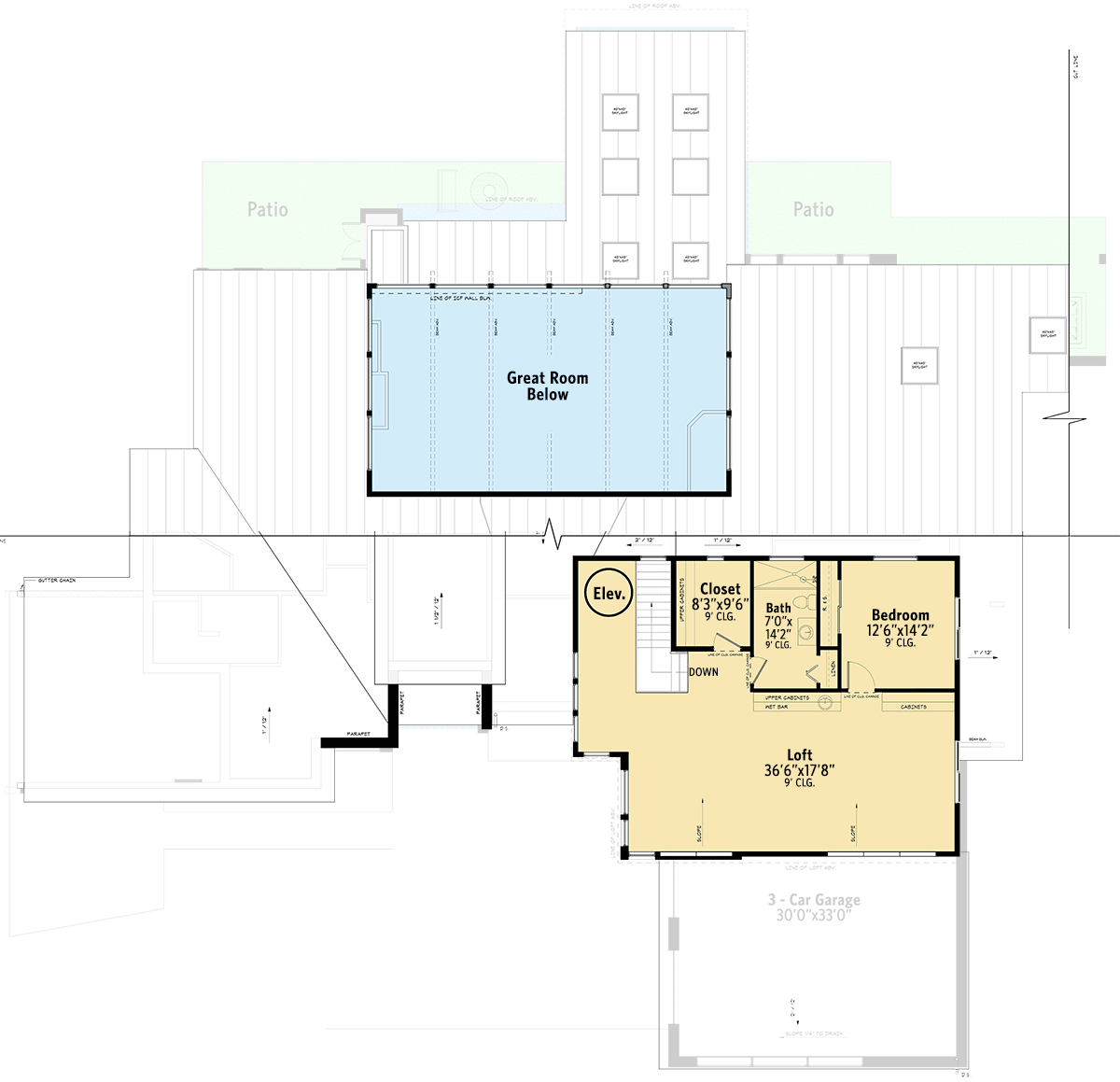

Mid Century Modern Home Plan with 2-Story Great Room and Workshop - 666188RAF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,201 sq. ft.
  • 1st Floor: 3,926 sq. ft.
  • 2nd Floor: 1,275 sq. ft.
  • Workshop: 318 sq. ft.
  • Porch, Combined: 1,238 sq. ft.
  • Carport: 265 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 95' 8"
  • Depth: 93' 8"
  • Max ridge height: 23' 8"

Garage

  • Type: Carport, Attached
  • Area: 1246 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Vaulted 15' 0"

Roof Details

  • Primary Pitch: 1 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss

Architectural Style

Special features

Mid Century Modern Home Plan with 2-Story Great Room and Workshop

  • 5,201

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,601
  • 5 Sets + PDF $2,851
  • 5 Sets $2,901
  • 8 Sets $3,051
  • CAD - Single-Build $4,941
  • View all purchase option online

About This Plan

  • Transom windows along the tall, open living space create a light-filled interior in this Mid Century Modern home plan that gives you over 5,200 square feet of living space.
  • The kitchen's cooktop island includes a large eating bar and french doors near by open to the pantry. Retreat to the partially-covered patio to grill or dine outdoors.
  • The deluxe master suite is crowned by a vaulted ceiling and boasts a walk-in closet that connects to the sizable laundry room.
  • Two bedrooms, a rec room, and home office complete the main level, while an elevator guides you upstairs to find a loft, bedroom, and full bath.
  • The 3-car garage includes a large workshop with natural light and a mudroom is standing by to serve as a drop zone upon entering.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,201 sq. ft.
  • 1st Floor: 3,926 sq. ft.
  • 2nd Floor: 1,275 sq. ft.
  • Workshop: 318 sq. ft.
  • Porch, Combined: 1,238 sq. ft.
  • Carport: 265 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 95' 8"
  • Depth: 93' 8"
  • Max ridge height: 23' 8"

Garage

  • Type: Carport, Attached
  • Area: 1246 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 1 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
Plan 666188RAF
View this and more for this plan by visiting www.architechtecturaldesigns.com/666188RAF
|
