Mission Style in Two Versions

Plan 36346TX

  • 3,585

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • This house plan presents a Mission style facade with stucco and tile roof. Two one-car garages flank the formal entry and each have foyer access.
  • Matching barrel vaults flank the bar which opens to the family room. There you'll enjoy the fireplace, built-ins and access to the rear patio.
  • A large pantry in the kitchen provides great storage. Seating at the counter makes it easy to keep the cook company and swinging doors makes serving guests in your dining room a breeze.
  • In the back, a study could double as a guest bedroom.
  • Upstairs, find four bedrooms all with balconies and a central game room.
  • Related Plan: Get an alternate garage and one bedroom on the main floor with house plan 36347TX.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

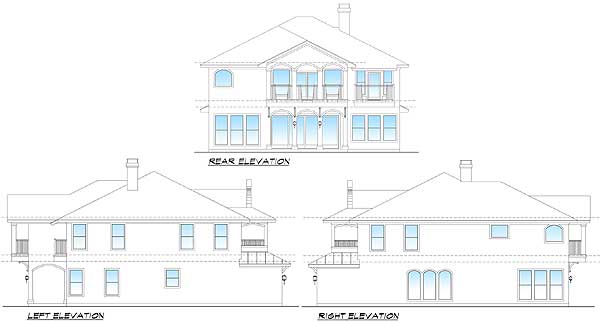

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

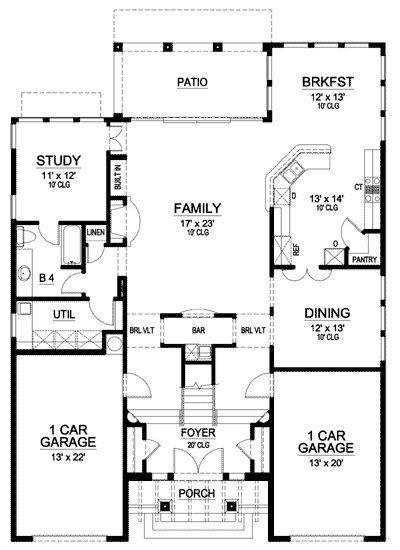

Mission Style in Two Versions - 36346TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

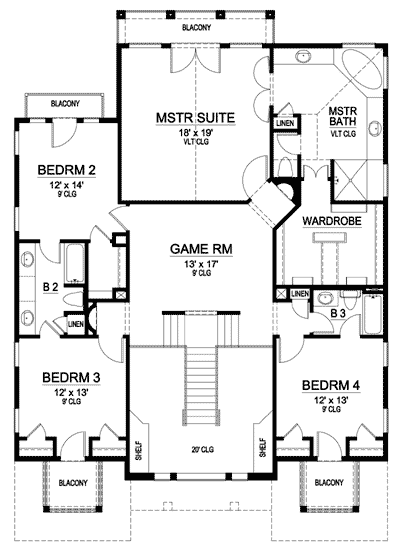

Mission Style in Two Versions - 36346TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,585 sq. ft.
  • 1st Floor: 1,704 sq. ft.
  • 2nd Floor: 1,881 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 60' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 593 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Mission Style in Two Versions

  • 3,585

    Heated s.f.

  • 4 - 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets $1,450
  • CAD - Single-Build $1,875
  • View all purchase option online

About This Plan

  • This house plan presents a Mission style facade with stucco and tile roof. Two one-car garages flank the formal entry and each have foyer access.
  • Matching barrel vaults flank the bar which opens to the family room. There you'll enjoy the fireplace, built-ins and access to the rear patio.
  • A large pantry in the kitchen provides great storage. Seating at the counter makes it easy to keep the cook company and swinging doors makes serving guests in your dining room a breeze.
  • In the back, a study could double as a guest bedroom.
  • Upstairs, find four bedrooms all with balconies and a central game room.
  • Related Plan: Get an alternate garage and one bedroom on the main floor with house plan 36347TX.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,585 sq. ft.
  • 1st Floor: 1,704 sq. ft.
  • 2nd Floor: 1,881 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 60' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 593 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
Plan 36346TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36346TX
|
Need Help? 800-854-7852
|
Plan 36346TX
