Modern 1909 Square Foot Two Story House Plan with Glass Deck Above Garage
Heated S.F.
1,909
Beds
3
Baths
1.5
Stories
2
Cars
1
What's Included
Plan Details
  • This urban two-story house plan stands out with its brick and wood facing and its glass deck above the garage. The house is 36 feet 5 inches wide by 38 feet deep, provides 1,909 square feet of living space along with a 272 square-foot one-car garage.
  • With an 894 square-foot living area, the open ground floor has 9-foot high ceilings except for the entrance hall where the ceiling is 10 feet 5 inches high. It features a powder room, an L-shaped kitchen with a large pantry and a long island that can accommodate four people, a living room with a gas fireplace and a dining room with a triple patio door overlooking the backyard.
  • The upper floor provides 1,015 square feet of living space and features a small laundry room, a large bathroom with separate shower, as well as three bedrooms, including a master bedroom with two large walk-in closets and a huge patio door that leads to a terrace.
What's Included
Please note this plan is designed to the National Building Code of Canada.

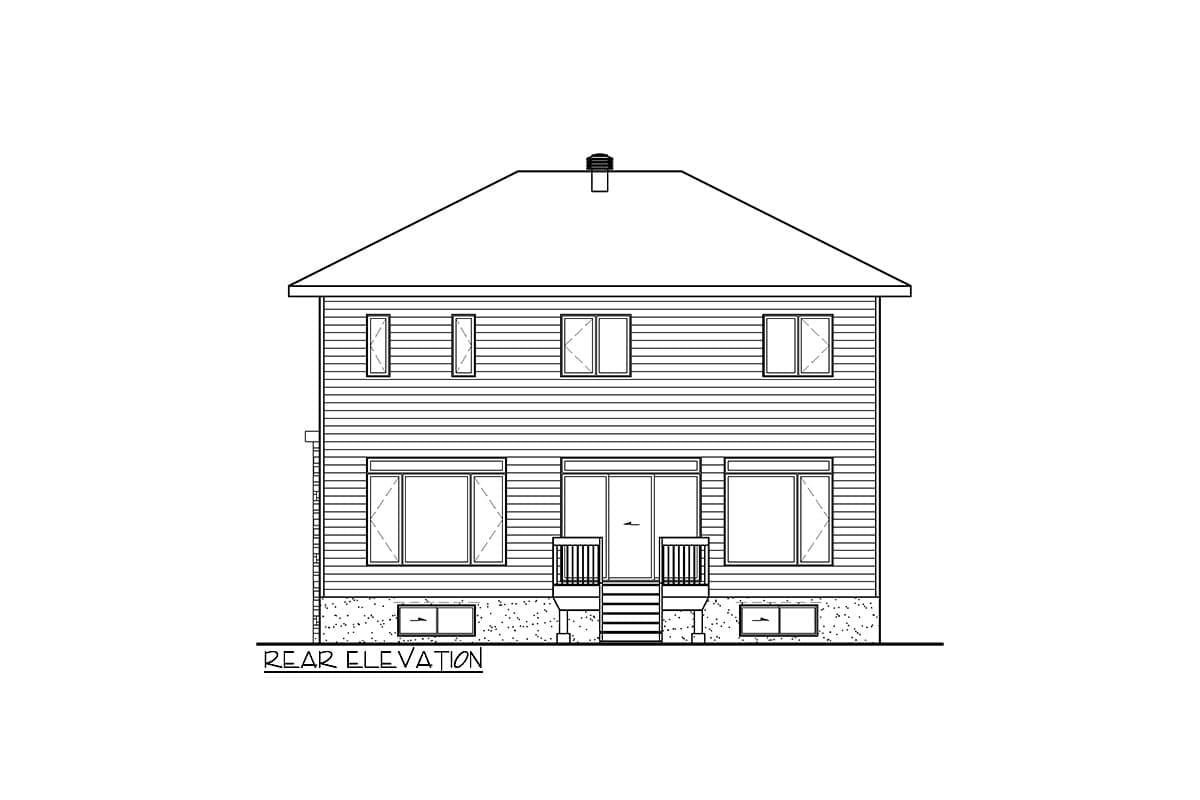

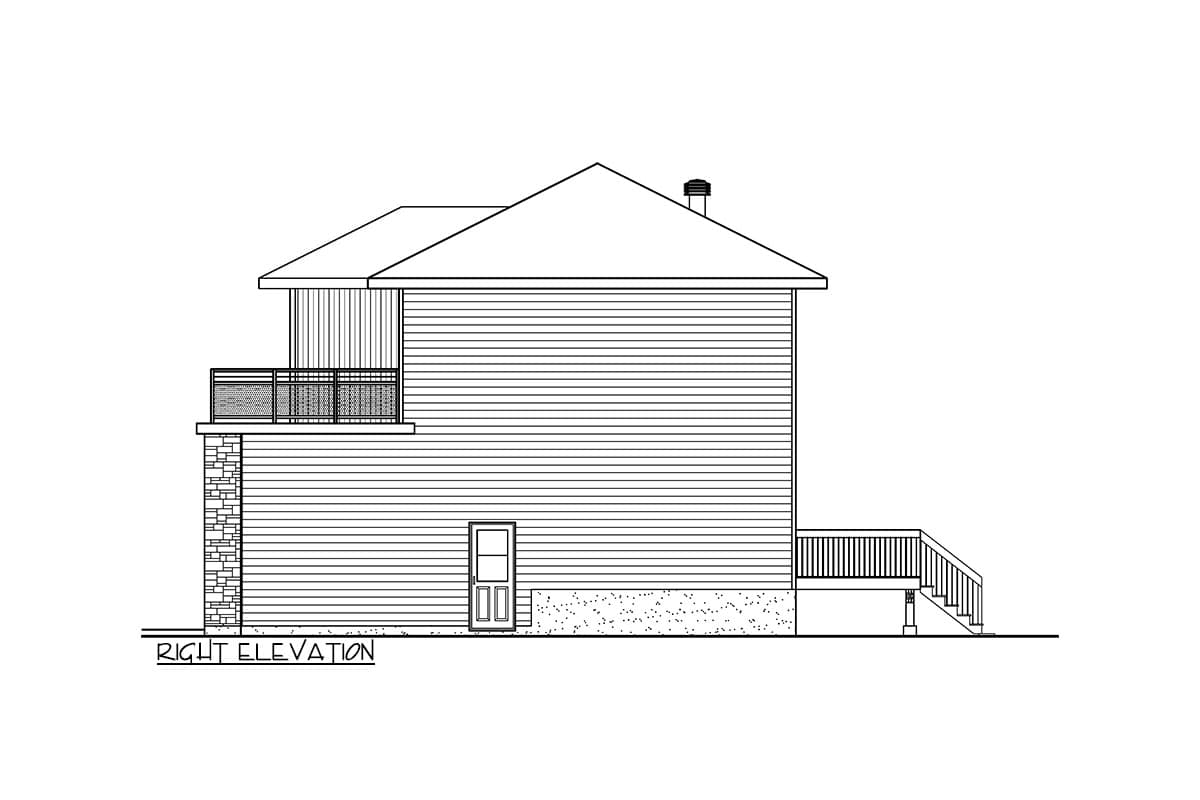

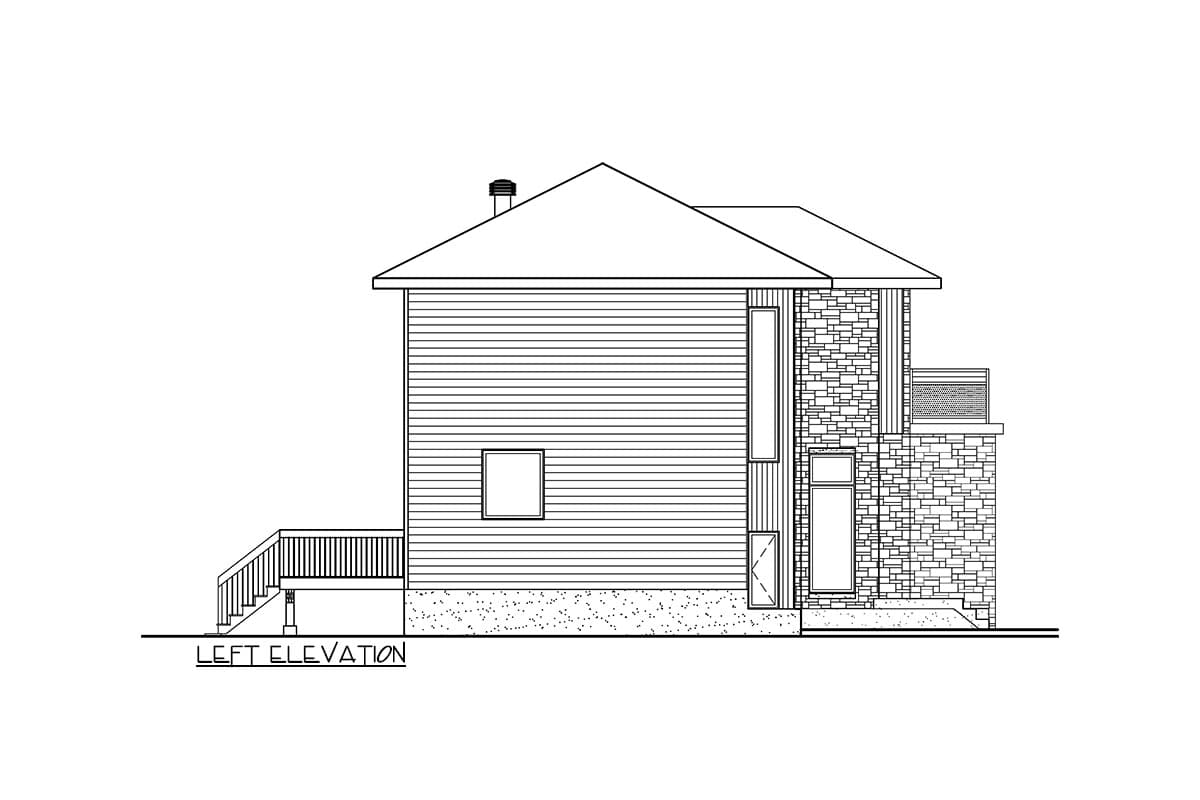

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

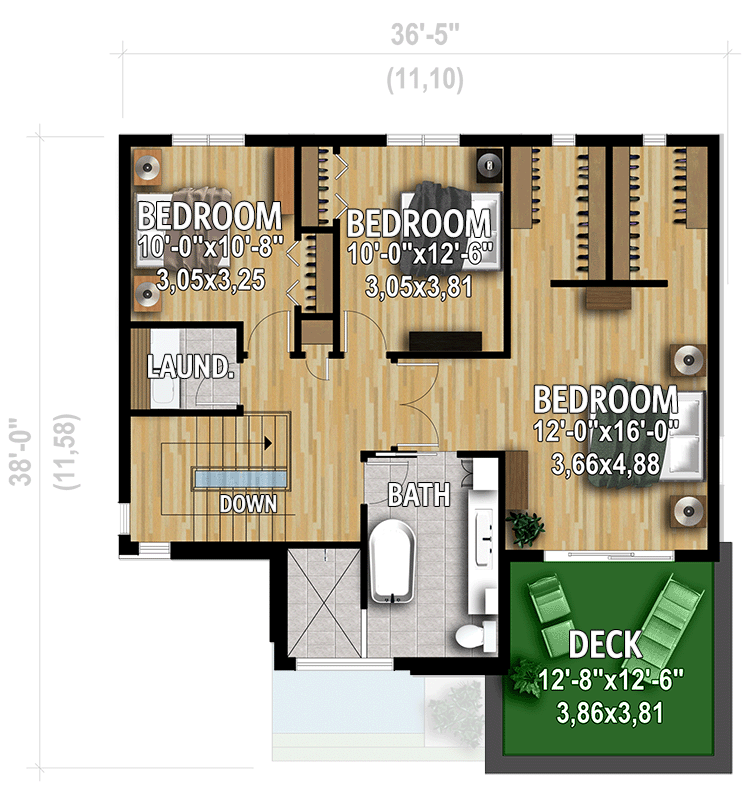

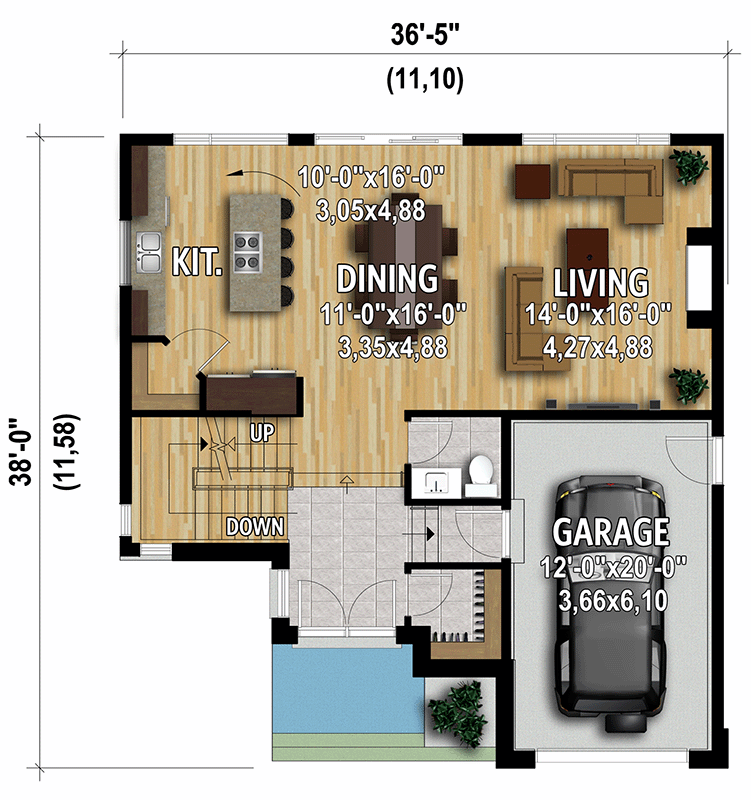

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern 1909 Square Foot Two Story House Plan with Glass Deck Above Garage

  • 1,909

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,909 sq. ft.
  • 1st Floor: 894 sq. ft.
  • 2nd Floor: 1,015 sq. ft.

Dimensions

  • Width: 36' 5"
  • Depth: 38' 0"
  • Max ridge height: 30' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 272 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
