Modern 2-Bed Garage Apartment with Entry Porch - 886 Sq Ft

Plan 677048NWL

  • 886

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This modern garage apartment or ADU (accessory dwelling unit) gives you a 2 bed apartment (886 sq. ft.) set above a 2-car (581 sq. ft.) garage.
  • An entry porch opens to the foyer with a built-in bench with hooks and a coat closet to help reduce clutter.
  • Upstairs, the bedrooms are on the right side of the home and share a bathroom. Laundry is conveniently located on this floor.
  • An open living area combines the kitchen and dining area with windows providing light and views to the front.


  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan
  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

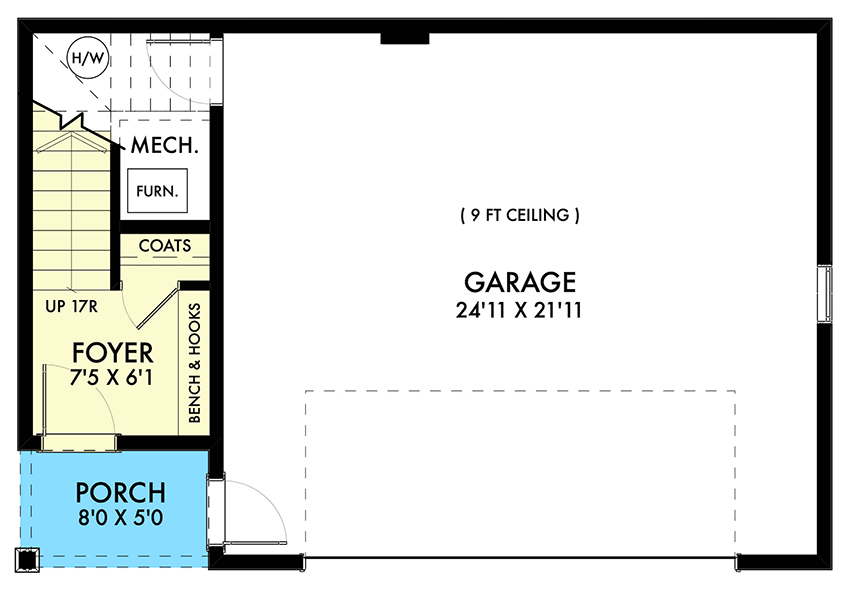

Modern 2-Bed Garage Apartment with Entry Porch - 886 Sq Ft - 677048NWL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

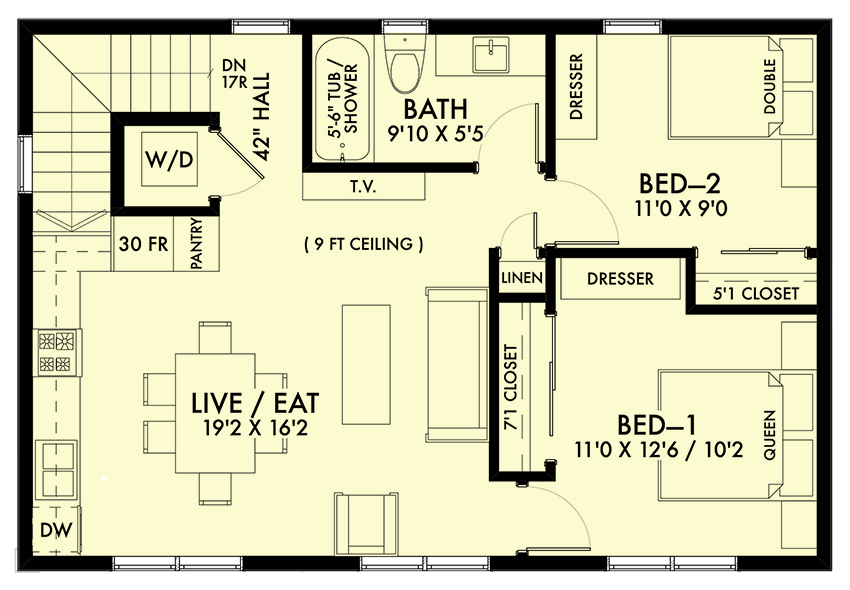

Modern 2-Bed Garage Apartment with Entry Porch - 886 Sq Ft - 677048NWL floor plan - 2nd Floor

Modern 2-Bed Garage Apartment with Entry Porch - 886 Sq Ft

  • 886

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 886 sq. ft.
  • 1st Floor: 154 sq. ft.
  • 2nd Floor: 732 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 23' 0"
  • Max ridge height: 23' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 581 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
