Modern 2-Bed House Plan with 3 Garage Bays: an RV, a Tandem and Shop
Heated S.F.
1,778
Beds
2
Baths
1.5
Stories
2
Cars
3
What's Included
Plan Details

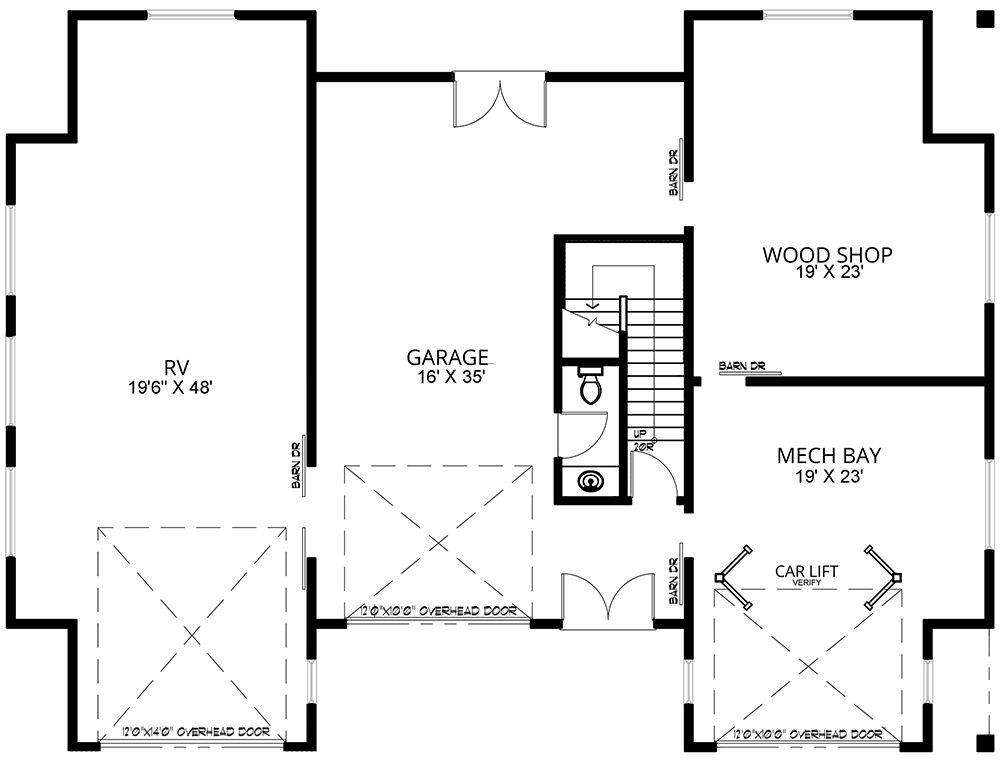

  • The three bays going left to right on this modern house plan give you an RV garage bay, a tandem-friendly garage bay and a standard car bay that can be used as a car shop space. This bay is connected by a barn door to a shop in back. A powder room is centrally located giving you the ability to do a light clean up before accessing the living space upstairs.

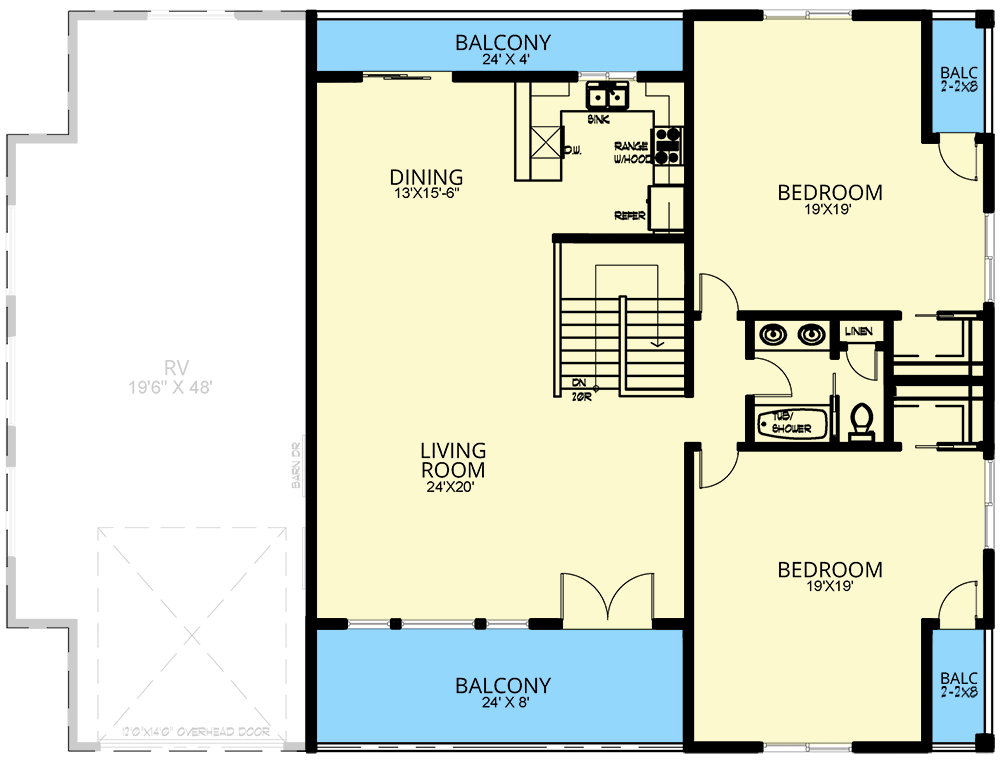

  • The second floor gives you an open concept area with the kitchen and dining back and a living room in front. The kitchen sink is centered over windows looking out across the balcony which is accessible from the dining room. A covered balcony in front is accessible through a pair of French doors.
  • Two bedrooms with walk-in closets share a bath and each have private outdoor spaces.
What's Included

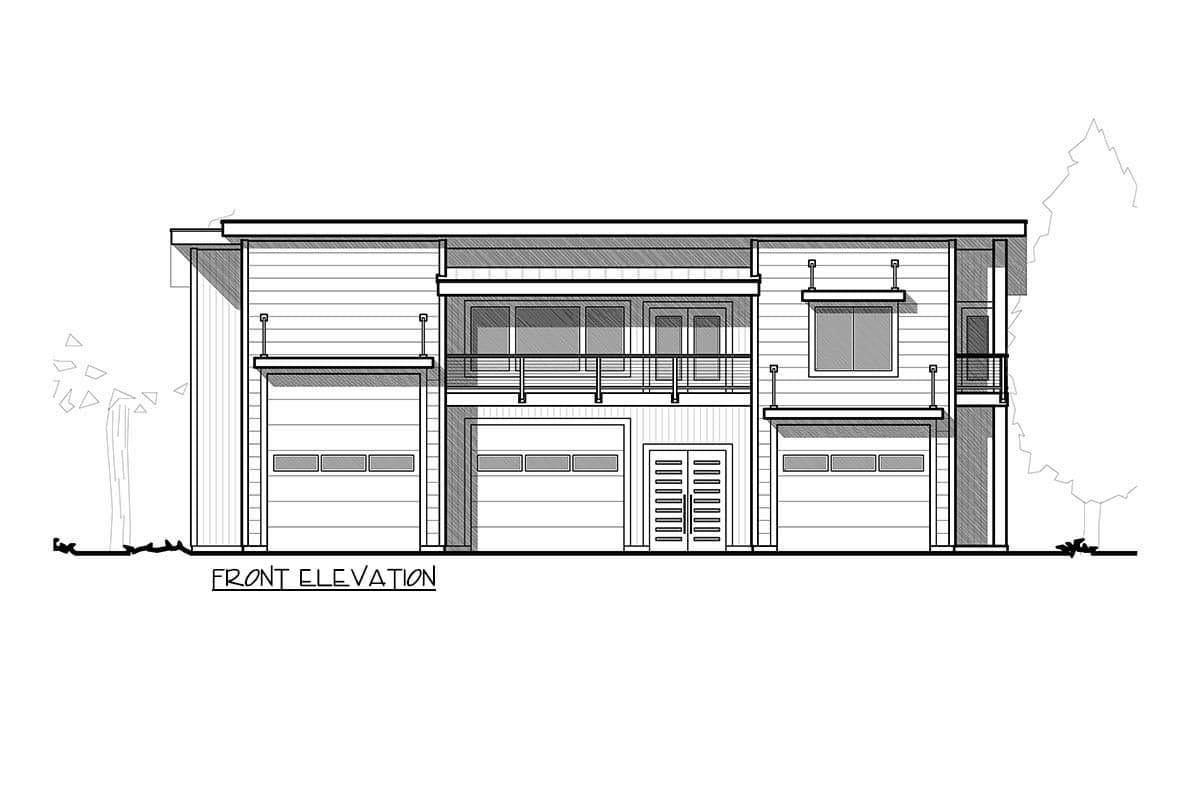

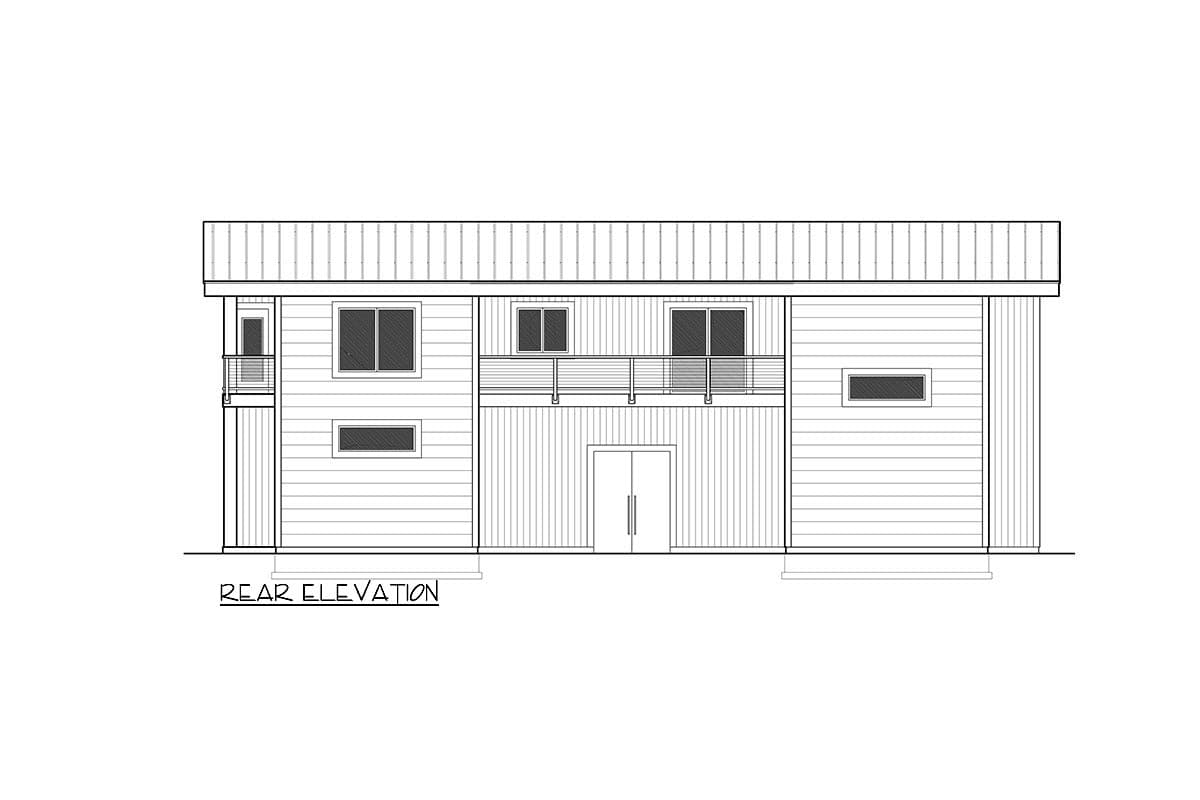

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
What's Not Included
  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
