Modern 2-Bed House Plan with Open-Concept Layout
Heated S.F.
1,014
Beds
2
Baths
1
Stories
1
What's Included
Plan Details
  • This modern, 2-bedroom house plan features an inviting curb appeal with stone and natural wood, exterior materials, and a rain porch atop the contemporary, front door.
  • An open-concept, floor plan allows for a great gathering space between family and friends. The kitchen offers an island with seating for four, and sits adjacent the dining room.
  • Sliding doors, off the dining room, extend your living space outdoors.
  • A bedroom on the main level includes a walk-in closet and neighbors a 4-fixture bath with a separate tub and shower.
  • The second bedroom, also on the main level, overlooks the front of the property.
What's Included

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

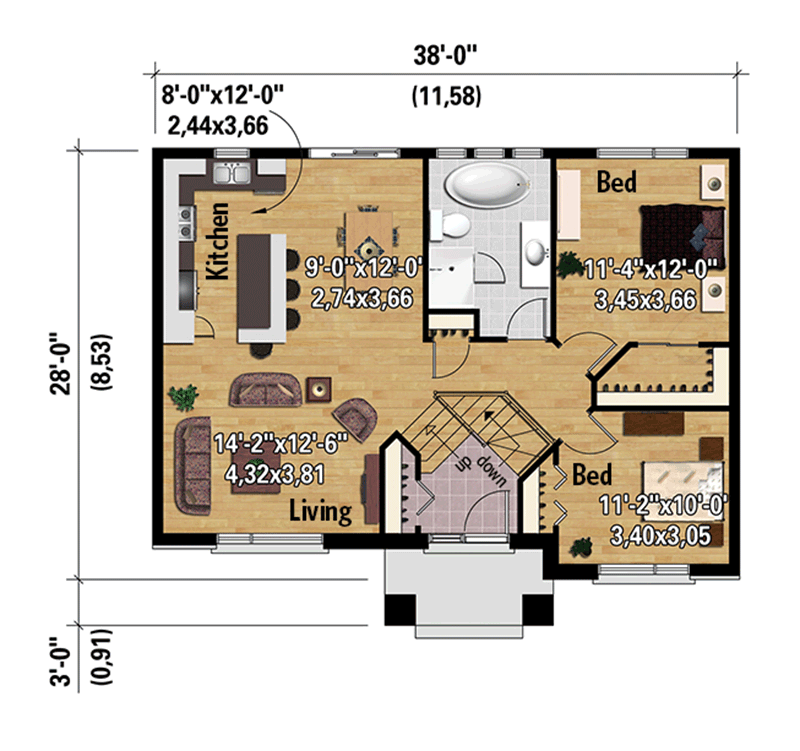

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
