Plan 677047NWL

Modern 2-Car Garage Apartment - 799 Sq Ft

Heated S.F.
799
Beds
2
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 677047NWL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 677047NWL

M-F 9am-5pm EST |

1-203-761-8500

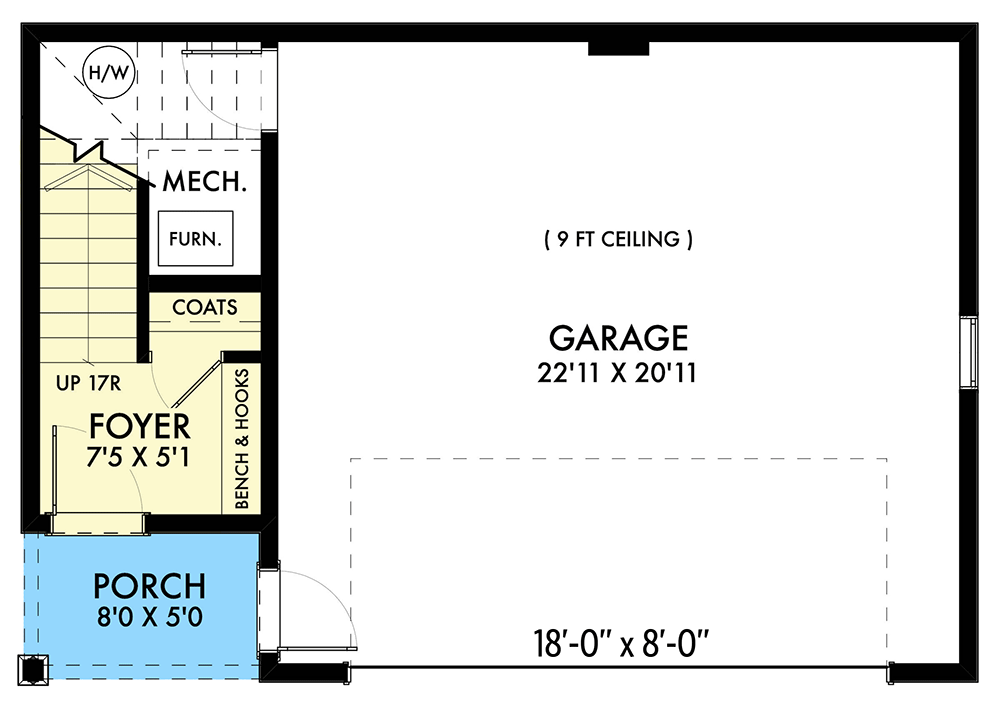

Main Level

Plan 677047NWL: Modern 2-Car Garage Apartment - 799 Sq Ft - Floor Plan - Main Level - Carriage, Contemporary, Modern

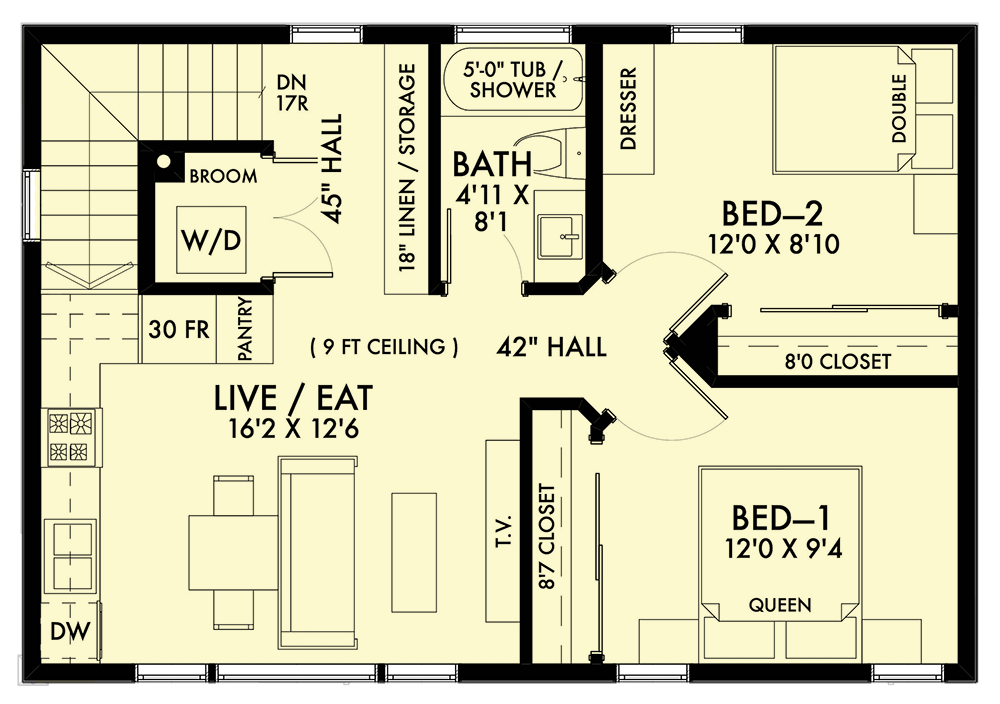

2nd Floor

Plan 677047NWL: Modern 2-Car Garage Apartment - 799 Sq Ft - Floor Plan - 2nd Floor - Carriage, Contemporary, Modern

Plan Details

  • This modern 2-car garage with 2-bed apartment above can be built as a carriage house or as an ADU, a rental property or even a vacation home.
  • There is 512 square feet of space behind the two garage doors on the main floor.
  • Including the main floor foyer, there is 799 square feet of heated living space inside, including the 2 bedrooms upstairs, a bathroom, laundry and a kitchen/living room space.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan

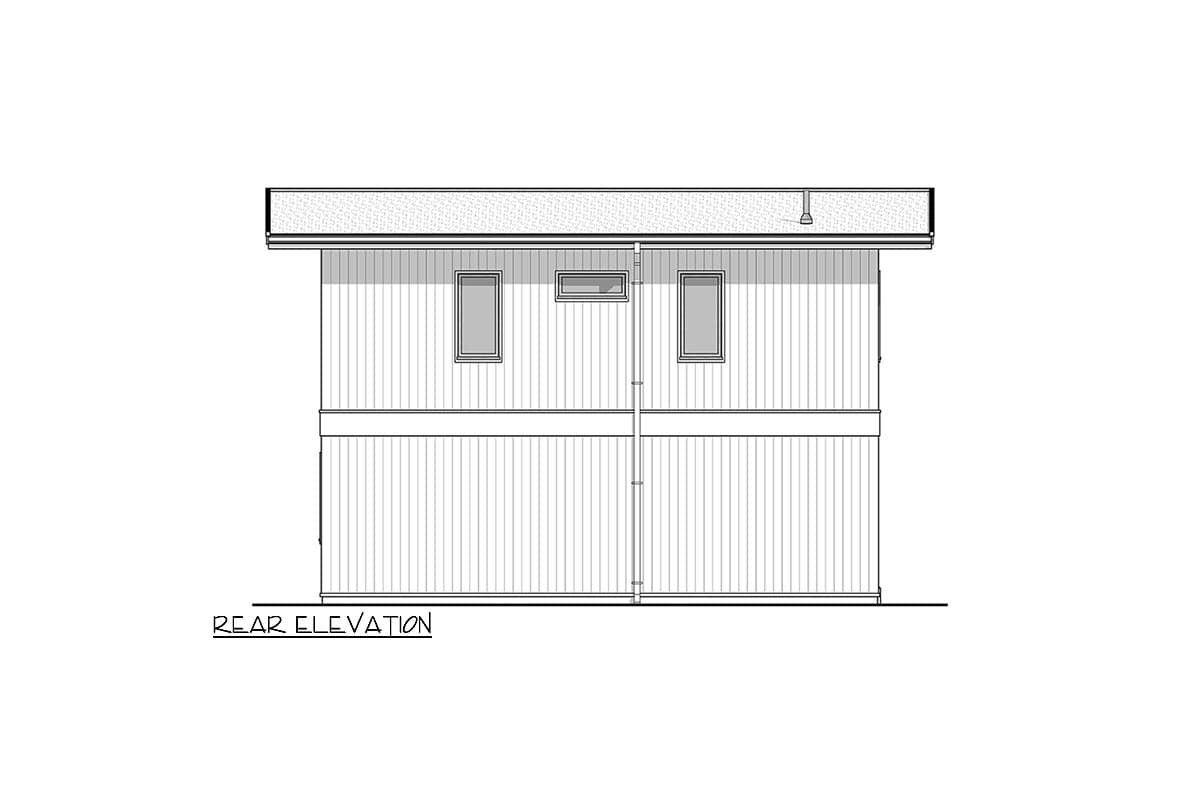

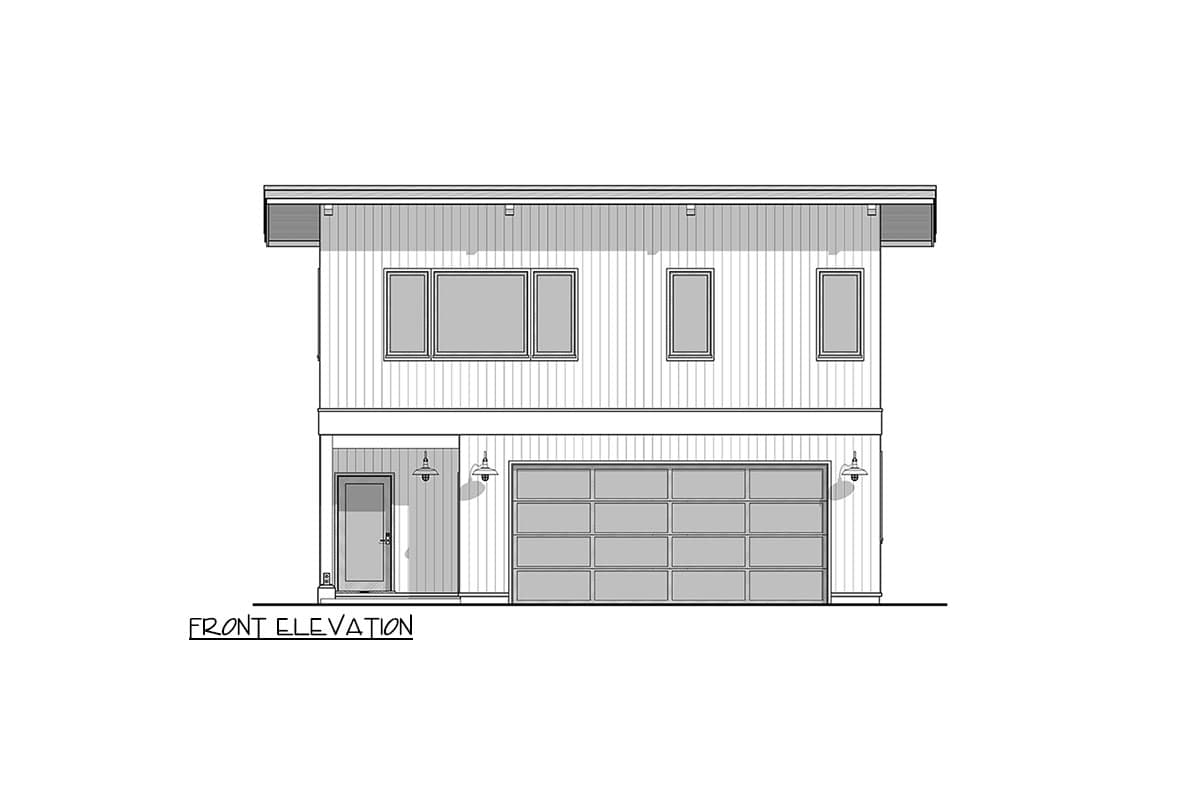

  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

799 sq. ft.

1st Floor

145 sq. ft.

2nd Floor

654 sq. ft.

Porch, Front

40 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

22' 0"

Max Ridge Height

23' 1"

Garage

Type

Detached

Area

512 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Carriage

Contemporary

Modern

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Canadian House Plans
