Plan 660030JMD

Modern 3 Bedroom House Plan with 4 Baths and 2-Car Garage

Heated S.F.
2,444
Beds
3
Baths
4
Stories
3
Cars
2

Floor Plan

Plan 660030JMD

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 660030JMD

M-F 9am-5pm EST |

1-203-761-8500

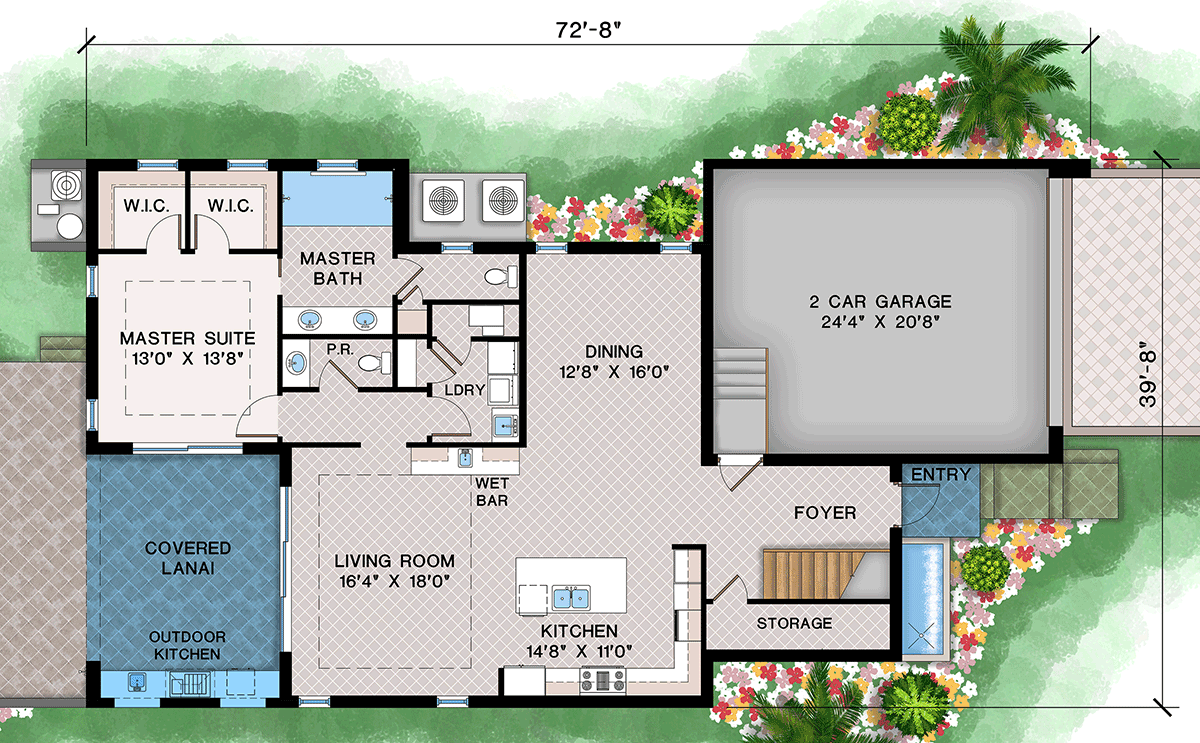

Main Level

Plan 660030JMD: Modern 3 Bedroom House Plan with 4 Baths and 2-Car Garage - Floor Plan - Main Level - Contemporary, Modern

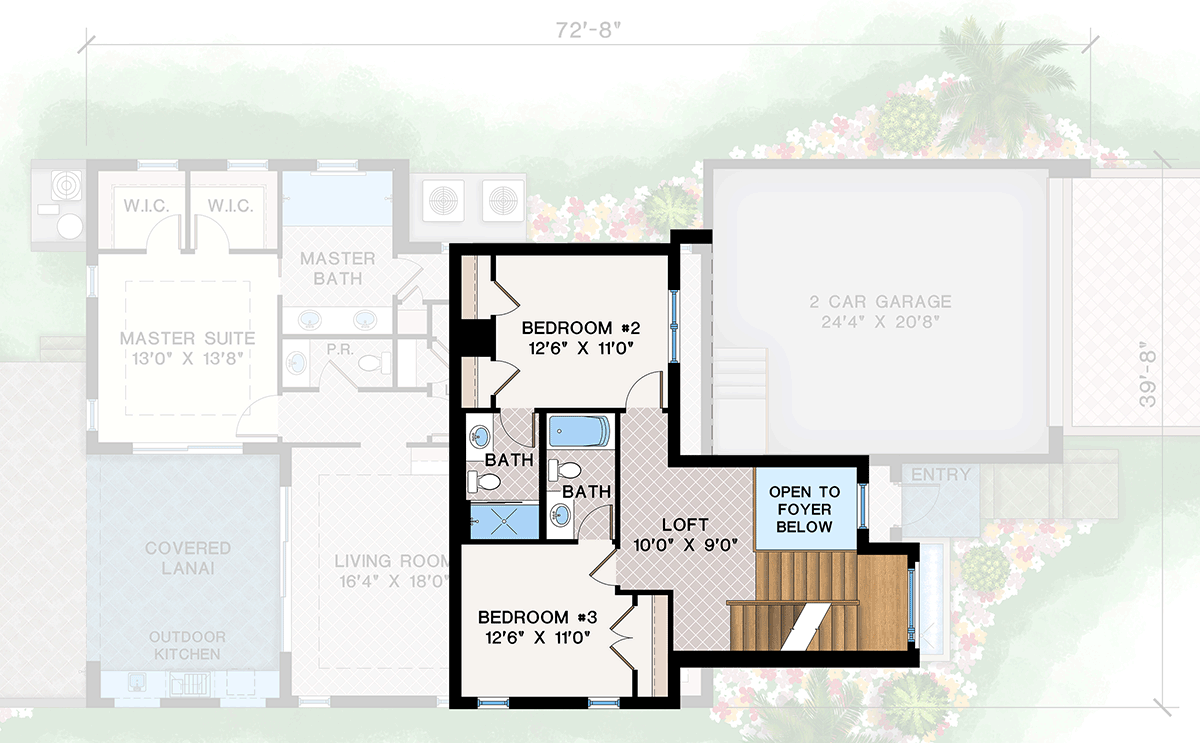

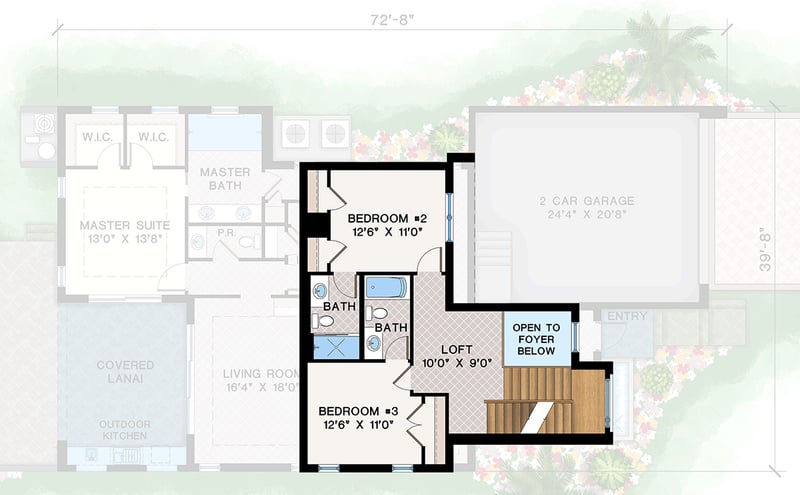

2nd Floor

Plan 660030JMD: Modern 3 Bedroom House Plan with 4 Baths and 2-Car Garage - Floor Plan - 2nd Floor - Contemporary, Modern

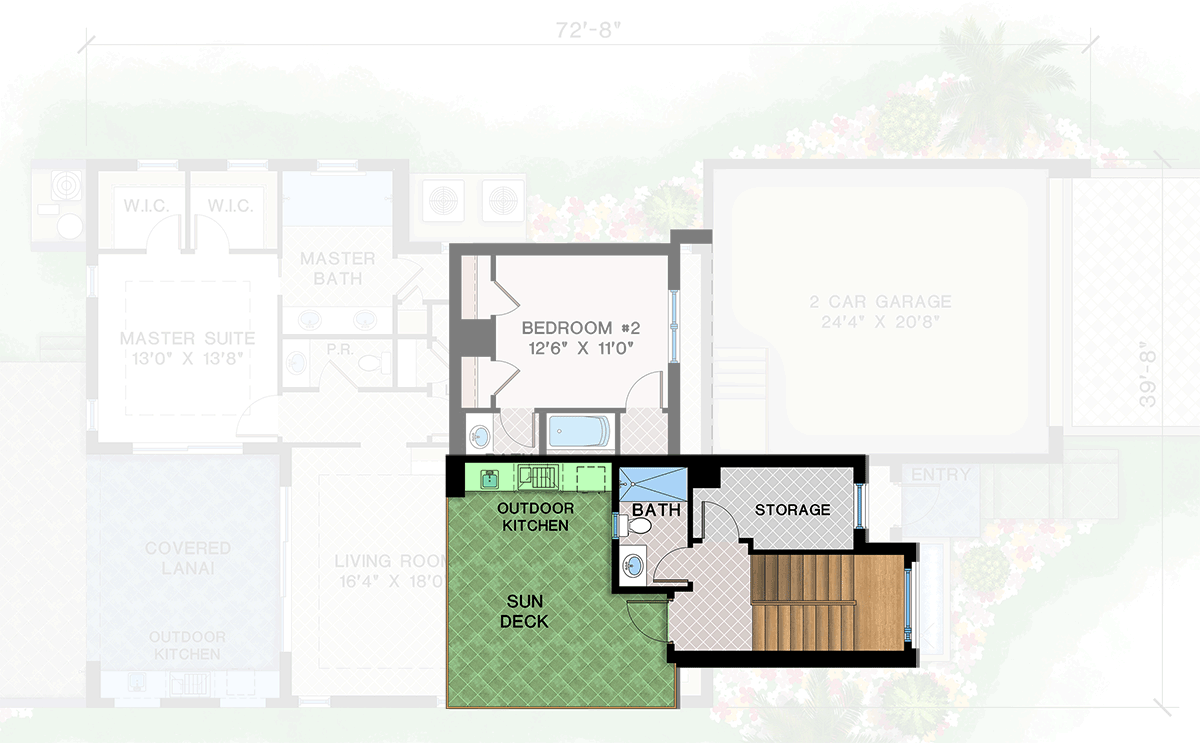

3rd Floor

Plan 660030JMD: Modern 3 Bedroom House Plan with 4 Baths and 2-Car Garage - Floor Plan - 3rd Floor - Contemporary, Modern

Plan Details

  • This striking modern house plan offers 2,444 finished sq ft, 3 bedrooms, 4 full baths, and a 552 sq ft 2-car front-entry garage.
  • Experience a grand arrival with a unique water feature at the entry, leading into a multi-level layout designed for modern living.
  • The main level hosts primary living spaces, designed with an open flow that emphasizes natural light and seamless transitions.
  • The luxurious first-floor primary suite provides private access to the main level laundry, ensuring convenience and separation from secondary bedrooms.
  • A versatile loft space on the third floor offers an ideal retreat for a home office, media room, or creative studio.
  • Enjoy ample outdoor living across a 256 sq ft deck and a 255 sq ft lanai, perfect for al fresco dining or relaxation.

What's Included

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Rough-in Plumbing Location (if applicable)
  • Mechanical Equipment Locations (if applicable)
  • Electrical Locations (if applicable)
Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
 *We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,444 sq. ft.

1st Floor

1,615 sq. ft.

2nd Floor

638 sq. ft.

3rd Floor

191 sq. ft.

Deck

256 sq. ft.

Entry

30 sq. ft.

Lanai

255 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

39' 8"

Depth

72' 8"

Garage

Type

Standard

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Architectural Style

Contemporary

Modern

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

2,444 sq. ft.

1st Floor

1,615 sq. ft.

2nd Floor

638 sq. ft.

3rd Floor

191 sq. ft.

Deck

256 sq. ft.

Entry

30 sq. ft.

Lanai

255 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

39' 8"

Depth

72' 8"

Garage

Type

Standard

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Architectural Style

Contemporary

Modern

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Outdoor Kitchen
