Modern 3-Story Townhouse Duplex with Asymmetrical 2-Bed Units

Name: Plan 85375MS: Modern 3-Story Townhouse Duplex with Asymmetrical 2-Bed Units
Brand: Architectural Designs
SKU: 85375MS
Price: 1785.00 USD
Availability: InStock

Heated S.F.

1,550

Units

Width

Depth

Floor Plan

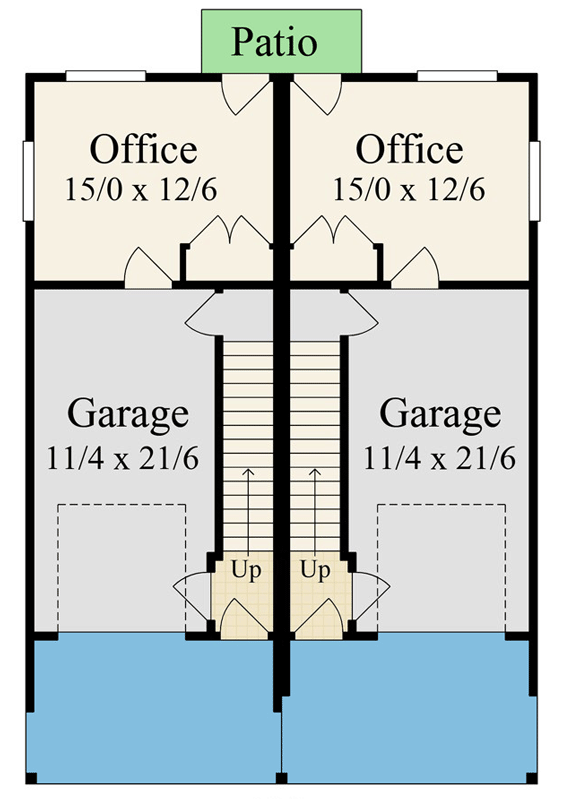

Main Level

2nd Floor

3rd Floor

Plan Details

This duplex is the best option if you are looking for a stylish and functional modern townhouse plan to brighten up a development. A classy, modern roof line and an easy living floor plan will set this home apart from anything else on the block. The left unit (1,550 square feet) gives you 310 square feet on the ground level, 640 square feet on the second floor and 600 square feet on the top floor. The right unit (1,518 square feet) gives you 310 square feet on the ground level, 624 square feet on the second floor and 584 square feet on the top floor.
Each unit has a virtually identical floor plan, save for a slightly longer primary bedroom on one side. The front door opens on a short entry that leads either into the garage or upstairs. Before going upstairs though, don’t miss the office that sits at the back of the garage. Entrances from both the garage and the back patio make this space very accessible.

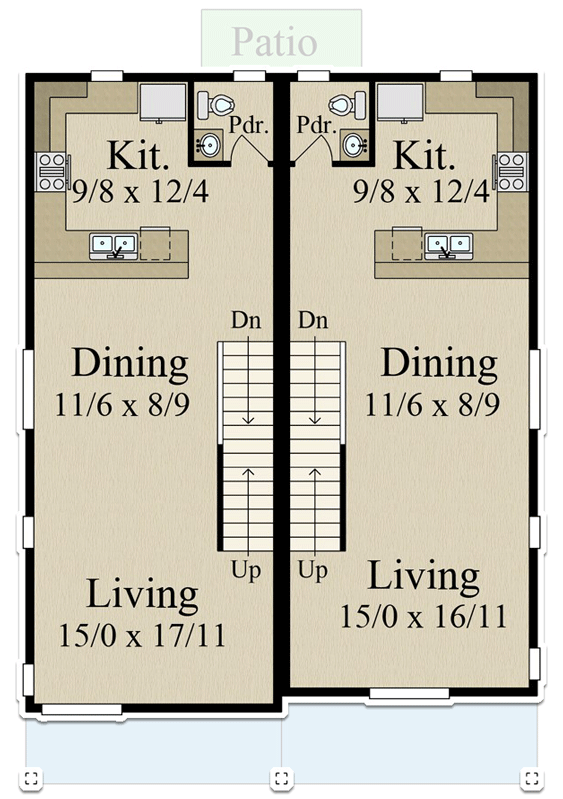

Heading upstairs, you’ll first come to the open concept main floor. The kitchen packs in tons of functionality, and the U-shaped counter does a lot of work to maximize a fairly compact space. The main floor powder room is just ahead of the stairs, and the dining room and living room sprawl across the rest of the floor. Large windows at the front of the home flood the living room with natural light.

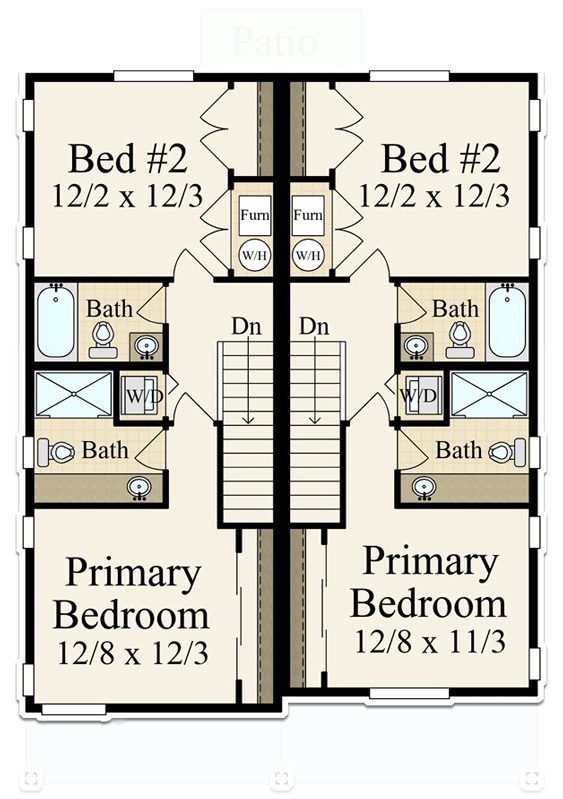

The top floor is where you’ll find both of the bedrooms – each on opposite ends of the home to maximize privacy. The primary bedroom takes up the front of the floor and the second the rear. Inside the second bedroom you’ll find the washer/dryer.
Related Plan: Get a duplex version with house plan 85428MS.

Unit Left

Heated Area

1,550Sq. Ft.

310 Sq. Ft. 1st

640 Sq. Ft. 2nd

600 Sq. Ft. 3rd

Beds

2Beds

Baths

2Full Baths

1Half Bath

Cars

Attached

282 Sq. Ft.

Dimensions

16'width

48'depth

Unfinished Areas

282 Sq. Ft. Garage

Unit Right

Heated Area

1,518Sq. Ft.

310 Sq. Ft. 1st

1264 Sq. Ft. 2nd

1184 Sq. Ft. 3rd

Beds

2Beds

Baths

2Full Baths

1Half Bath

Cars

Attached

242 Sq. Ft.

Dimensions

16'width

48'depth

Unfinished Areas

242 Sq. Ft. Garage

What's Included

Elevations: Front, Right, Rear, Left
Fully Dimensioned Floor Plans (window and door sizes called out at openings)
Foundation Plan with notes
Roof Framing Plan with notes
Section Views
Electrical Layout

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
