Plan 62758DJ Modern 4-Bed House Plan with Private Courtyard

3,067 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern 4-Bed House Plan with Private Courtyard

Plan 62758DJ

  • 3,067

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

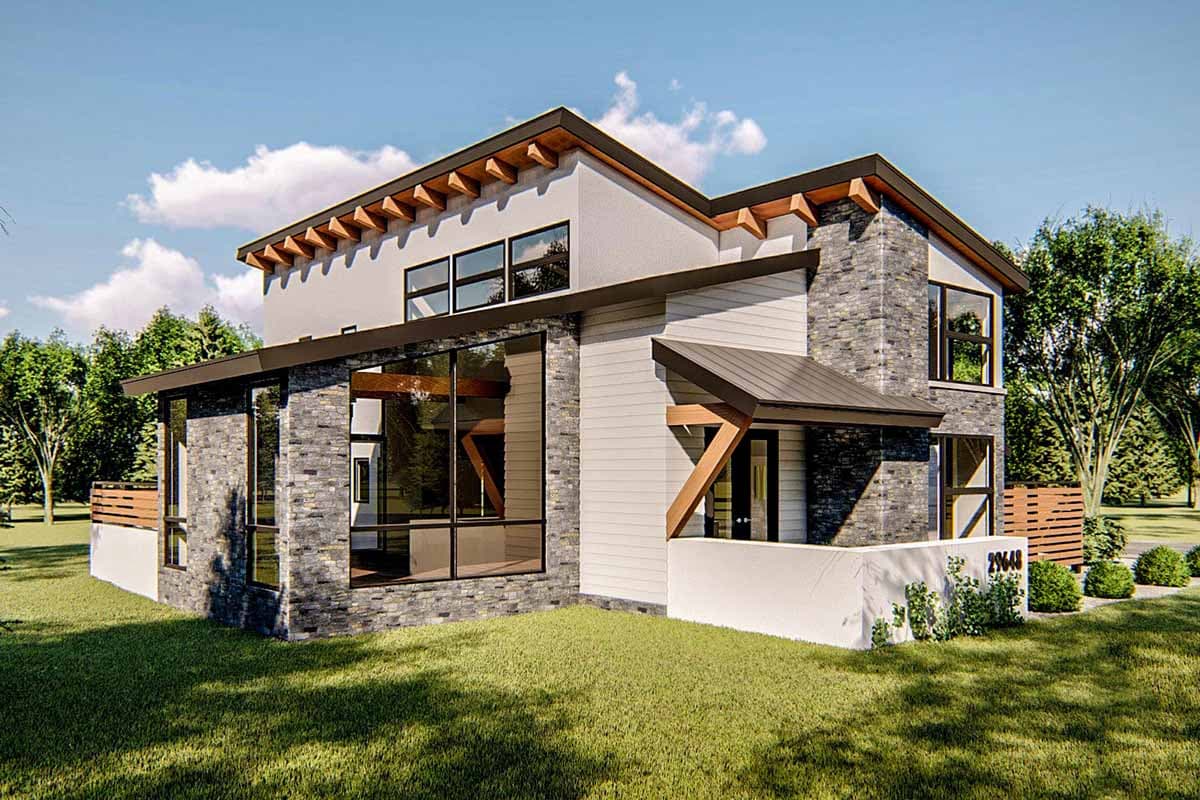

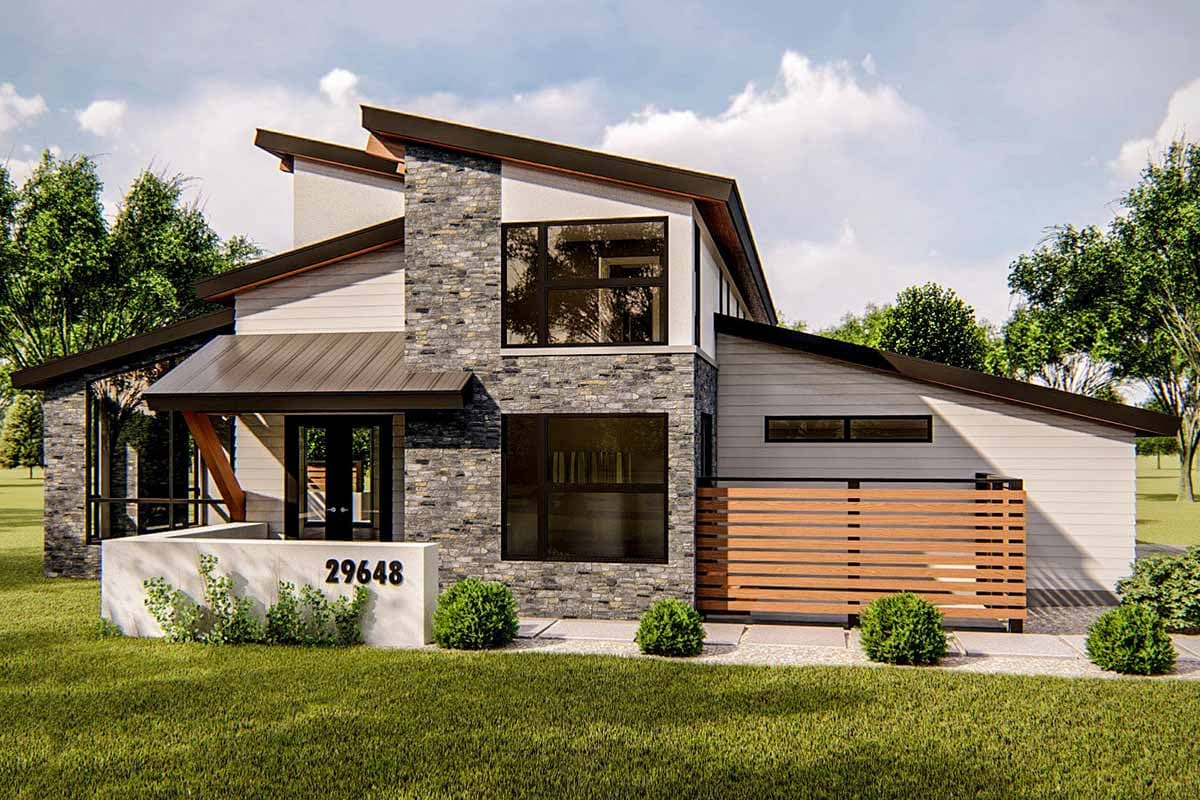

  • This 4-bed house plan's exterior brings together wood, stucco, and stone to give it the ultimate modern look.
  • Once you step into the house, you will be amazed by the open floor plan with its large windows in the great room.
  • The great room is accented by exposed wood beams and fireplace. A courtyard that's great for outdoor entertainment can be accessed from the dining room.
  • The kitchen includes a walk-in pantry and a large island with a breakfast bar. You will find the master suite situated perfectly on the main floor complete with his/her vanities in the bath.
  • Upstairs bedrooms 2 and 3 share a Jack and Jill bathroom while bedroom 4 and the upstairs family room share a centrally located hall bath.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

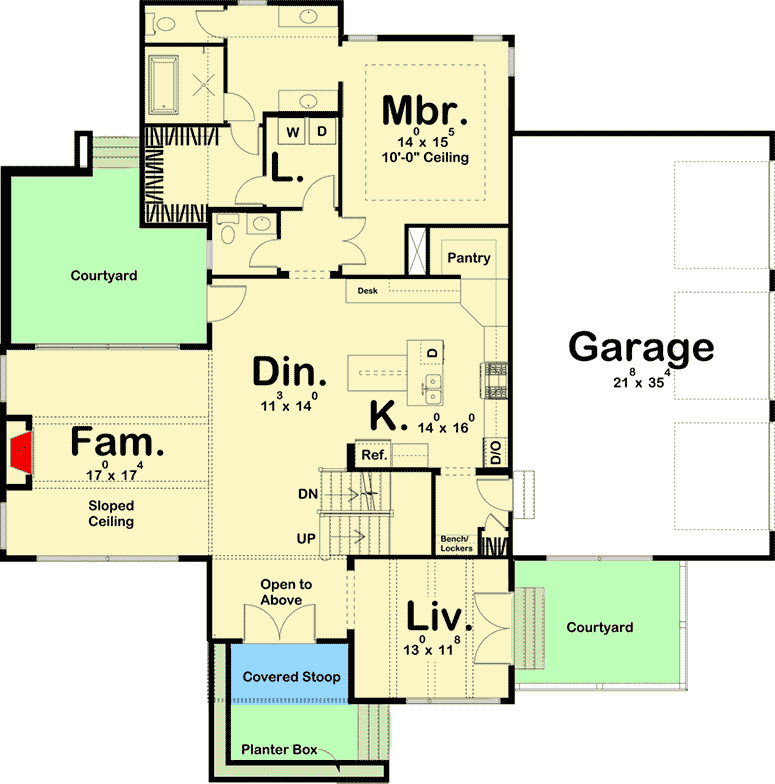

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern 4-Bed House Plan with Private Courtyard - 62758DJ floor plan - Main Level

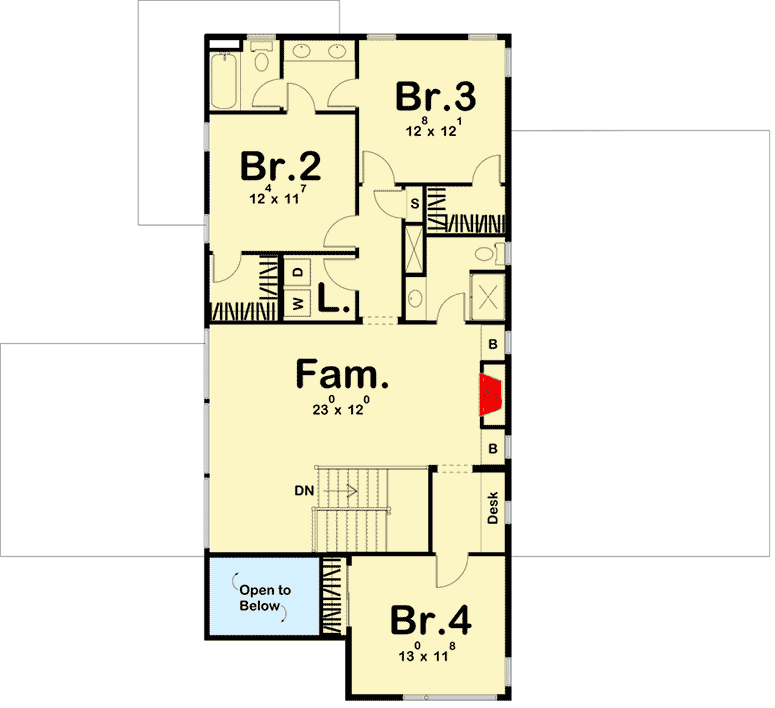

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern 4-Bed House Plan with Private Courtyard - 62758DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,067 sq. ft.
  • 1st Floor: 1,831 sq. ft.
  • 2nd Floor: 1,236 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 66' 0"

Garage

  • Type: Attached
  • Area: 792 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

Special features

Modern 4-Bed House Plan with Private Courtyard

  • 3,067

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • PDF - Unlimited Build $2,200
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • This 4-bed house plan's exterior brings together wood, stucco, and stone to give it the ultimate modern look.
  • Once you step into the house, you will be amazed by the open floor plan with its large windows in the great room.
  • The great room is accented by exposed wood beams and fireplace. A courtyard that's great for outdoor entertainment can be accessed from the dining room.
  • The kitchen includes a walk-in pantry and a large island with a breakfast bar. You will find the master suite situated perfectly on the main floor complete with his/her vanities in the bath.
  • Upstairs bedrooms 2 and 3 share a Jack and Jill bathroom while bedroom 4 and the upstairs family room share a centrally located hall bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,067 sq. ft.
  • 1st Floor: 1,831 sq. ft.
  • 2nd Floor: 1,236 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 66' 0"

Garage

  • Type: Attached
  • Area: 792 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 6 on 12
Plan 62758DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62758DJ
|
