Plan 230014JD

Modern 5 Bedroom House Plan with 4 Baths and Roof Deck

Name: Plan 230014JD: Modern 5 Bedroom House Plan with 4 Baths and Roof Deck
Brand: Architectural Designs
SKU: 230014JD
Price: 2400.0 USD
Availability: InStock

Heated S.F.

3,721

Beds

Baths

4.5

Stories

Cars

Floor Plan

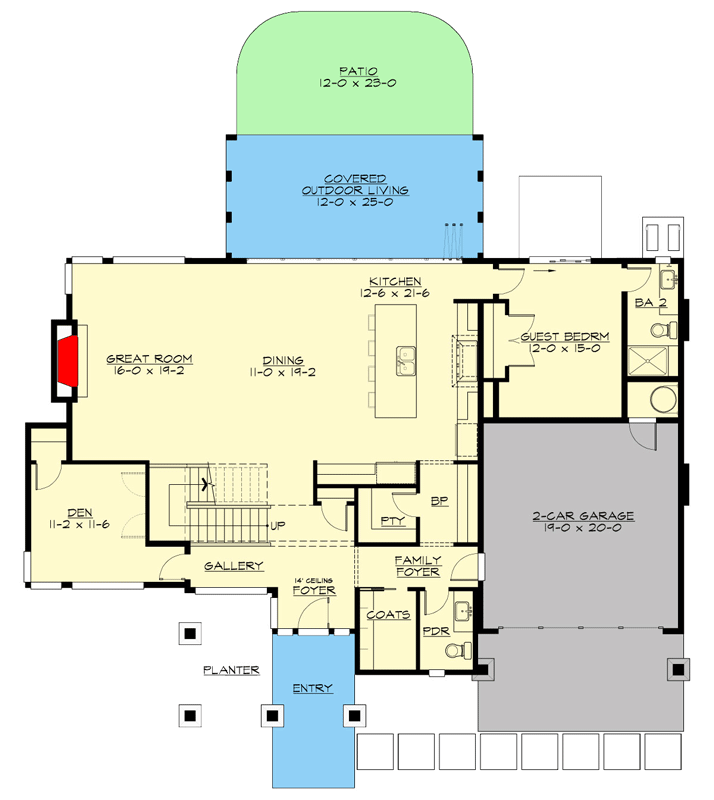

Main Level

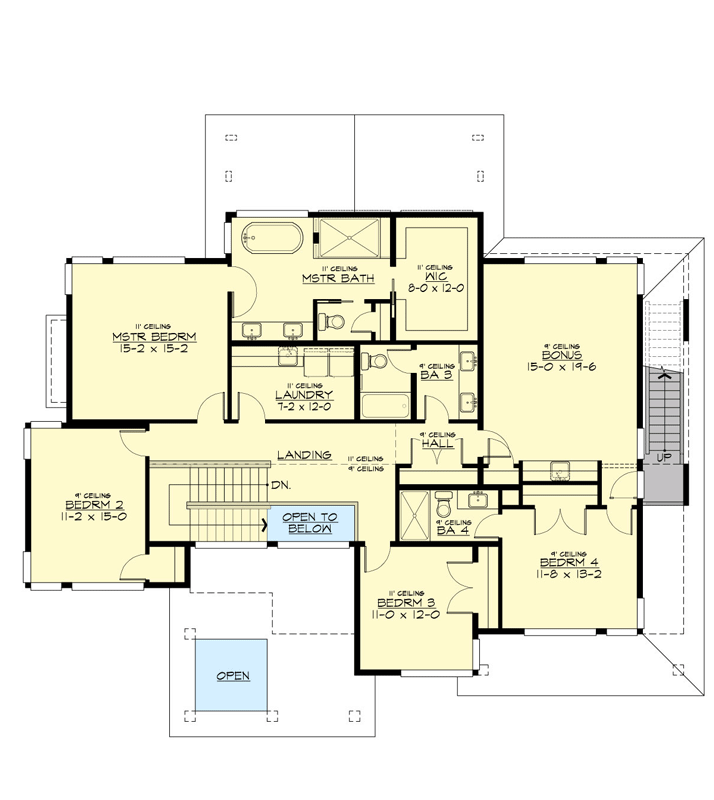

2nd Floor

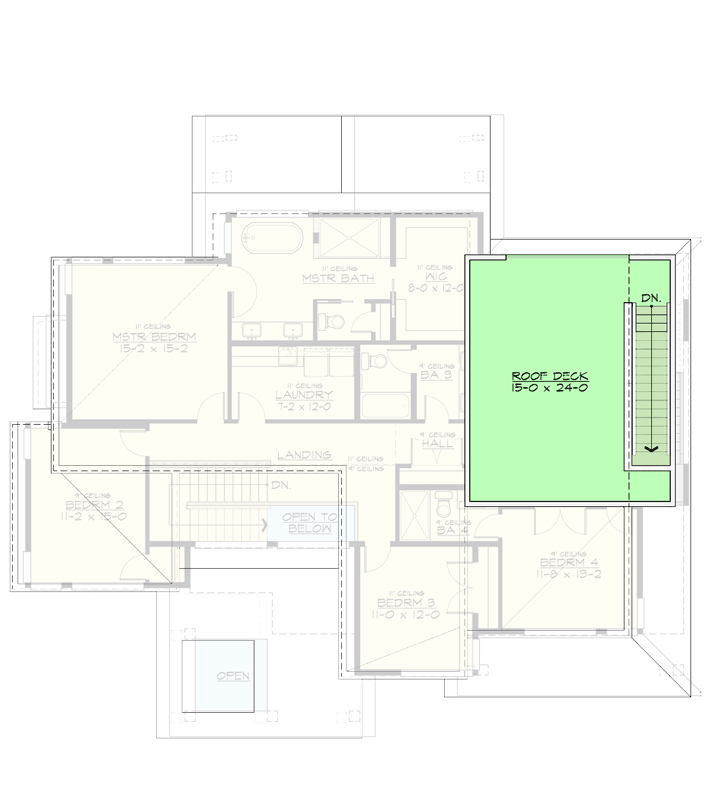

3rd Floor

Plan Details

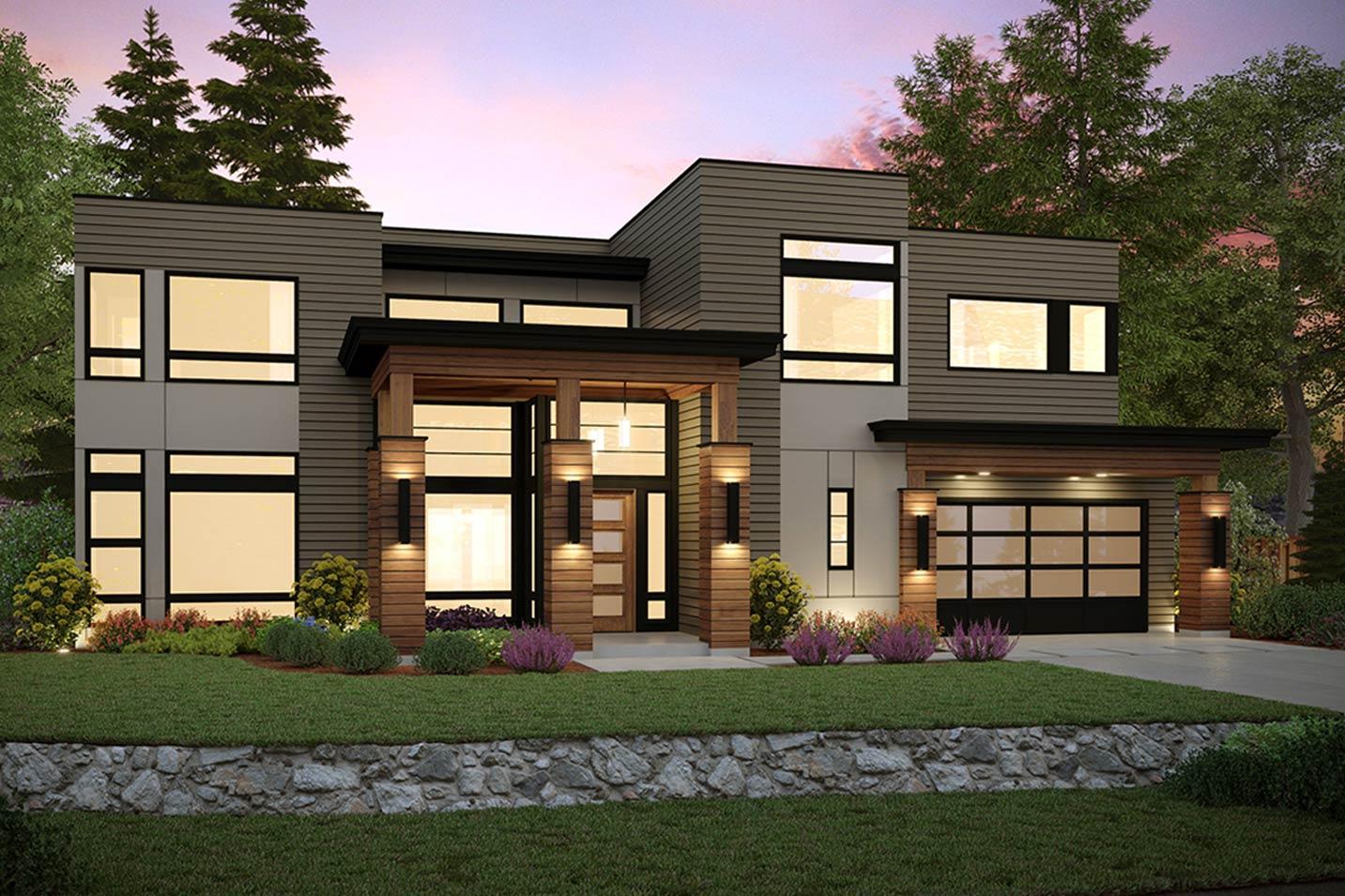

This modern 2-story house plan offers 3,721 finished square feet, 5 bedrooms, 4.5 bathrooms, and an attached 2-car garage.
Step through the welcoming covered entry into a grand foyer with 10' ceilings, leading to an open-concept living space.
The main living area features a seamless flow between the gourmet kitchen with a breakfast nook and butler's pantry, a spacious great room, and a versatile den.
The private master suite, located upstairs, provides a luxurious retreat with ample closet space and a spa-like ensuite bathroom, complemented by four additional bedrooms.
A dedicated laundry room on the second floor adds convenience for family living.
Enjoy the outdoors with thoughtfully designed spaces that complement the modern aesthetic.
A finished bonus room offers flexible space for a home theater, playroom, or guest accommodations.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

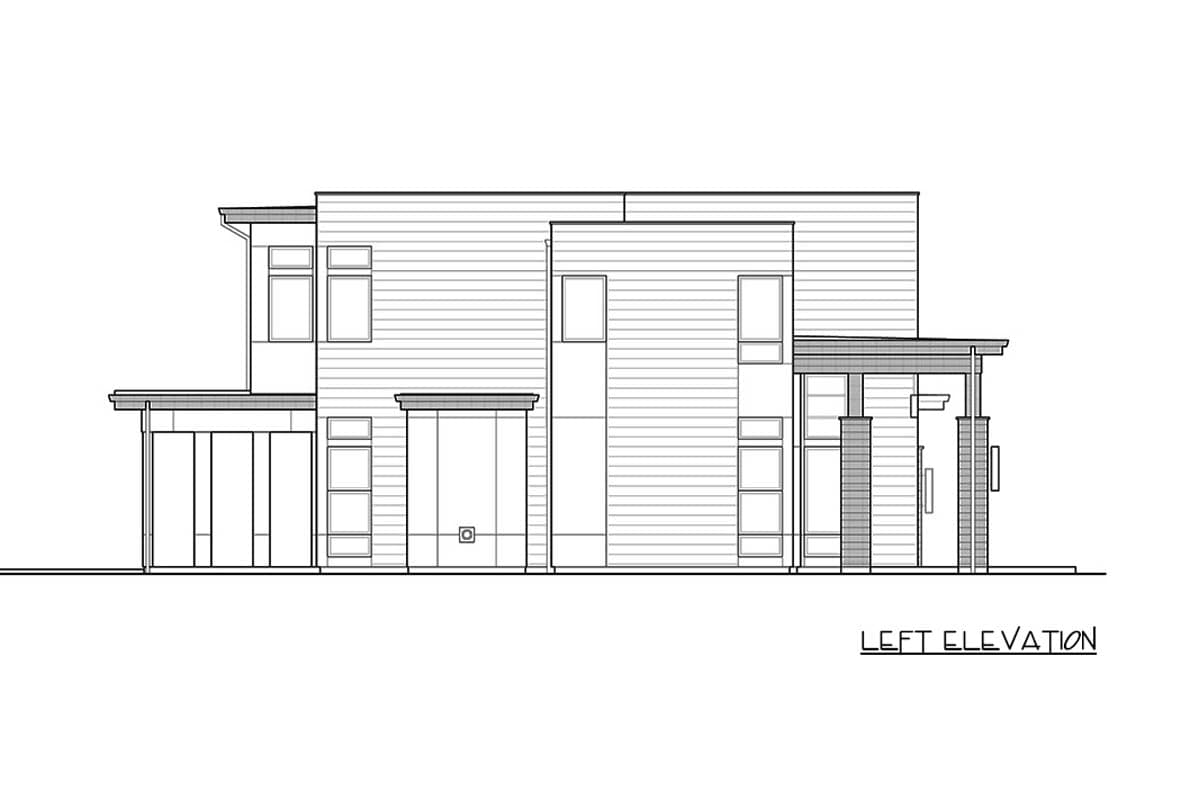

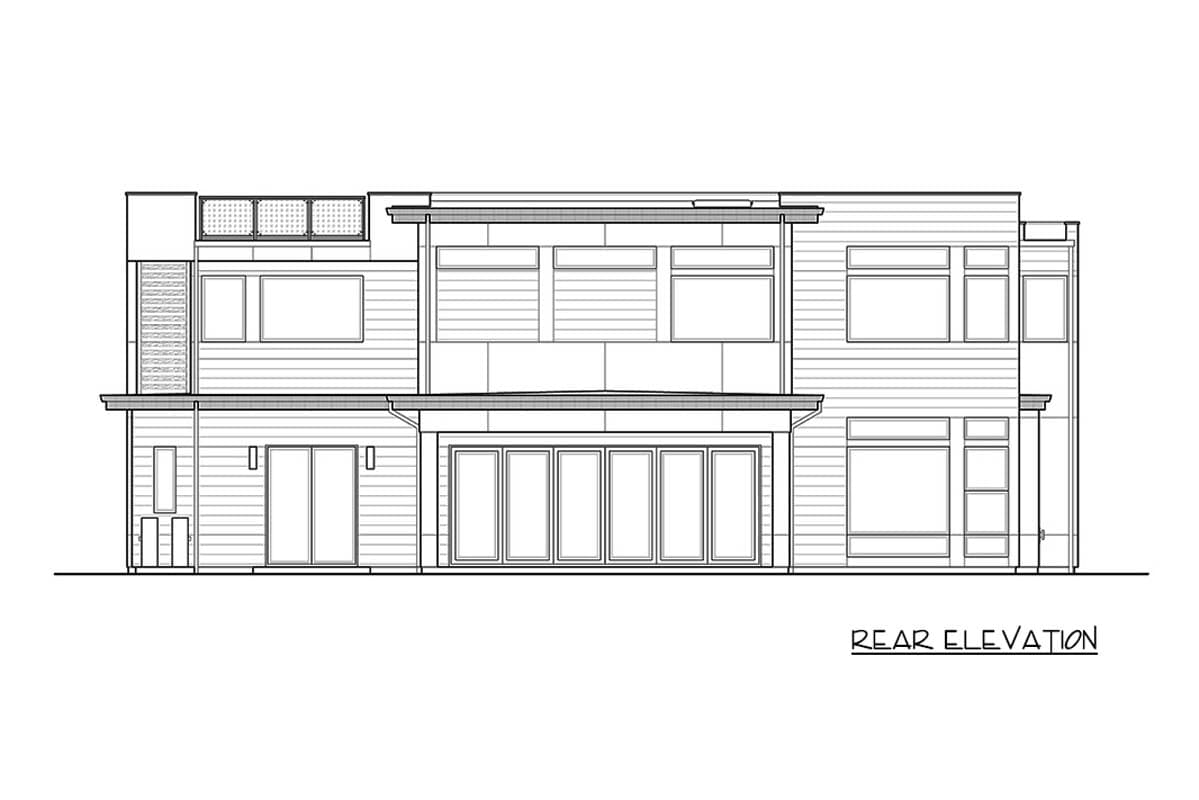

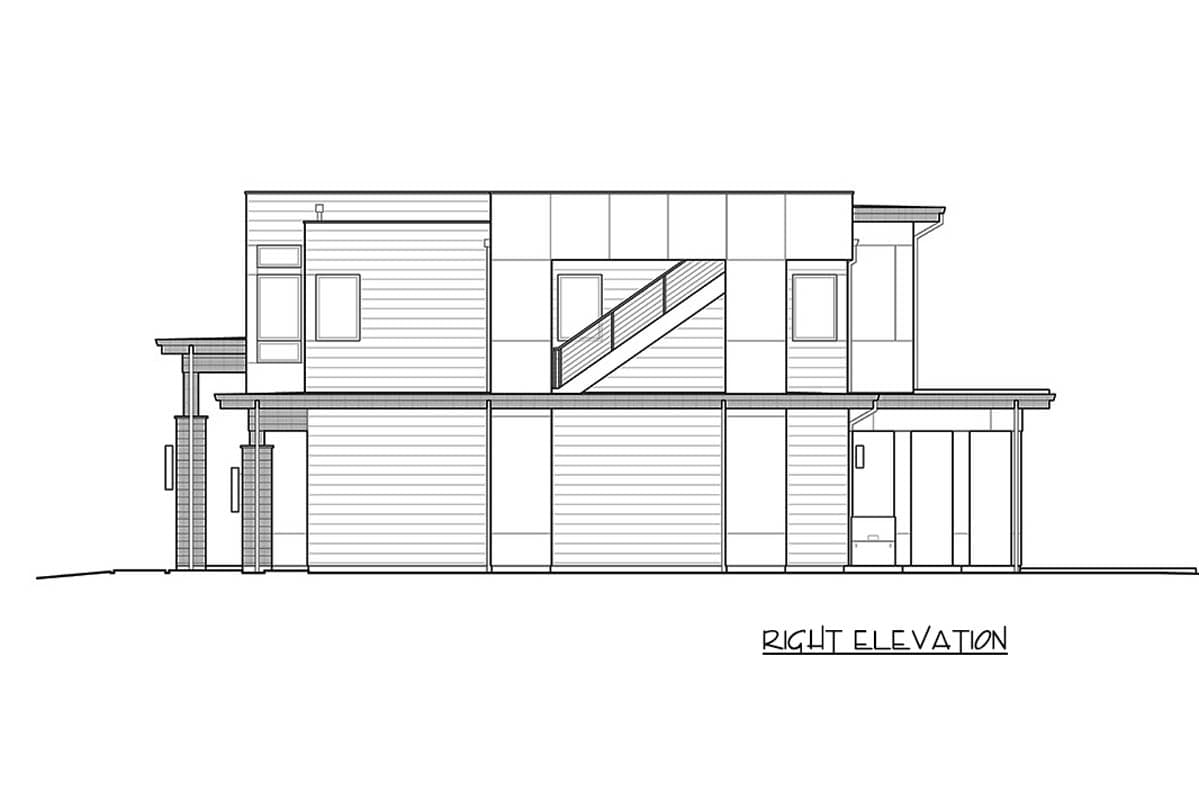

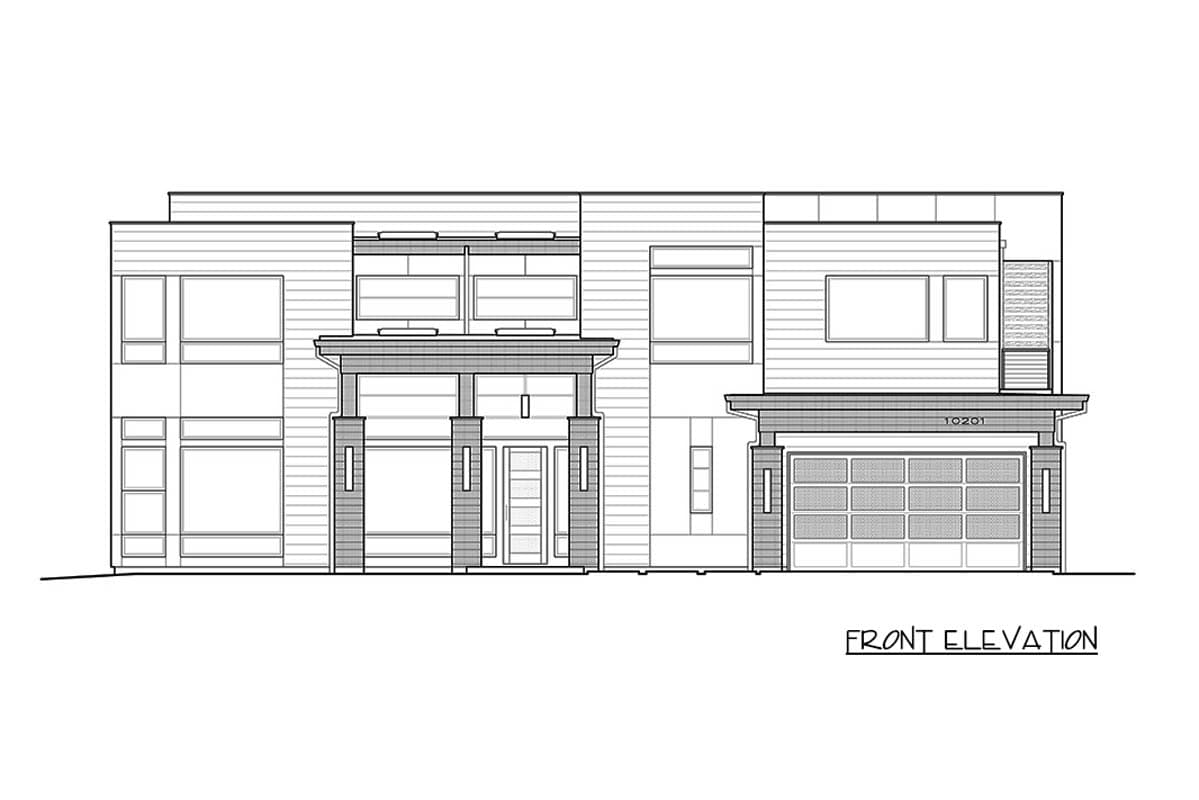

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

View Sample Plan

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
