Modern ADU with Full Kitchen, Vaulted Loft and Lower Level Bedroom

Name: Plan 365022PED: Modern ADU with Full Kitchen, Vaulted Loft and Lower Level Bedroom
Brand: Architectural Designs
SKU: 365022PED
Price: 1058.25 USD
Availability: InStock

Heated S.F.

750

Beds

Baths

Stories

Floor Plan

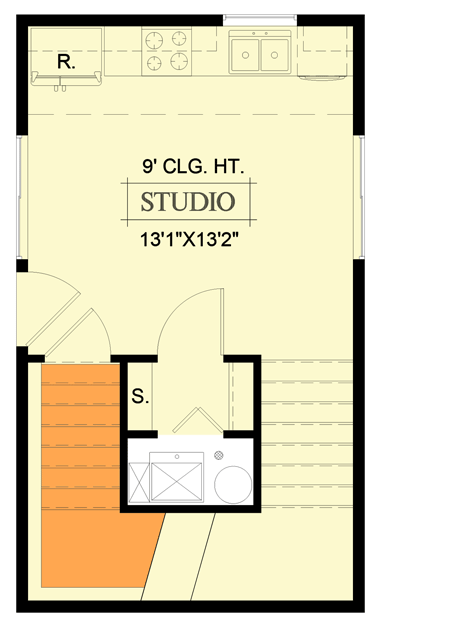

Main Level

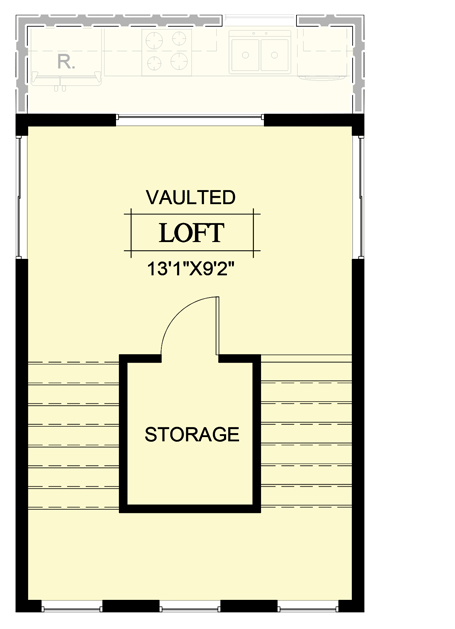

Upper Level Loft

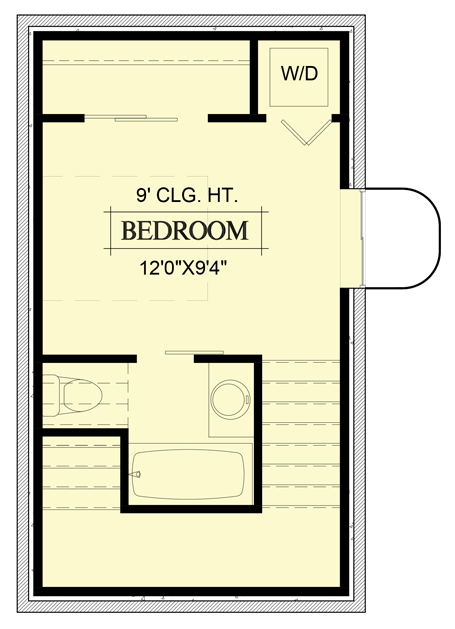

Lower Level

Plan Details

This attractive modern ADU (Accessory Dwelling Unit) is an incredibly efficient design and gives you 750 square feet of living space spread across its three levels of living. Its tight footprint makes it ideal for a small building window
On the main floor, a full kitchen and an integrated dining/living room greet you as you enter from either side. The center portion of the floor gives you storage and mechanical space.
Stairs take you to a vaulted loft area with a storage closet in the middle.
The lower level gives you a private bedroom with full bath and a stackable laundry closet.

What's Included

Cover sheet with general information
Detailed floor plans for each floor

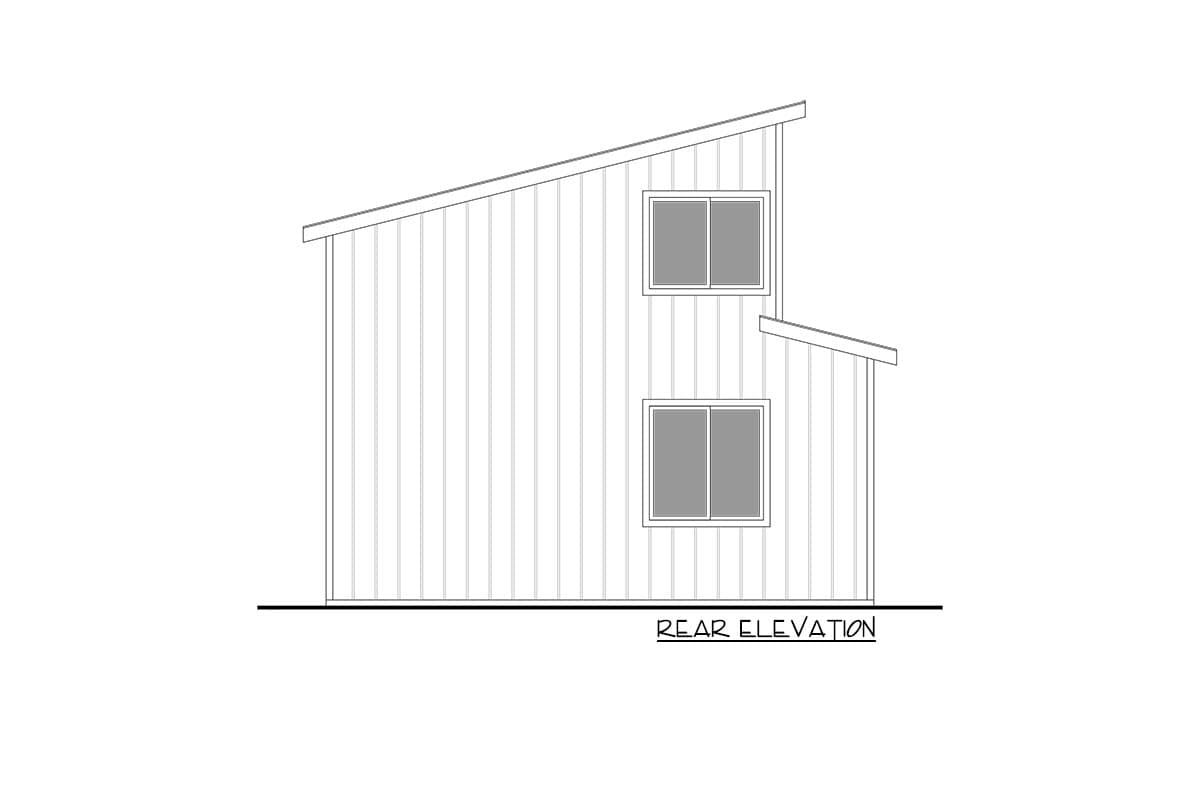

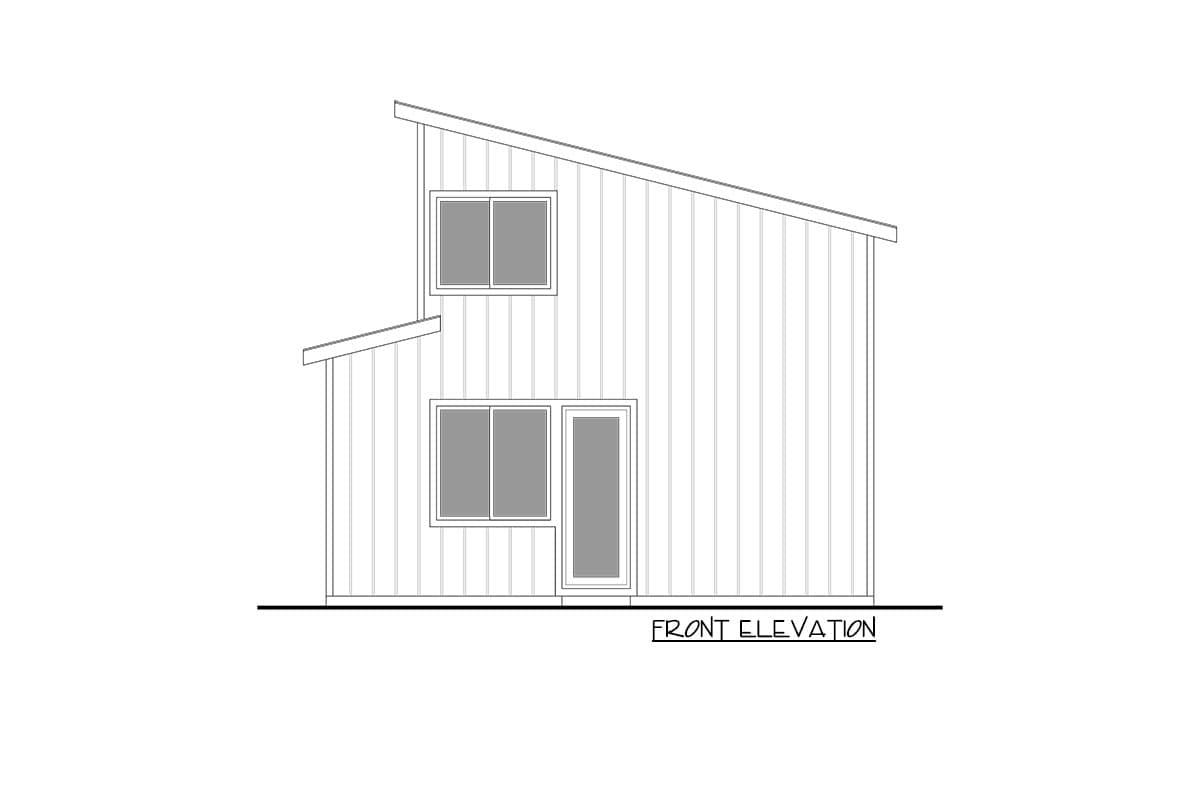

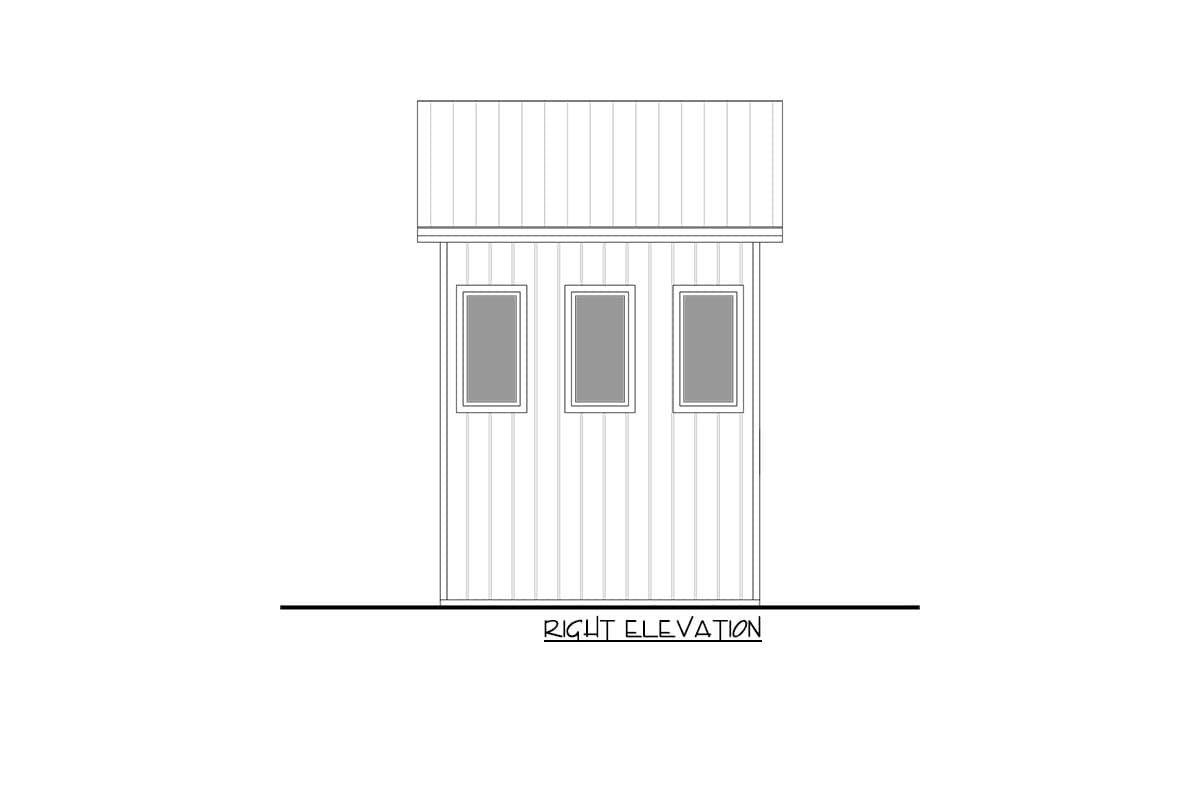

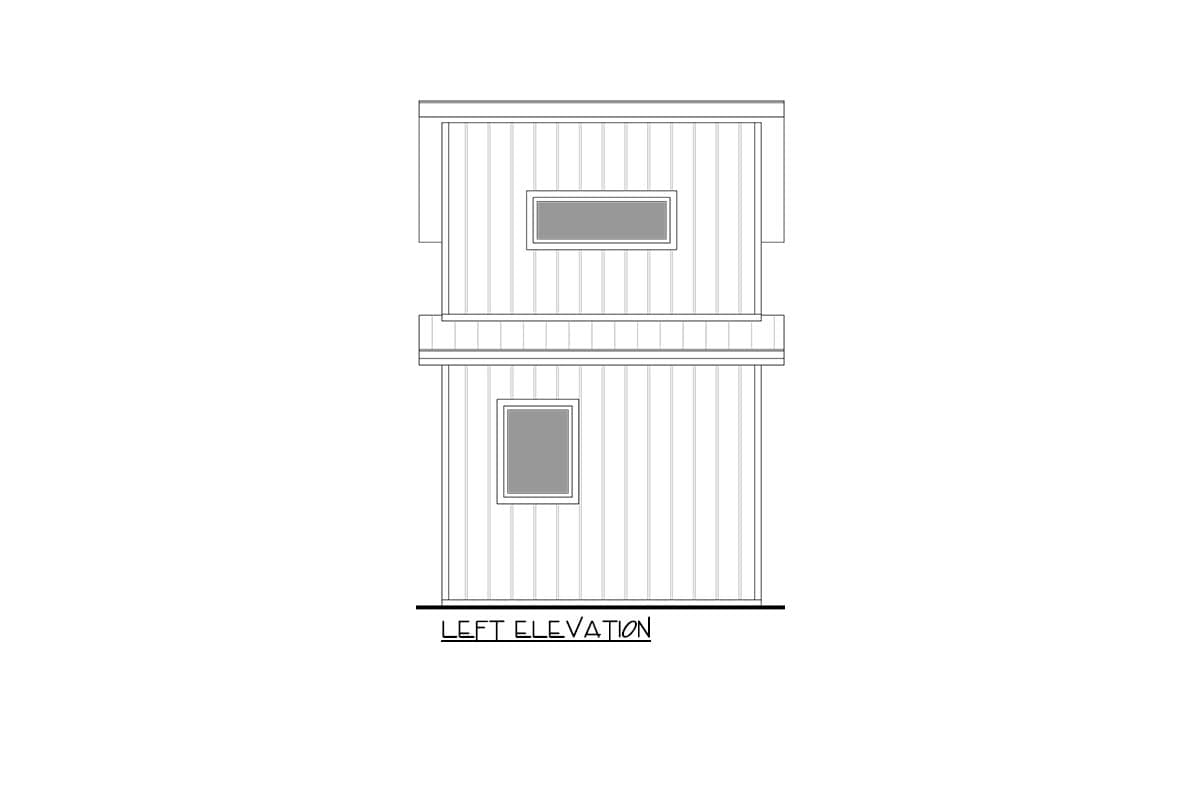

Elevations for each side of the home
Roof plan
Building section and details
Electrical schematic plans for each floor
Foundation plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
