Plan 737002LVL Modern Barndominium House Plan with Two Bedroom Suites

Modern Barndominium House Plan with Two Bedroom Suites

Plan 737002LVL

  • 3,118

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 6

    Cars

  • Enter this two level barn-style house plan on the lower level with loads of storage for your cars.
  • The foyer is flanked by two 3-car garages, one with interior windows so you can gaze at your high-end automobile collection.
  • There's a veranda in back and a bathroom with shower so you can clean off after tinkering with your collection.
  • Stairs lead up to the main living level where the kitchen and dining room are on one side and the great room on the other.

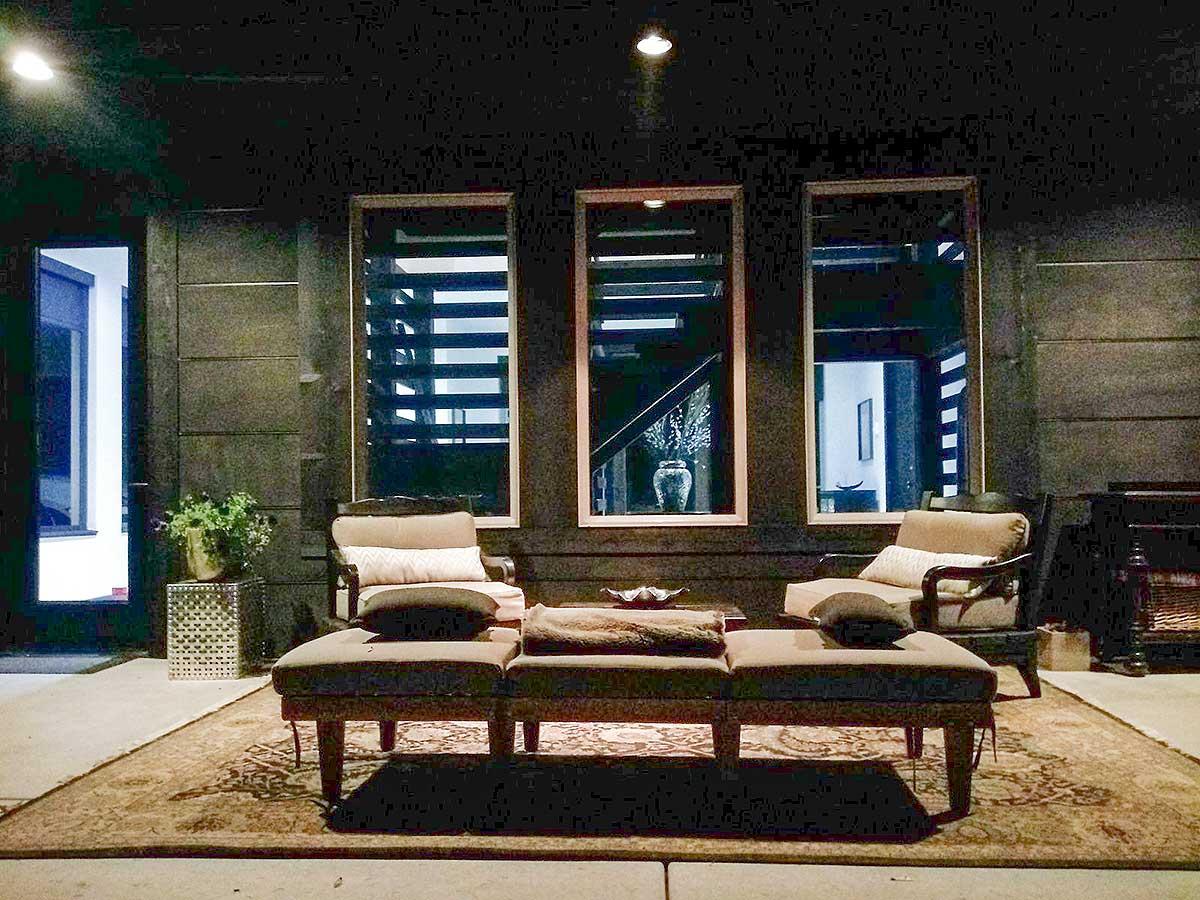

  • A rear covered deck connects the two areas, with three windows overlooking the stairwell.
  • The master suite and junior suite lie on opposite sides of the home ensuring privacy for both.

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections
Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

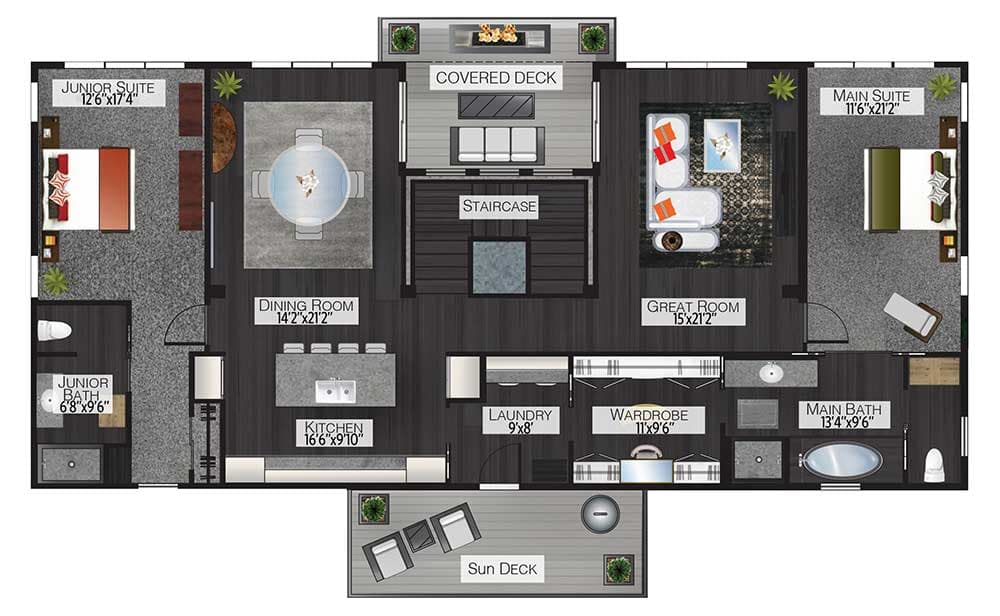

Modern Barndominium House Plan with Two Bedroom Suites - 737002LVL floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

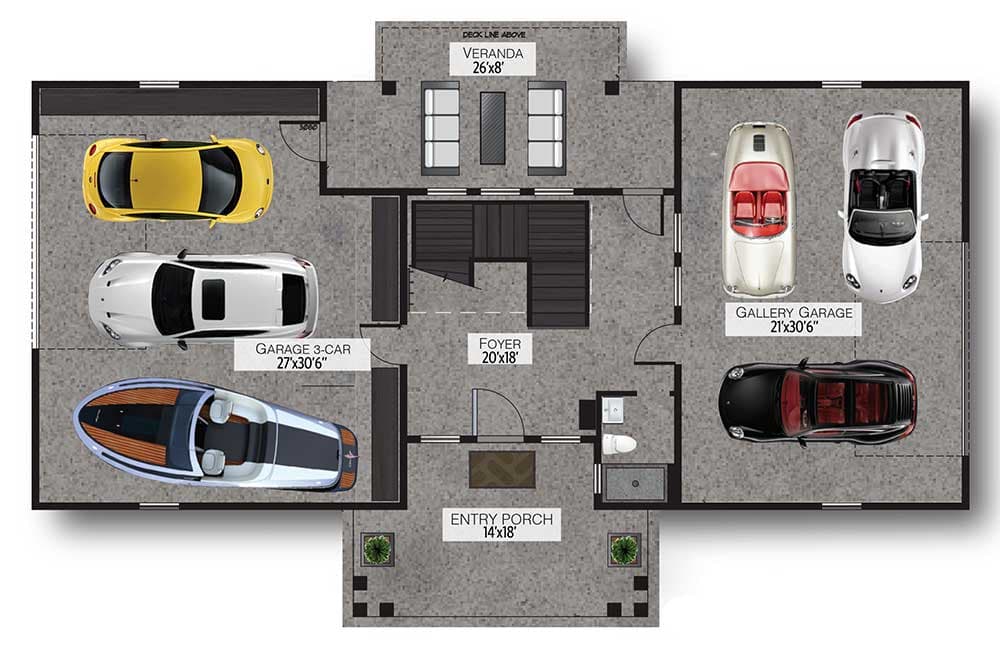

Modern Barndominium House Plan with Two Bedroom Suites - 737002LVL floor plan - 1st Floor

Plan details

Modern Barndominium House Plan with Two Bedroom Suites

  • 3,118

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 6

    Car garage

Buy This Plan
  • PDF - Single-Build $1,675
  • CAD - Single-Build $2,050
  • View all purchase option online

About This Plan

  • Enter this two level barn-style house plan on the lower level with loads of storage for your cars.
  • The foyer is flanked by two 3-car garages, one with interior windows so you can gaze at your high-end automobile collection.
  • There's a veranda in back and a bathroom with shower so you can clean off after tinkering with your collection.
  • Stairs lead up to the main living level where the kitchen and dining room are on one side and the great room on the other.
  • A rear covered deck connects the two areas, with three windows overlooking the stairwell.
  • The master suite and junior suite lie on opposite sides of the home ensuring privacy for both.

Floor Plans

  • 2nd Floor

  • 1st Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,118 sq. ft.
  • 1st Floor: 1,132 sq. ft.
  • 2nd Floor: 1,986 sq. ft.
  • Deck: 176 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 32' 0"
  • Max ridge height: 28' 9"

Garage

  • Type: Drive Under
  • Area: 838 sq. ft.
  • Count: 6 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
