Plan 62850DJ Modern Coastal House Plan with Third Floor Master Suite

Modern Coastal House Plan with Third Floor Master Suite

Plan 62850DJ

  • 3,208

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 3

    Stories

  • 2

    Cars

  • This modern coastal home plan, just 20' wide, is great for a narrow lot. The exterior blends wood with stucco and flat roof pitches to give the home an ultra modern look. On the main level, the living room, dining room, and kitchen flow seamlessly in this open floor plan. The kitchen includes a large island with a snack bar and a walk-in pantry. The treat room is warmed by a fireplace that is flanked by built-in bookshelves.

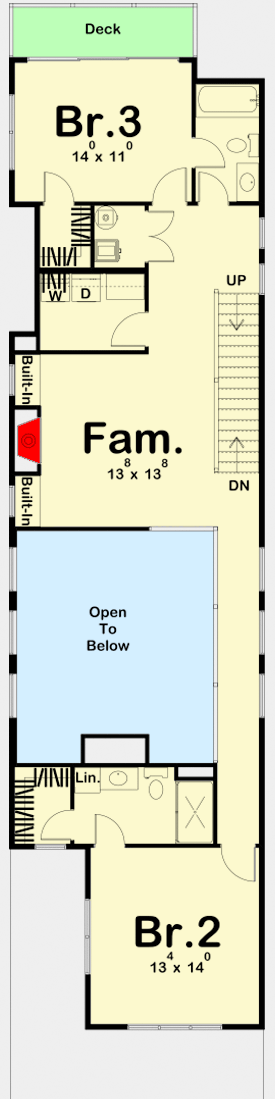

  • The second floor includes a family room and 2 bedrooms. Both bedrooms have access to their own bathroom and each has its own walk-in closet. The second floor family room includes a fireplace that is flanked by built-in bookshelves.
  • The third floor is where you will find the luxurious master suite. The master suite includes a sitting room with access to its own private deck. The master bathroom includes a wet room, his/her vanities, an enclosed toilet, and a large walk-in closet. An exercise room helps complete the master suite.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on most but not all plans. If cabinets are a must please call to confirm they will be included in your set.

Plan details



Modern Coastal House Plan with Third Floor Master Suite

  • 3,208

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,400
  • PDF - Unlimited Build $1,900
  • CAD - Single-Build $1,900
  • 5 Sets + PDF $2,150
  • CAD - Unlimited Build $2,400
  • View all purchase option online

About This Plan

  • This modern coastal home plan, just 20' wide, is great for a narrow lot. The exterior blends wood with stucco and flat roof pitches to give the home an ultra modern look. On the main level, the living room, dining room, and kitchen flow seamlessly in this open floor plan. The kitchen includes a large island with a snack bar and a walk-in pantry. The treat room is warmed by a fireplace that is flanked by built-in bookshelves.
  • The second floor includes a family room and 2 bedrooms. Both bedrooms have access to their own bathroom and each has its own walk-in closet. The second floor family room includes a fireplace that is flanked by built-in bookshelves.
  • The third floor is where you will find the luxurious master suite. The master suite includes a sitting room with access to its own private deck. The master bathroom includes a wet room, his/her vanities, an enclosed toilet, and a large walk-in closet. An exercise room helps complete the master suite.

Floor Plans

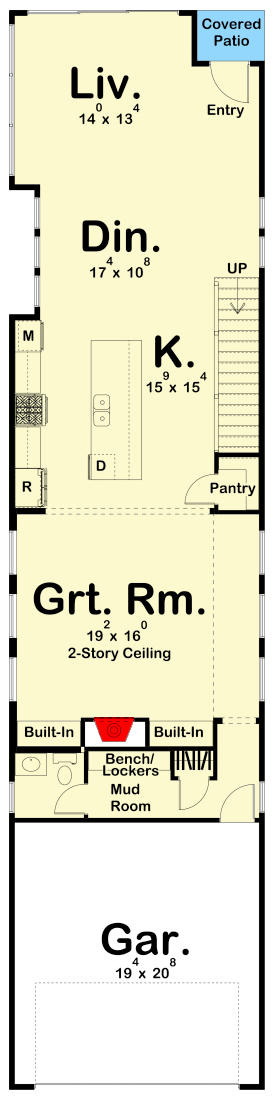

  • Main Level

  • 2nd Floor

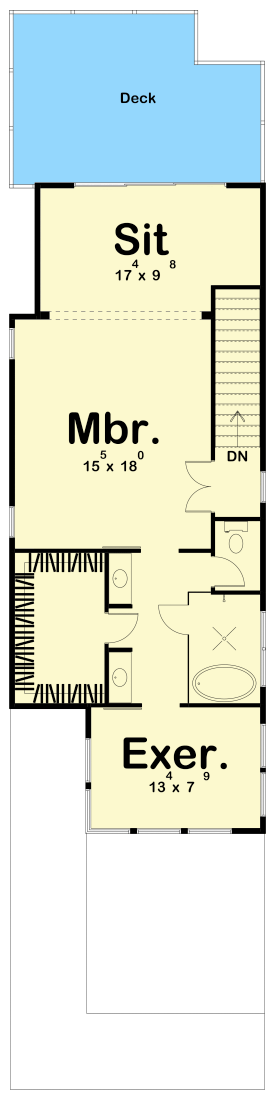

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,208 sq. ft.
  • 1st Floor: 1,238 sq. ft.
  • 2nd Floor: 1,072 sq. ft.
  • 3rd Floor: 898 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 85' 0"

Garage

  • Type: Drive Under, Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0" Third Floor 8' 0"
