Plan 623329DJ
Modern Cottage House Plan with Two Outdoor Fireplaces - 4714 Sq Ft
Heated S.F.
4,714
Beds
5
Baths
3.5
Stories
2
Cars
4
Tour
Videos
What's Included
Plan Details
  • This 5 bed, 3.5 bath modern cottage house plan gives you 4,714 square feet of heated living space and 1,028 square feet of porch space. A fusion of classic cottage charm and modern functionality, this home plan also has a 4-car garage (1,234 square feet) with a porte cochere.
  • Step inside through the spacious entry and you are led to an expansive open floor plan that seamlessly integrates the kitchen, dining area, and great room, creating an ideal space for gatherings and relaxation. The soaring cathedral ceilings paired with large windows and doors lend an airy and spacious ambiance to the main living area allowing for plenty of natural light.
  • Adjacent to the kitchen is a spacious family room with glass doors, a cozy fireplace, and a small wine closet for beverage necessities. Also included in this modern cottage oasis is a home office, additional living room and a storm shelter suitable for universal needs.
  • The master suite boasts a spa-like ensuite bathroom and a walk-in closet, offering a private sanctuary for relaxation and rejuvenation.
  • A charming courtyard offers with fireplace gives you a secluded fresh air oasis.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Cottage House Plan with Two Outdoor Fireplaces - 4714 Sq Ft

  • 4,714

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

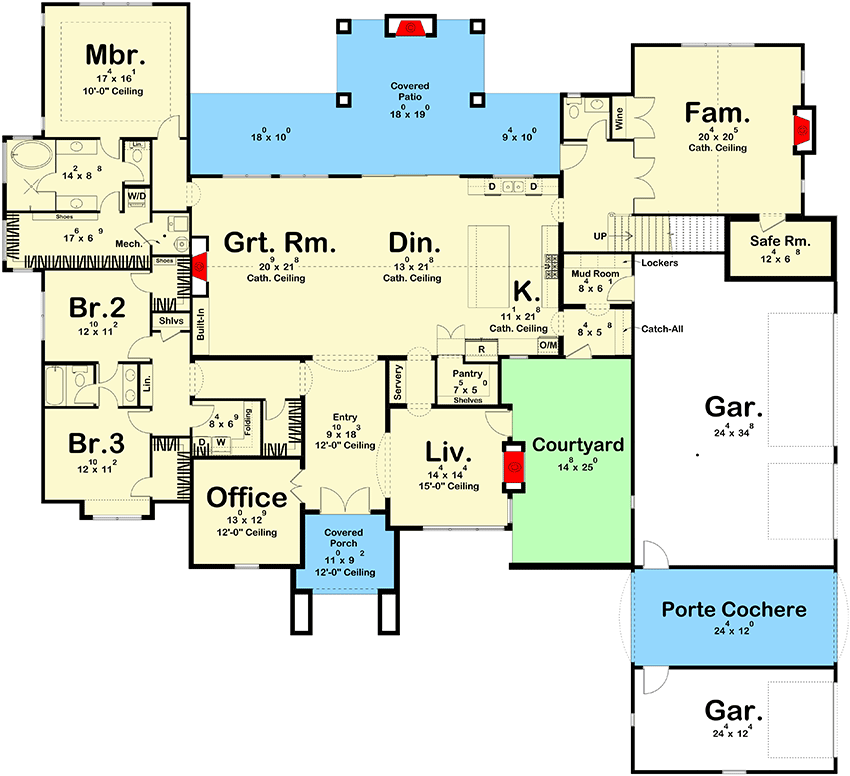

  • Main Level

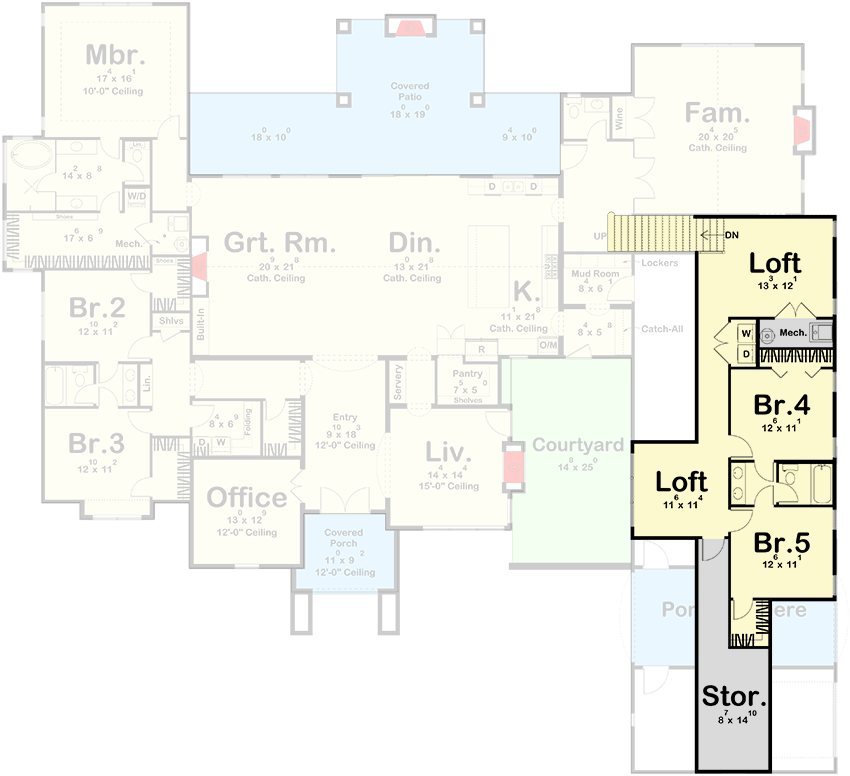

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,714 sq. ft.
  • 1st Floor: 3,842 sq. ft.
  • 2nd Floor: 872 sq. ft.

Dimensions

  • Width: 101' 8"
  • Depth: 94' 0"
  • Max ridge height: 28' 11"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1234 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 14 on 12
