Modern Craftsman Duplex House Plan with Three Bedrooms and Balcony

Name: Plan 720206DA: Modern Craftsman Duplex House Plan with Three Bedrooms and Balcony
Brand: Architectural Designs
SKU: 720206DA
Price: 4540.0 USD
Availability: InStock

Heated S.F.

3,352

Units

Width

Depth

Floor Plan

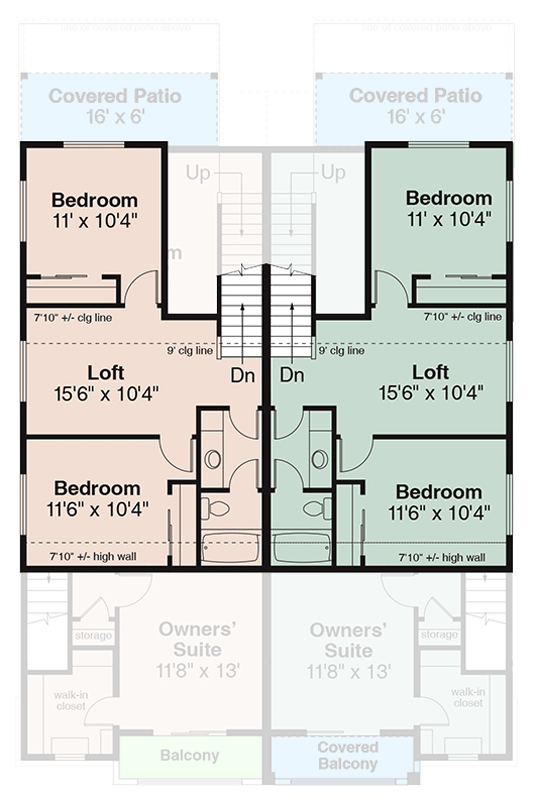

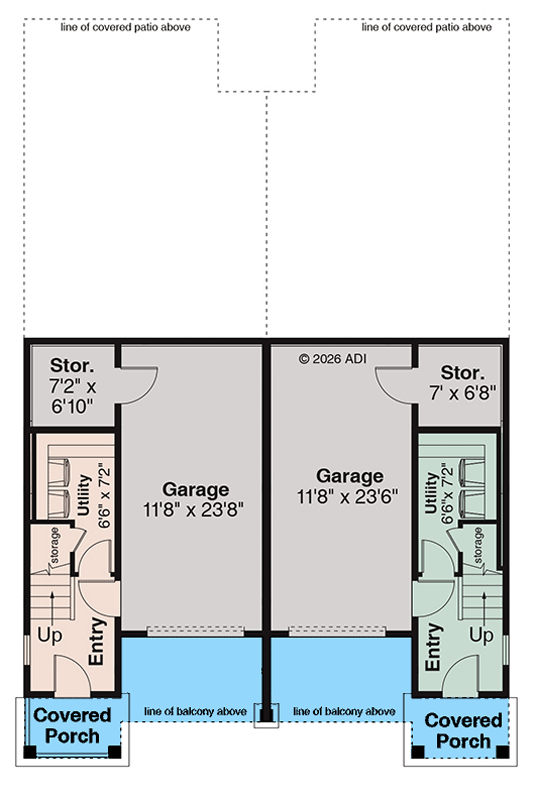

Lower Level

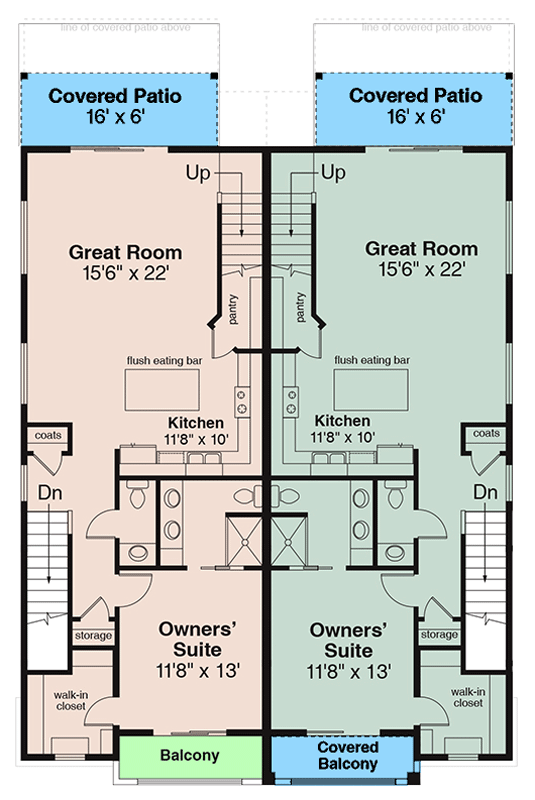

Main Level

2nd Level

Plan Details

This modern Craftsman duplex offers 1,676 finished sq ft per unit, featuring 3 bedrooms, 2.5 baths, and a 337 sq ft garage.
Each residence features a charming covered porch entry that opens into a thoughtfully designed floor plan optimized for modern living.
The main level showcases an open-concept layout where the kitchen flows seamlessly into the dining and living areas, creating a bright and airy atmosphere.
The primary bedroom suite provides a private retreat, while two additional bedrooms are positioned to share convenient access to a full bath.
A beautiful second-story balcony extends the living space outdoors, providing a perfect spot for morning coffee or evening relaxation.
The functional design includes 175 sq ft of finished lower-level space, offering versatility for a home office, media room, or guest area.

Unit A & B

Heated Area

1,676Sq. Ft.

175 Sq. Ft. LL

926 Sq. Ft. 1st

Beds

3Beds

Baths

2Full Baths

1Half Bath

Cars

Standard

337 Sq. Ft.

Dimensions

20'width

61'depth

35' 2"height

Unfinished Areas

337 Sq. Ft. Garage

149 Sq. Ft. Porch, Combined

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

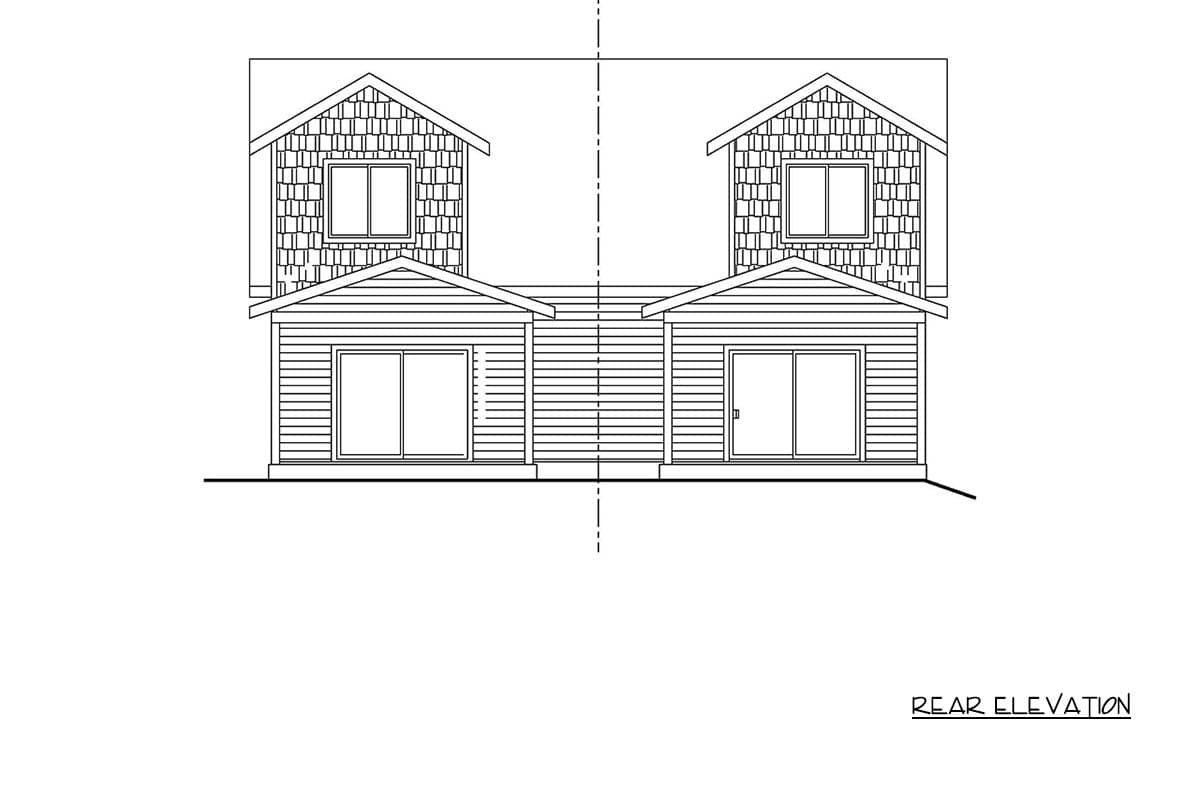

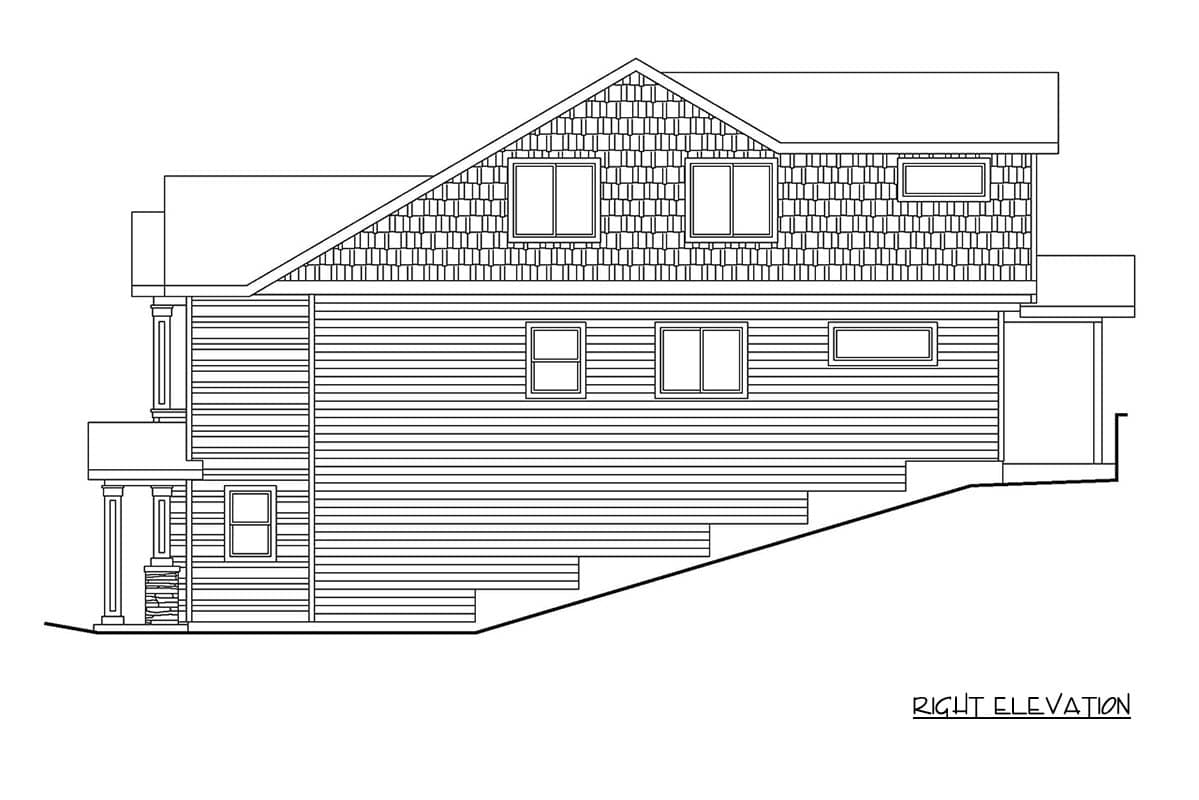

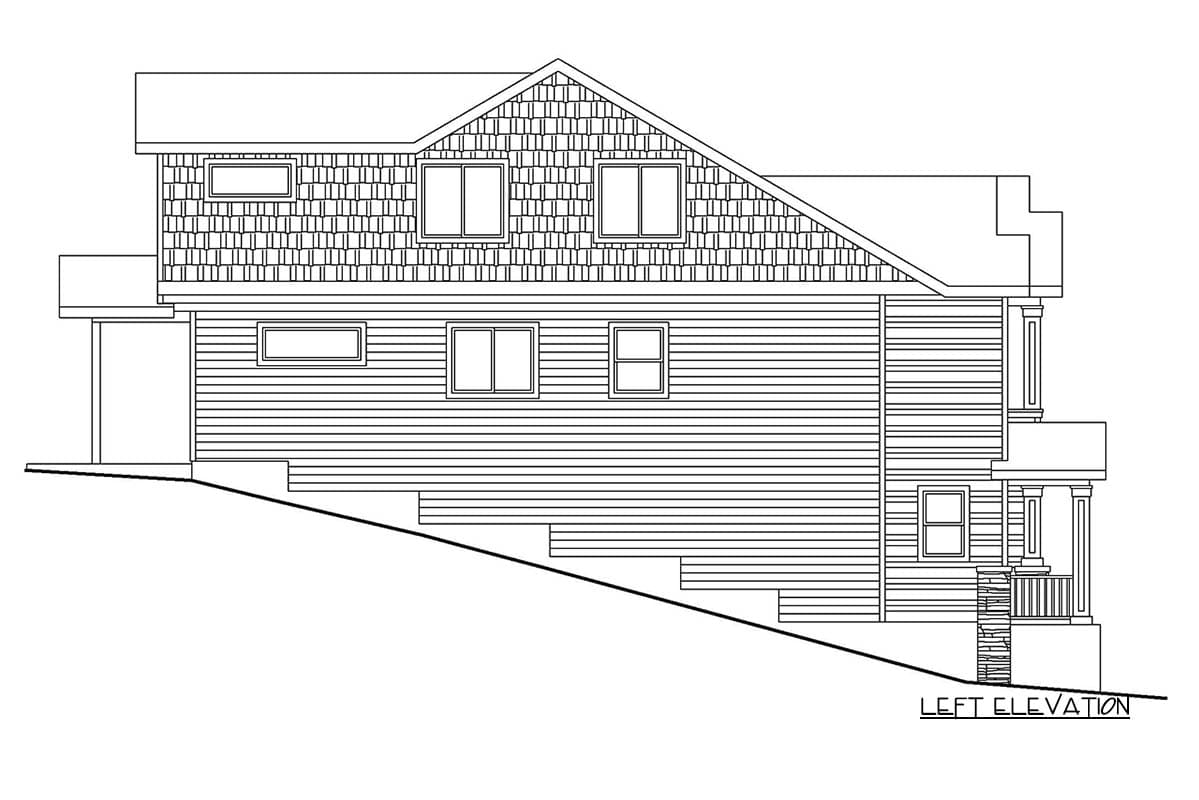

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
