Modern Craftsman Home Plan with Third Floor Expansion Possibilities

Plan 260001RVC

  • 3,421

    Heated s.f.

  • 5-6

    Beds

  • 4.5 - 5.5

    Baths

  • 2-3

    Stories

  • 2-3

    Cars

  • Contrasting exterior colors make the natural wood accents pop on this Modern Craftsman home plan, exclusive to Architectural Designs. The third floor offers a flexible expansion option to gain usable living space.
  • Step inside from the covered porch to find a study, or fifth bedroom, to the right. Straight ahead, a generous family room seamlessly connects to the kitchen, and includes a gas fireplace flanked by built-in bookcases.
  • A freestanding island rests in the center of the kitchen, surrounded by ample cabinet and counter space, and a walk-in pantry is accessible from the mudroom. Retreat to the rear screen porch when you want to enjoy an outdoor dining experience free from bugs.
  • Upstairs, four bedrooms encircle the kid's loft. The master bedroom features a wet room, private toilet room, and access to the laundry room.
  • Two family bedrooms share a Jack-and-Jill bath, while the third includes its own full bath.
  • NOTE: Contact us if building within a 50 mile radius of Richmond, Virginia as restrictions may apply.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

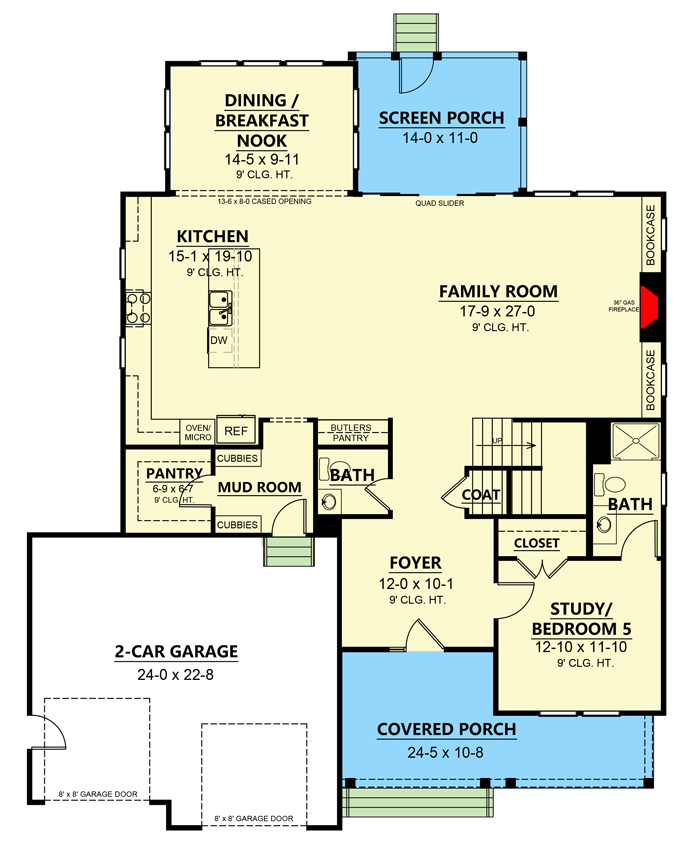

Modern Craftsman Home Plan with Third Floor Expansion Possibilities - 260001RVC floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

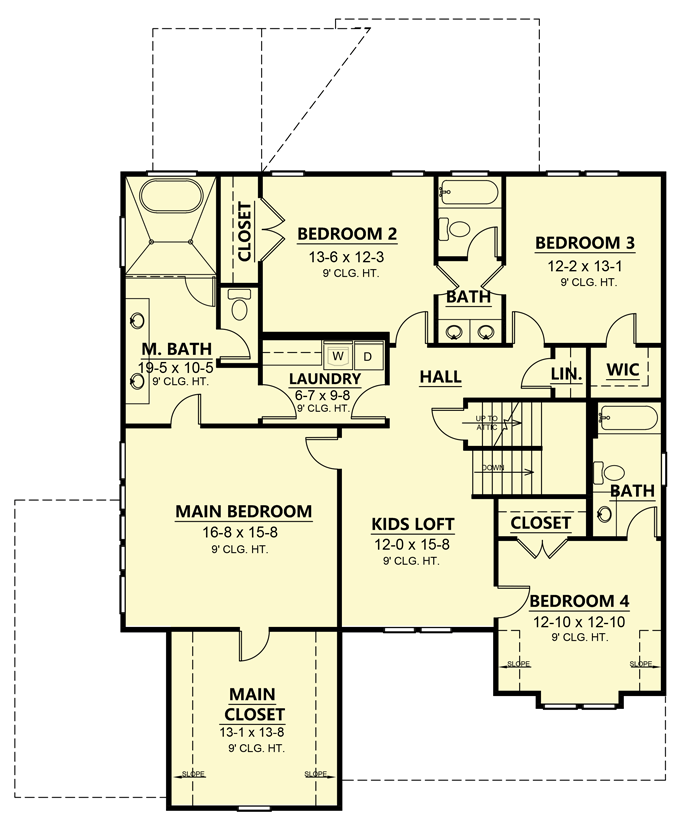

Modern Craftsman Home Plan with Third Floor Expansion Possibilities - 260001RVC floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

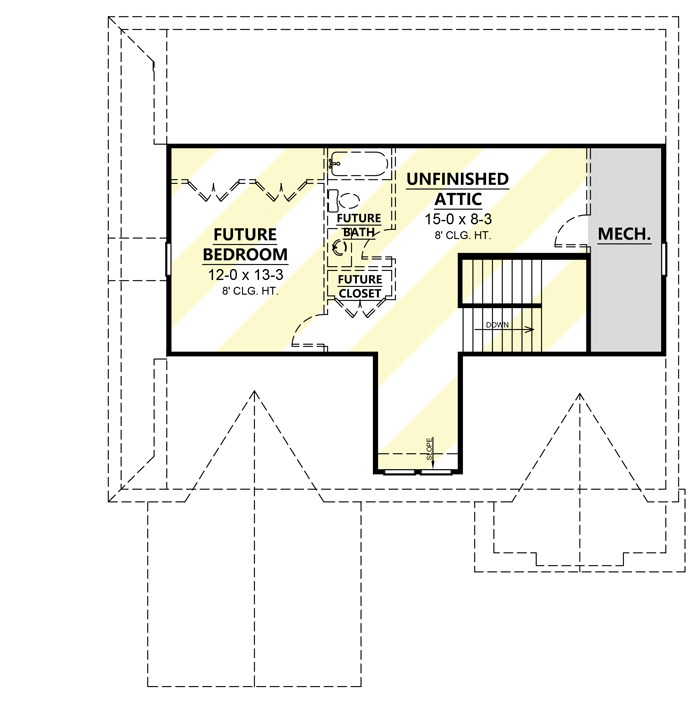

Modern Craftsman Home Plan with Third Floor Expansion Possibilities - 260001RVC floor plan - 3rd Floor

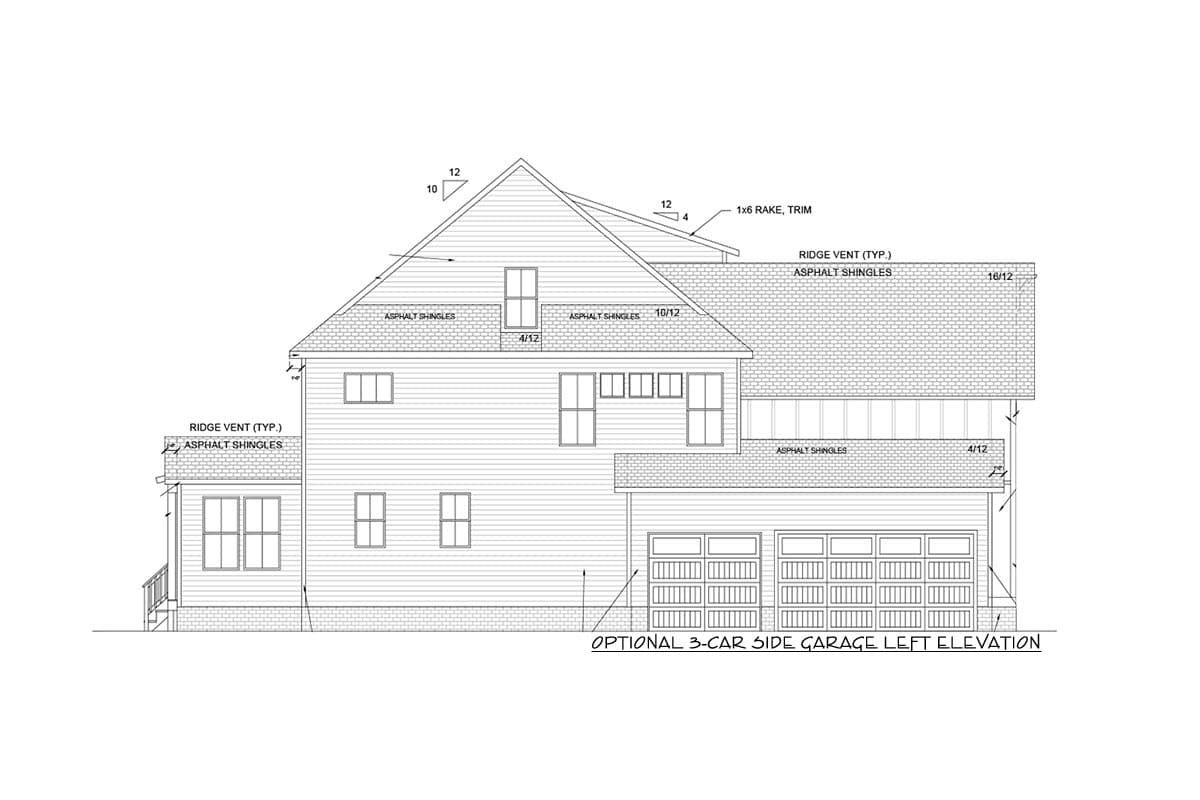

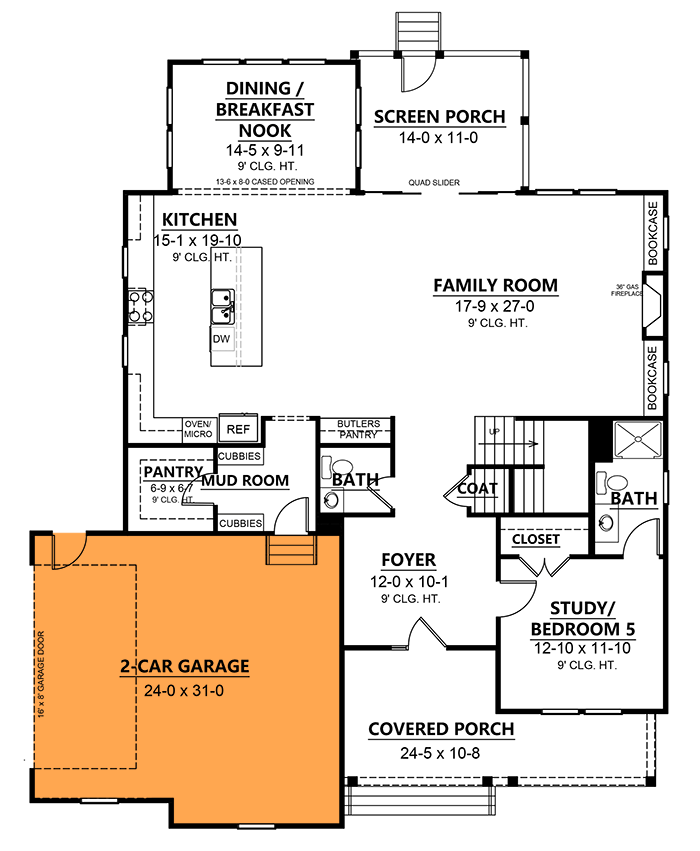

3-Car Side Garage Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

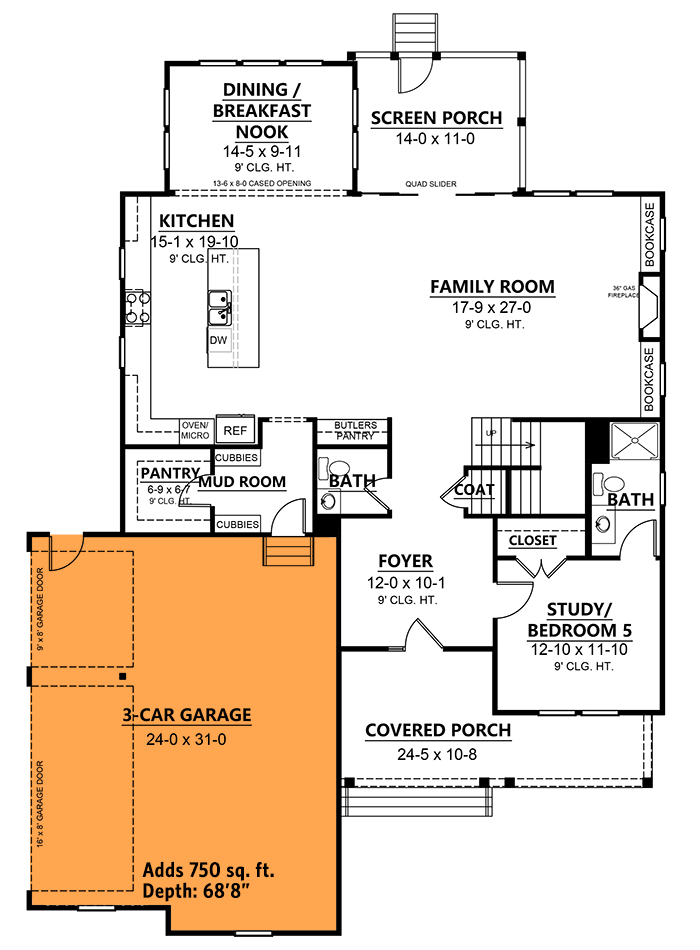

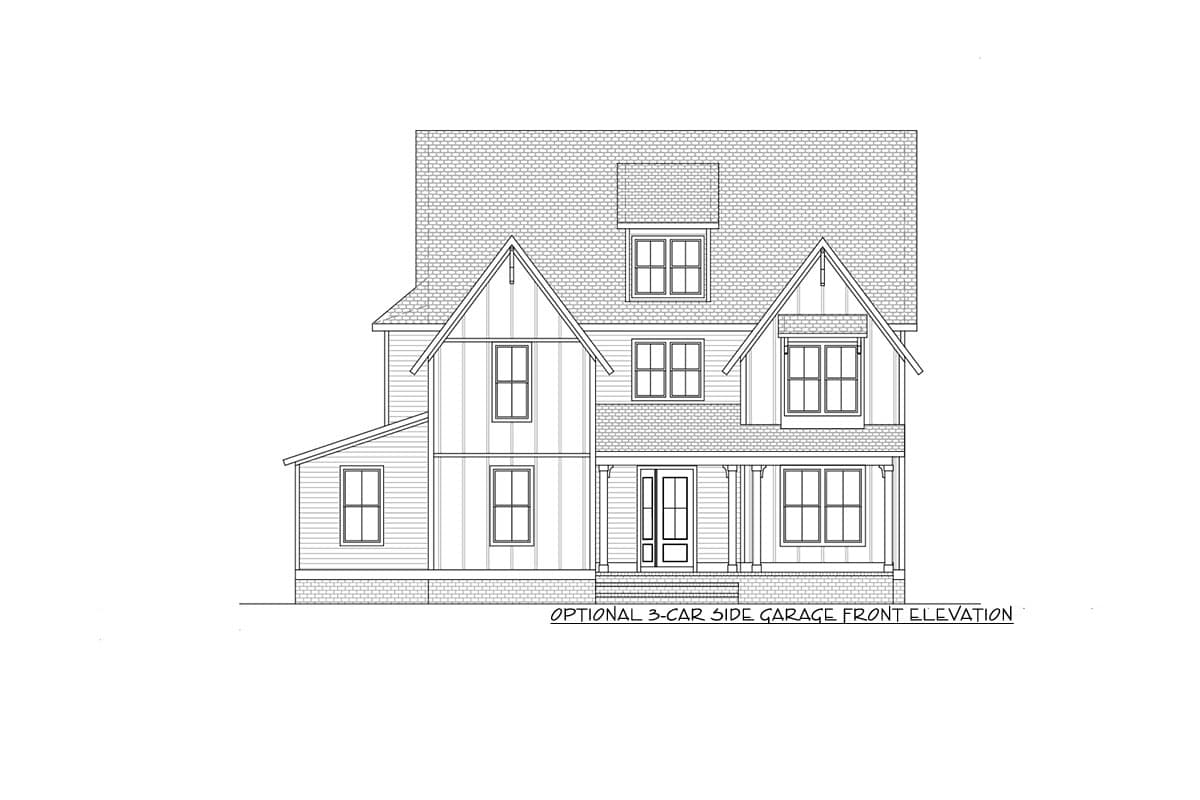

Modern Craftsman Home Plan with Third Floor Expansion Possibilities - 260001RVC floor plan - 3-Car Side Garage Option

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,421 sq. ft.
  • 1st Floor: 1,612 sq. ft.
  • 2nd Floor: 1,809 sq. ft.
  • Screened Porch: 146 sq. ft.
  • Porch, Front: 200 sq. ft.
  • Bonus: 716 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 1"
  • Depth: 60' 4"
  • Max ridge height: 38' 10"

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 16 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections



Modern Craftsman Home Plan with Third Floor Expansion Possibilities

  • 3,421

    Heated s.f.

  • 5 - 6

    Beds

  • 5 +

    Baths

  • 2-3

    Floors

  • 2 - 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • CAD - Single-Build $2,395
  • PDF - Unlimited Build $2,395
  • CAD - Unlimited Build $2,750
  • View all purchase option online

About This Plan

  • Contrasting exterior colors make the natural wood accents pop on this Modern Craftsman home plan, exclusive to Architectural Designs. The third floor offers a flexible expansion option to gain usable living space.
  • Step inside from the covered porch to find a study, or fifth bedroom, to the right. Straight ahead, a generous family room seamlessly connects to the kitchen, and includes a gas fireplace flanked by built-in bookcases.
  • A freestanding island rests in the center of the kitchen, surrounded by ample cabinet and counter space, and a walk-in pantry is accessible from the mudroom. Retreat to the rear screen porch when you want to enjoy an outdoor dining experience free from bugs.
  • Upstairs, four bedrooms encircle the kid's loft. The master bedroom features a wet room, private toilet room, and access to the laundry room.
  • Two family bedrooms share a Jack-and-Jill bath, while the third includes its own full bath.
  • NOTE: Contact us if building within a 50 mile radius of Richmond, Virginia as restrictions may apply.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

  • 3-Car Side Garage Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,421 sq. ft.
  • 1st Floor: 1,612 sq. ft.
  • 2nd Floor: 1,809 sq. ft.
  • Screened Porch: 146 sq. ft.
  • Porch, Front: 200 sq. ft.
  • Bonus: 716 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 1"
  • Depth: 60' 4"
  • Max ridge height: 38' 10"

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 16 on 12
  • Framing Type: Stick And Truss

Plan 260001RVC
View this and more for this plan by visiting www.architechtecturaldesigns.com/260001RVC
|
Need Help? 800-854-7852
|
Plan 260001RVC
