Modern Duplex House Plan with Matching 1522 Square Feet 3 Bedroom 2 Bath Units

Heated S.F.
3,044
Units
2
Width
Depth

Floor Plan

Plan 81816AB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 81816AB

M-F 9am-5pm EST |

1-203-761-8500

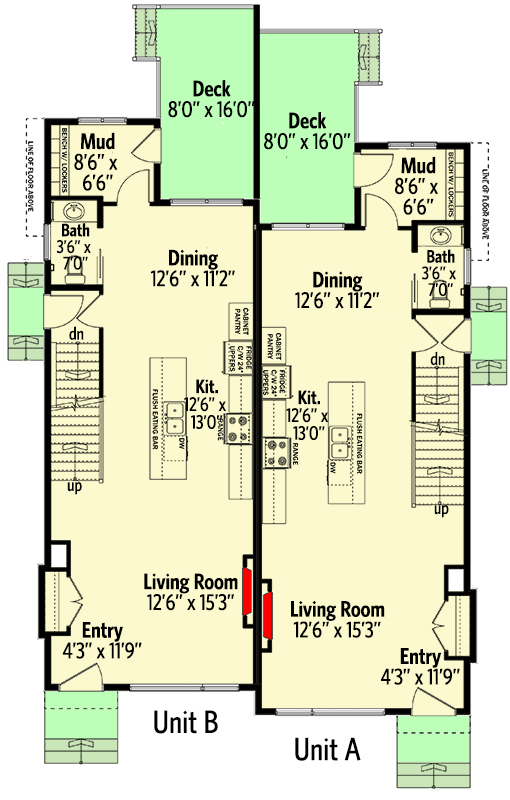

Main Level

Plan 81816AB: Modern Duplex House Plan with Matching 1522 Square Feet 3 Bedroom 2 Bath Units - Floor Plan - Main Level - Contemporary, Modern, Northwest

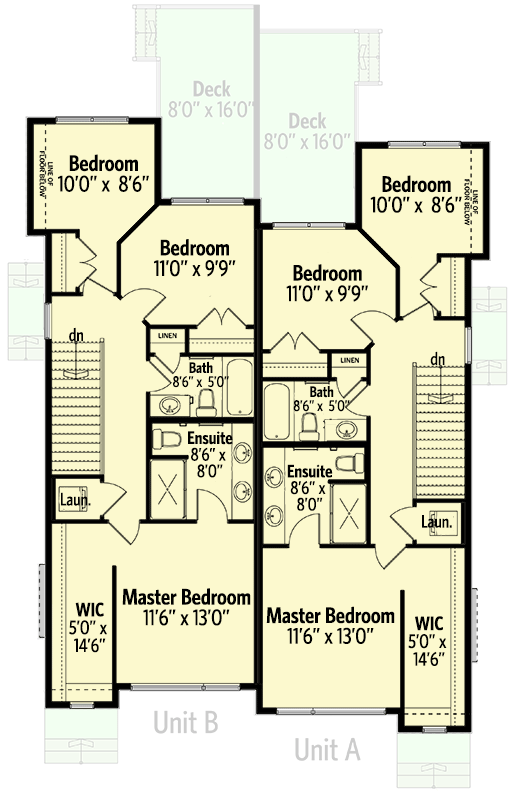

2nd Floor

Plan 81816AB: Modern Duplex House Plan with Matching 1522 Square Feet 3 Bedroom 2 Bath Units - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • This modern duplex house plan gives you matching 1,522 square foot units, each with 3 beds and 2 baths.
  • The units are slightly offset and identical in layout, with the bedrooms upstairs and the common living spaces on the main floor.

Unit A
Heated Area
1,522Sq. Ft.
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
17'width
49'depth
24'height
Unit B
Heated Area
1,522Sq. Ft.
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
17'width
49'depth
24'height

What's Included

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,044 sq. ft.

1st Floor

1,546 sq. ft.

2nd Floor

1,498 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

49' 0"

Max Ridge Height

24' 9"

Ceiling Heights

Lower Level

8' 9"

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,044 sq. ft.

1st Floor

1,546 sq. ft.

2nd Floor

1,498 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

49' 0"

Max Ridge Height

24' 9"

Ceiling Heights

Lower Level

8' 9"

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans
