Modern Euro-Style Duplex House Plan with Identical 1,432 Sq Ft 3-Bed Units

Heated S.F.
2,864
Units
2
Width
Depth

Floor Plan

Plan 801150PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 801150PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

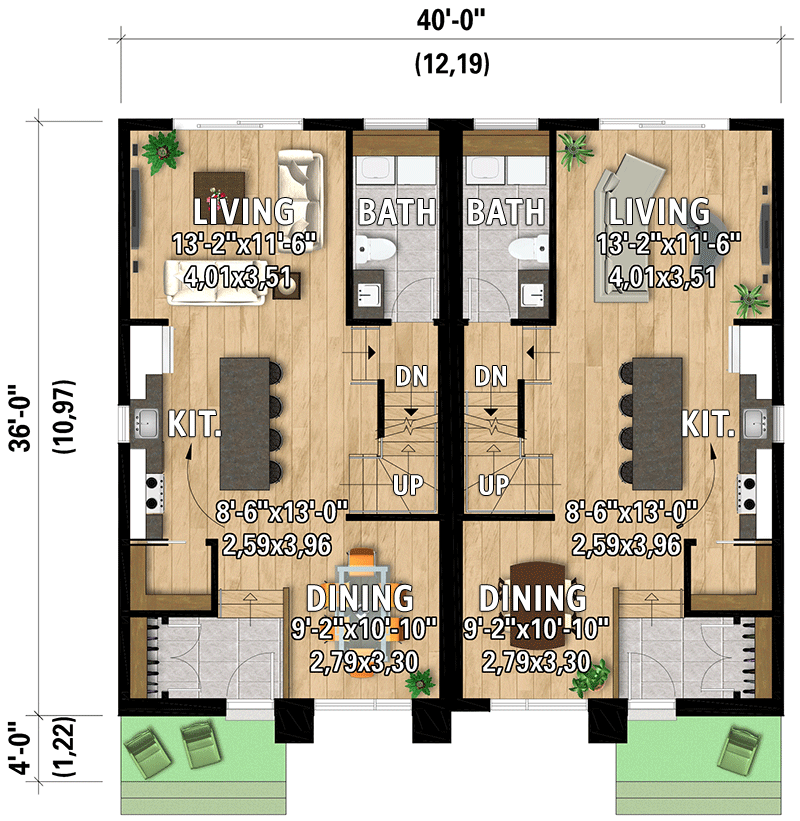

Plan 801150PM: Modern Euro-Style Duplex House Plan with Identical 1,432 Sq Ft 3-Bed Units - Floor Plan - Main Level - Contemporary, European, Modern, Scandinavian

2nd Floor

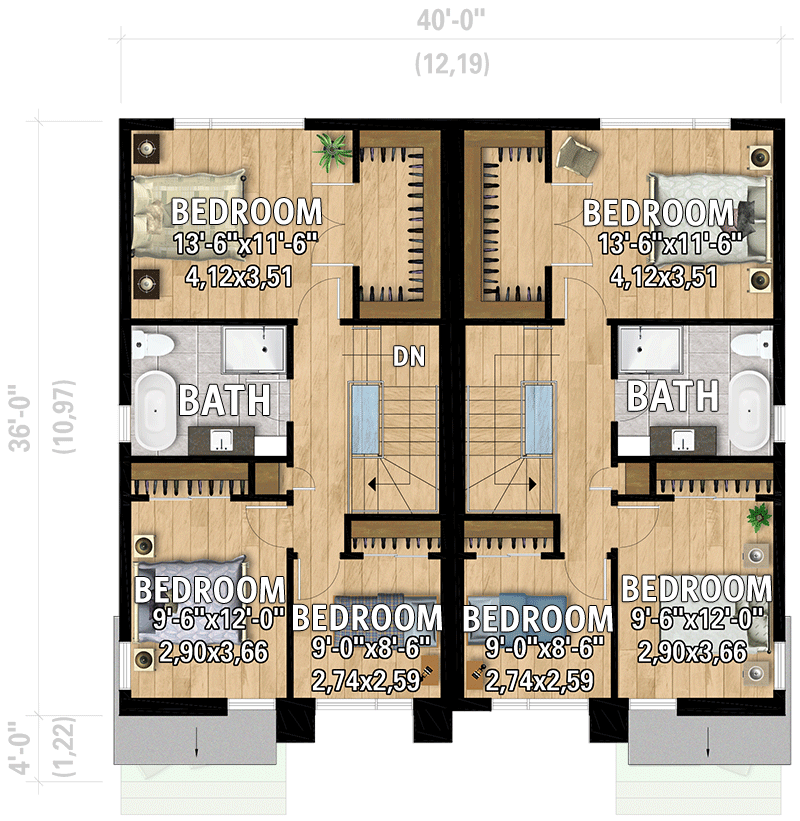

Plan 801150PM: Modern Euro-Style Duplex House Plan with Identical 1,432 Sq Ft 3-Bed Units - Floor Plan - 2nd Floor - Contemporary, European, Modern, Scandinavian

Plan Details

  • This duplex house plan gives you identical 3 bed units, each with 1,432 square feet of heated living space (716 square feet on each floor).
  • The first floor layout is open-concept. The kitchen has a four-person island and a walk-in closet and the washroom has an area for a washer and dryer.
  • The three bedrooms are on the second floor and share a complete bathroom. The master bedroom has a walk-in closet.
  • Delivery Note: Please allow 15 to 20 business days for delivery.
Unit A
Heated Area
1,432Sq. Ft.
716 Sq. Ft. 1st
716 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
36'depth
35'height
Unit B
Heated Area
1,432Sq. Ft.
716 Sq. Ft. 1st
716 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
36'depth
35'height

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,864 sq. ft.

1st Floor

1,432 sq. ft.

2nd Floor

1,432 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

35' 2"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

European

Modern

Scandinavian

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,864 sq. ft.

1st Floor

1,432 sq. ft.

2nd Floor

1,432 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

35' 2"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

European

Modern

Scandinavian

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans
