Plan 260035RVC

Modern Farmhouse House Plan with 4 Bedrooms and Spacious Bonus Room

Heated S.F.
3,583
Beds
4 - 5
Baths
3.5 - 4.5
Stories
2
Cars
2

Floor Plan

Plan 260035RVC

Main Level
Main Level
2nd Level
2nd Level

Plan 260035RVC

M-F 9am-5pm EST |

1-203-761-8500

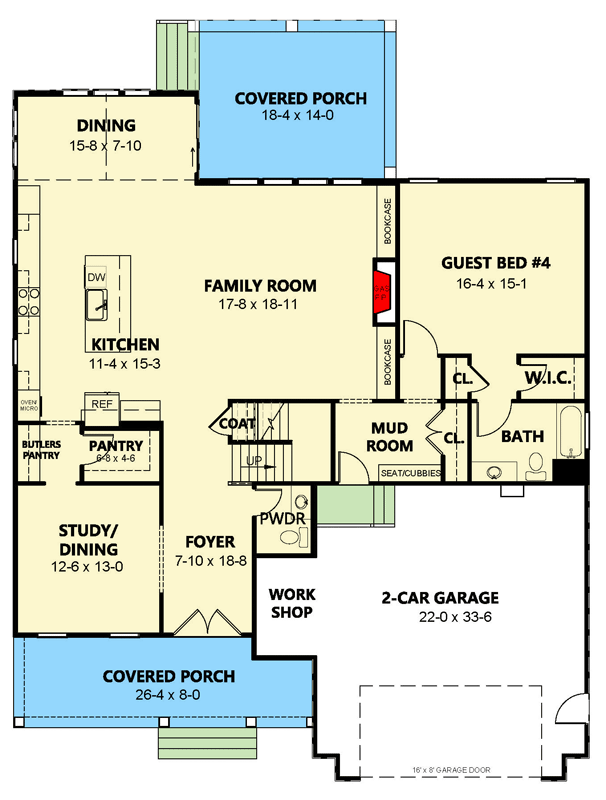

Main Level

Plan 260035RVC: Modern Farmhouse House Plan with 4 Bedrooms and Spacious Bonus Room - Floor Plan - Main Level - Country, Craftsman, Farmhouse, Modern Farmhouse, Traditional

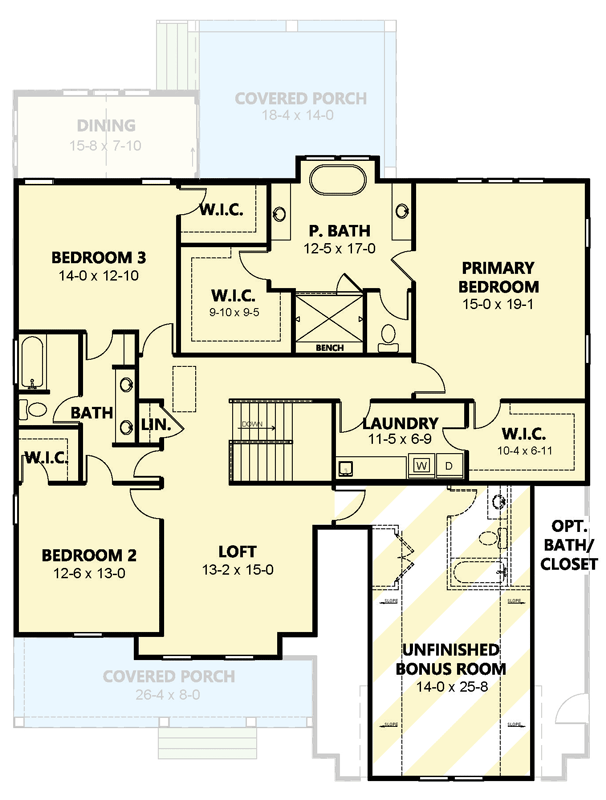

2nd Level

Plan 260035RVC: Modern Farmhouse House Plan with 4 Bedrooms and Spacious Bonus Room - Floor Plan - 2nd Level - Country, Craftsman, Farmhouse, Modern Farmhouse, Traditional

Plan Details

  • This sophisticated 3,583 square foot residence features a two-story modern farmhouse aesthetic with a 698 square foot two-car garage.
  • The welcoming front entry leads into a thoughtfully designed interior that balances formal dining space with casual family living.
  • The main level showcases a seamless flow between the kitchen, which includes a large walk-in pantry, and the bright breakfast nook.
  • Upstairs, the primary bedroom suite offers a private retreat with convenient direct access to the laundry room, while secondary bedrooms utilize a functional Jack and Jill bathroom configuration.
  • A flexible in-law suite provides comfort and accessibility, making this home ideal for multi-generational living or hosting long-term guests.
  • The floor plan includes an optionally finished 390 square foot bonus room above the garage that serves as an excellent space for a home office, media room, or workshop.

What's Included

  • Title sheet with general notes
  • Elevations
  • Foundation plan
  • Detailed floor plans
  • Roof framing plan
  • Cross sections & details
  • Interior trim details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,583 sq. ft.

1st Floor

1,813 sq. ft.

2nd Floor

1,770 sq. ft.

Bonus

390 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 8"

Depth

67' 0"

Max Ridge Height

38' 5"

Garage

Type

Standard, Attached

Area

698 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Farmhouse

Modern Farmhouse

Traditional

Special Features

Breakfast Nook

Formal Dining

In-Law Suite

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Workshop

Square Footage Breakdown

Total Heated Area

3,583 sq. ft.

1st Floor

1,813 sq. ft.

2nd Floor

1,770 sq. ft.

Bonus

390 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 8"

Depth

67' 0"

Max Ridge Height

38' 5"

Garage

Type

Standard, Attached

Area

698 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Farmhouse

Modern Farmhouse

Traditional

Special Features

Breakfast Nook

Formal Dining

In-Law Suite

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Workshop
