Modern Farmhouse Plan with 3 Bedrooms and a Covered Lanai with Outdoor Kitchen

Plan 33240ZR

  • 1,997

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This modern farmhouse plan offers a prominent front porch, ready to great you and your guests. Elegant details like white brackets embrace the roof line of the main gable. Past the front porch awaits an intimate retreat, perfect for entertaining friends and family. Inside, the foyer is well lit by the windowed gable above, and is flanked on either side with art niches.
  • The expansive great room and dining area show off a 16-foot wall of glass sliding doors. Opening up the living area to the deep covered lanai, perfect for indoor/outdoor living. The u-shaped kitchen hugs the front of the home and has convenient access to a large walk-in pantry. A breakfast bar makes quick meal prep easy.
  • The owner’s suite is secluded to one side of the home with a private entry and views of the rear patio. The owner’s bath is just past the large walk-in closet, and offers dual vanities, spacious walk-in shower and private privy.
  • Two guest bedrooms each with private baths are on the opposite side of the home. The rear guest bedroom, has a full bath with lanai access, perfect for a pool and entertaining.
  • The utility room is just off the entrance from the garage. A mud room with bench and valet built-ins are perfect drop offs for jackets and handbags. The 3-car garage offers plenty of space for storage and a workbench.
  • Designed into the plan are exclusive energy-saving techniques that when built to specs, can result in a 50% savings when compared to other new homes, 60-70% when compared to older homes.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

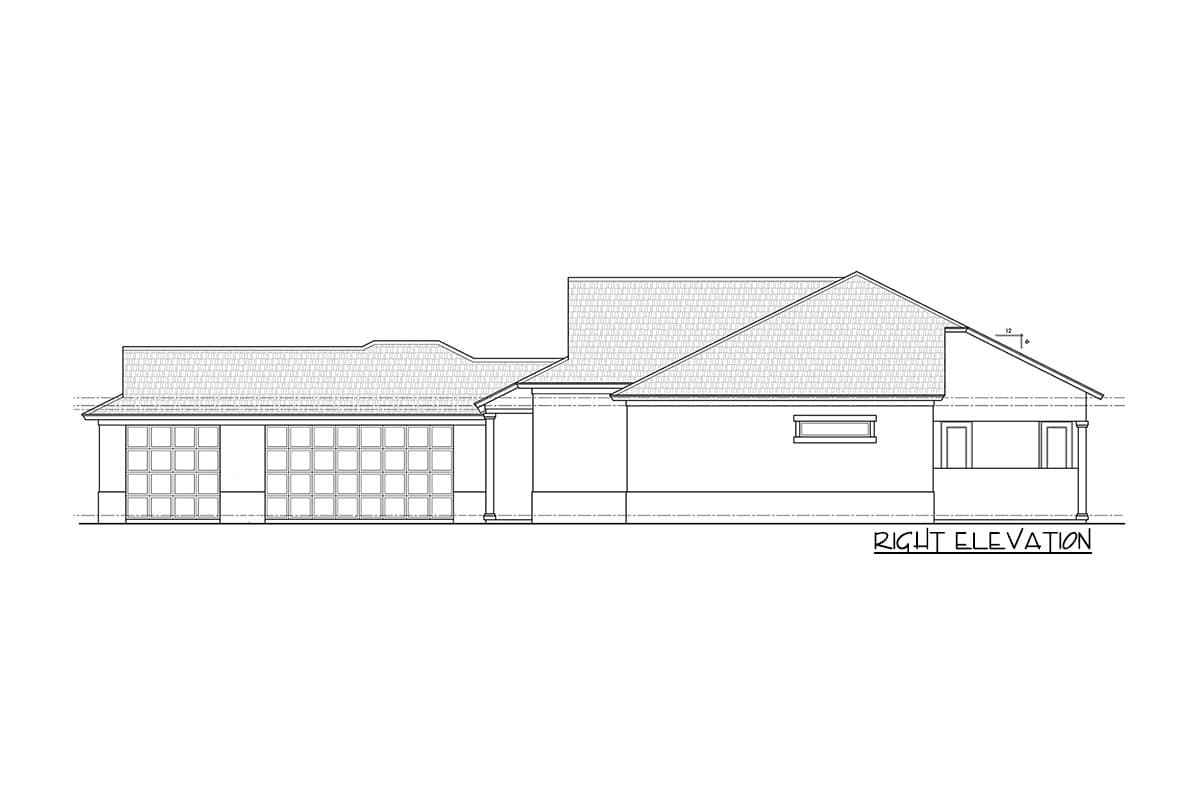

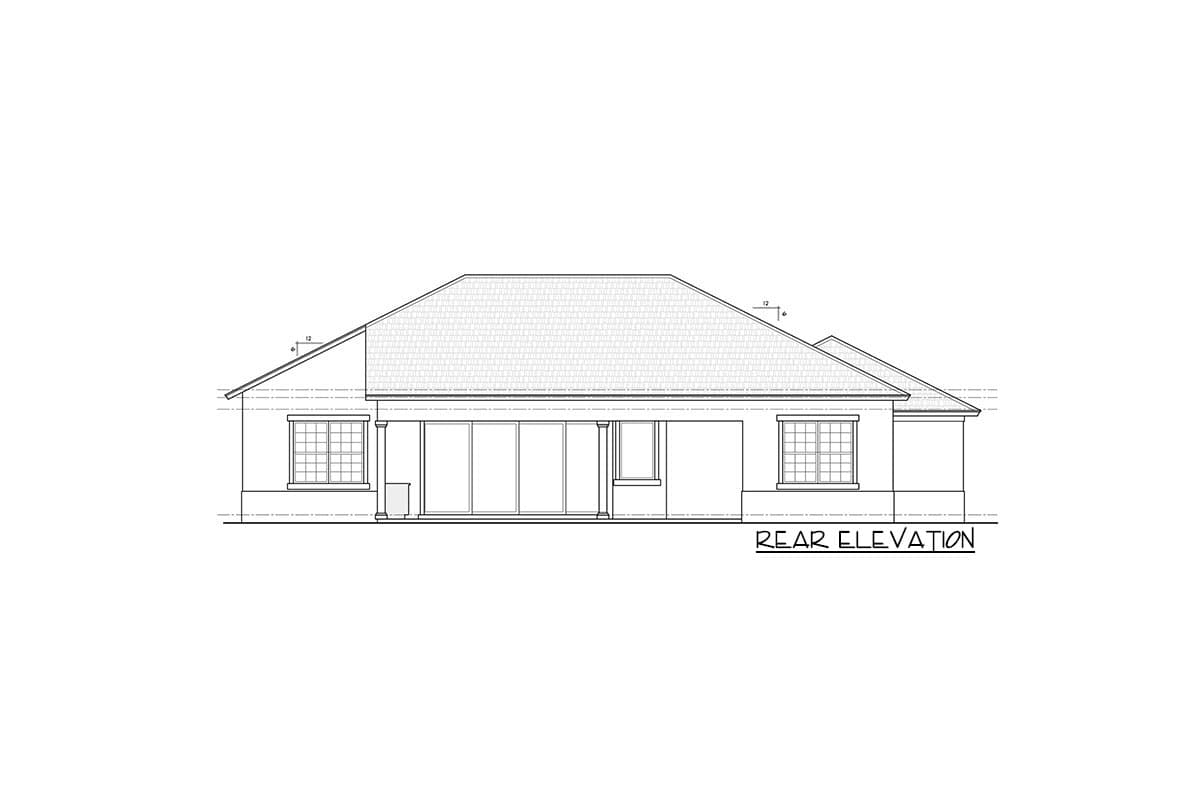

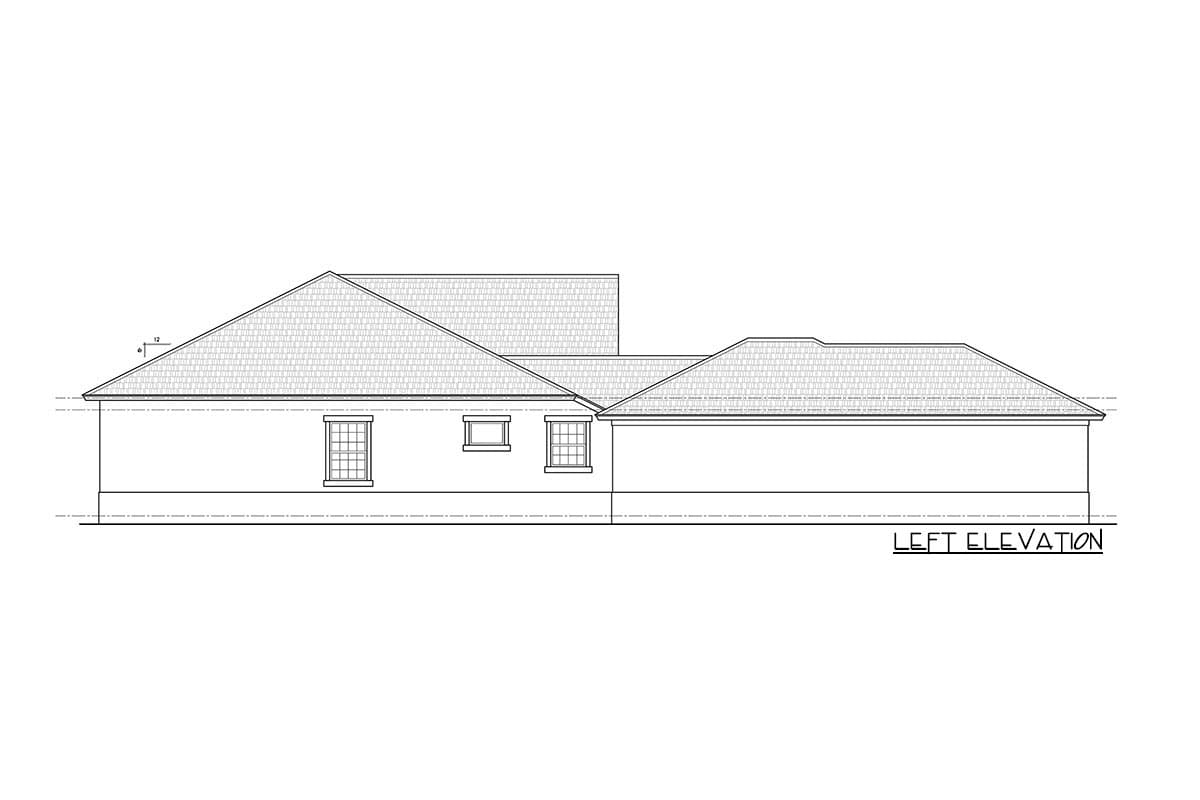

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

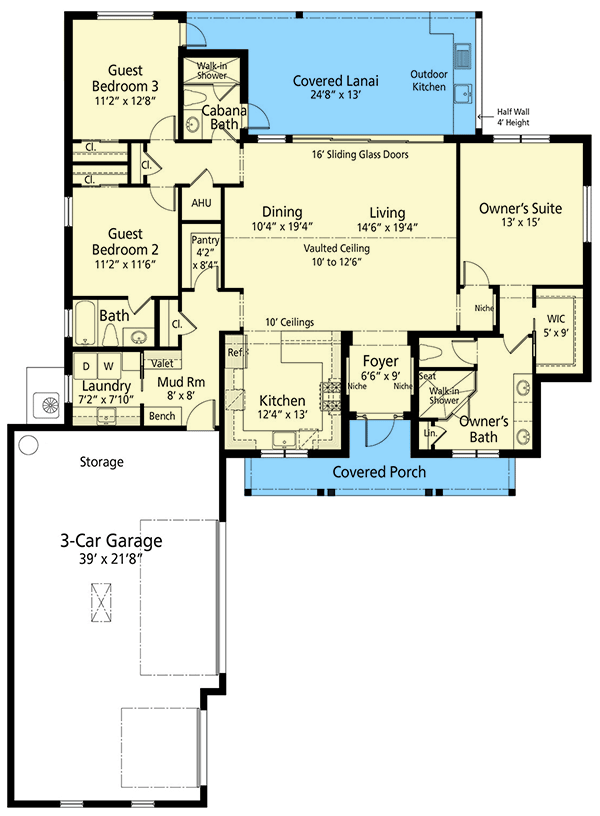

Modern Farmhouse Plan with 3 Bedrooms and a Covered Lanai with Outdoor Kitchen - 33240ZR floor plan - Main Level

Plan details

Modern Farmhouse Plan with 3 Bedrooms and a Covered Lanai with Outdoor Kitchen

  • 1,997

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,275
  • CAD - Single-Build $1,650
  • View all purchase option online

About This Plan

  • This modern farmhouse plan offers a prominent front porch, ready to great you and your guests. Elegant details like white brackets embrace the roof line of the main gable. Past the front porch awaits an intimate retreat, perfect for entertaining friends and family. Inside, the foyer is well lit by the windowed gable above, and is flanked on either side with art niches.
  • The expansive great room and dining area show off a 16-foot wall of glass sliding doors. Opening up the living area to the deep covered lanai, perfect for indoor/outdoor living. The u-shaped kitchen hugs the front of the home and has convenient access to a large walk-in pantry. A breakfast bar makes quick meal prep easy.
  • The owner’s suite is secluded to one side of the home with a private entry and views of the rear patio. The owner’s bath is just past the large walk-in closet, and offers dual vanities, spacious walk-in shower and private privy.
  • Two guest bedrooms each with private baths are on the opposite side of the home. The rear guest bedroom, has a full bath with lanai access, perfect for a pool and entertaining.
  • The utility room is just off the entrance from the garage. A mud room with bench and valet built-ins are perfect drop offs for jackets and handbags. The 3-car garage offers plenty of space for storage and a workbench.
  • Designed into the plan are exclusive energy-saving techniques that when built to specs, can result in a 50% savings when compared to other new homes, 60-70% when compared to older homes.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,997 sq. ft.
  • 1st Floor: 1,997 sq. ft.
  • Lanai: 346 sq. ft.
  • Porch, Front: 140 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 61' 6"
  • Depth: 83' 10"
  • Max ridge height: 20' 9"

Garage

  • Type: Attached
  • Area: 890 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
