Plan 860070MCD Modern Farmhouse Plan with Angled Garage and Split-bed Design

2,825 4 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Farmhouse Plan with Angled Garage and Split-bed Design

Plan 860070MCD

  • 2,825

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This one-level Modern Farmhouse plan delivers a central living space with exposed beams that serves as the separation between the master and secondary bedrooms.
  • A fireplace anchors the left wall of the living space and can be enjoyed throughout the dining area and island kitchen. The expansive rear porch extends the living space outdoors, complete with a fireplace and built-in grill.
  • The master wing features a coffered ceiling above the bedroom and elongated ensuite with access to the laundry room through the walk-in closet.
  • Three additional bedrooms line the left side of the design; one has its own full bath while the others share the hall bath.
  • The double garage protrudes from the front of the home at an angle and includes a storage nook. A convenient powder bath and mudroom are located just inside.

This set of working drawings contains the following components

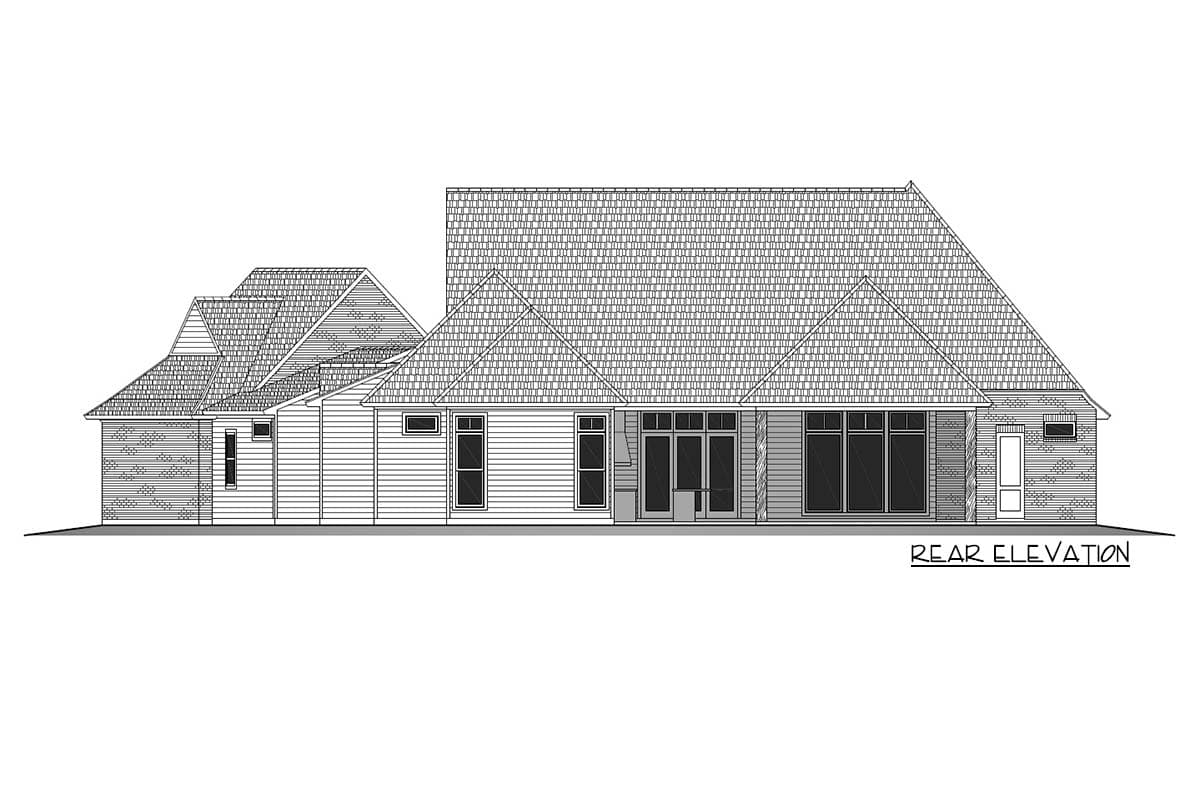

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

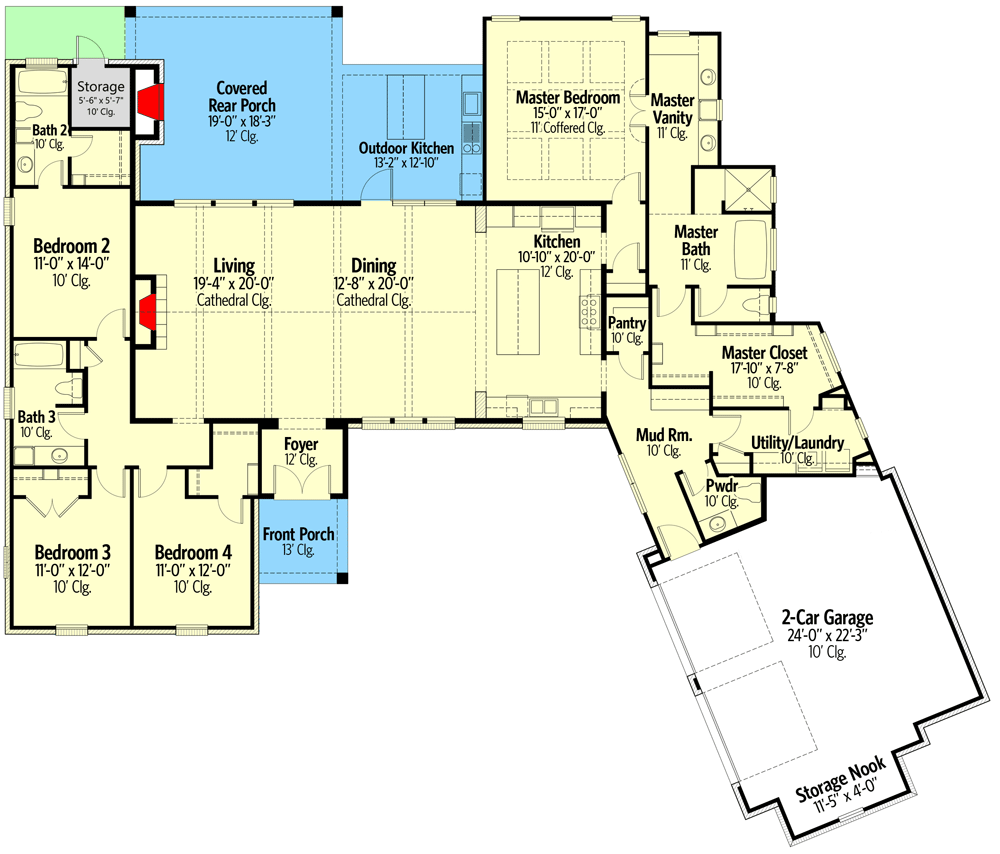

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Plan with Angled Garage and Split-bed Design - 860070MCD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,825 sq. ft.
  • 1st Floor: 2,825 sq. ft.
  • Porch, Combined: 596 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 92' 7"
  • Depth: 79' 1"
  • Max ridge height: 32' 1"

Garage

  • Type: Attached
  • Area: 713 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modern Farmhouse Plan with Angled Garage and Split-bed Design

  • 2,825

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,605
  • 5 Sets + PDF $1,705
  • 8 Sets + PDF $1,785
  • CAD - Single-Build $2,505
  • PDF - Unlimited Build $3,210
  • CAD - Unlimited Build $4,110
  • View all purchase option online

About This Plan

  • This one-level Modern Farmhouse plan delivers a central living space with exposed beams that serves as the separation between the master and secondary bedrooms.
  • A fireplace anchors the left wall of the living space and can be enjoyed throughout the dining area and island kitchen. The expansive rear porch extends the living space outdoors, complete with a fireplace and built-in grill.
  • The master wing features a coffered ceiling above the bedroom and elongated ensuite with access to the laundry room through the walk-in closet.
  • Three additional bedrooms line the left side of the design; one has its own full bath while the others share the hall bath.
  • The double garage protrudes from the front of the home at an angle and includes a storage nook. A convenient powder bath and mudroom are located just inside.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,825 sq. ft.
  • 1st Floor: 2,825 sq. ft.
  • Porch, Combined: 596 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 92' 7"
  • Depth: 79' 1"
  • Max ridge height: 32' 1"

Garage

  • Type: Attached
  • Area: 713 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 860070MCD
View this and more for this plan by visiting www.architechtecturaldesigns.com/860070MCD
|
