Modern Florida House Plan with 4 Bedrooms and Courtyard Garage

Name: Plan 65809BS: Modern Florida House Plan with 4 Bedrooms and Courtyard Garage
Brand: Architectural Designs
SKU: 65809BS
Price: 2206.51 USD
Availability: InStock

Heated S.F.

3,054

Beds

3 - 4

Baths

4.5

Stories

Cars

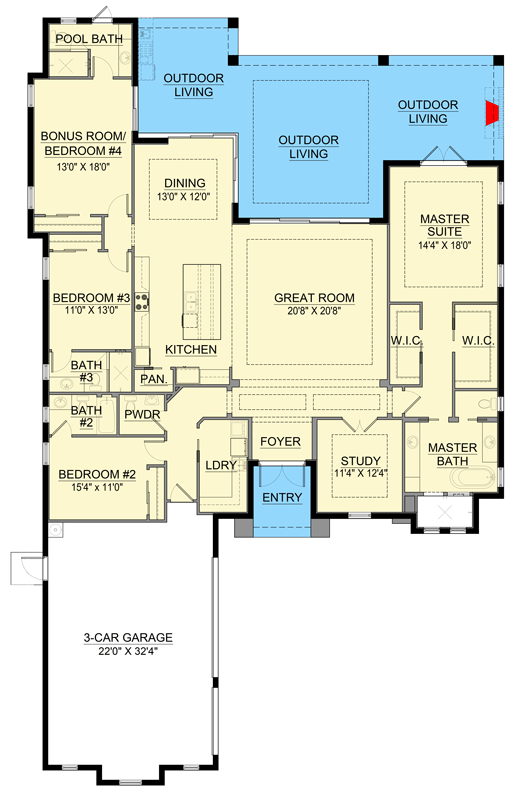

Floor Plan

Plan Details

Boasting 3,054 finished square feet, this modern Florida house features four bedrooms, four full bathrooms, one half bath, and an attached three-car garage.
The home greets guests with a striking courtyard-entry design that emphasizes clean lines and a sophisticated blend of contemporary materials.
Inside, the floor plan focuses on a seamless flow between the formal dining area and the expansive main living spaces, all designed to invite natural light throughout the day.
A dedicated library or study provides a quiet retreat, while the split-bedroom layout ensures the primary suite remains a private sanctuary away from the secondary bedrooms.
The expansive 856-square-foot lanai serves as a grand outdoor living space, perfect for transitioning from the interior to the backyard.
A finished bonus room adds valuable versatility to the home, offering an ideal setting for a home theater, gym, or an additional flex living space.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
