Plan 23949JD
Modern Garage Apartment with 2 RV Bays for an Up-Sloping Lot - 1842 Sq Ft
Heated S.F.
1,842
Beds
2
Baths
2.5
Stories
1
Cars
4
What's Included
Plan Details
  • This modern garage apartment house plan gives you a 2 bed, 1 bath apartment (1,842 square feet) set above a 3,312 square foot garage which consists of a 4-car section on the left (parkin tandem style) and 2 RV-friendly bays on the right.

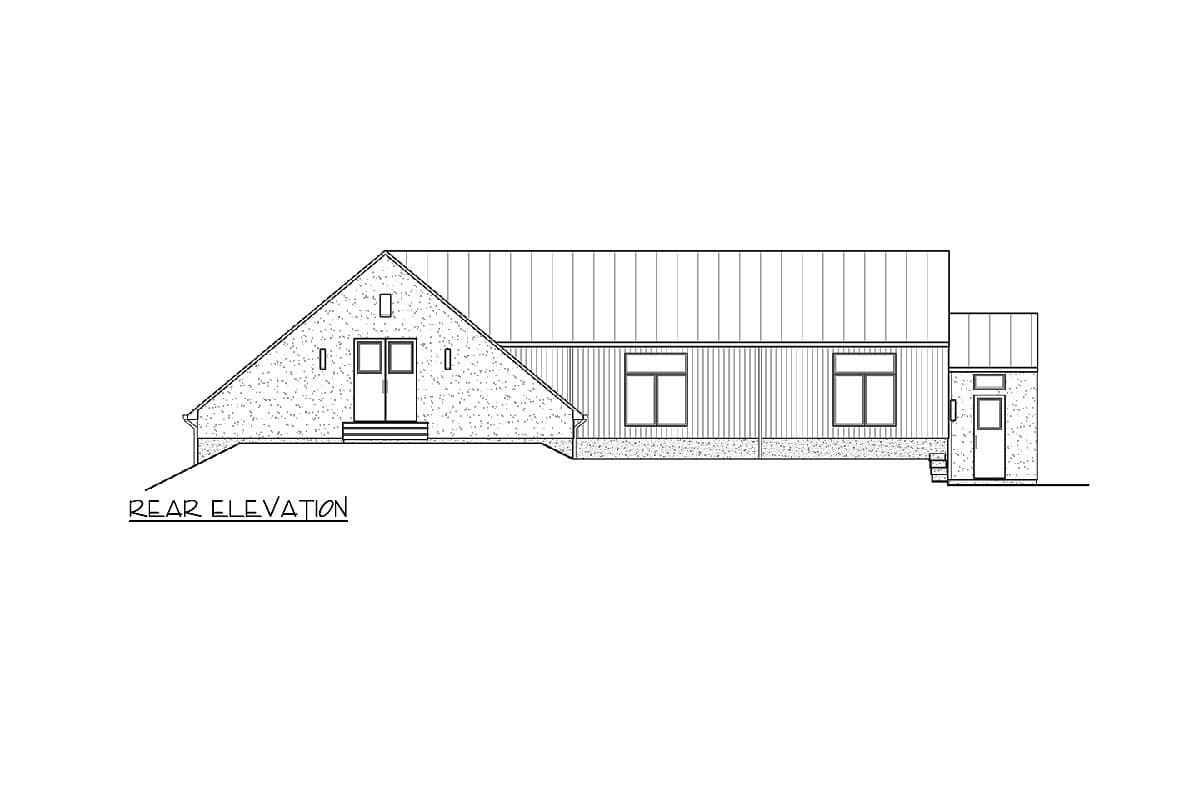

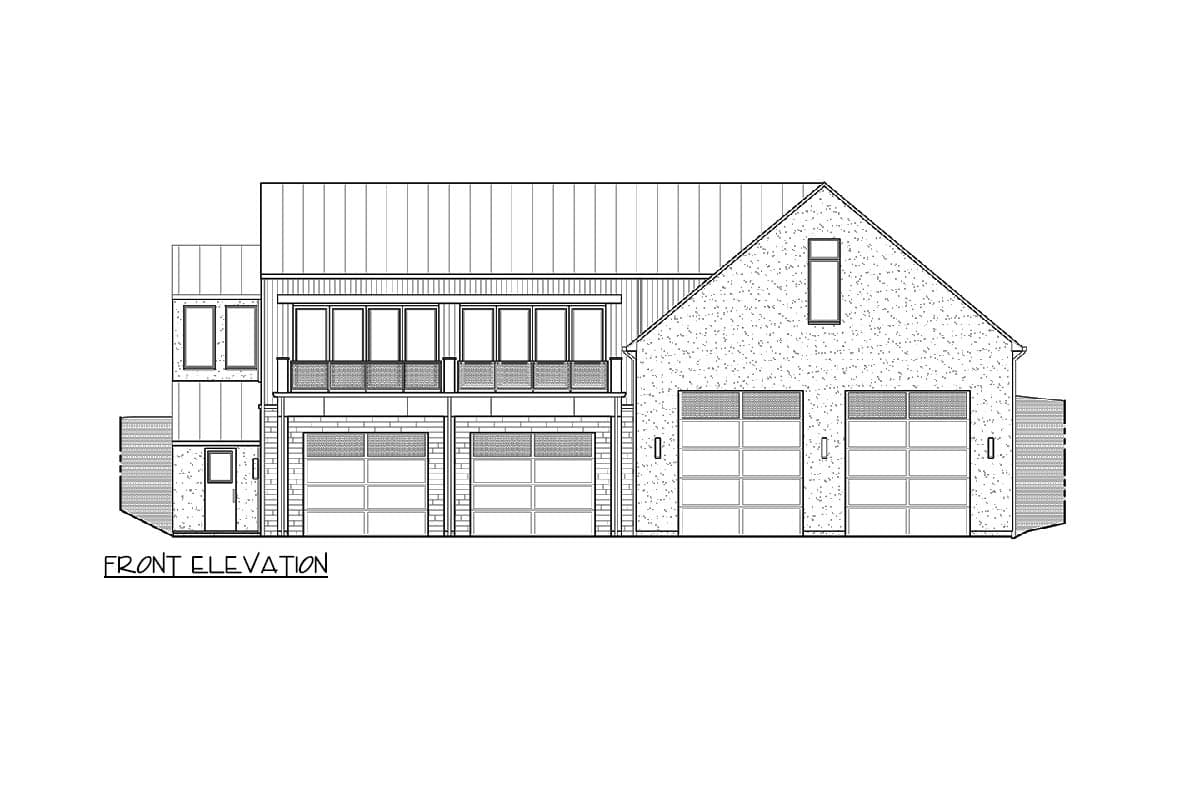

  • Designed for an up-sloping lot, it appears as a 2-story garage from the front and a 1-story garage from the back.
  • A half bath on the garage level gives you a place to clean up after working on your vehicles.
  • Upstairs, bedrooms - each with a walk-in closet - line the back with laundry located between the two rooms. The front of the apartment is open wall-to-wall and has a beamed ceiling and a fully collapsible front wall giving you access to the front deck and the best of indoor-outdoor living.
  • NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Garage Apartment with 2 RV Bays for an Up-Sloping Lot - 1842 Sq Ft

  • 1,842

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

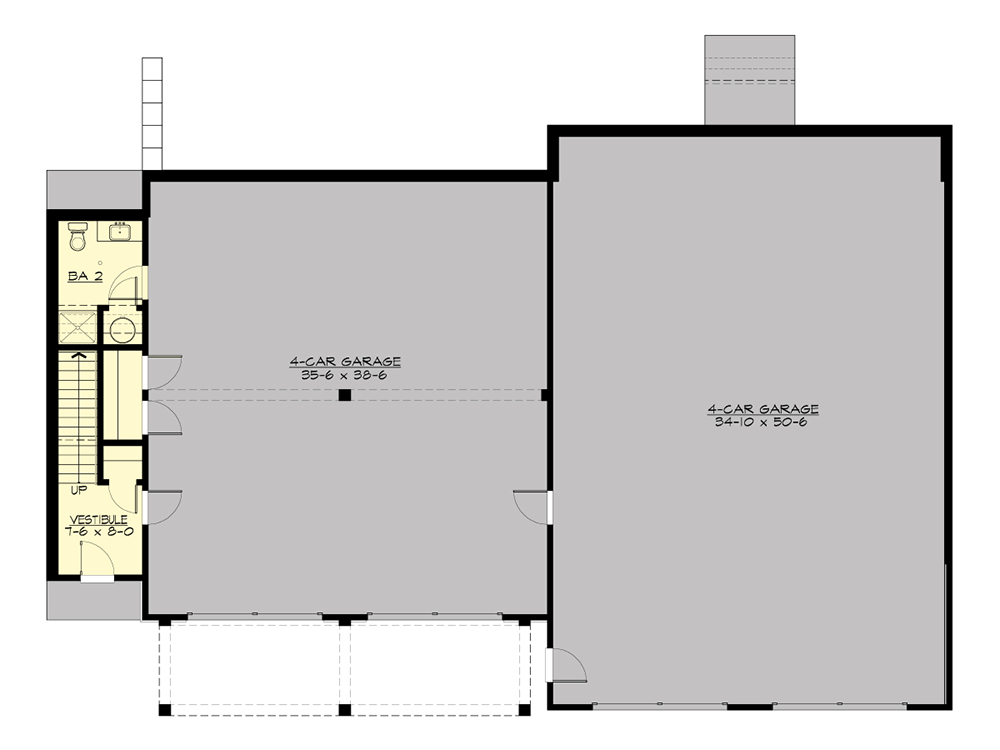

  • Main Level

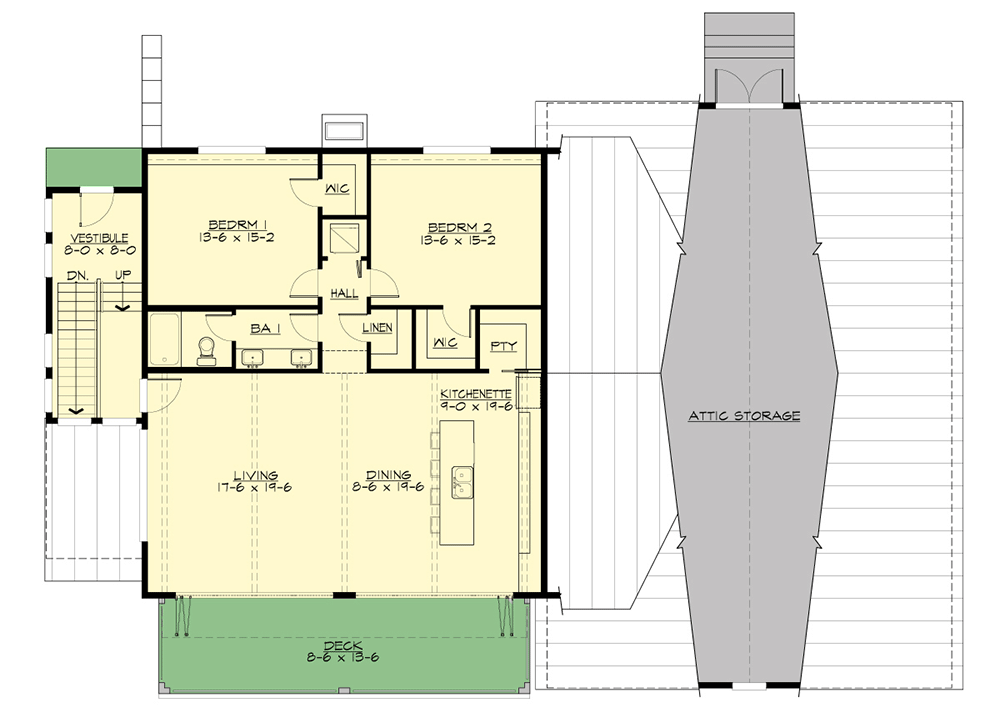

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,842 sq. ft.
  • Lower Level: 280 sq. ft.
  • 1st Floor: 1,562 sq. ft.

Dimensions

  • Width: 80' 6"
  • Depth: 52' 0"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached, Drive Under
  • Area: 3312 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 16' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Modern Garage Apartment with 2 RV Bays for an Up-Sloping Lot - 1842 Sq Ft

  • 1,842

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Modern Garage Apartment with 2 RV Bays for an Up-Sloping Lot - 1842 Sq Ft

  • 1,842

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,842 sq. ft.
  • Lower Level: 280 sq. ft.
  • 1st Floor: 1,562 sq. ft.

Dimensions

  • Width: 80' 6"
  • Depth: 52' 0"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached, Drive Under
  • Area: 3312 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 16' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12

    Main Level

    2nd Floor
