Modern Hill Country House Plan with 3 Bedrooms Plus Casita - 3600 Sq Ft

Plan 430066LY

  • 3,600

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This modern hill country house plan - an Architectural Designs exclusive - gives you 3 beds wrapped in an exterior with a blend of stucco and stone. A separate casita with gives you a fourth bed.
  • French doors open to reveal an open floor plan. The living room is not only open to the kitchen but also gives you access to the covered porch in back. Almost 15' deep, with an even deeper section in the middle, the porch extends your living and entertaining to the outdoors in style.
  • The master suite has a five fixture bath and two large walk-in closets. Across the home, two bedrooms share a Jack and Jill bath.
  • A study is located off the foyer and has barn doors giving you access. This makes a great work-from-home space.

This designer's plans consist of the following:
  • Cover sheet
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

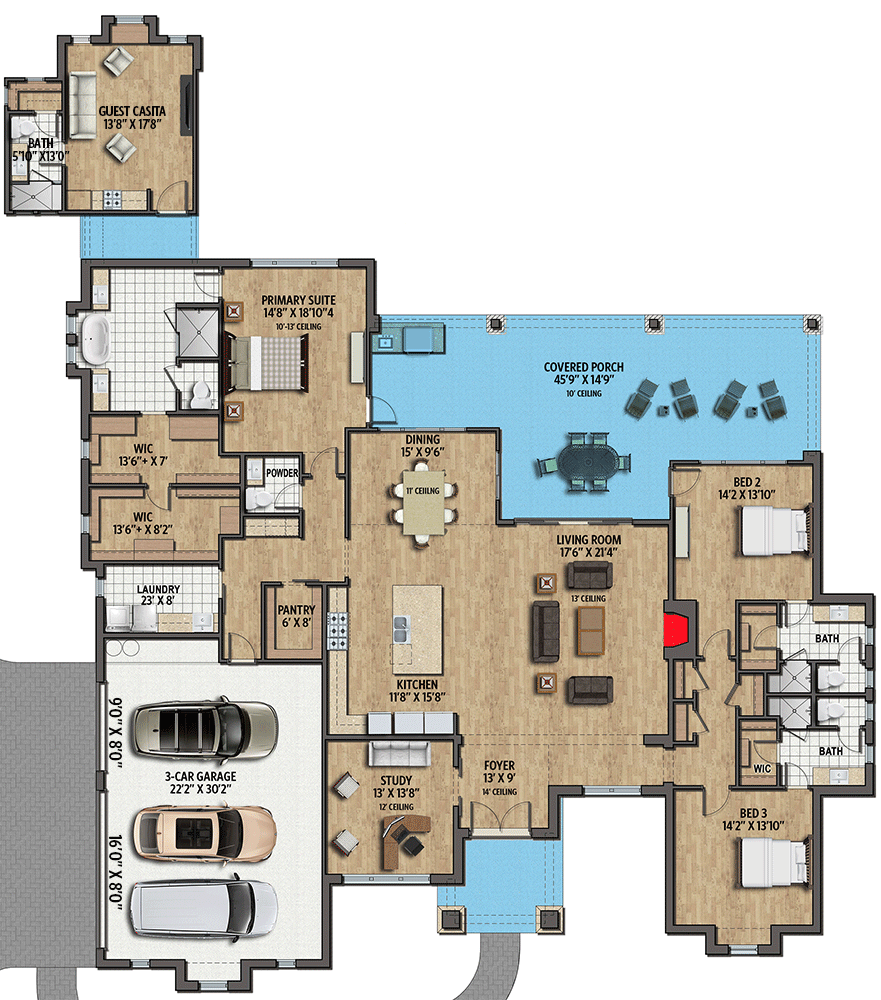

Modern Hill Country House Plan with 3 Bedrooms Plus Casita - 3600 Sq Ft - 430066LY floor plan - Main Level

Modern Hill Country House Plan with 3 Bedrooms Plus Casita - 3600 Sq Ft

  • 3,600

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,600 sq. ft.
  • 1st Floor: 3,252 sq. ft.
  • Guest Casita: 348 sq. ft.

Dimensions

  • Width: 89' 8"
  • Depth: 99' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 773 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
