Plan 81760AB Modern Home Plan Under 4200 Square Feet with Over 2000 Square Feet of Garage Space

4,166 4-6 2.5 - 4.5 2 4-5
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Home Plan Under 4200 Square Feet with Over 2000 Square Feet of Garage Space

Plan 81760AB

  • 4,166

    Heated s.f.

  • 4-6

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Stories

  • 4-5

    Cars

  • This 4,166 square foot modern home plan gives you up to 5 bedrooms (when you build out the optional finished lower level) and over 2,000 square feet of garage space giving you the ability to park upwards of 5 cars.
  • Standing in the foyer your view extends across the 2-story great room to the open deck beyond. A flex room on the other side of the stairs makes a great home office or private den.
  • Eat in the dining room which is open to the great room and kitchen or go through the sliding doors in the dining room to the screened deck with its own outdoor kitchen.
  • The second floor gives you 3 bedrooms including the master suite with private balcony and an exercise room/flex room. There is laundry upstairs as well for your convenience.

Plans include the following:

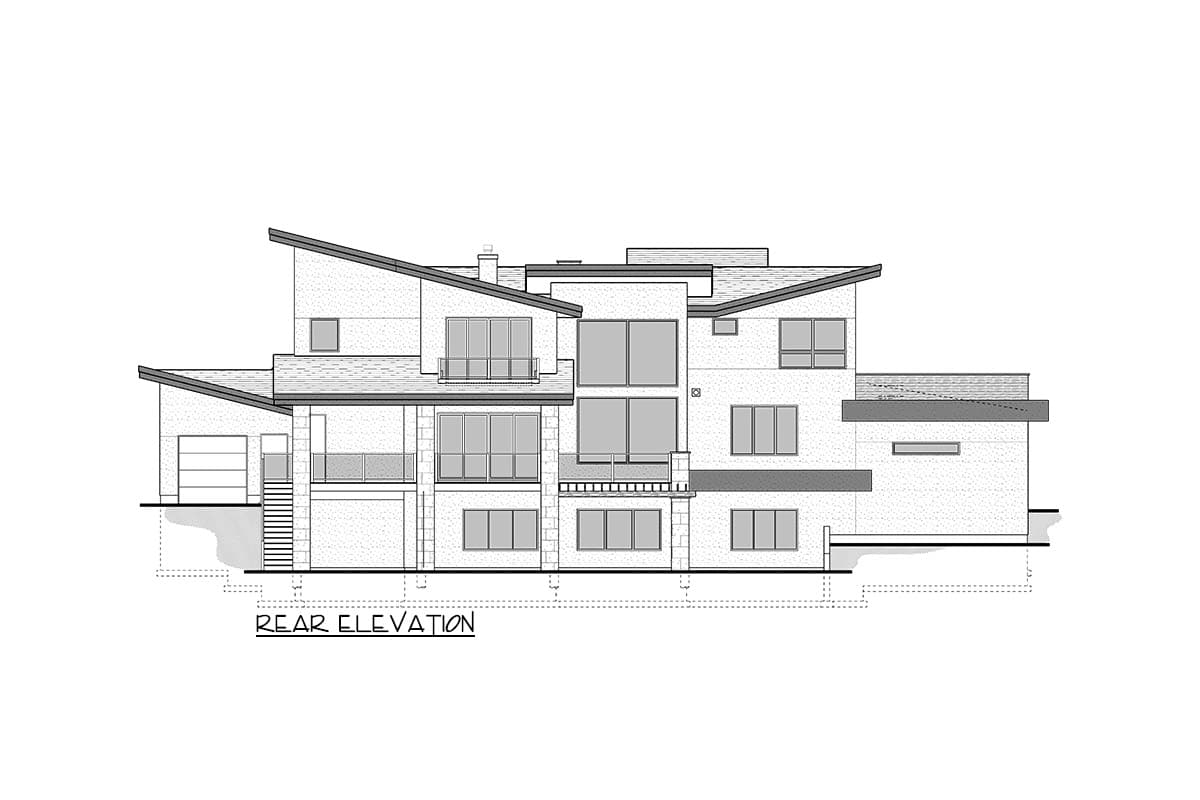

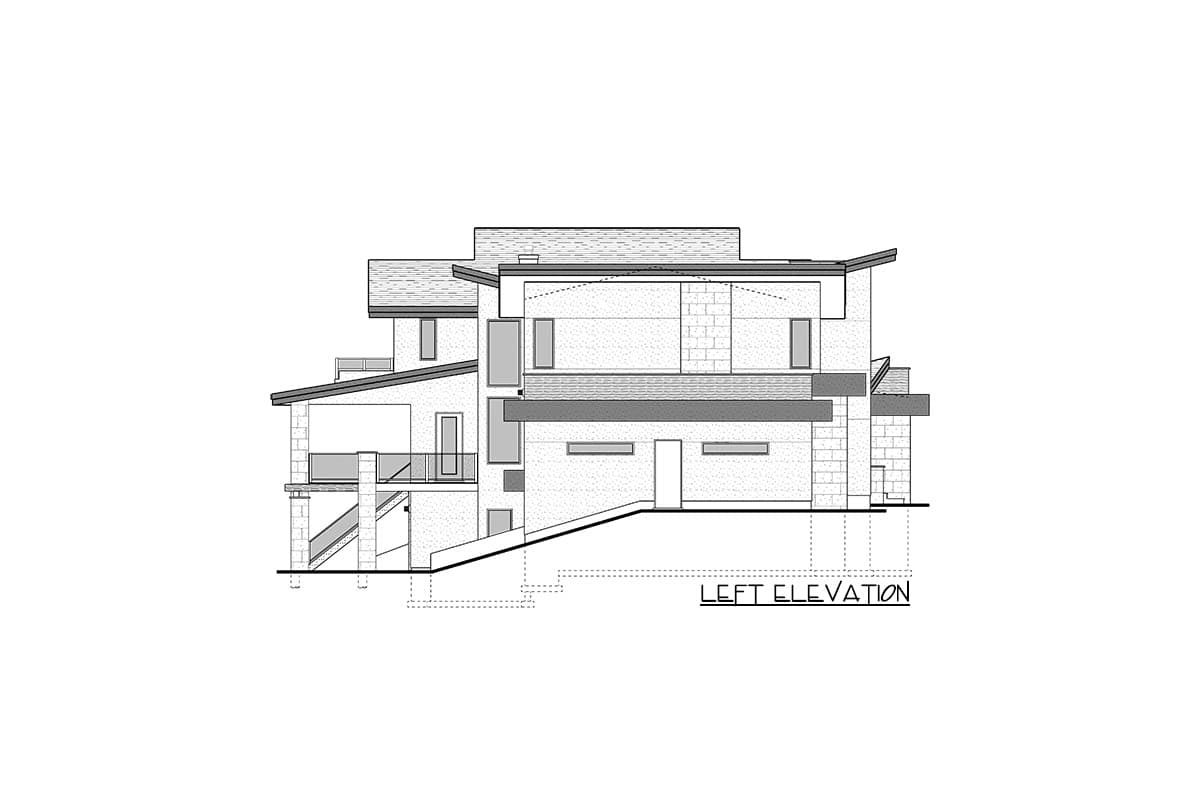

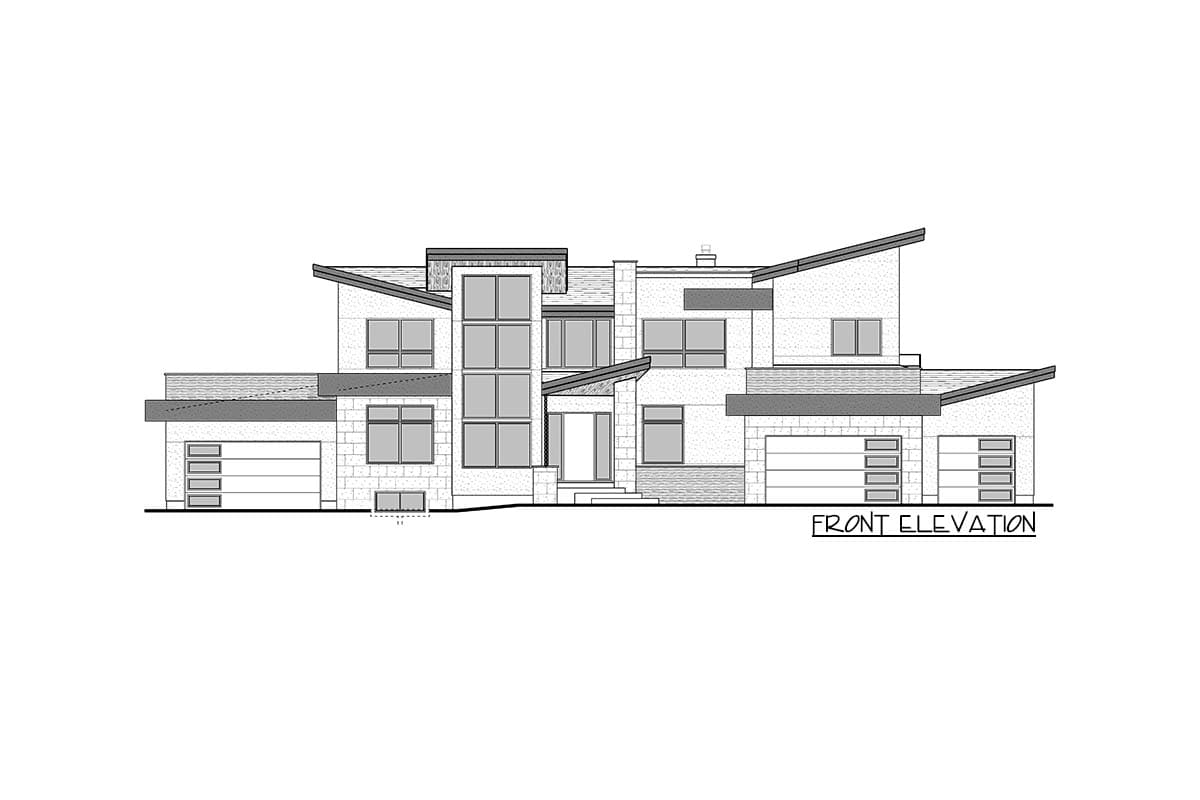

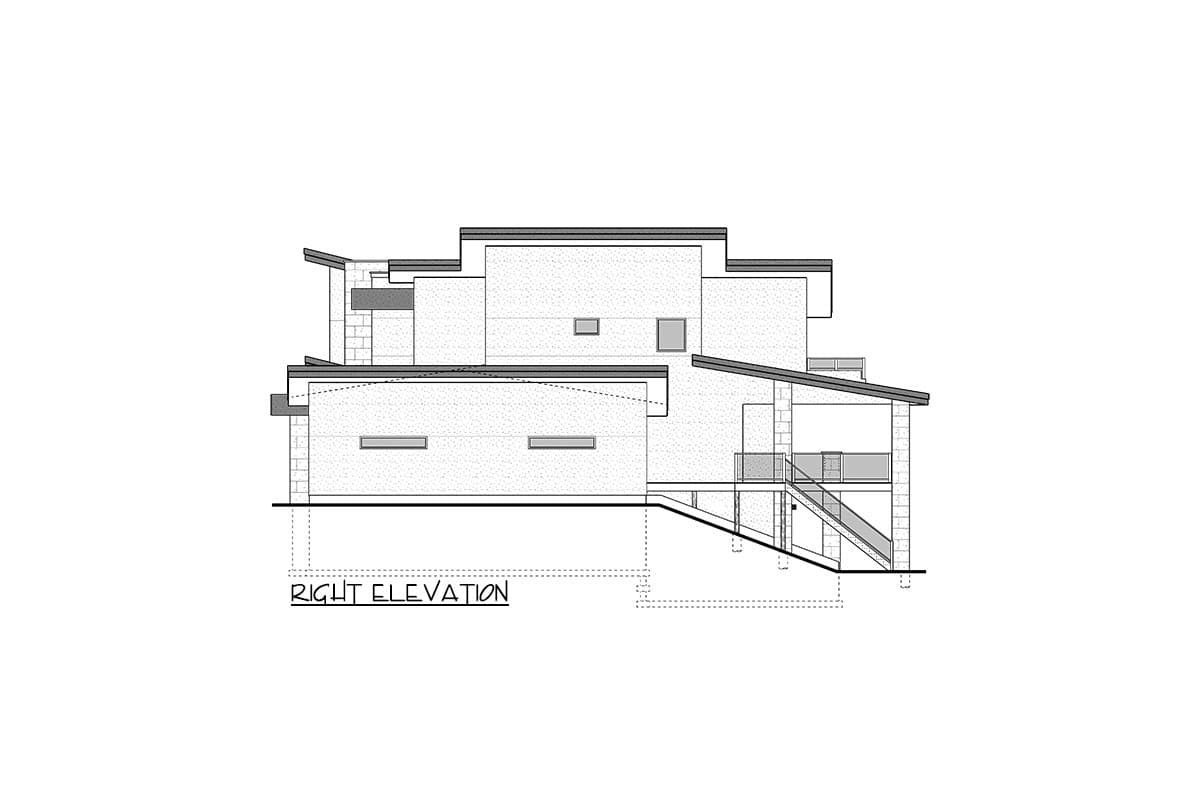

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

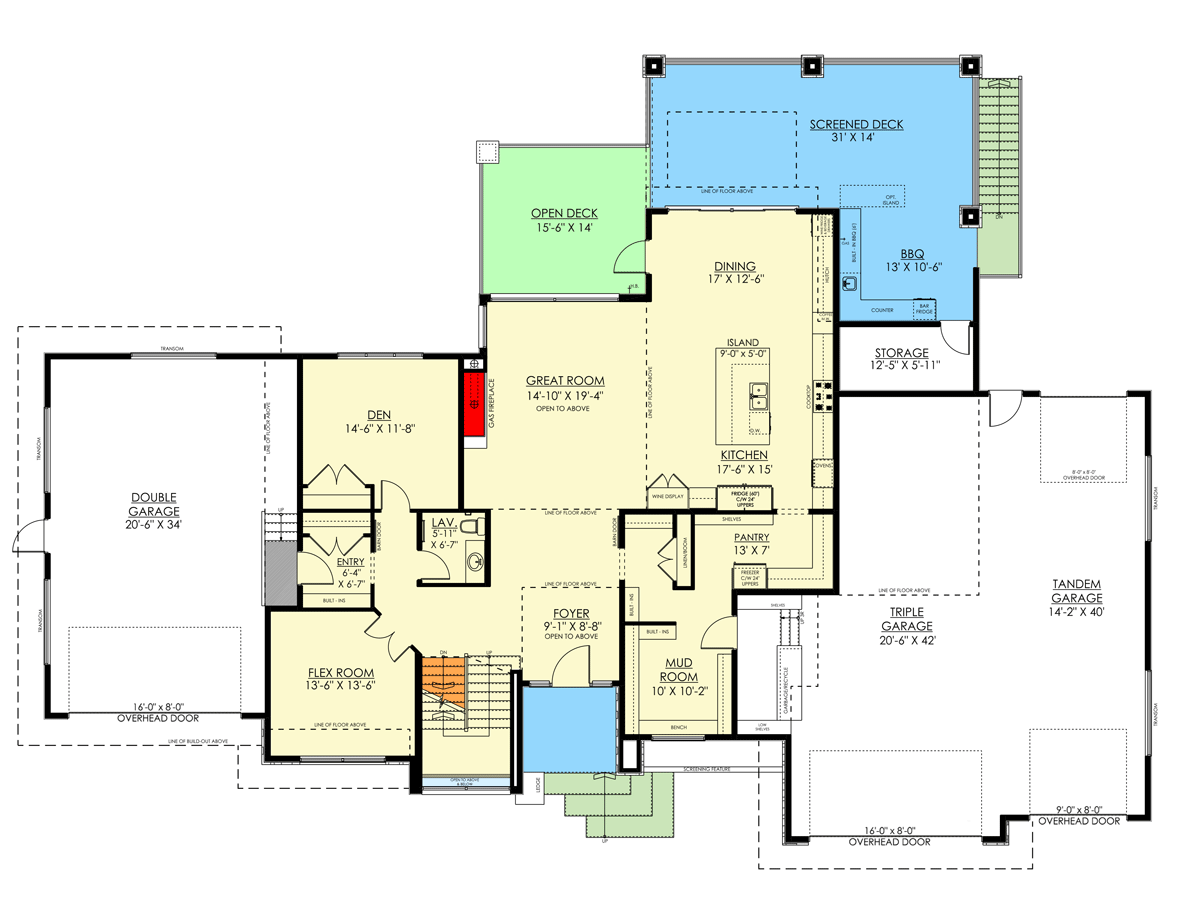

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan Under 4200 Square Feet with Over 2000 Square Feet of Garage Space - 81760AB floor plan - Main Level

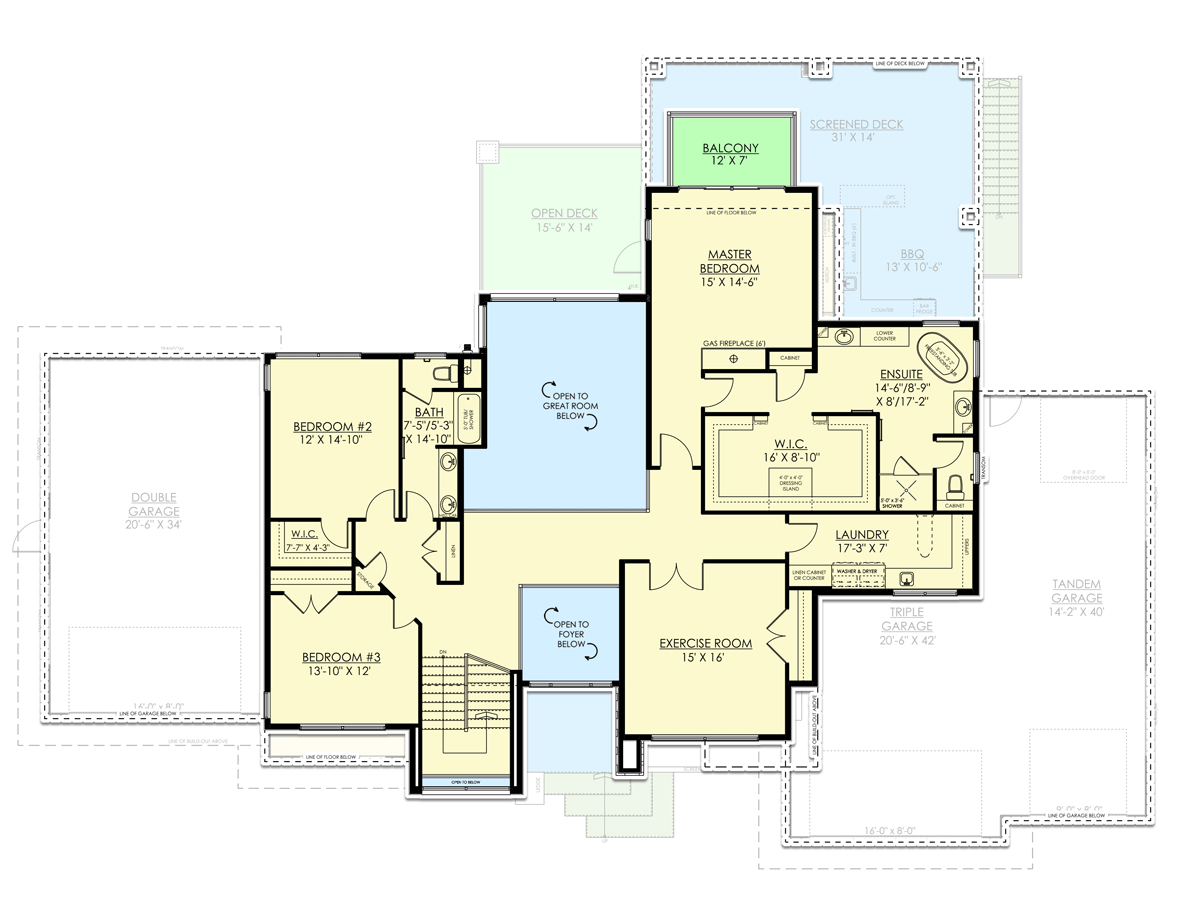

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan Under 4200 Square Feet with Over 2000 Square Feet of Garage Space - 81760AB floor plan - 2nd Floor

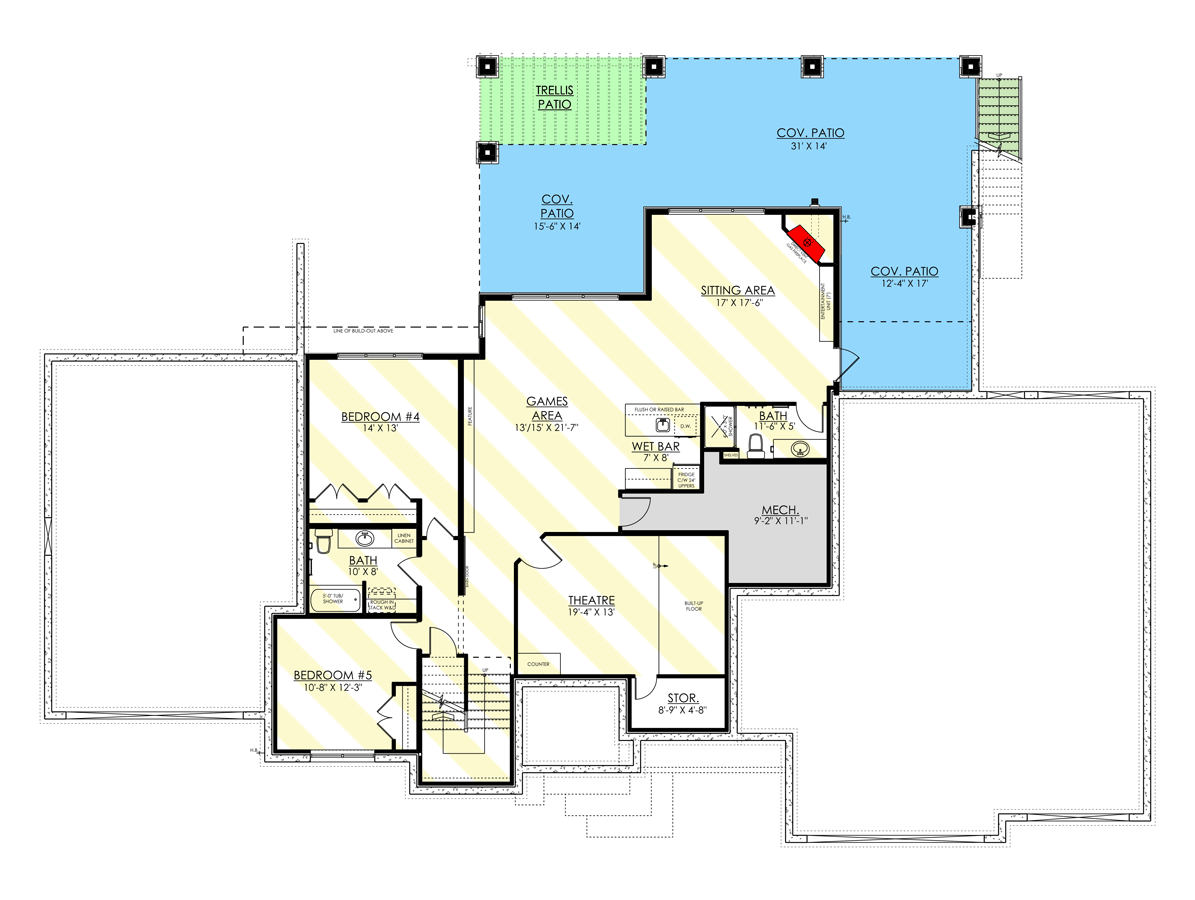

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan Under 4200 Square Feet with Over 2000 Square Feet of Garage Space - 81760AB floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,166 sq. ft.
  • 1st Floor: 2,090 sq. ft.
  • 2nd Floor: 2,076 sq. ft.
  • Optional Lower Level: 1,745 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 0"
  • Depth: 59' 0"
  • Max ridge height: 32' 9"

Garage

  • Type: Attached
  • Area: 2134 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Home Plan Under 4200 Square Feet with Over 2000 Square Feet of Garage Space

  • 4,166

    Heated s.f.

  • 4-6

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Floors

  • 4 - 5

    Car garage

Buy This Plan
  • PDF - Single-Build $2,300
  • CAD + PDF - Single Build $3,000
  • CAD Unlimited + PDF $3,500
  • View all purchase option online

About This Plan

  • This 4,166 square foot modern home plan gives you up to 5 bedrooms (when you build out the optional finished lower level) and over 2,000 square feet of garage space giving you the ability to park upwards of 5 cars.
  • Standing in the foyer your view extends across the 2-story great room to the open deck beyond. A flex room on the other side of the stairs makes a great home office or private den.
  • Eat in the dining room which is open to the great room and kitchen or go through the sliding doors in the dining room to the screened deck with its own outdoor kitchen.
  • The second floor gives you 3 bedrooms including the master suite with private balcony and an exercise room/flex room. There is laundry upstairs as well for your convenience.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,166 sq. ft.
  • 1st Floor: 2,090 sq. ft.
  • 2nd Floor: 2,076 sq. ft.
  • Optional Lower Level: 1,745 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 0"
  • Depth: 59' 0"
  • Max ridge height: 32' 9"

Garage

  • Type: Attached
  • Area: 2134 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
Plan 81760AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81760AB
|
Need Help? 800-854-7852
|
