Plan 81733AB

Modern Home Plan with Third Floor Wet Bar and Deck and Lower Level Home Theater

Name: Plan 81733AB: Modern Home Plan with Third Floor Wet Bar and Deck and Lower Level Home Theater
Brand: Architectural Designs
SKU: 81733AB
Price: 1228.25 USD
Availability: InStock

Heated S.F.

2,694

Beds

3 - 4

Baths

2.5+ - 4.5+

Stories

Floor Plan

Main Level

2nd Floor

Third Level

Optionally Finished Lower Level

Plan Details

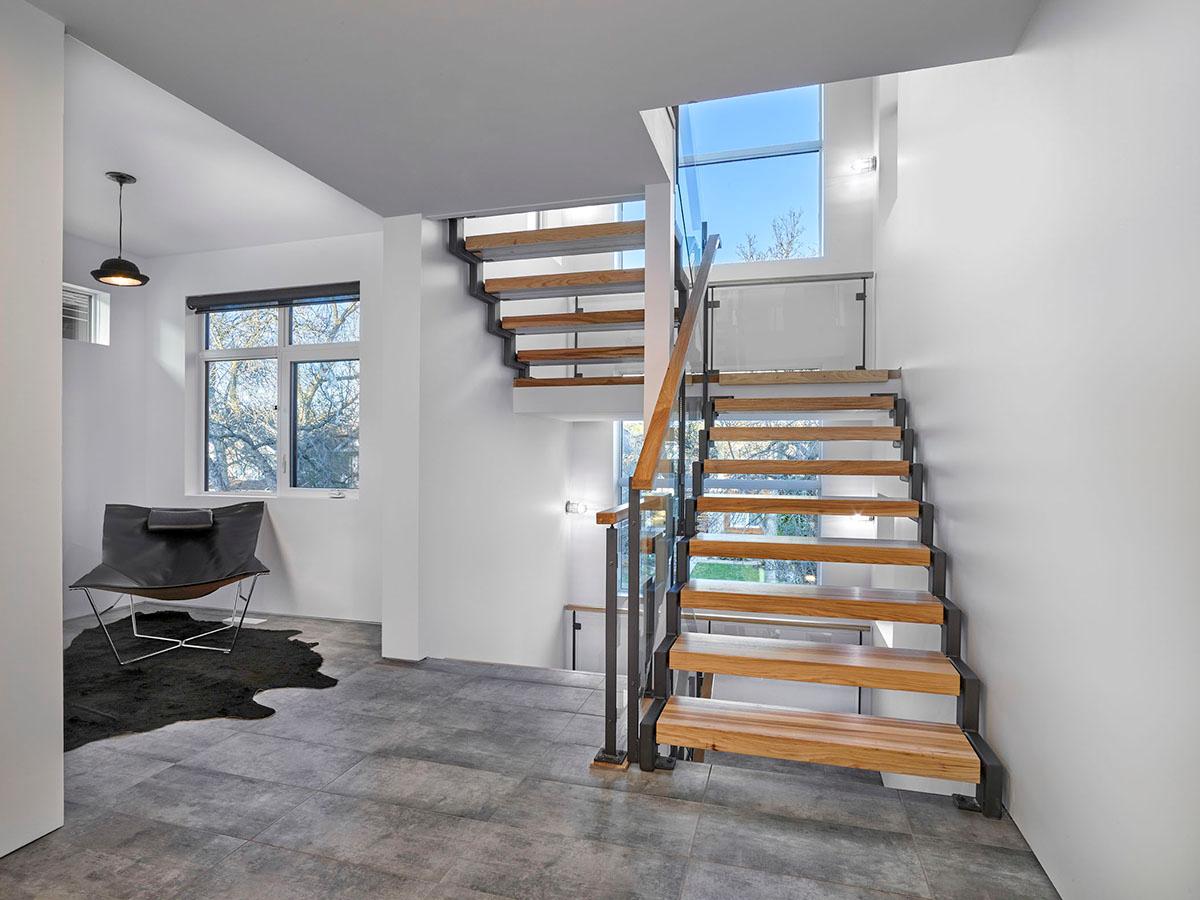

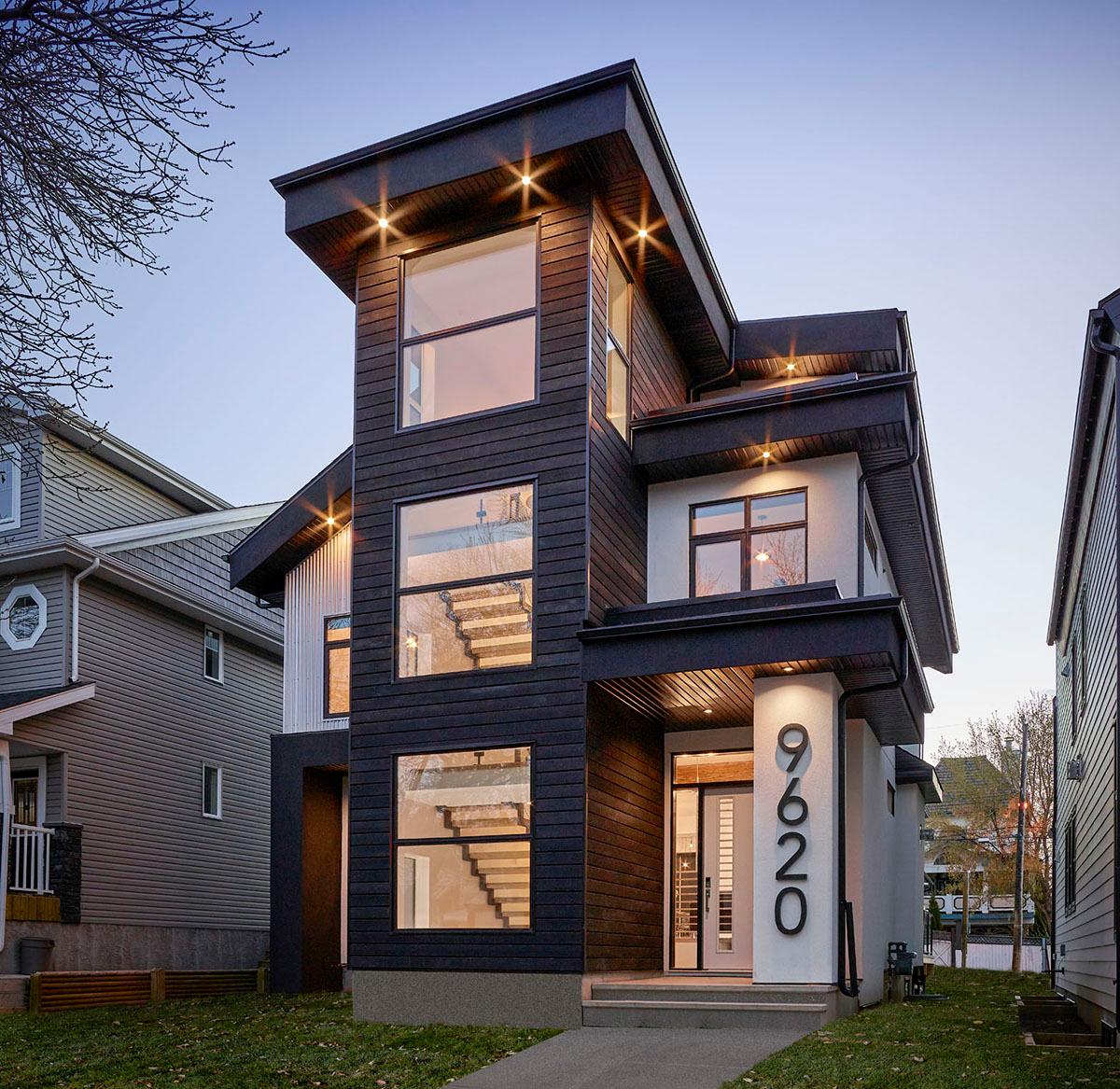

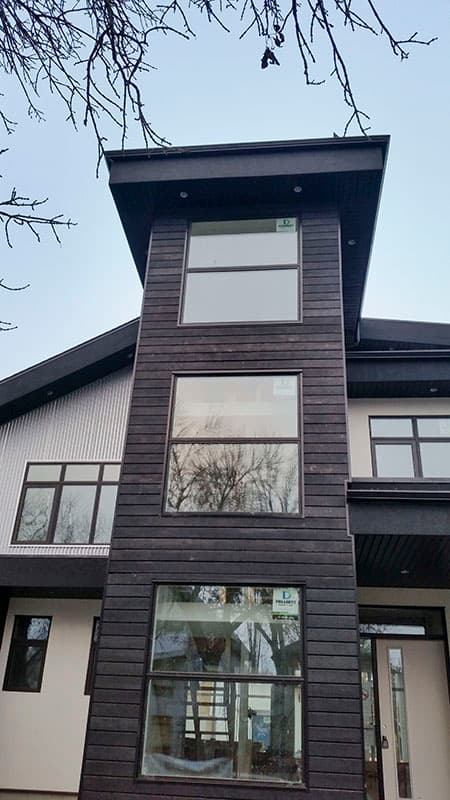

Designed for fun and for your narrow lot (the home is just 30'6" wide), this 3-story modern home gives you 2,694 square feet of living space. Three sets of windows are stacked in front letting light flood into the home and the stairs.

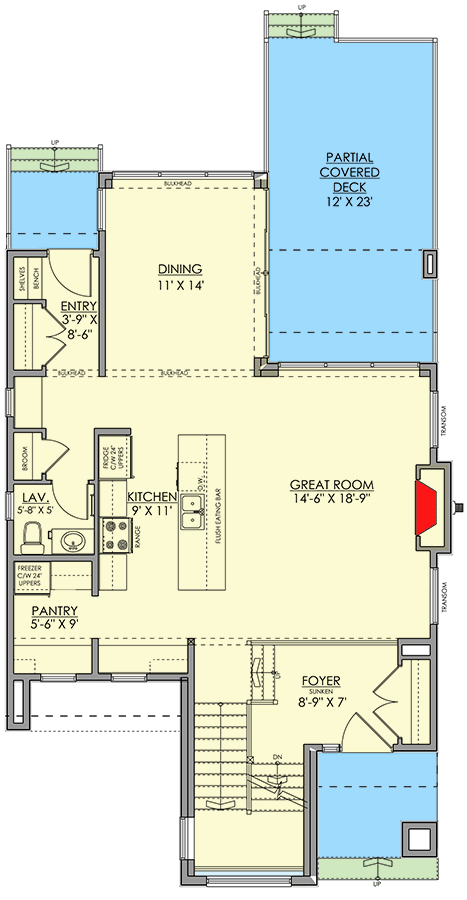

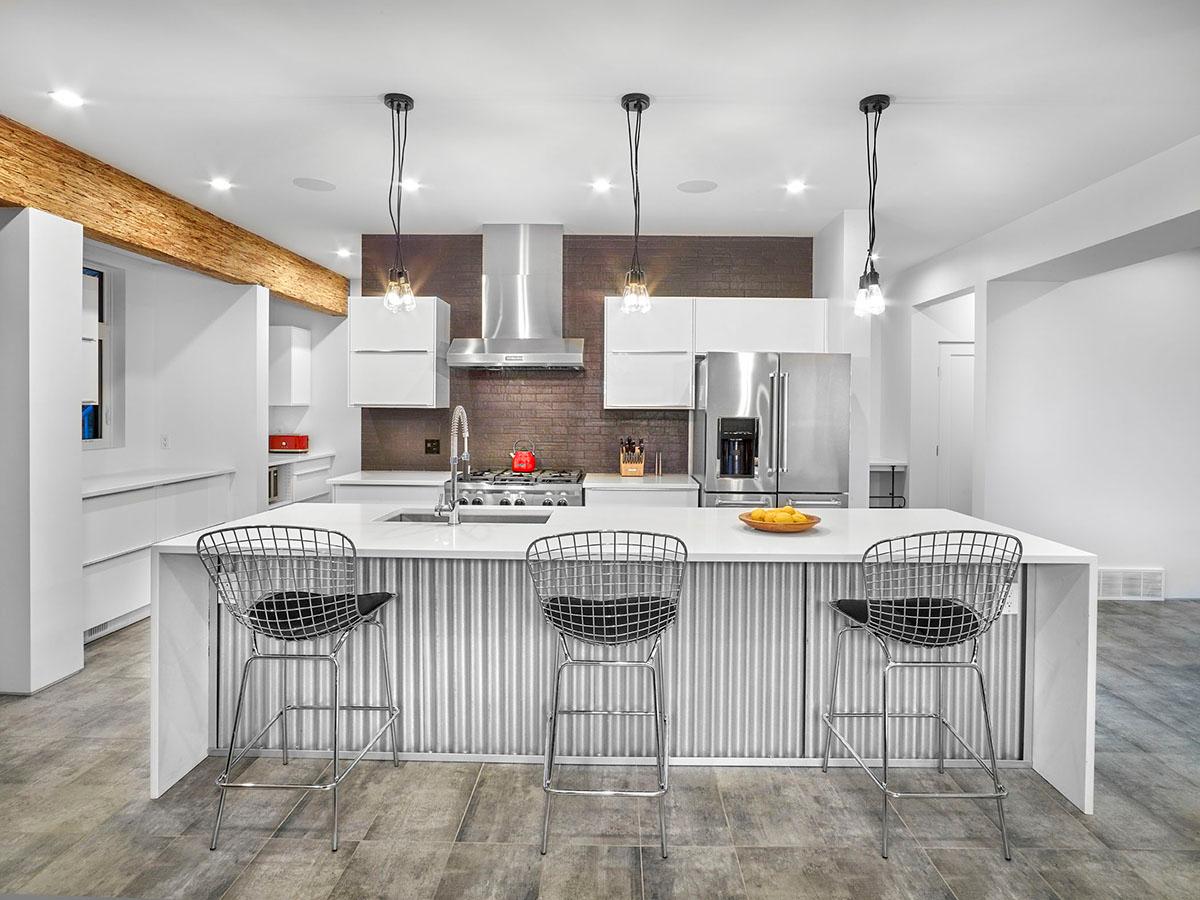

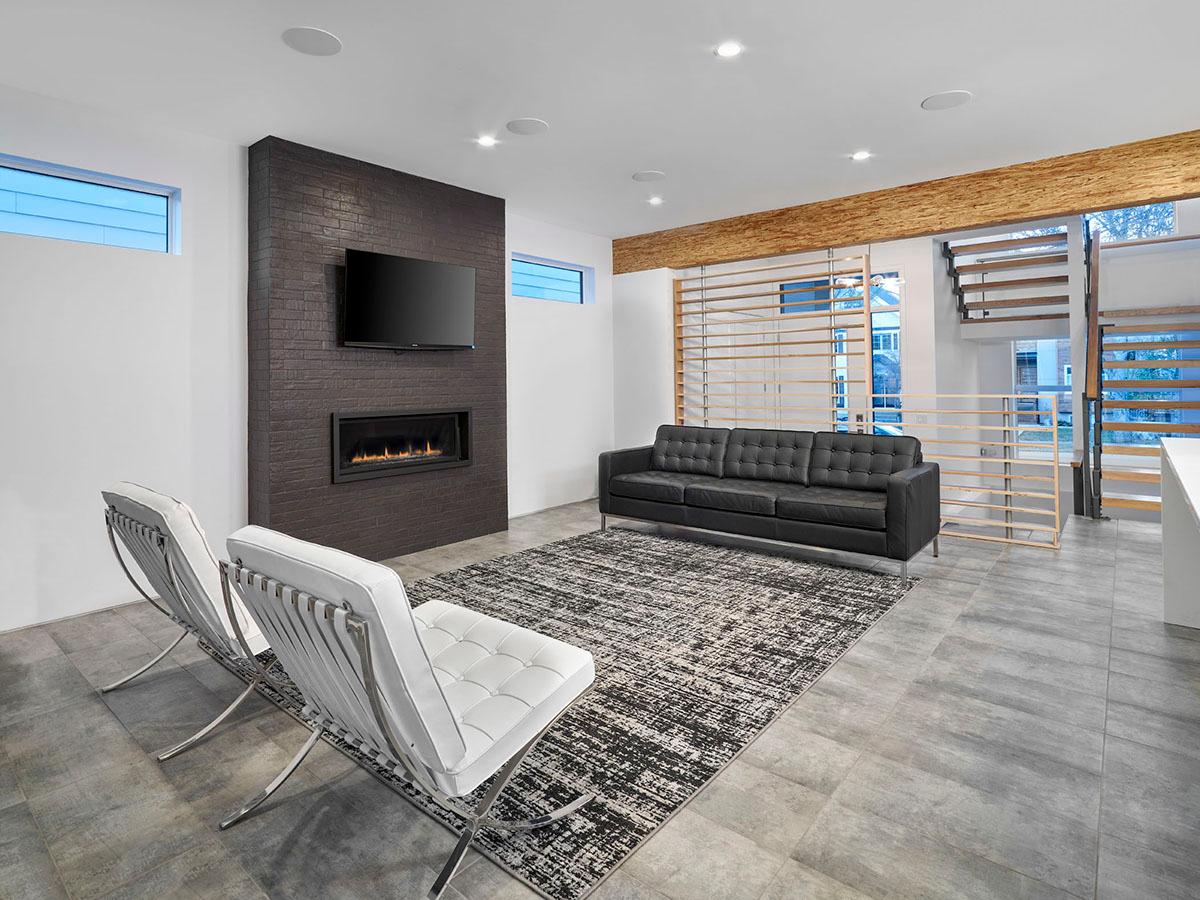

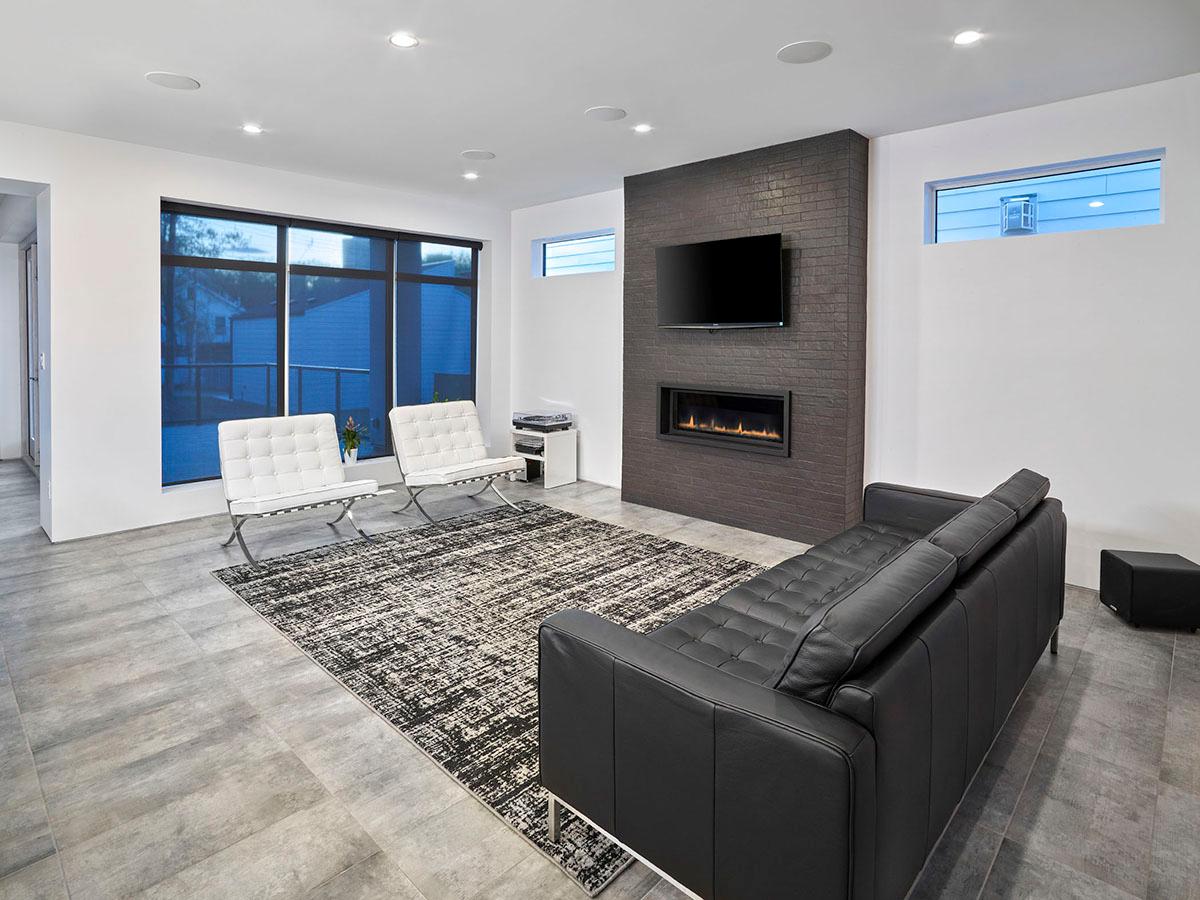

You'll find the kitchen and great room on the main floor as well as the dining room that has access to the partially covered deck in back.
The second floor gives you three bedrooms including the master bedroom with private balcony. Laundry and a loft round out the floor.

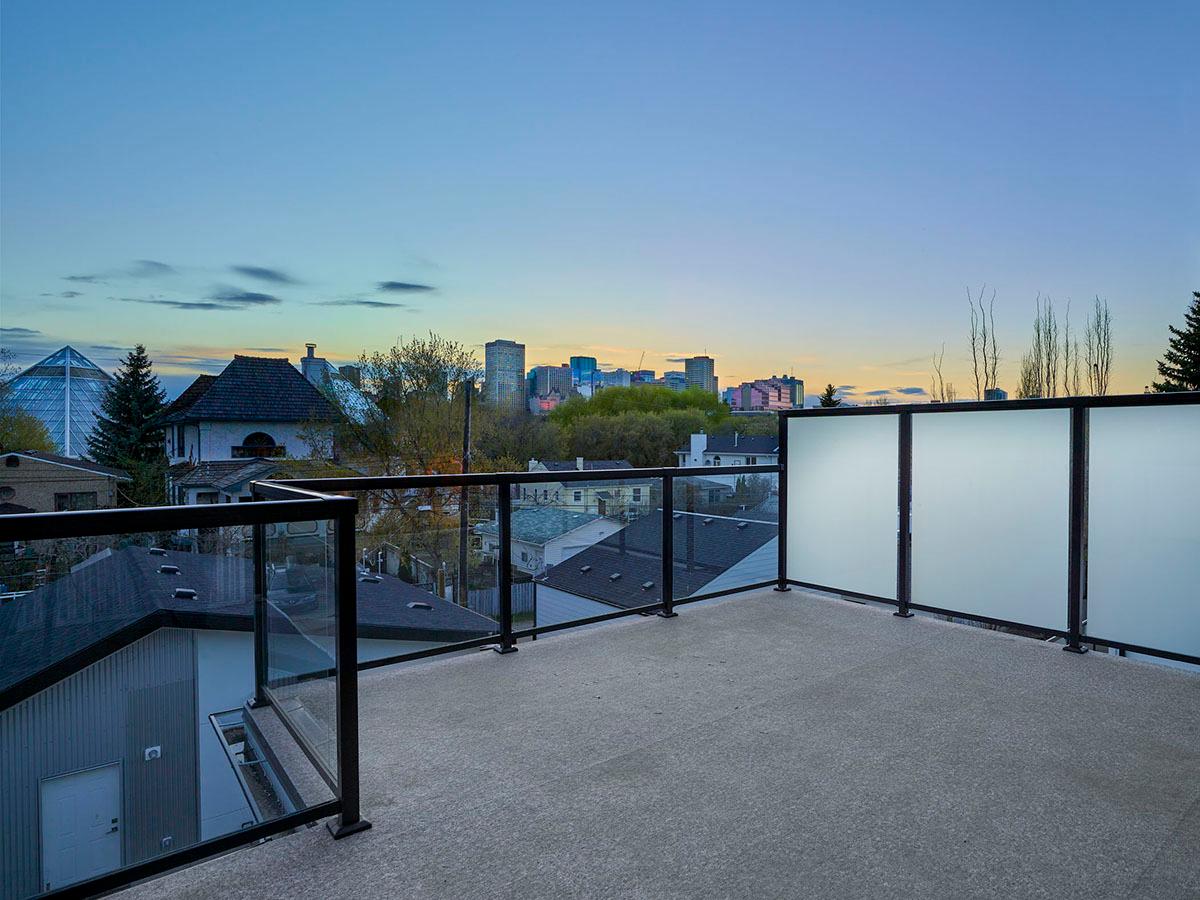

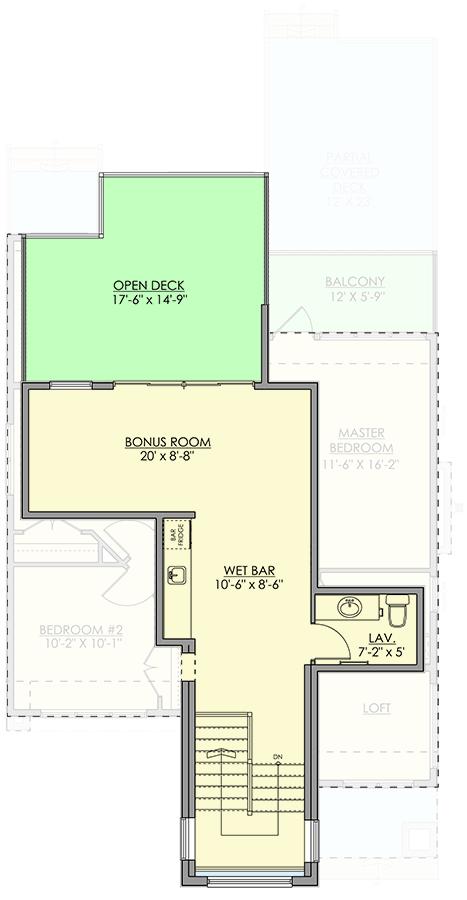

On the third floor, a bonus room (factored into the total living area) has sliding door access to a deck looking out across the back. A wet bar and half bath are also on this floor.

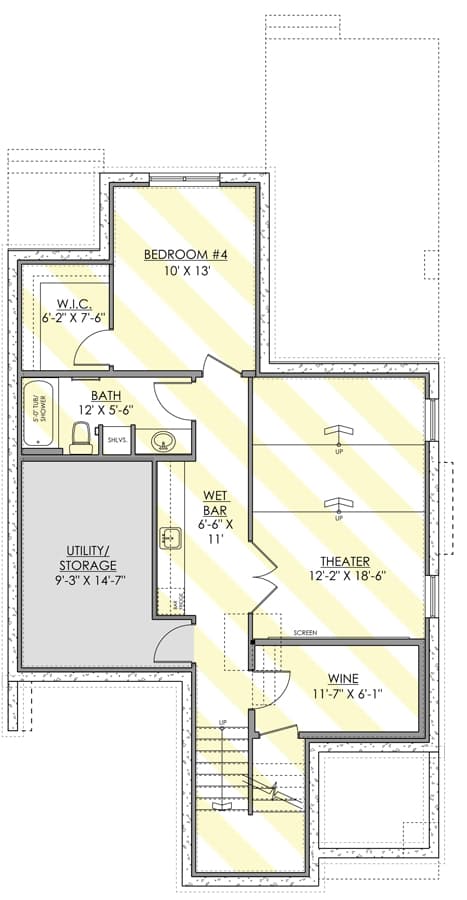

A second wet bar is found in the optionally finished lower level, as is a fourth bedroom, a home theater and a wine room.

What's Included

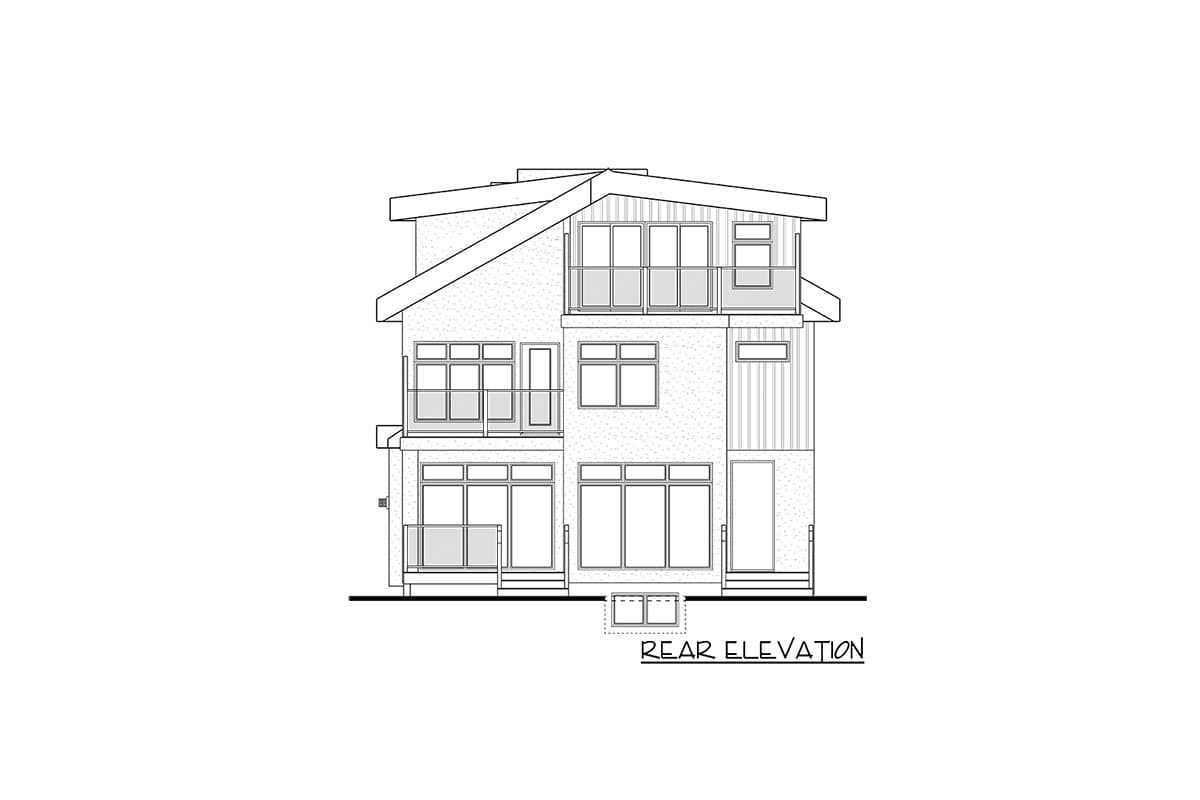

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
