Plan 666024RAF

Modern House Plan with 2-Story Ceilings and Walls of Glass

Heated S.F.
6,182
Beds
5 - 6
Baths
5.5
Stories
2
Cars
4

Floor Plan

Plan 666024RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666024RAF

M-F 9am-5pm EST |

1-203-761-8500

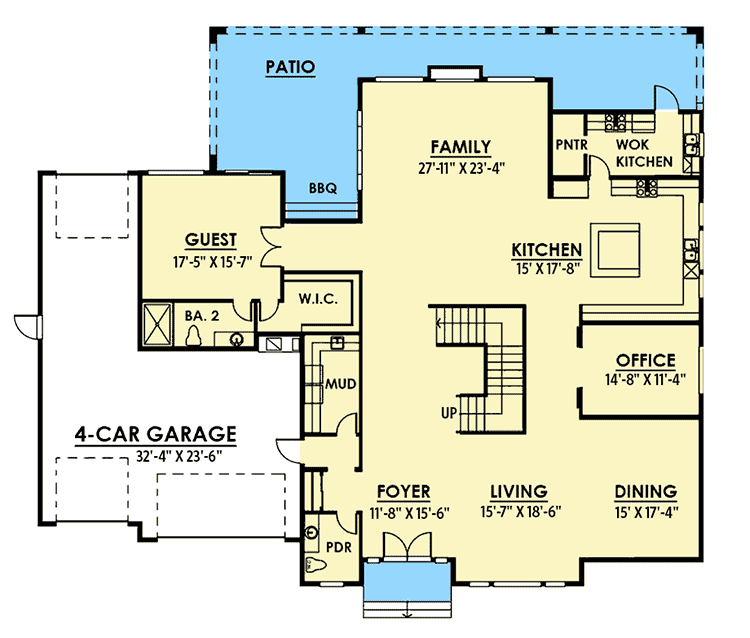

Main Level

Plan 666024RAF: Modern House Plan with 2-Story Ceilings and Walls of Glass - Floor Plan - Main Level - Contemporary, Modern, Northwest

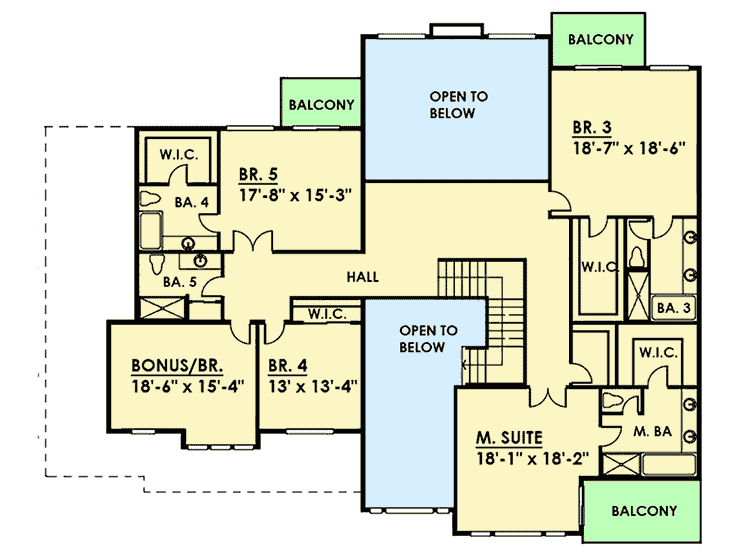

2nd Floor

Plan 666024RAF: Modern House Plan with 2-Story Ceilings and Walls of Glass - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • Spectacular curb appeal comes from transoms and walls of glass in this Contemporary house plan.
  • The home is well-suited for a large family, with five bedrooms and a four car garage.
  • You can all be together in the open floor plan or escape to the quiet office or second floor bonus room.
  • A unique feature of this home is the two separate kitchen, one of which opens to the covered rear patio.
  • The first floor guest would work well as in-law accommodations.
  • A balcony loft separates the bedrooms with two on each side of the open loft.
  • Use the bonus room as a media room if desired.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,182 sq. ft.

1st Floor

3,365 sq. ft.

2nd Floor

2,817 sq. ft.

Covered Patio

659 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 4"

Depth

63' 7"

Garage

Type

Attached

Area

1005 sq. ft.

Count

4 Cars

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Loft

Master Suite - Sitting Area

Master Suite - Upstairs

Media Room

Optionally Finished Bonus Room

Two Story Great Room

Plan Collections
