Plan 801156PM

Modern House Plan with 4 Upstairs Bedrooms - 1858 Sq Ft

Heated S.F.
1,858
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 801156PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 801156PM

M-F 9am-5pm EST |

1-203-761-8500

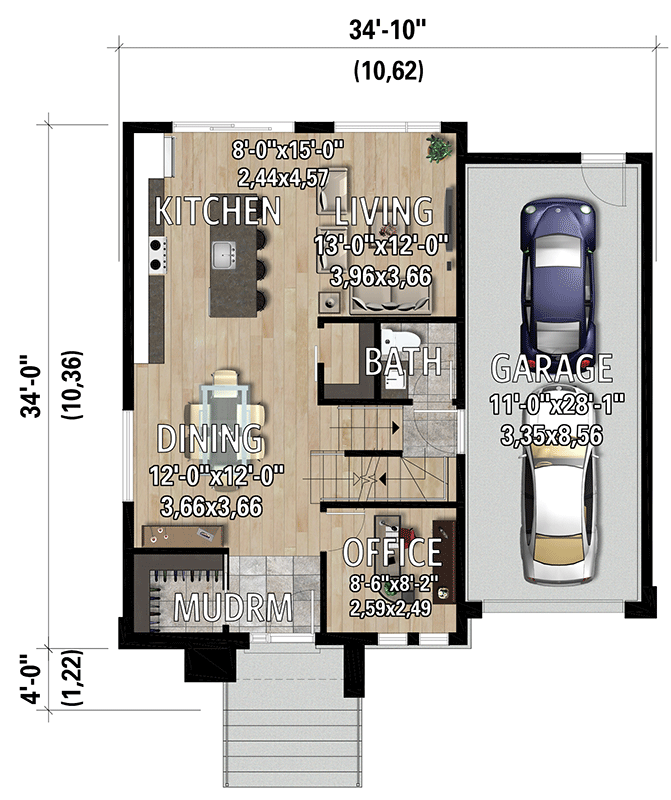

Main Level

Plan 801156PM: Modern House Plan with 4 Upstairs Bedrooms - 1858 Sq Ft - Floor Plan - Main Level - Contemporary, Modern, Northwest

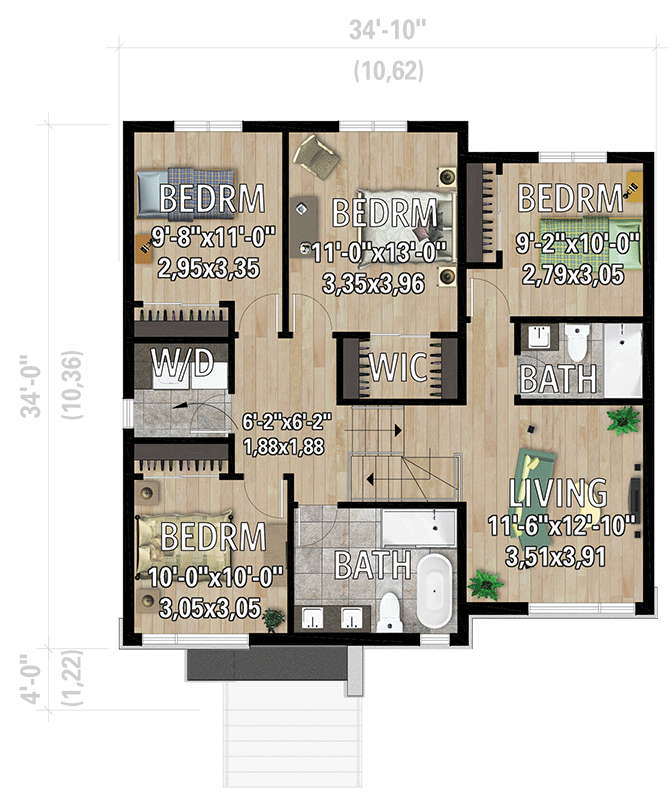

2nd Floor

Plan 801156PM: Modern House Plan with 4 Upstairs Bedrooms - 1858 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • This modern two-story house plan gives you 4 beds, 2.5 baths and 1,858 square feet of heated living inside a 34 foot wide by 34- foot deep building envelope.
  • From the main floor entrance, you enter a vestibule with a large closet which then leads you to the dining room, the kitchen and the living room.  There is also an area that can be an office or a reading corner as well as a complete washroom on this floor.
  • All four bedrooms are on the second floor. The master bedroom has a walk-in closet and a private bathroom. The other bedrooms share a second bathroom. There is also a family room and an area for a washer and dryer.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 15 to 20 business days for plan delivery.

What's Included

Please note this plan is designed to the National Building Code of Canada.

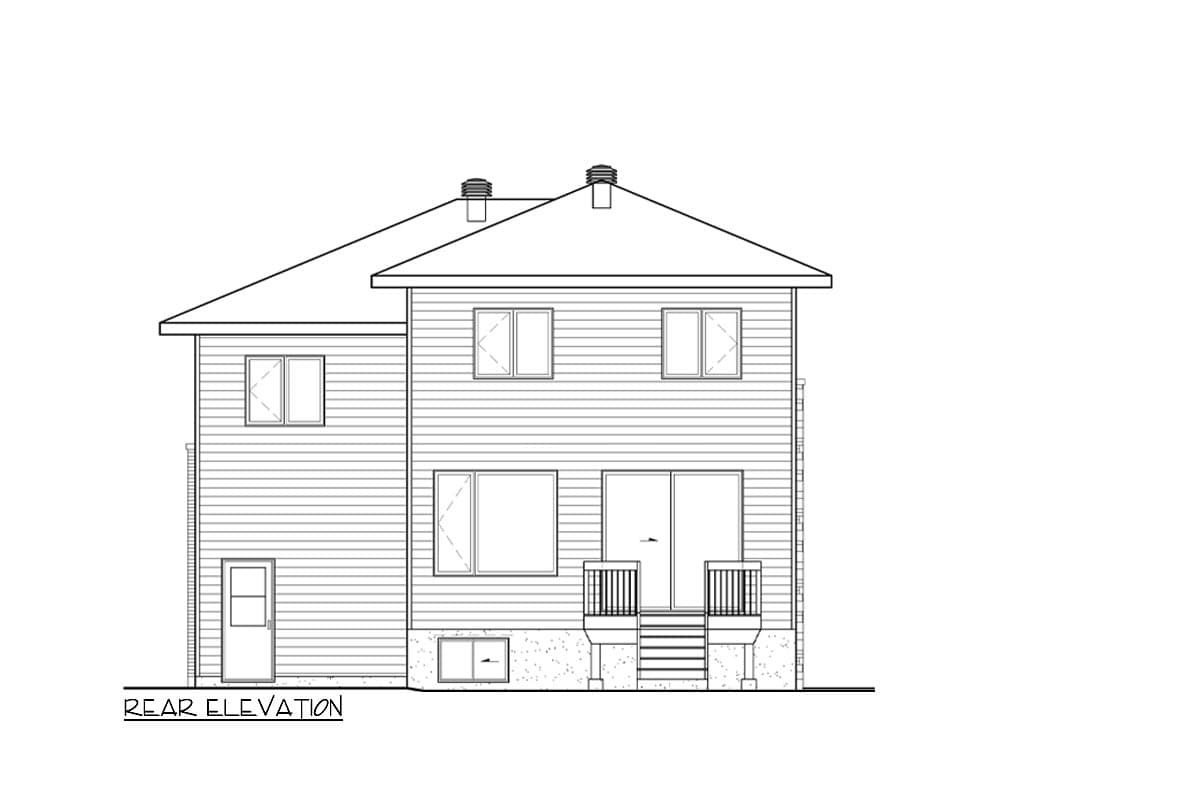

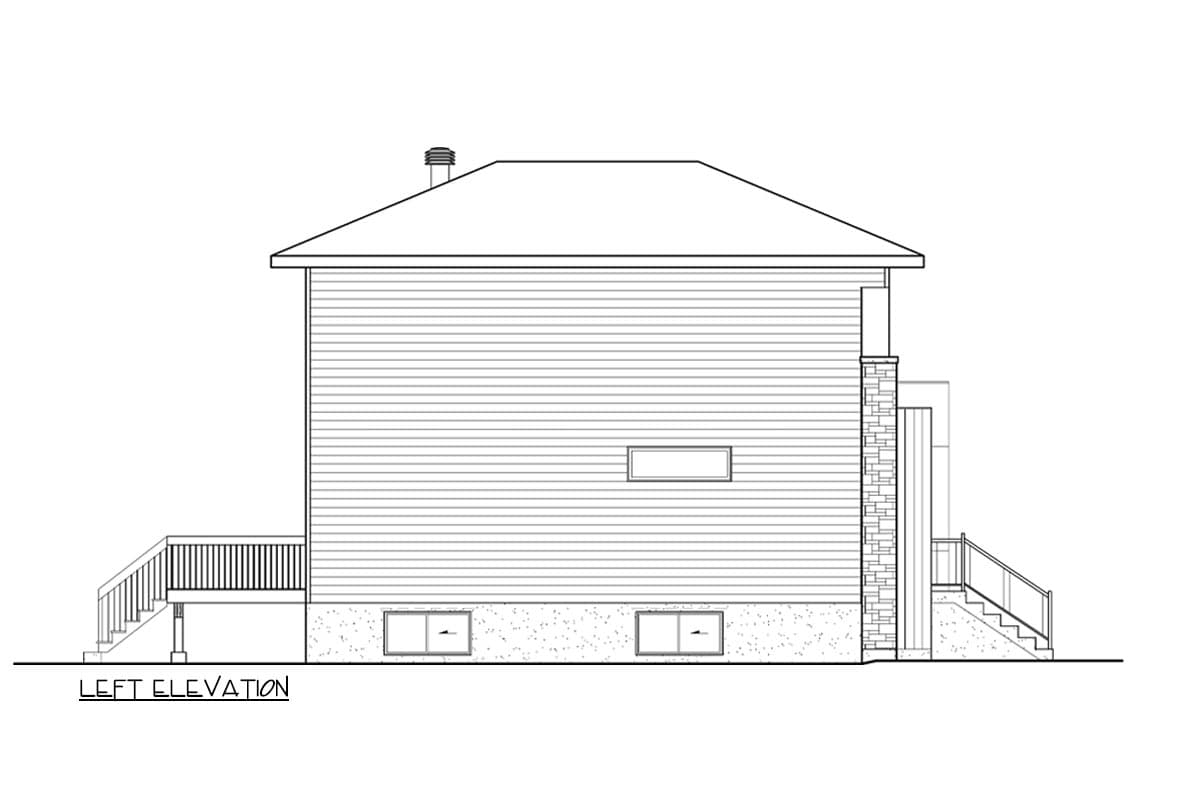

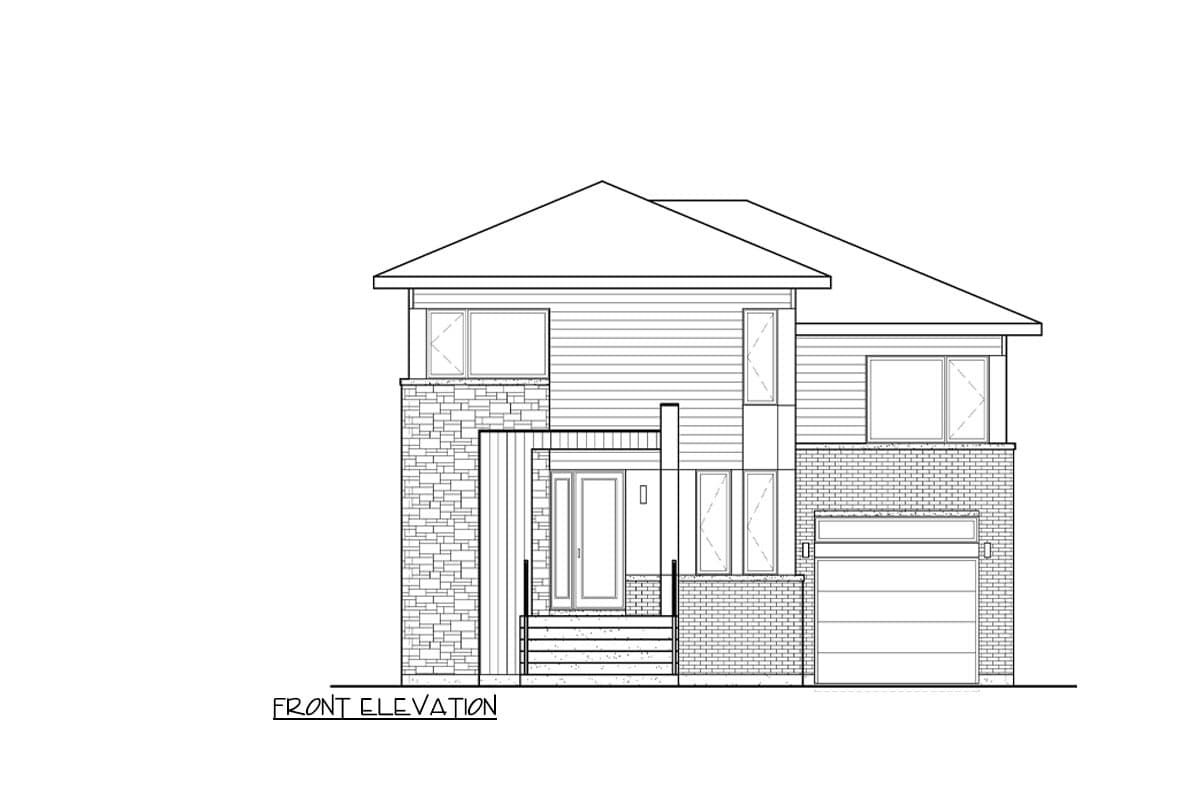

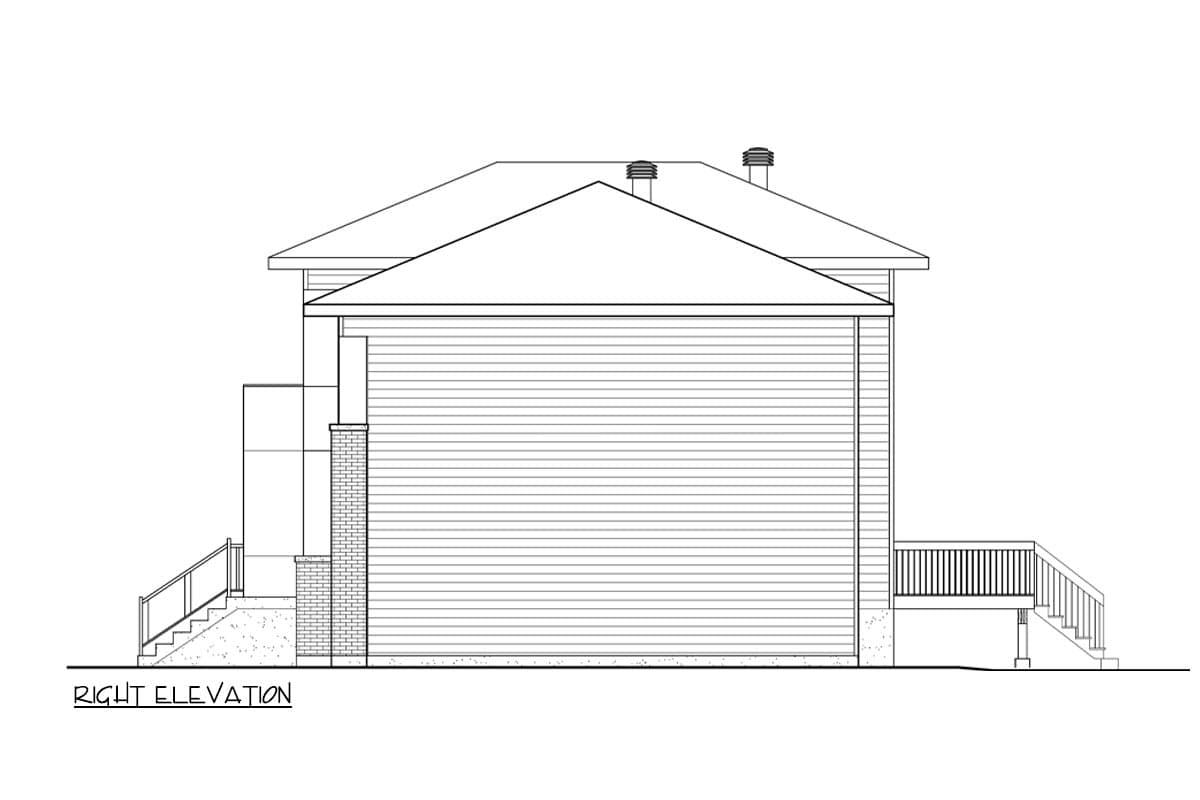

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,858 sq. ft.

1st Floor

749 sq. ft.

2nd Floor

1,109 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 10"

Depth

34' 0"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

360 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans
