Modern House Plan with Courtyard Entry and an Optional Den

Plan 85278MS

  • 2,733

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Enter this beautiful modern house plan through a large covered porch perfect for a bistro table or small outdoor living set.
  • Once you enter the home, you'll find the expansive great room, kitchen, and flex space, all with 9′ ceilings.
  • The flex space off the kitchen could normally be used for a dining room, but we’ve also included the option for the home to be built with a den/fourth bedroom where the flex space is.
  • The great room and outdoor living space both include fireplaces, and the two spaces connect through sliders at the rear of the home.
  • Without the added den/bedroom, all of the bedrooms are upstairs, and all have either 9′ or vaulted ceilings.
  • The first thing you’ll see when walking up stairs is the large vaulted bonus room/loft, which soaks up a ton of light from the large windows at the front of the home. Around the corner are the two additional bedrooms which share a full bath between them.
  • The master suite is at the rear of the home and is accessed by a pair of french doors. The master bath also includes a 9′ ceiling, and a huge 7′ x 11′ walk-in closet.
  • The 2-car garage has tons of additional storage room, and opens into a spacious mud room.
  • Related Plan: Get an alternate exterior with house plan 85280MS.
  • NOTE: This plan can not be built in King and Pierce County in Washington State.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

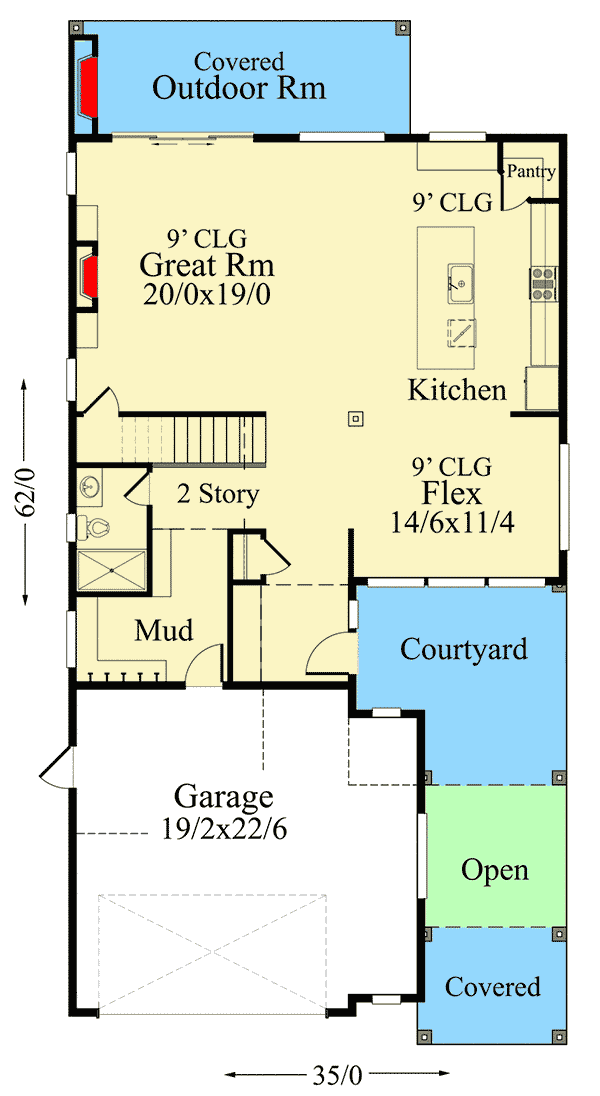

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern House Plan with Courtyard Entry and an Optional Den - 85278MS floor plan - Main Level

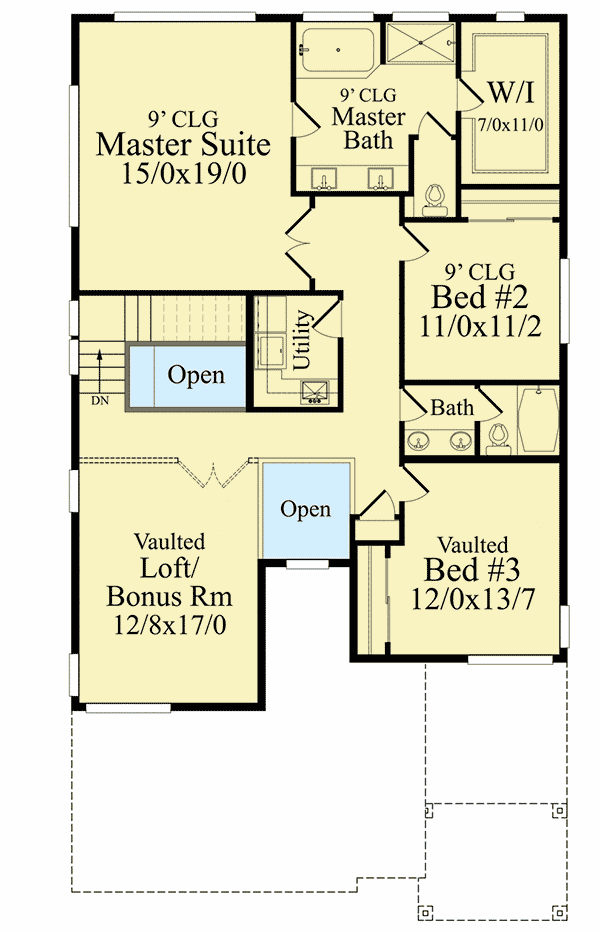

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern House Plan with Courtyard Entry and an Optional Den - 85278MS floor plan - 2nd Floor

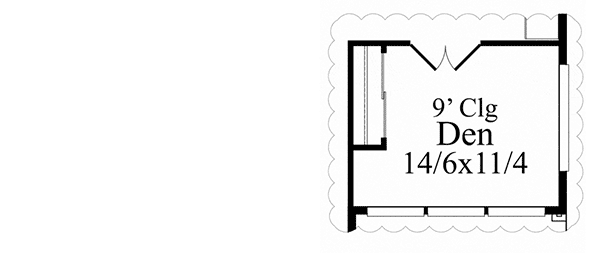

Optional Den Layout
