Modern House Plan with Drive Under Garage - 3045 Sq Ft

Heated S.F.
3,045
Beds
3 - 4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 666060RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 666060RAF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

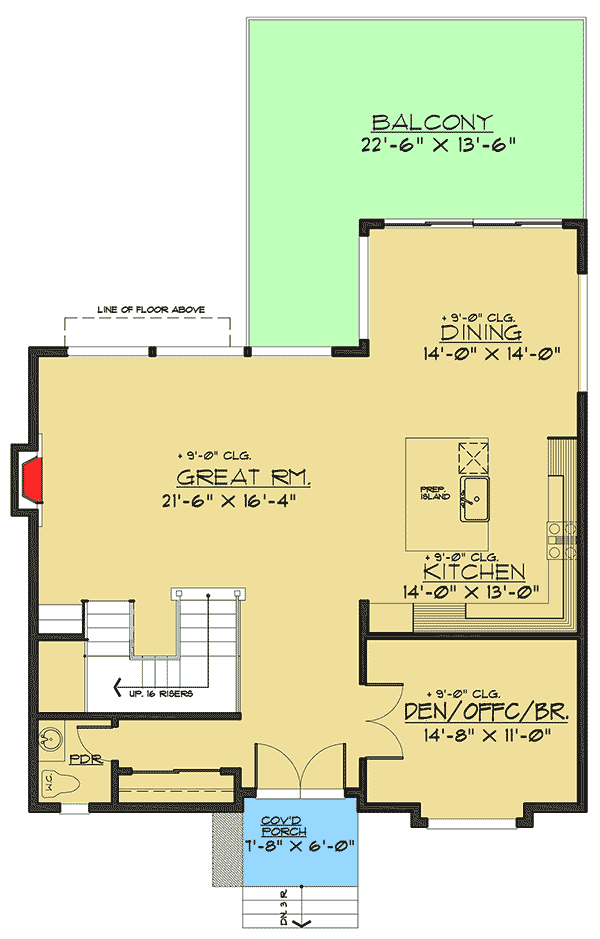

Plan 666060RAF: Modern House Plan with Drive Under Garage - 3045 Sq Ft - Floor Plan - Main Level - Contemporary, Modern, Northwest

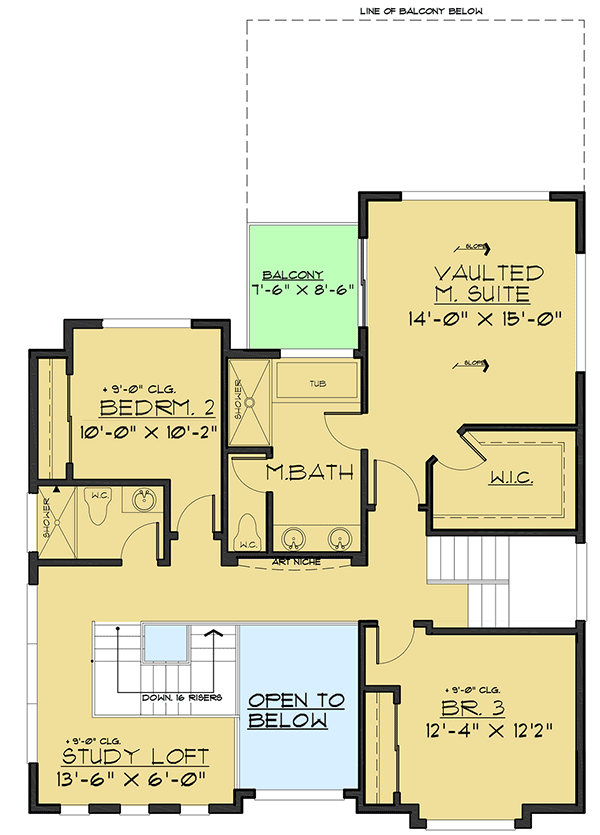

2nd Floor

Plan 666060RAF: Modern House Plan with Drive Under Garage - 3045 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

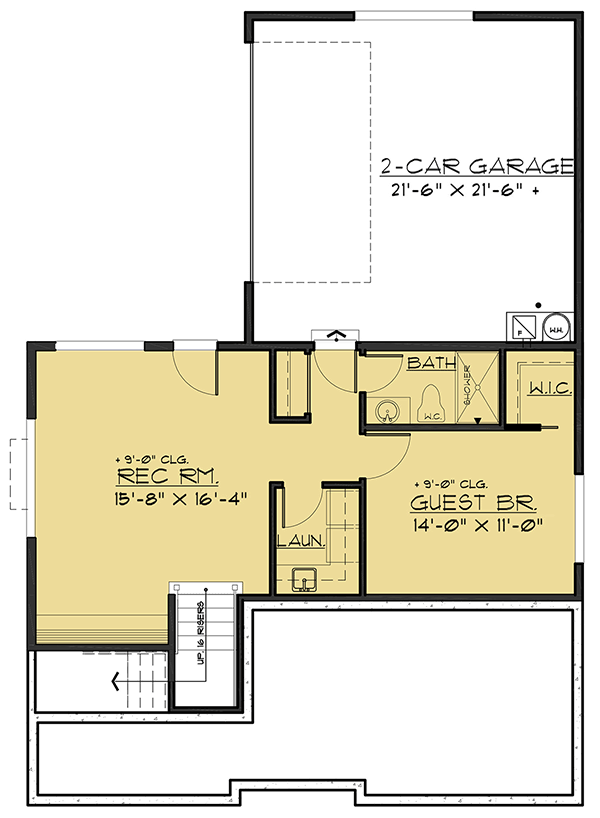

Lower Level

Plan 666060RAF: Modern House Plan with Drive Under Garage - 3045 Sq Ft - Floor Plan - Lower Level - Contemporary, Modern, Northwest

Plan Details

  • This modern house plan gives you 3,045 square feet of heated living and a 2-car drive-under garage. Contemporary exterior materials and large windows come together to give this great visual apppeal. The flat roofs allow for multiple balconies, while a contrasting sloped roof adds a dramatic element.
  • The main level houses the shared living spaces in an open layout, while a secluded den, or office, rests on the other side of french doors. Natural light fills the space and a sizable balcony, accessible from the dining room, sits atop the 2-car garage.
  • The second level is where you'll find the bedrooms. Oversized windows in the master suite provide rearward views and a freestanding tub in the en suite overlooks a private balcony.
  • Bedrooms 2 and 3 share a full bath, and a study loft adds a unique element to the design.
  • The lower level boasts a spacious recreation room and a guest suite, which neighbors a full bath. The laundry room includes a utility sink and is also on the lower level.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

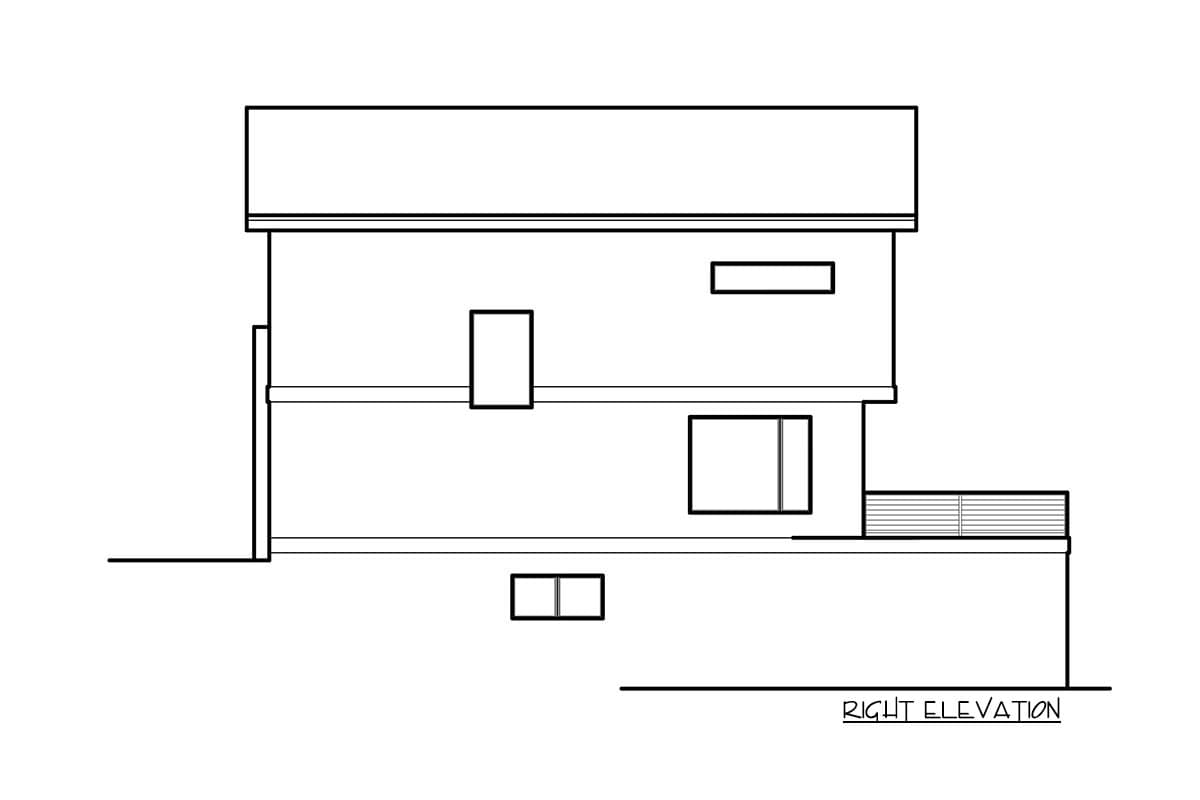

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,045 sq. ft.

Lower Level

663 sq. ft.

1st Floor

1,269 sq. ft.

2nd Floor

1,113 sq. ft.

Porch, Front

36 sq. ft.

Balcony / Veranda

1,154 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

52' 10"

Max Ridge Height

30' 8"

Garage

Type

Drive Under, Attached

Area

462 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Lower Level

Library/Study

Loft

Master Suite - Upstairs

Plan Collections

Home Office

Photo Gallery

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,045 sq. ft.

Lower Level

663 sq. ft.

1st Floor

1,269 sq. ft.

2nd Floor

1,113 sq. ft.

Porch, Front

36 sq. ft.

Balcony / Veranda

1,154 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

52' 10"

Max Ridge Height

30' 8"

Garage

Type

Drive Under, Attached

Area

462 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Lower Level

Library/Study

Loft

Master Suite - Upstairs

Plan Collections

Home Office

Photo Gallery

Sloping Lot
