Modern House Plan with Great Room and Kitchen on the Upper Floor - 2775 Sq Ft
Heated S.F.
2,775
Beds
2-3
Baths
2 - 3
Stories
1
Cars
2
What's Included
Plan Details
  • This modern house plan gives you 3 bedrooms and 2,775 square feet of heated living space with a tandem garage with workshop space.
  • Stairs in the split foyer take you to the main living floor above and to a flex space with a bedroom, laundry and covered patio set off at an angle from the main home.
  • On the second floor, the great room is open to the kitchen and dining room and has access to a covered deck that wraps around the side and back. Two bedrooms line the left side of the floor.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

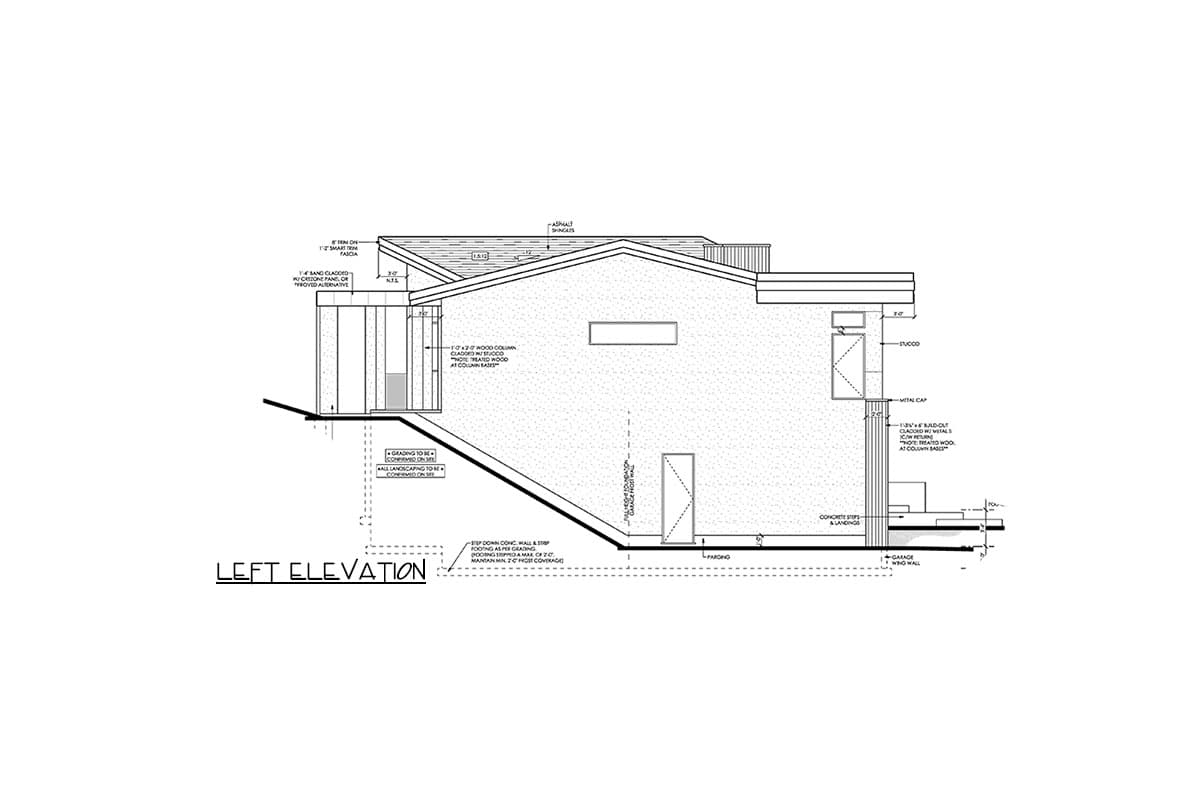

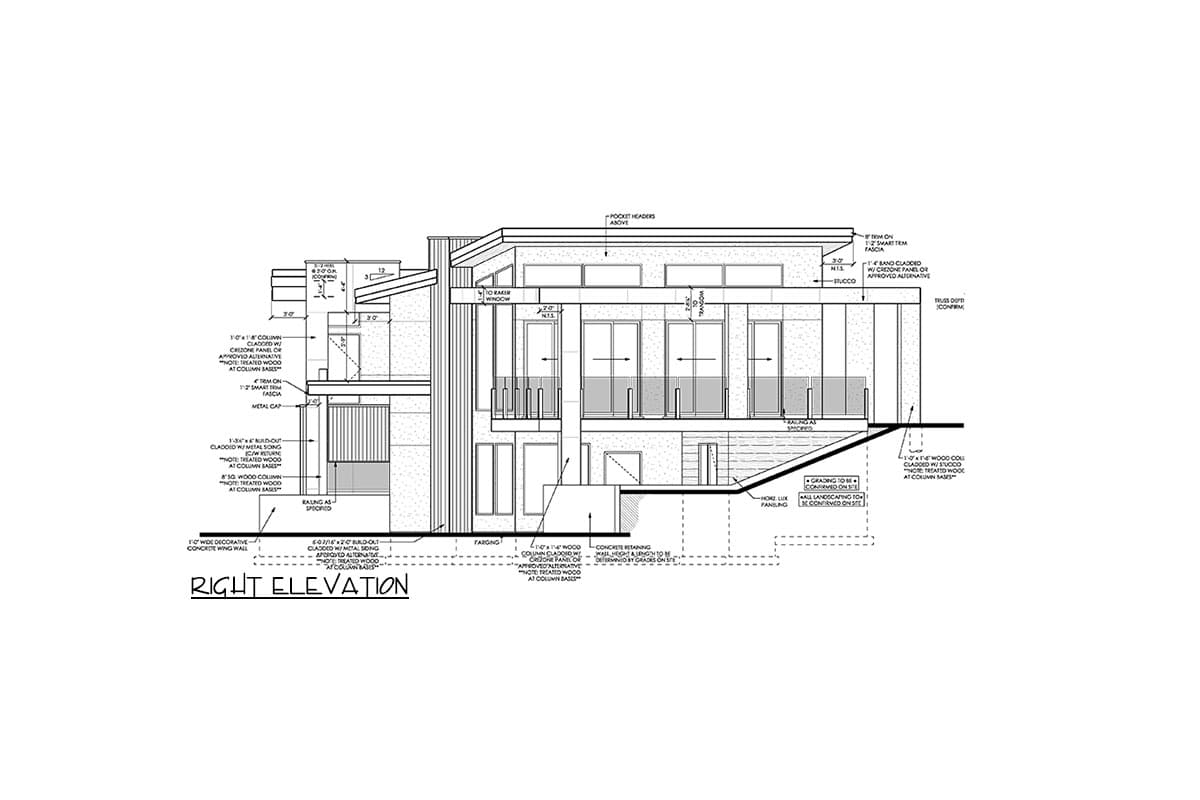

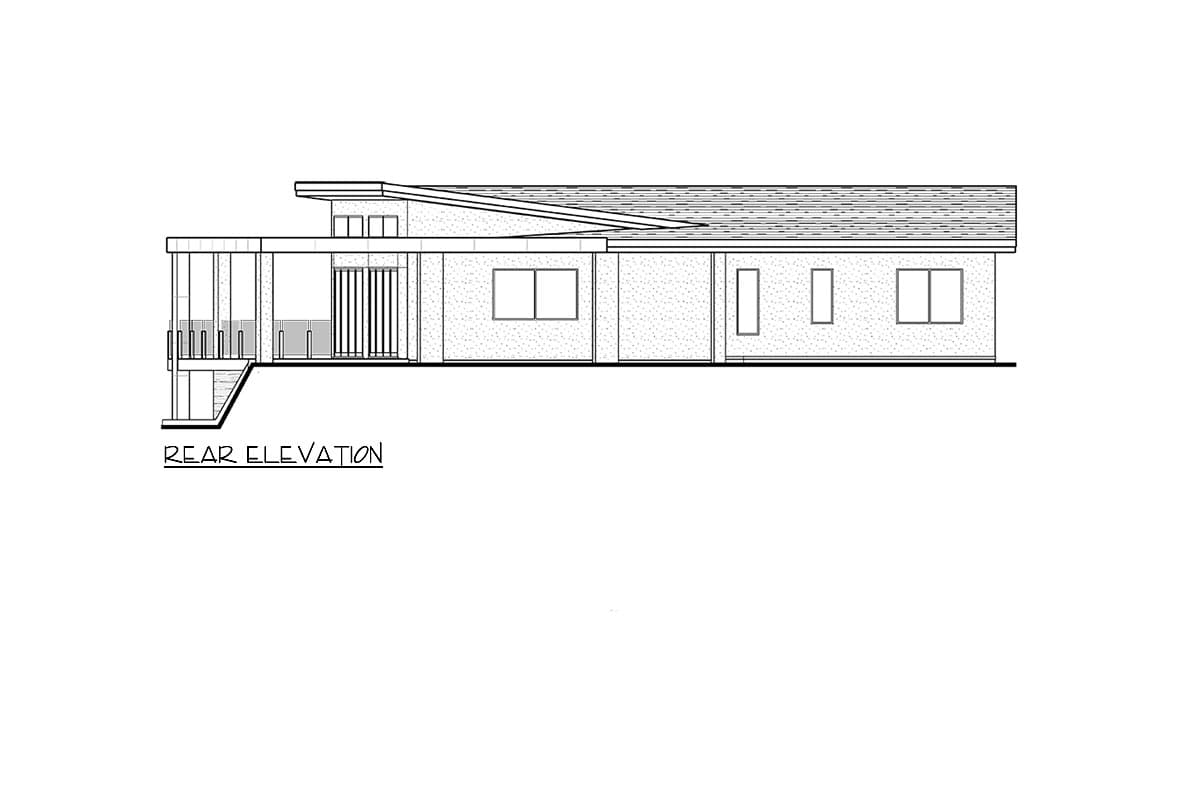

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern House Plan with Great Room and Kitchen on the Upper Floor - 2775 Sq Ft

  • 2,775

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

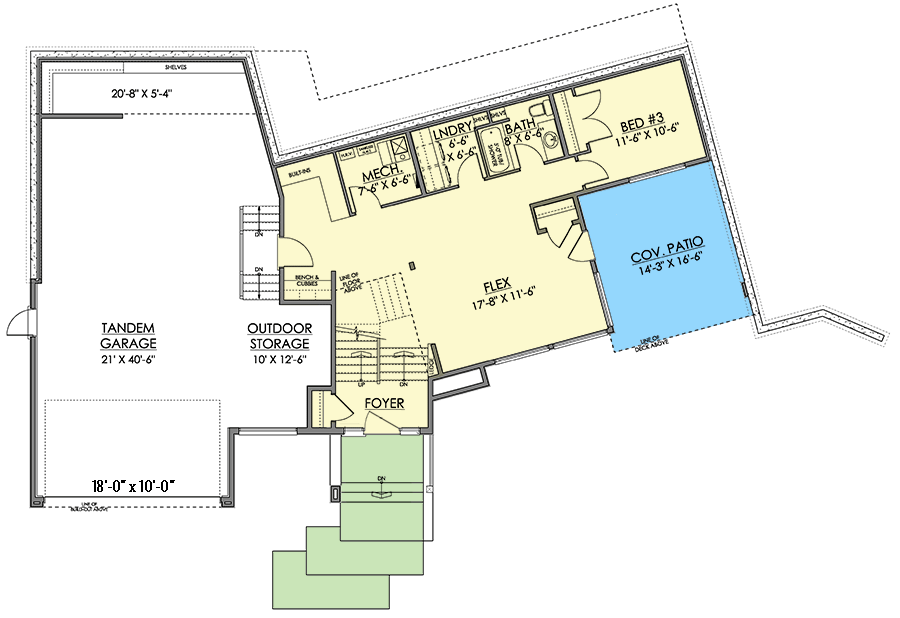

  • Main Level

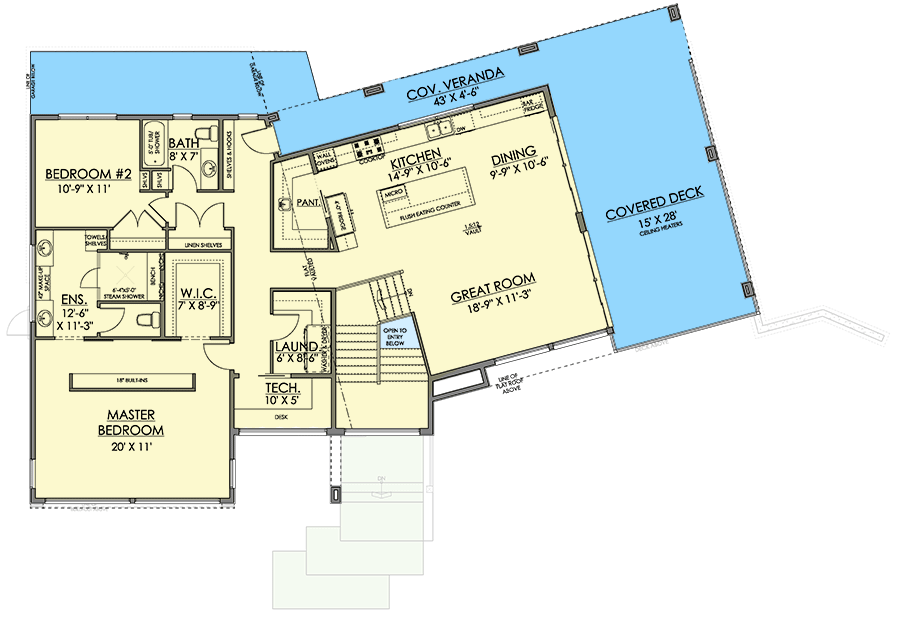

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,775 sq. ft.
  • Lower Level: 905 sq. ft.
  • 1st Floor: 1,870 sq. ft.

Dimensions

  • Width: 75' 6"
  • Depth: 52' 0"
  • Max ridge height: 22' 5"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 1141 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 6" First Floor / 10' 1"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 1.5 on 12
  • Framing Type: Truss
