Plan 666247RAF

Modern House Plan with Lower Level Apartment - 4063 Sq Ft

Heated S.F.
4,063
Beds
4 - 5
Baths
5
Stories
2
Cars
2

Floor Plan

Plan 666247RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level Apartment
Lower Level Apartment

Plan 666247RAF

M-F 9am-5pm EST |

1-203-761-8500

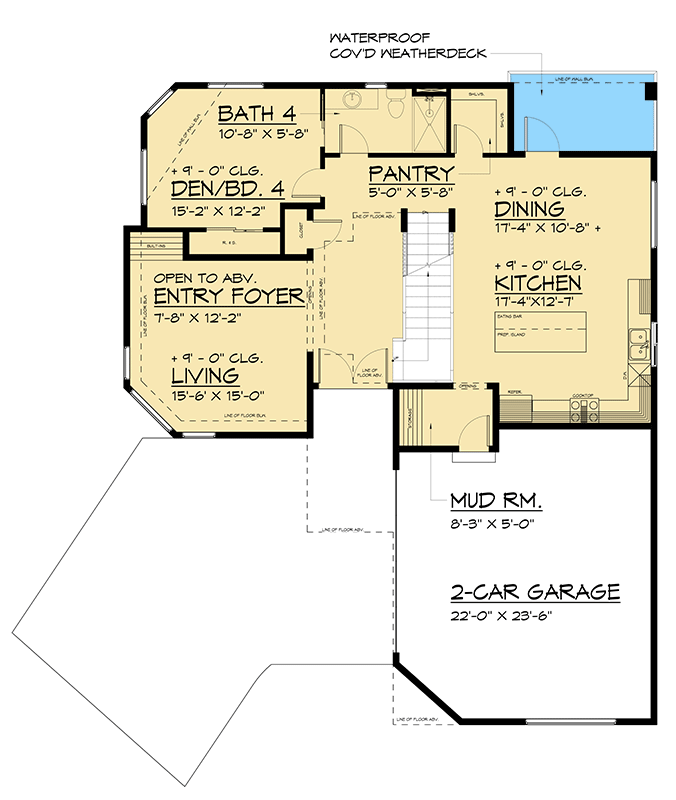

Main Level

Plan 666247RAF: Modern House Plan with Lower Level Apartment - 4063 Sq Ft - Floor Plan - Main Level - Contemporary, Modern

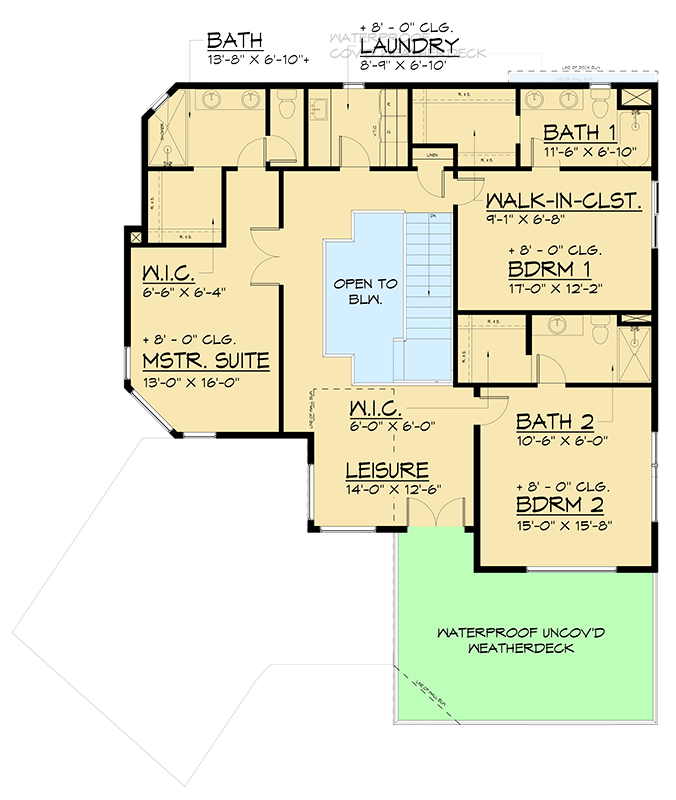

2nd Floor

Plan 666247RAF: Modern House Plan with Lower Level Apartment - 4063 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern

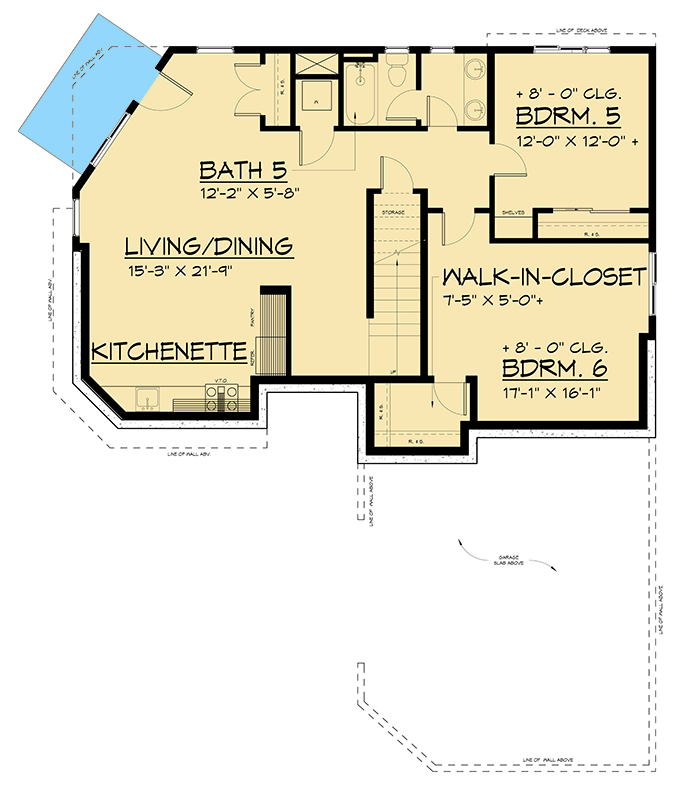

Lower Level Apartment

Plan 666247RAF: Modern House Plan with Lower Level Apartment - 4063 Sq Ft - Floor Plan - Lower Level Apartment - Contemporary, Modern

Plan Details

  • This modern house plan with flex room gives you 4,063 square feet of heated living with 2,823 square feet divided across the first two floors with up to 4 bedrooms and an additional 1,240 square feet in the lower level apartment which is accessible either from the outside or by internal stairs.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,063 sq. ft.

Lower Level

1,240 sq. ft.

1st Floor

1,263 sq. ft.

2nd Floor

1,560 sq. ft.

Deck

330 sq. ft.

Balcony / Veranda

88 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 6"

Depth

56' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

8'

First Floor

8' 9"

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Courtyard

Den

Flex Room

Game/Rec Room

Laundry - Upstairs

Loft

Master Suite - Sitting Area

Master Suite - Upstairs

Mudroom

Wet Bar

Plan Collections

Attached Apartments

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,063 sq. ft.

Lower Level

1,240 sq. ft.

1st Floor

1,263 sq. ft.

2nd Floor

1,560 sq. ft.

Deck

330 sq. ft.

Balcony / Veranda

88 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 6"

Depth

56' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

8'

First Floor

8' 9"

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Courtyard

Den

Flex Room

Game/Rec Room

Laundry - Upstairs

Loft

Master Suite - Sitting Area

Master Suite - Upstairs

Mudroom

Wet Bar

Plan Collections

Attached Apartments

Sloping Lot
