Plan 18842CK

Modern House Plan with Separate Apartment

Heated S.F.
3,528
Beds
3 - 4
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 18842CK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 18842CK

M-F 9am-5pm EST |

1-203-761-8500

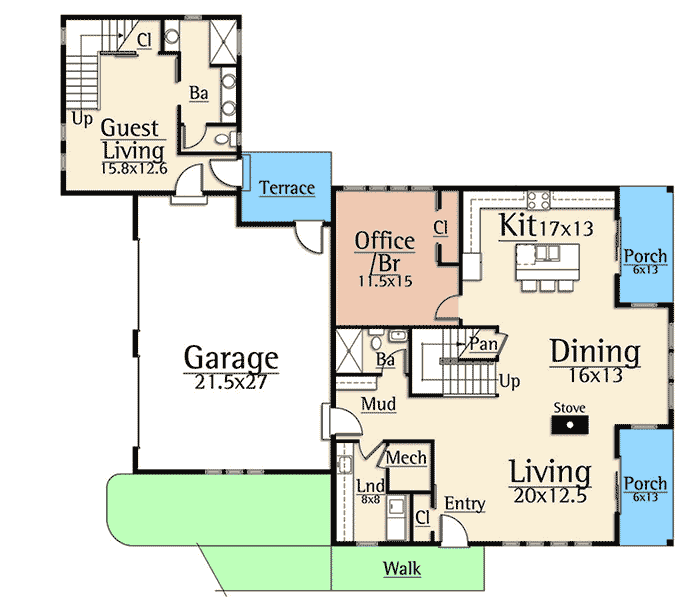

Main Level

Plan 18842CK: Modern House Plan with Separate Apartment - Floor Plan - Main Level - Contemporary, Modern, New Orleans, Rustic

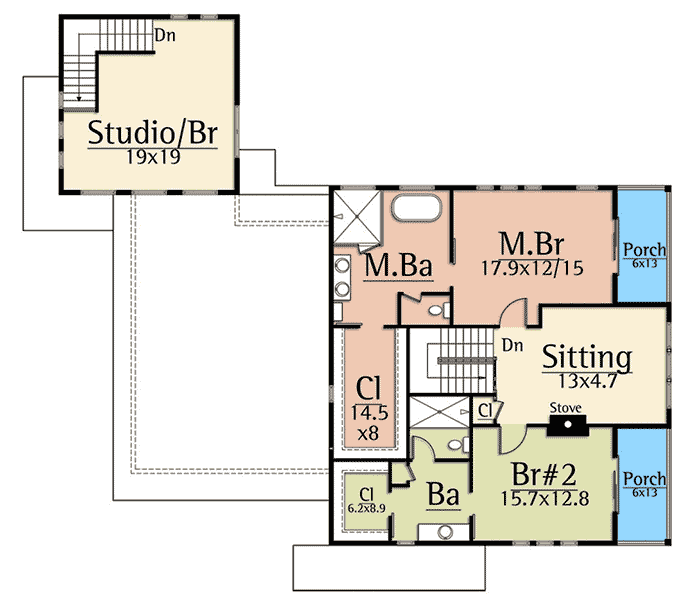

2nd Floor

Plan 18842CK: Modern House Plan with Separate Apartment - Floor Plan - 2nd Floor - Contemporary, Modern, New Orleans, Rustic

Plan Details

  • This unique Modern house plan comes with stacked porches on both floors.
  • In the main house, choose from two bedrooms and a den or three bedrooms.
  • The dining area juts out and gets the benefits of windows on three sides so you can dine with beautiful views.
  • A wood stove warms the living room and dining area and even the big kitchen beyond.
  • Sliding glass doors take you out to the porches on either side of the eating area.
  • Upstairs, both bedrooms also get a private porch with a shared sitting room between the bedrooms.
  • The two-story apartment lies on the other side of the garage and is self-contained with a private entrance, living room, bathroom and second floor bedroom.

What's Included

  • Foundation
  • Framing
  • Floor plan
  • Roof
  • Special sections
  • Details page
  • Electrical plan
  • Door and window schedule
  • Elevations with details
  • Cross sections as needed

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,528 sq. ft.

1st Floor

1,764 sq. ft.

2nd Floor

1,764 sq. ft.

Porch, Front

78 sq. ft.

Porch, Rear

78 sq. ft.

Balcony / Veranda

156 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

51' 6"

Garage

Type

Attached

Count

2 Cars

Entry Location

Side

Architectural Style

Contemporary

Modern

New Orleans

Rustic

Special Features

Den

In-Law Suite

Laundry - Main Level

Master Suite - Upstairs

Stacked Porches
