Modern House Plan with Vaulted Family Room with Fireplace and Loft
Heated S.F.
1,571
Beds
3
Baths
2
Stories
2-3
Cars
2
What's Included
Plan Details
  • The simplicity of the square footprint of this mountain home keeps budget in mind and paired with a sloped roof, a sleek, modern design is the result.

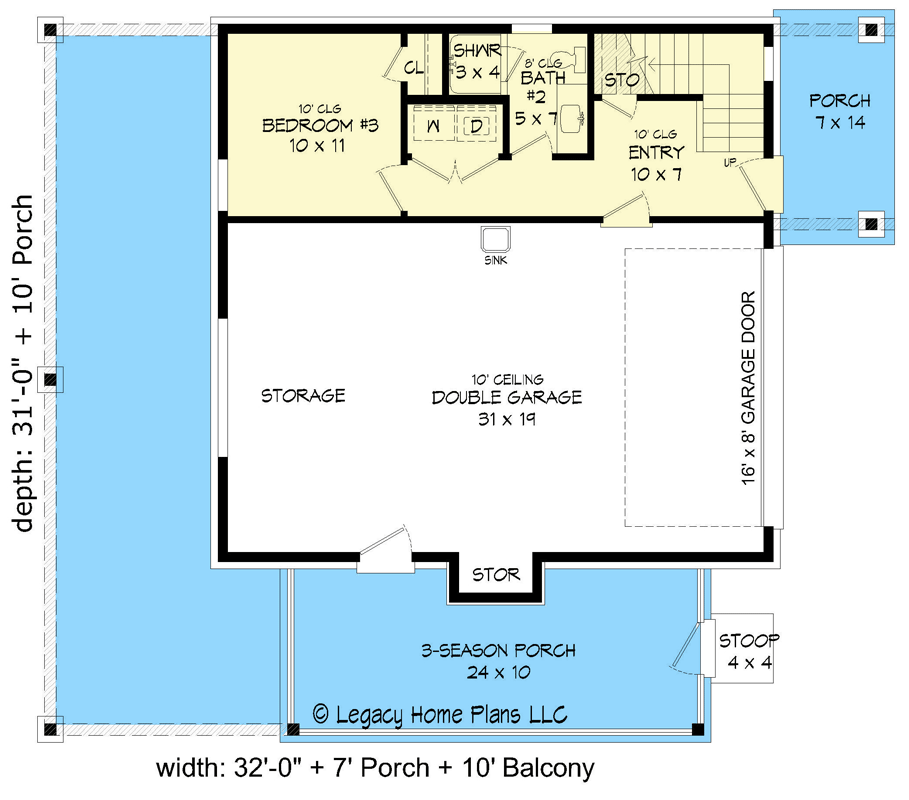

  • The double garage resides on the ground level, and includes additional storage space. A door on the front takes you to a 3-season porch. Step inside off the covered porch and discover a bedroom and full bath on the main level. Stairs go to the second floor where the ceiling rises from 9'5" to 17'.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony which wraps around two sides of the home giving you lots of space to enjoy the views.
  • Wrap-around, kitchen counters offer seating for five, and a nearby pantry closet increases storage space.

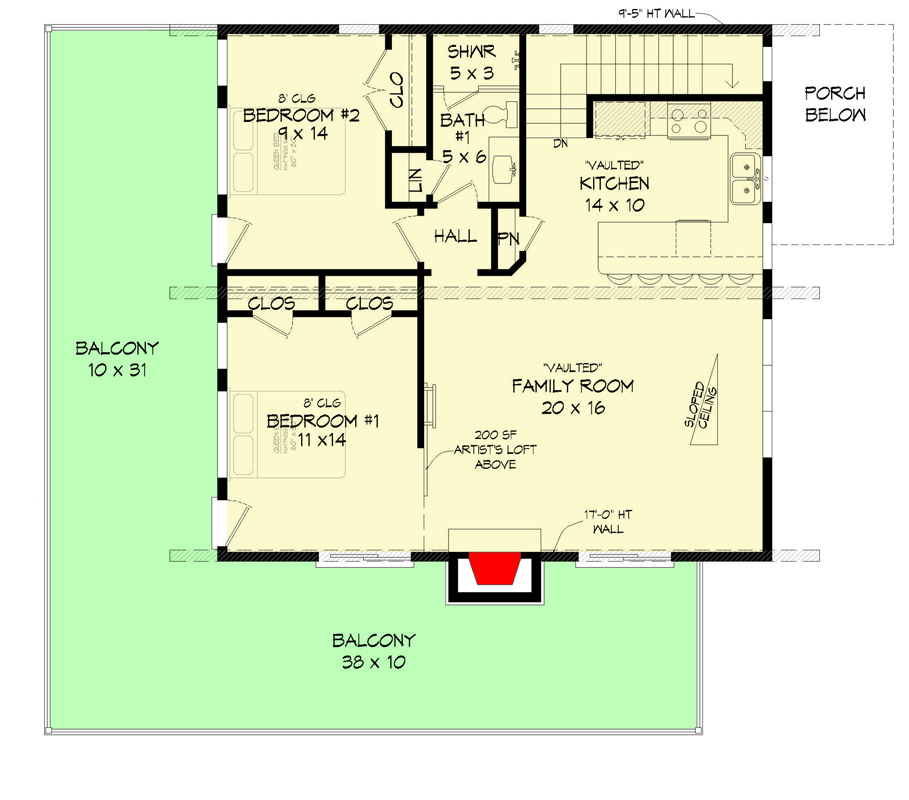

  • A barn door grants access to the master bedroom, which includes two closets, and shares the full bath with the second bedroom on this level which has access to the balcony. A ship ladder in the family room leads to a 200 square foot artist's loft, or flexible creative space.
  • Related Plans: Move the fireplace to the corner of the great room with house plan 68893VR and 68787VR (and remove the side portion of the deck). Get an alternate version with house plan 680057VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
